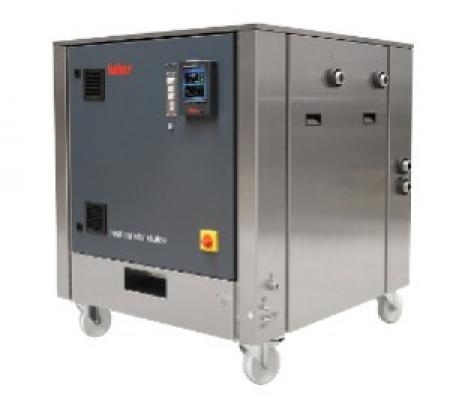

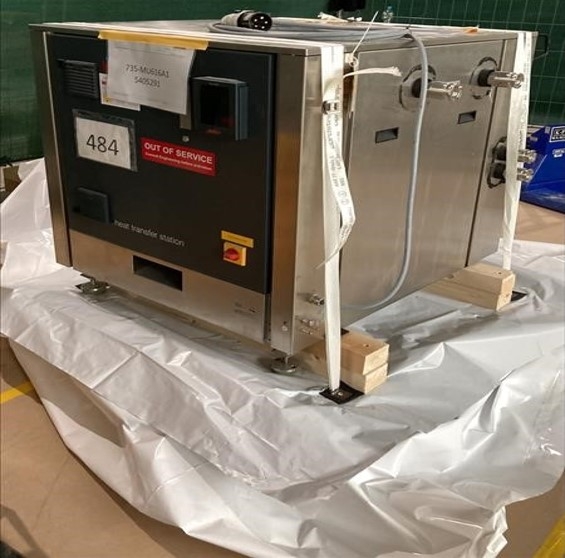

Huber HTS 30-H12 Heat Transfer Unit 5C-90C 240 L/min Digital Controller
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS405291
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
The Huber HTS 30-H12 Heat Transfer Unit is a high-performance heat exchanger designed for laboratory and industrial applications, originating from Germany. This pre-owned unit is in very good condition and capable of efficient heat transfer within a temperature range of 0 to 90C, with a delivery capacity of up to 240 L/min, making it ideal for demanding thermal management tasks. The unit features the advanced Pilot ONE controller with a user-friendly 5.7-inch TFT touchscreen, providing precise control and intuitive navigation aided by software wizards. The heat transfer system includes an atmospheric open expansion tank, a stainless steel circulation pump, and a copper-soldered plate heat exchanger. It supports a 3-phase power supply with 400V at 50Hz. The HTS 30-H12 is engineered for seamless operation in closed systems, equipped with multiple interfaces including USB and Ethernet for easy network integration.
Key Features
- 0-90C temperature range
- 240 L/min maximum delivery
- Digital Pilot ONE controller
- 5.7-inch TFT touchscreen
- Stainless steel circulation pump
- Copper-soldered plate heat exchanger
- 3-phase 400V power supply
- USB and Ethernet connectivity
Specifications
- Temperature range: 0...90C
- Delivery capacity: up to 240 L/min
- Pilot ONE controller with 5.7 TFT touchscreen
- Stainless steel circulation pump and housing
- External plate heat exchanger, copper soldered
- Power supply: 3-phase, 400V, 50Hz
- Maximum current: 5 A
- Safety classification: I / NFL
- Interfaces: USB, Ethernet, RS232
- Cooling power: 22kW / 30kW
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigerating or freezing equipment; heat pumps other than air conditioning machines. This code is justified because the Huber HTS 30-H12 is a specialized piece of refrigerating heat transfer equipment used in industrial applications.
