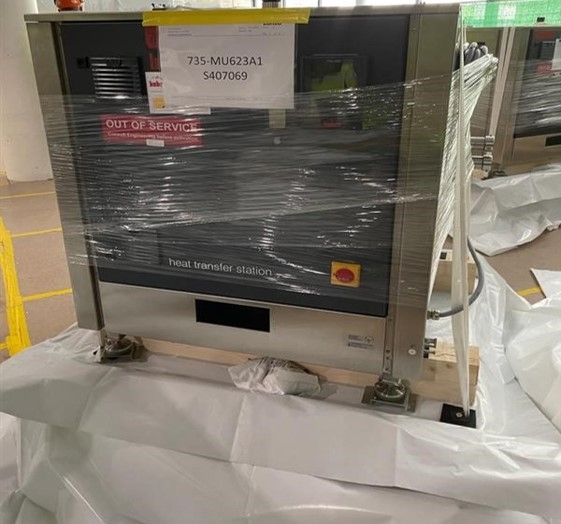

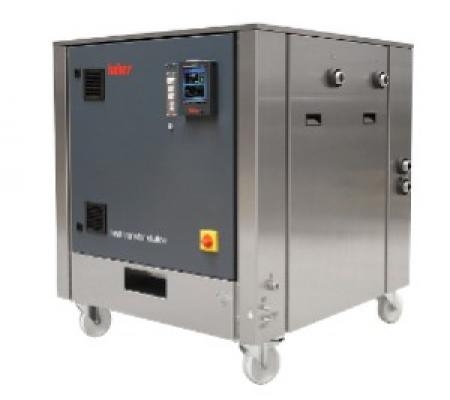

Huber HTS 30-H12 Heat Transfer Unit Efficient Circulator IP20 415V
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS407069
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description
Presenting the Huber HTS 30-H12 Heat Transfer Unit, a pre-owned but very well-maintained solution for precise thermal management. Originating from Germany, this unit offers robust functionalities including a stainless steel circulation pump and a digital level indicator. Ideal for externally closed applications, it features an adjustable overtemperature protection based on DIN 12876 standards. The innovative Pilot ONE controller provides users with a 5.7-inch TFT touchscreen, USB/network connections, and supports 13 languages, facilitating easy navigation and operation. Cooling power ranges from 22kW to 30kW, supporting mediums like water ranging from 0°C to 90°C. This unit is functional and arrives with a standard IP20 degree of protection, designed for ambient temperatures of 5°C to 40°C.
Key Features
- Equipped with Pilot ONE controller for enhanced precision
- Stainless steel housing and circulation pump
- Operating temperature of 5 to 90°C on the secondary side
- Cooling power from 22kW to 30kW
- Digital level indicator for accurate monitoring
- Ethernet, USB, RS232 interfaces for connectivity
- IP20 protection grade
Specifications
- Temperature range (secondary side): 5°C to 90°C
- Primary cooling medium: water, 0°C to 90°C
- Cooling power: 22kW / 30kW
- Power requirements: 415V, 50Hz, 3-phase
- Max. delivery pressure: 4.7 bar
- Pilot ONE controller with 5.7” TFT touchscreen
- External dimensions (WxDxH): 940x1050x1130 mm
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
84195080
Harmonized Code Details
84195080 - Machinery and apparatus for filtering or purifying liquids. This code is chosen as it covers large-scale heat exchangers and similar industrial applications central to the product's intended use.
