Huber HTS 30-H12 Heat Transfer Unit Chiller 5.7" Display 5-90C 160 L/min
1 4
Huber HTS 30-H12 Heat Transfer Unit Chiller 5.7" Display 5-90C 160 L/min
Huber HTS 30-H12 Heat Transfer Unit Chiller 5.7" Display 5-90C 160 L/min
Huber HTS 30-H12 Heat Transfer Unit Chiller 5.7" Display 5-90C 160 L/min
Huber HTS 30-H12 Heat Transfer Unit Chiller 5.7" Display 5-90C 160 L/min

Huber HTS 30-H12 Heat Transfer Unit Chiller 5.7" Display 5-90C 160 L/min

sku: 3371456
Out Of Stock

Huber

HTS 30-H12
US • REUZEit North East US - R
30-Day Warranty On Part
OUT OF STOCK
Apply For Finance Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Chiller / Heater
  • Dimension
    15.75in x 18.9in x 24.41in
  • Serial
    S407678
  • Shipping Type
    Freight
  • Manufacturing
    Does Not Apply
  • Voltage / Hertz
    415V / 50Hz UK

Description

Product Information

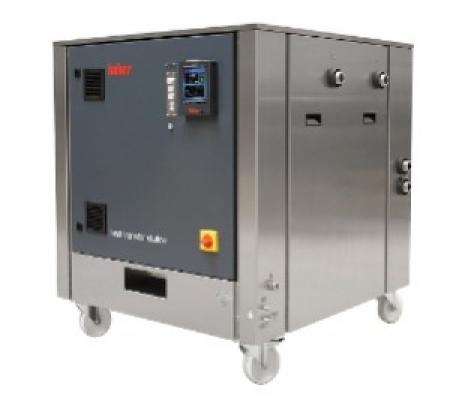

The Huber HTS 30-H12 Heat Transfer Unit, a pre-owned device of German origin, operates in very good condition, offering reliability within a lab setting. This versatile equipment functions under a three-phase 400V 50Hz power supply and is characterized by its stainless steel heat exchanger and digital level indicator. Ideal for closed applications, it features a Pilot ONE controller, enhancing operational efficiency with a 5.7-inch TFT touchscreen. The unit supports network and USB connections, offering enhanced control over your processes. With cooling power of up to 30 kW at various flow rates, it is suitable for applications requiring precise temperature control, operating within a range of 5 to 90 degrees Celsius. This system is equipped with safety features like overtemperature protection as per DIN 12876, making it a valuable addition to any laboratory infrastructure in need of efficient heat management.


Key Features
  • Pre-owned Huber HTS 30-H12
  • Operating temperature: 5-90C
  • Cooling power up to 30kW
  • Digital 5.7-inch TFT touchscreen
  • Supports closed applications
  • USB and network connections
  • True Adaptive Control (TAC)

Specifications
  • Voltage: 415V, Hertz: 50Hz UK
  • Phase: 3, Max Current: 5 A, Fuse: 3x10 A
  • Plug type: 230 507 3P 1N 1E
  • Cooling power with water at 20C: 30 kW
  • Flow rates: Primary side: 50 l/min, 100 l/min; Secondary side: 160 l/min
  • Temperature stability: 0.1 K
  • Internal temperature sensor: Pt100
  • Max delivery pressure: 4.7 bar, Max delivery: 240 l/min
  • Network integration: Ethernet, USB, RS232
  • Safety Classification: I / NFL

Weight

Imperial: 1891.56 Pounds

Metric: 858.0 Kilograms


Shipping Dimensions

Imperial: 18.9 lb x 22.68 lb x 29.29 lb

Metric: 48.01 cm x 57.61 cm x 74.4 cm


Harmonized Code

84195090


Harmonized Code Details

Code 84195090 covers heat exchange units used for processing physical states without using additional energy from external sources. This is suitable due to the Huber HTS 30-H12's role as a heat transfer unit employing internal cooling systems.
