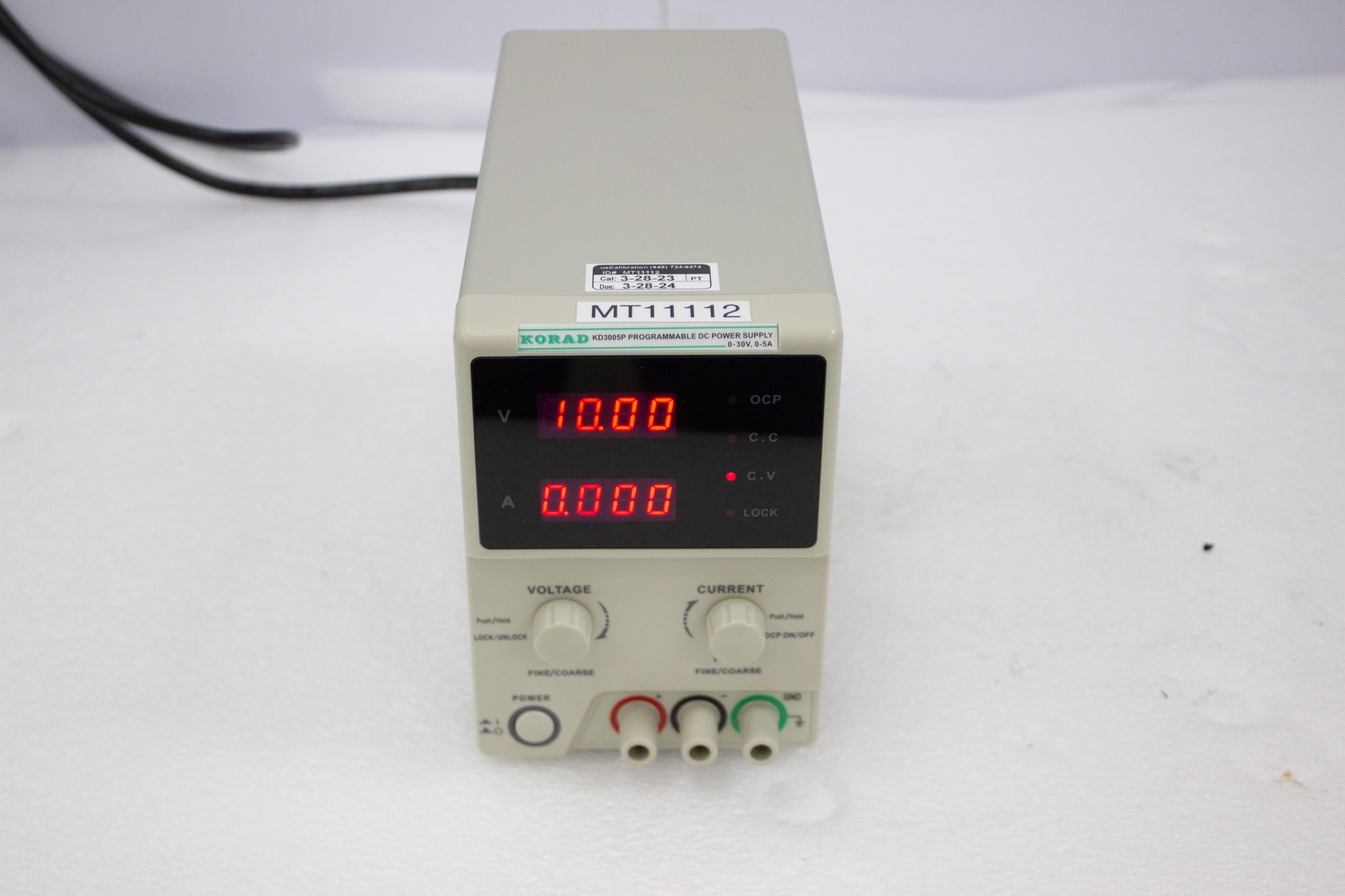

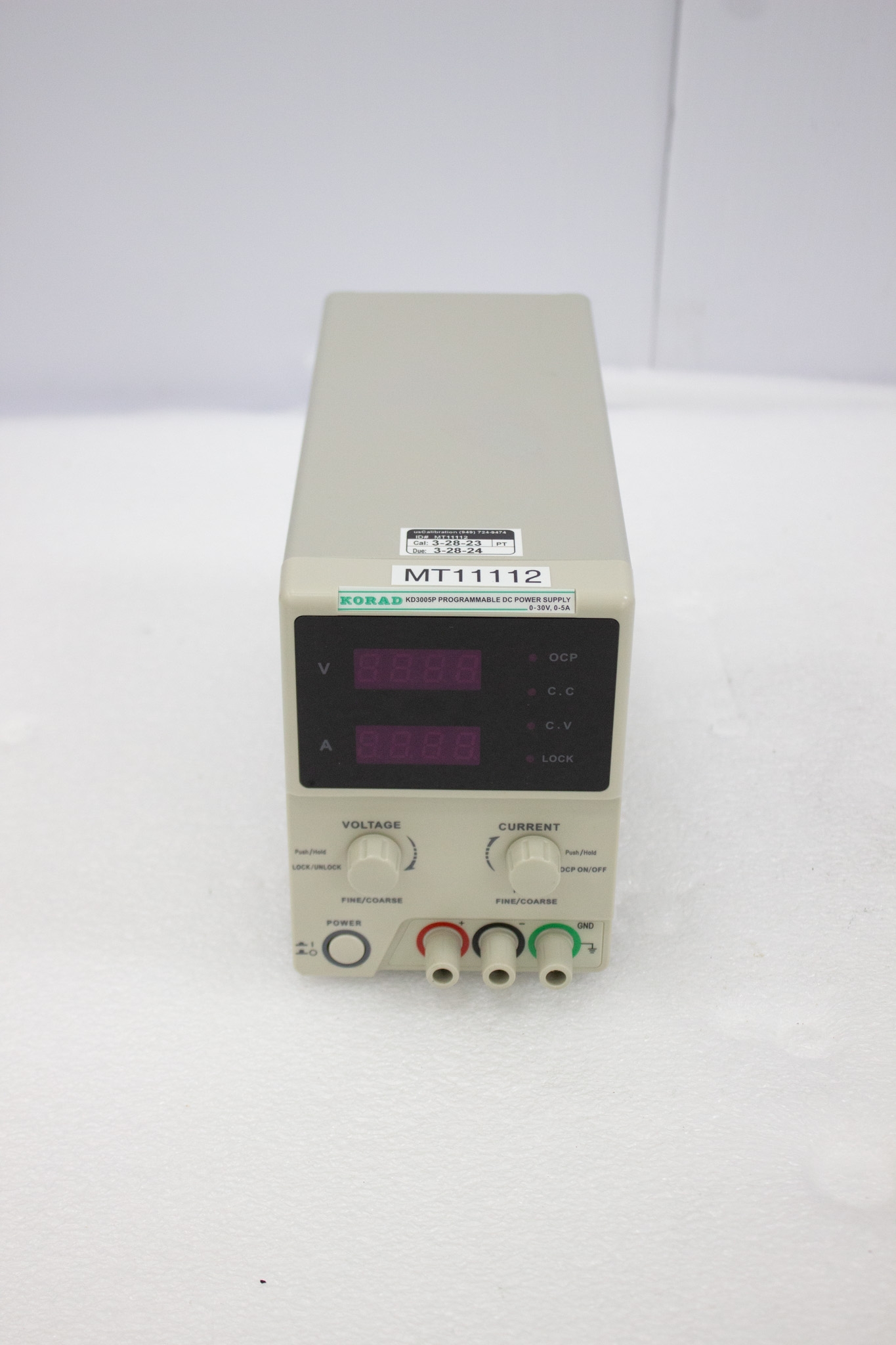

Korad KA3005P Programmable DC Power Supply 30V 5A Lab Production 110/220V
Korad
Details
-
CategoryElectrophoresis
-
Dimension11.0in x 5.0in x 7.0in
-
Serial202006017733
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Korad KA3005P Programmable DC Power Supply is a high-quality, reliable unit designed for labs, colleges, and production environments. With its robust features, this power supply offers a continuous adjustable output voltage range of 0-30V and current range of 0-5A. It features dual 4-digit LED displays for precise voltage and current measurements, and has low ripple, noise, and high accuracy. The power supply is equipped with USB and RS232 interfaces, allowing for remote control. Despite being unable to fully test, it powers on and conducts basic tests successfully, with no known functional issues. It is compact and designed to handle both constant-voltage and constant-current tasks, available in either 110V or 220V input options.
Key Features
- Programmable DC Power Supply
- 30V 5A output
- Compact design
- Dual 4-digit LED displays
- Low ripple and noise
- USB and RS232 interfaces for remote control
- Switchable 110V/220V input voltage
Specifications
- Output Voltage Range: 0-30V, Continuously adjustable
- Output Current Range: 0-5A, Continuously adjustable
- Setup Resolution: 10 mV and 1 mA
- Setup Accuracy: <0.05% +20 mV and <0.1% +3 mA
- Ripple and Noise: < 1mVRMS, < 3mARMS
- Temperature Coefficient: < 100 ppm+5mV/mA

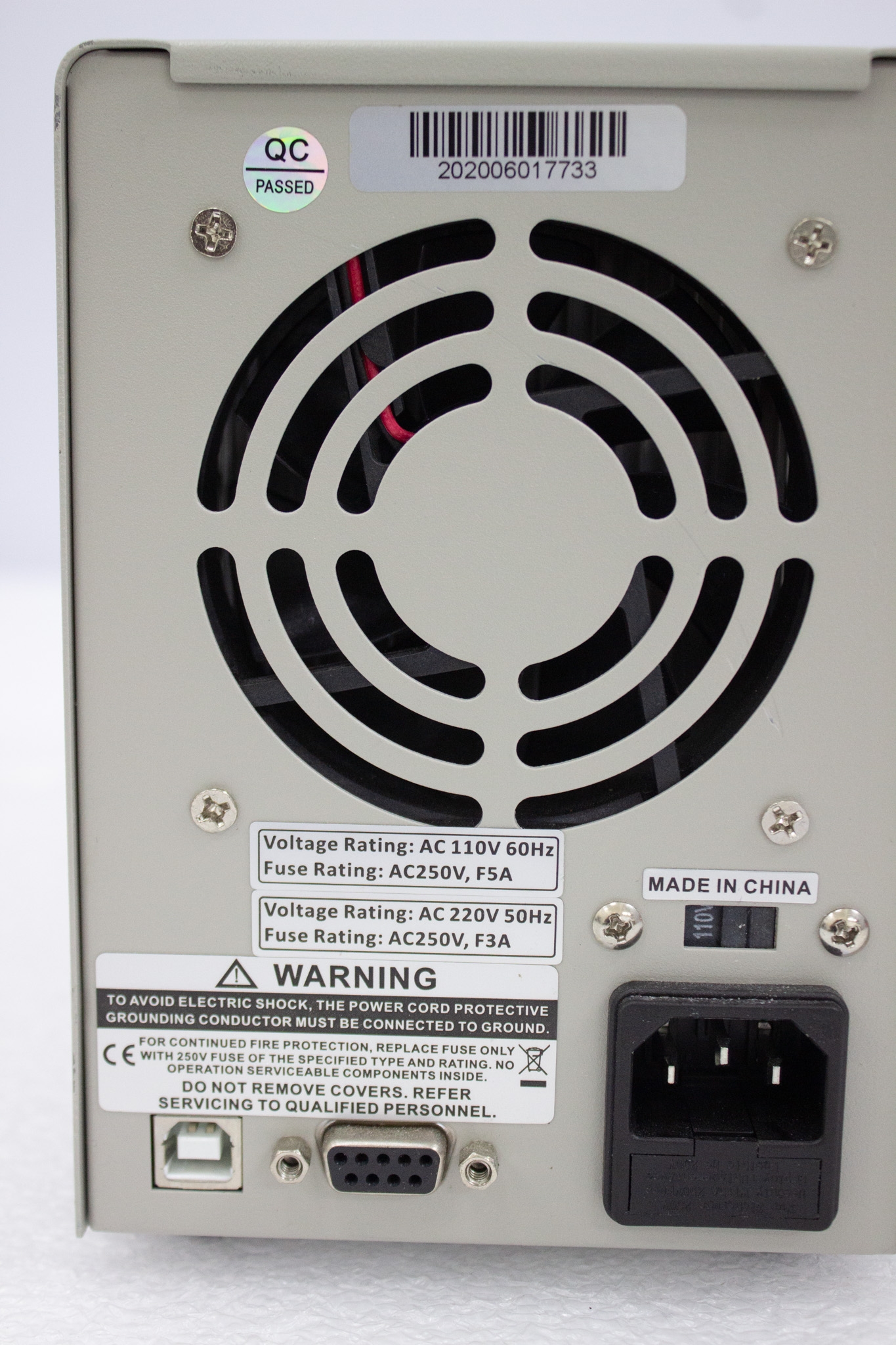

- Interface: USB and RS232
- Input: 120V/220V, 50Hz/60Hz
- Operating Temperature: 32-104°F (0-40°C)
- Operating Humidity: <80%RH
Weight
Imperial: 12.0 Pounds
Metric: 5.44 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 6.0 lb x 8.4 lb
Metric: 33.53 cm x 15.24 cm x 21.34 cm
Harmonized Code
85044090
Harmonized Code Details
85044090 - Static converters; parts of static converters, n.e.s. This code is applicable because the Korad KA3005P is an electronic power supply unit used for converting electrical energy.
