Clean Rooms West Custom Large Clean Room Modular Filtration 2020/2021 Installed
Clean Rooms West
Details
-
CategoryFacility
-
Dimension1272.0in x 192.0in x 192.0in
-
SerialN/A
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Clean Rooms West - Custom Large Format Clean Room, manufactured in 2020/2021, offers a spacious and efficient solution for pharmaceutical, biotech, and medical applications. This pre-owned 2473 sq. ft. dry room includes a 137 sq. ft. air lock room and a 408 sq. ft. equipment room, ensuring ample space for diverse research activities. The clean room features a Dry Air/New York Blower Dehumidifier/Fan with a filtration system that incorporates outside air intake and HEPA filters, ensuring air purification to .3 microns. Constructed with anodized aluminum powder-coat white framing, it is well-suited for cleanroom applications. Energy-efficient lighting and modular wiring make it an economical choice for large-scale laboratory setups. Fully documented plans are available to interested buyers, while the FOB is located in Temecula, CA. This unit presents a cost-effective opportunity for industries seeking robust, large-format clean room installations.
Technician comment

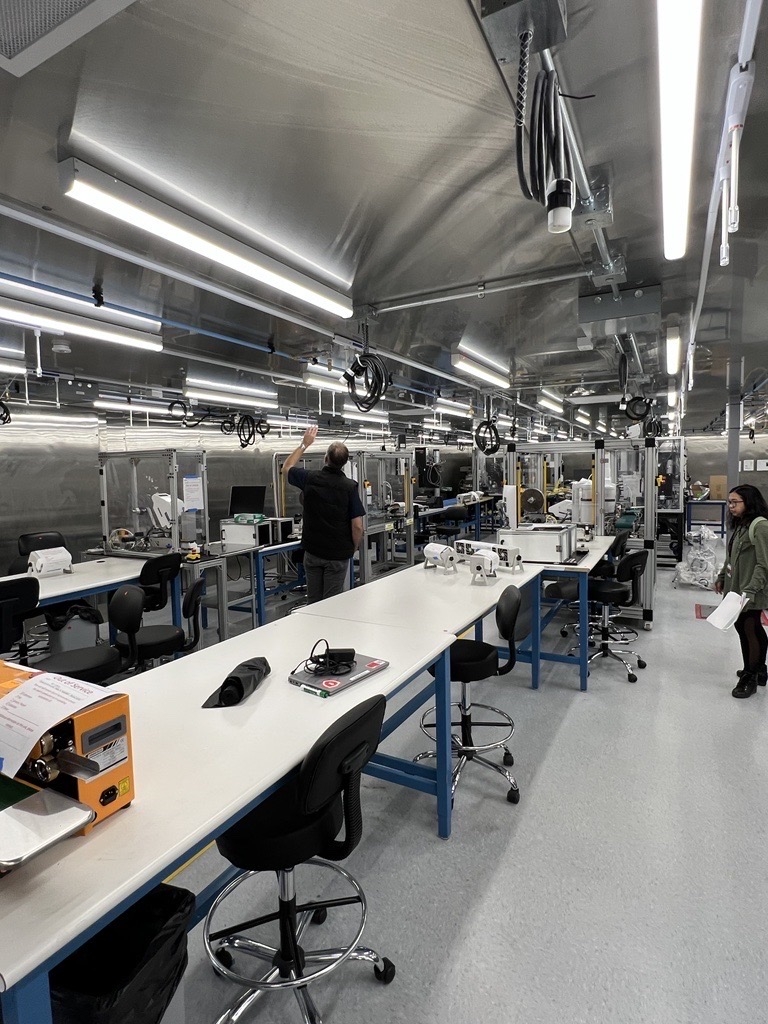

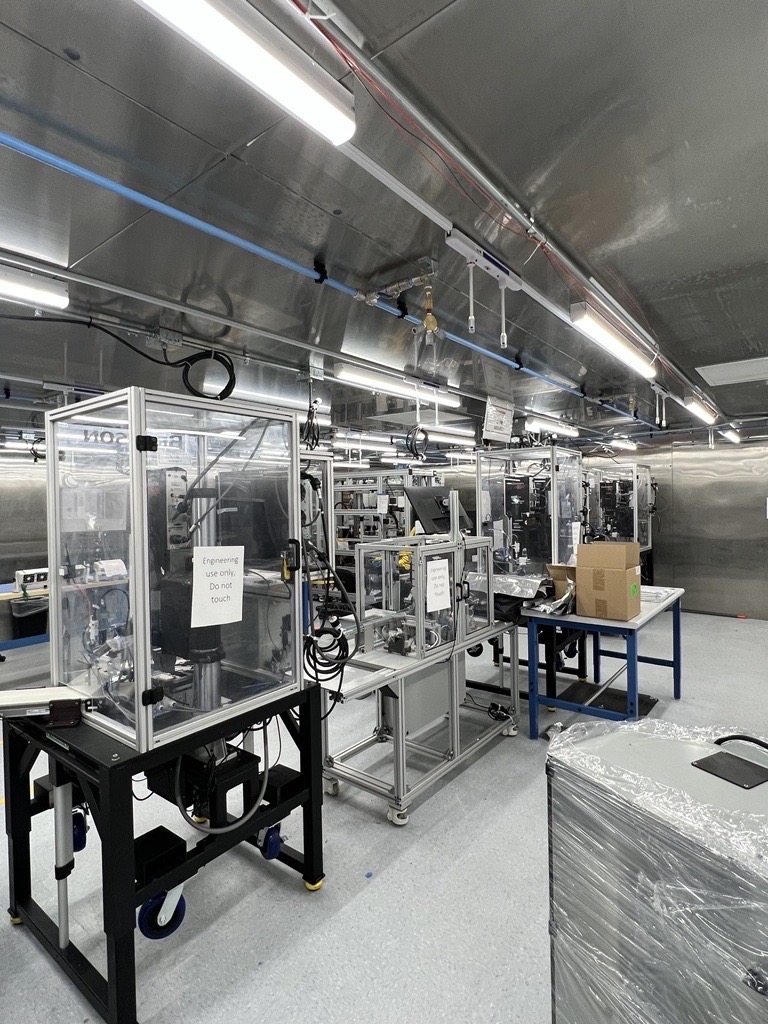

**This system chassis and working equipment (blower, etc.) is in excellent condition when it was removed from a major life-sciences company. We recommend new insulation and paneling. No matter, this is still a great chance to save on your next large format clean room. Pictures show how room looked when originally constructed (lab tables, chairs, and equipment pictured for reference only).
Key Features
- 2020/2021 model, large-format clean room
- 2473 sq. ft. dry room, 137 sq. ft. air lock room, 408 sq. ft. equipment room
- Manufactured by Clean Rooms West in the USA

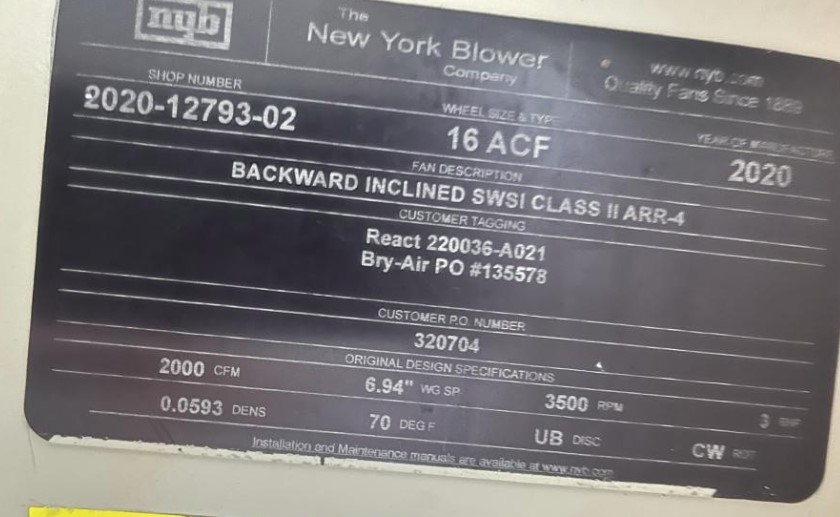

- Dry Air/New York Blower Dehumidifier/Fan
- Anodized aluminum powder-coat white construction
- HEPA filtration to .3 microns
- Modular, energy-efficient design
Specifications
- Frame Construction: Anodized Aluminum, Powder-Coat White
- Filtration System: Outside Air Intake (35%/85% Efficiency), Return Air Re-Circulation, HEPA Filters to .3 Microns
- Entrance Type: PVC Strips, Storefront Door Style, Full Glass Vision, Automatic Sliders, High-Speed Roll-Up Doors
- Lighting: Sealed Fixtures, Energy Efficient, Flush-Mounted, UV-Filtering Available
- Panels: Modular Options in Painted Aluminum, UPVC, Painted Steel, HPL
- Wiring: Wire Studs for Electrical and Data, Modular Wiring for Process Gases or Compressed Air
Weight
Imperial: 2160.0 Pounds
Metric: 979.76 Kilograms
Shipping Dimensions
Imperial: 1526.4 lb x 230.4 lb x 230.4 lb
Metric: 3877.06 cm x 585.22 cm x 585.22 cm
Harmonized Code
841460
Harmonized Code Details
HS Code 841460 applies to air pumps, compressors, and fans. This classification aligns with the clean room's New York Blower and dehumidifier components.
