Korad KA3005P DC Power Supply 30V 5A Single-Channel Programmable USB RS232
Korad
Details
-
CategoryTesting Equipment
-
Dimension11.0in x 5.0in x 7.0in
-
Serial202006017732
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Korad KA3005P Programmable DC Power Supply is a robust and reliable power source designed for laboratory, academic, and industrial use. This single-channel unit delivers constant voltage and current with high precision and low noise. The power supply features a dual 4-digit LED display for easy monitoring of voltage and current settings. With continuously adjustable output ranging from 0-30V and 0-5A, this unit ensures high accuracy and stability. The model supports remote operation via USB and RS232 interfaces, catering to versatile technical environments. Although the device is used, it has been tested and found to power on and conduct basic functions. Cosmetic wear is present due to regular use, but it does not affect functionality. Ideal for precise electronic testing and development applications.
Key Features
- Programmable DC Power Supply
- Single-channel constant voltage/current
- USB and RS232 interface for remote control

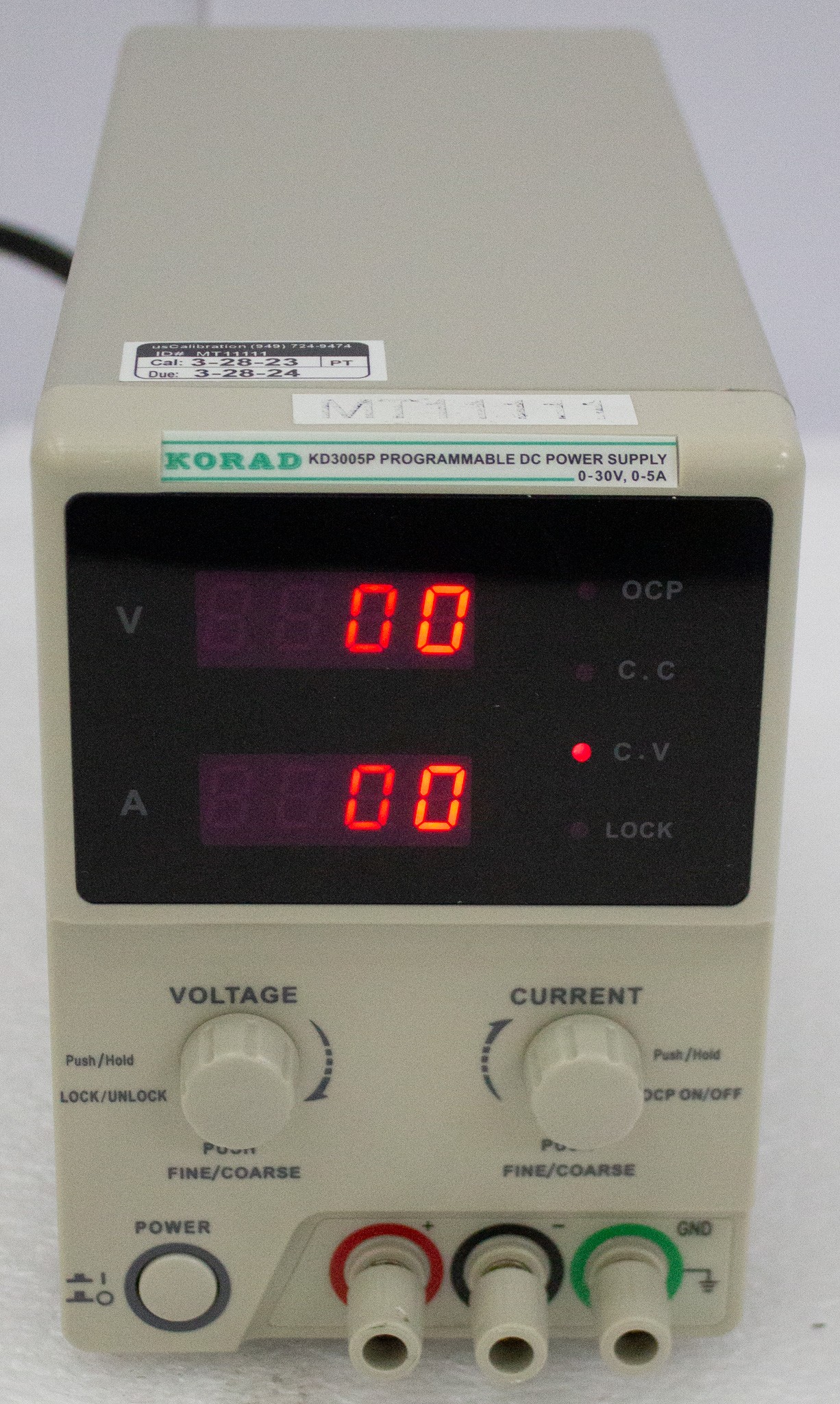

- Easy to read dual 4-digit LED displays
- High reliability and low ripple noise
- Continuous voltage output: 0-30V
- Continuous current output: 0-5A
Specifications
- Input voltage: 110V +/-10% switchable to 220V+/-10%
- Frequency range: 50-60Hz
- Operating temperature: 32-104F (0-40C)
- Operating humidity: <80%RH
- Storage temperature: 32-158F (0-70C)
- Storage humidity: <70%RH
- Output Voltage Range: 0-30V continuously adjustable
- Setup Resolution: 10 mV
- Setup Accuracy: <0.05% +20 mV
- Current Range: 0-5A continuously adjustable
- Setup Resolution: 1 mA
- Setup Accuracy: <0.1% +3 mA
- Ripple: <1mVRMS for voltage, <3mARMS for current

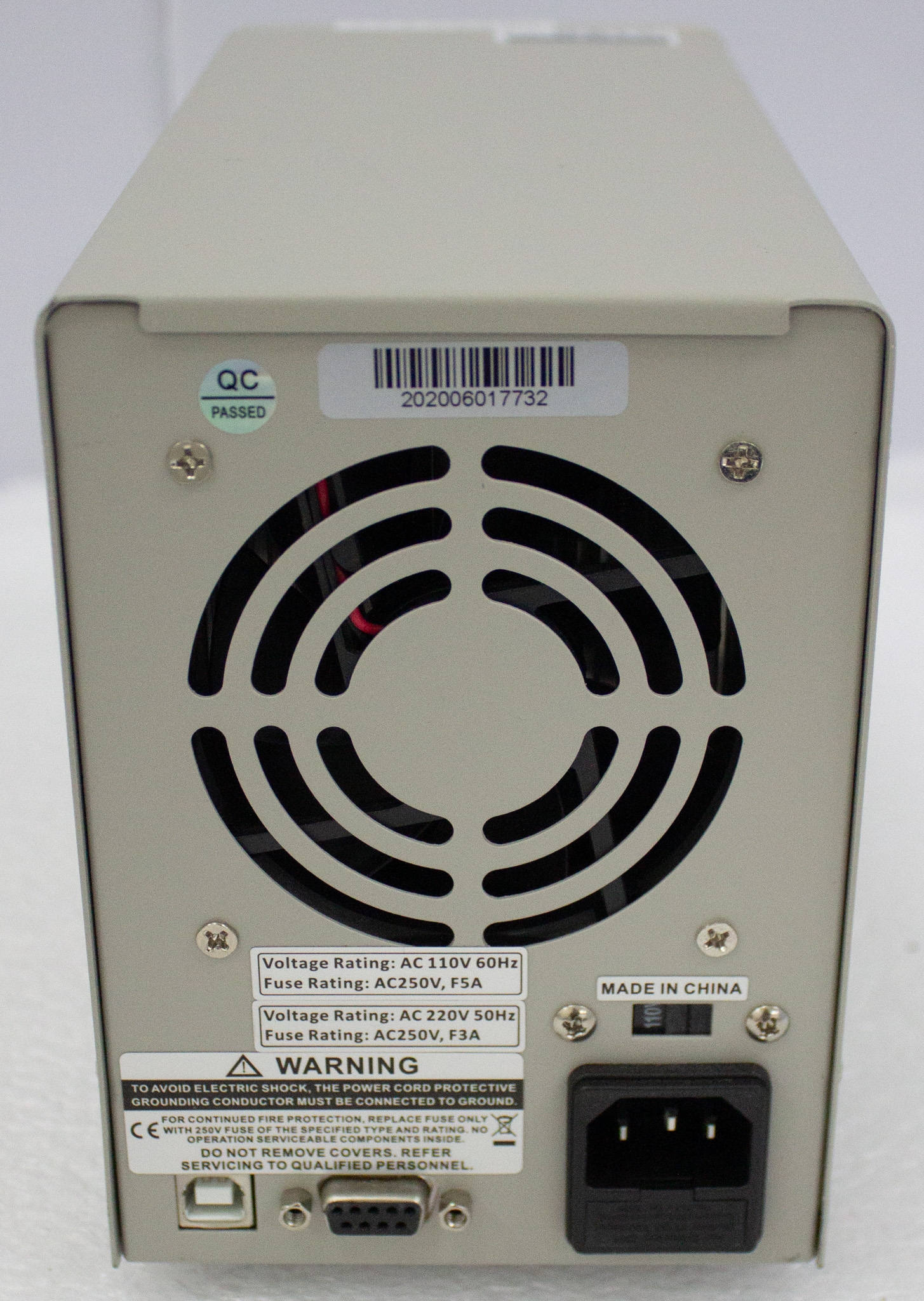

- RS232 and USB interface for remote operation
Weight
Imperial: 12.0 Pounds
Metric: 5.44 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 6.0 lb x 8.4 lb
Metric: 33.53 cm x 15.24 cm x 21.34 cm
Harmonized Code
85044030
Harmonized Code Details
85044030: Static converters. Power Supplies like the Korad KA3005P are categorized under static converters due to their function in converting electrical energy to a set power specification, suitable for lab and industrial electronics testing.
