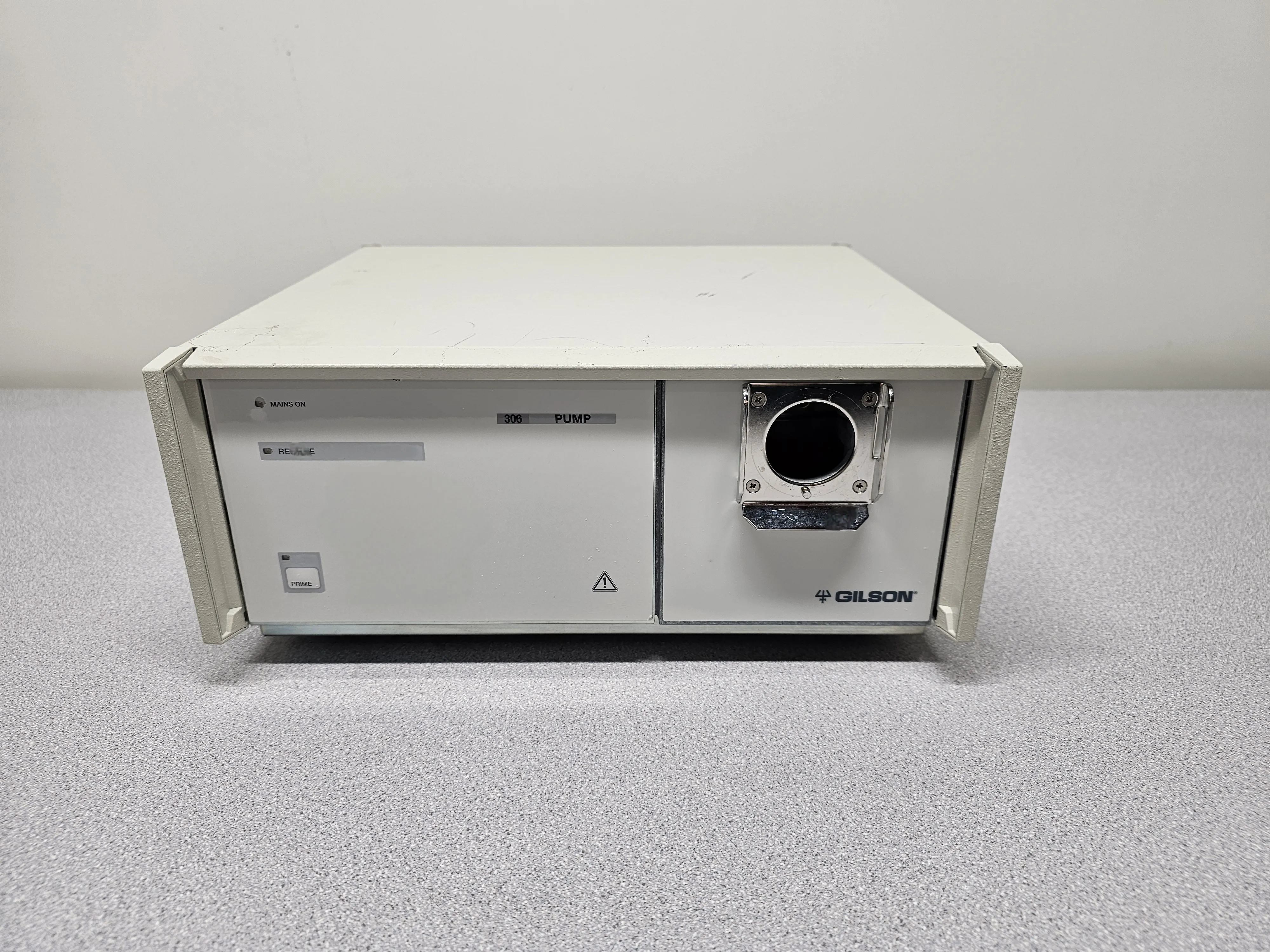

Gilson 306 HPLC Pump

Product Information

The Gilson 306 HPLC Pump is a cost-effective and dependable solution for analytical to preparative HPLC. With interchangeable pump heads that accommodate flow rates ranging from 10 L/min to 200 mL/min, this pump is available in isocratic, binary, and tertiary configurations. It is designed for multi-pump applications and can be controlled either by a computer with Gilson software or by a Gilson 305 Master pump acting as a system controller. The 305/306 Pumps can be used in either isocratic or gradient HPLC with a wide range of flow rates from 10 L/min to 200 mL/min. The simple control allows for reliable chromatographic separation using easy method development through TRILUTION LC software or using a standalone keypad. Accessories to enhance the pumping action include manometric modules, dynamic mixers, and an external pulse dampener. The hydraulic system of the pump is a reciprocating pump with a single-piston interchangeable head, allowing for an operating pressure of 0.160 MPa (1-600 bar, 14.5-8700 psi) depending on the pump head used. The pump type ranges from isocratic to binary and tertiary configurations.

• Interchangeable pump heads for diverse flow rates
• Controlled by computer with Gilson software
• Designed for multi-pump applications

• Manufacturer: Gilson
• Model: 306
• Condition: Used
• Working Condition: Yes
• Flow Rate Range: 10 L/min - 200 mL/min
• Pump Type: Isocratic, binary, and tertiary configurations
• Power Voltage: 110-120 / 220-240 V~
• Purification Technique: HPLC
• Hydraulic System: Reciprocating pump with single-piston interchangeable head
• Operating Pressure: 0.160 MPa (1-600 bar, 14.5-8700 psi) depending on pump head used

Metric: 5.9 kg
Imperial: 13.0 lbs

Metric: 48.26 cm x 38.1 cm x 20.32 cm
Imperial: 19 in x 15 in x 8 in

9027200000

9027200000: Chromatographs and electrophoresis instruments, excluding liquid chromatographs and electrophoresis instruments comprising a capillary sequencer
