Analytical MTC200 MultiSLEEVE Controller for LC Heating 5C-100C Accurate
Analytical Sales and Products
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension13.0in x 11.0in x 9.0in
-
SerialMulti-0004
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

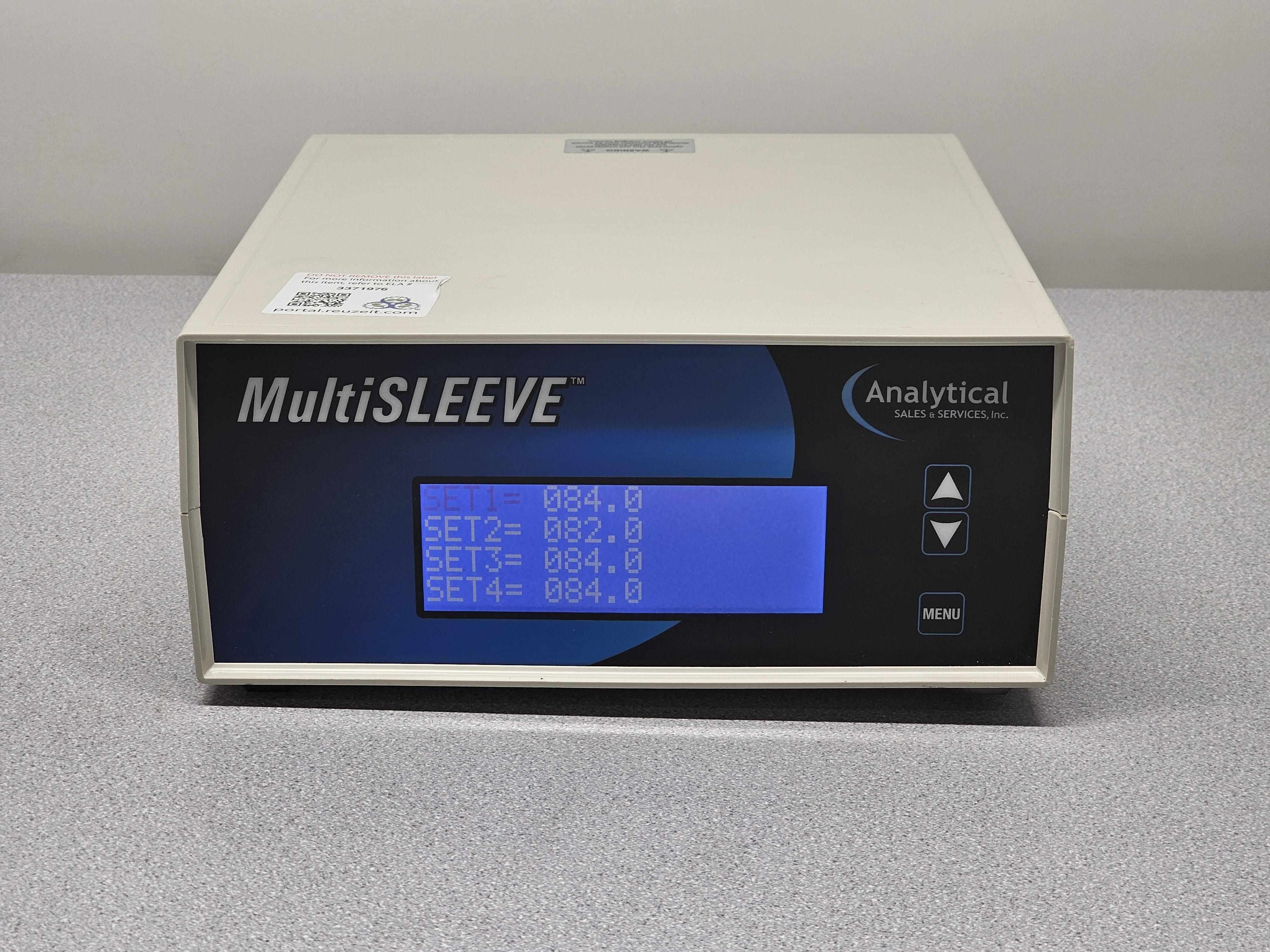

The Analytical Sales and Products MTC200 MultiSLEEVE Controller is designed for precision in liquid chromatography (LC) applications, offering multiple heating zones. This used unit is in 'Good' condition, indicating it powers on and performs basic tests, though full testing wasn't possible. The controller can maintain four independent channels with IntelliSLEEVE and AgileSLEEVE PLUS heaters, achieving accurate temperature control between 5°C above ambient to 100°C, with heater accuracy of +/- 0.5°C and controller accuracy of +/- 0.1°C. The system is optimized for analytical formats only, and it displays the actual and set temperatures for user convenience. Environmentally, it operates effectively between 0 to 50°C with humidity levels up to 75%. Notably absent of included computer or software, this piece is a robust fit for general lab heating needs, enhancing operational efficiency while minimizing equipment costs.
Key Features
- Multiple heating zones for liquid chromatography applications
- Compatible with IntelliSLEEVE and AgileSLEEVE PLUS heaters
- Temperature range from 5°C above ambient to 100°C
- Heater accuracy of +/- 0.5°C, controller accuracy of +/- 0.1°C

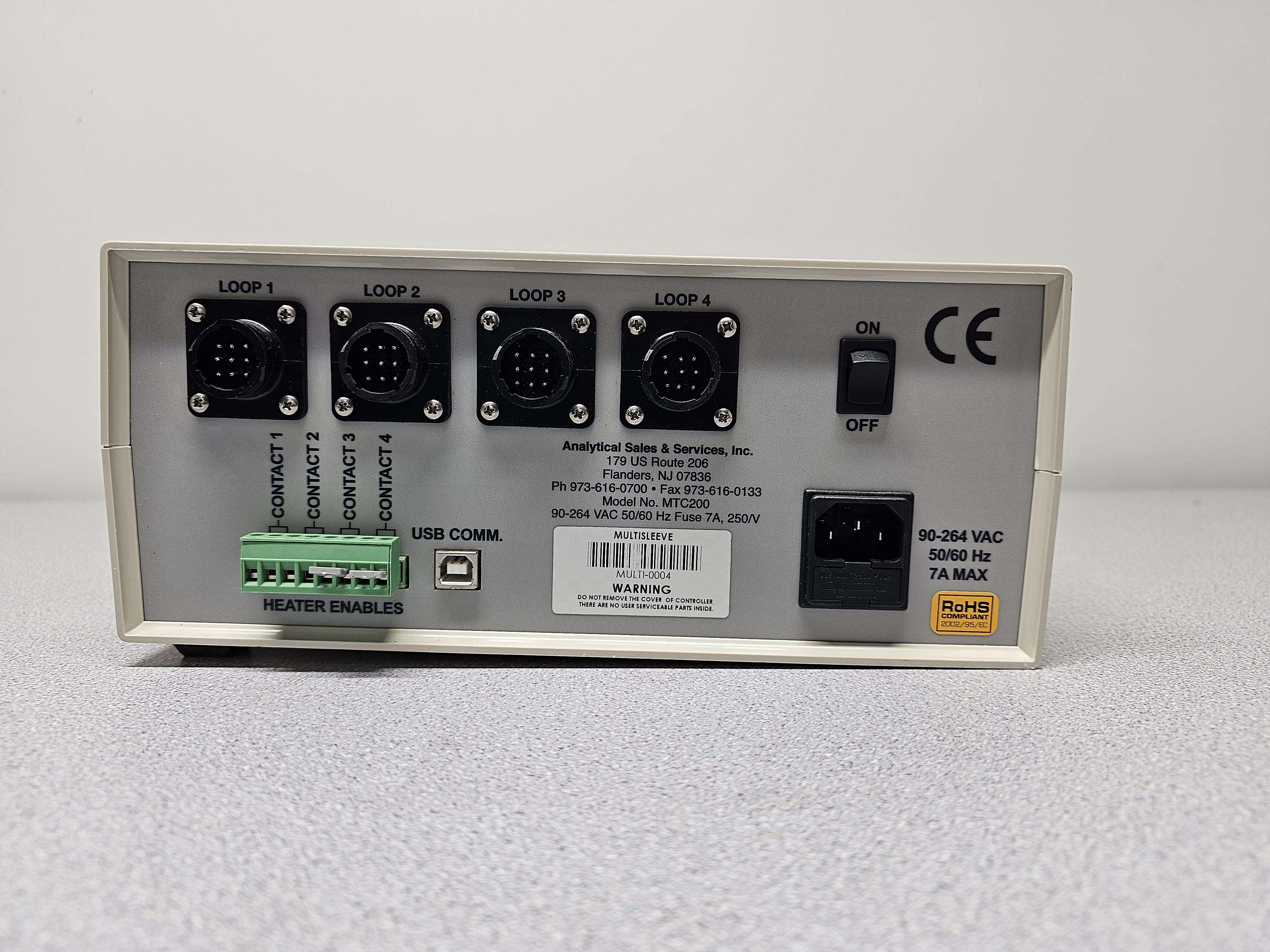

- Supports four independent heating channels
- Operates in ambient temperatures of 0 to 50°C (32 to 122°F)
- Handles up to 75% relative humidity
Specifications
- Heating Range: 5°C above ambient to 100°C
- Power Requirements: 90-264 VAC, Internal Conversion to 24 VDC
- Heating Elements: 12-100 Watt, 24 VDC Rated
- Heater Accuracy: +/- 0.5°C
- Controller Accuracy: +/- 0.1°C
- Calibration Point: 45°C set within IntelliSLEEVE or AgileSLEEVE PLUS
- Operating Temperature: 32 to 122°F ambient (0 to 50°C)
- Operating Humidity: No greater than 75% RH (non-condensing)
Weight
Imperial: 7.2 Pounds
Metric: 3.27 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 13.2 lb x 10.8 lb
Metric: 39.62 cm x 33.53 cm x 27.43 cm
Harmonized Code
9027.20.40
Harmonized Code Details
Harmonized Code 9027.20.40: Instruments and apparatus for physical or chemical analysis of liquid or gas compositions, specifically designed for chromatography. This code is relevant due to the product's application in liquid chromatography systems.
