Gilson Fc204 Chemistry Fraction Collector Collects Microplates 120V 60Hz 200mL/min
Gilson
Details
-
CategoryChemistry
-
Dimension35.0in x 24.0in x 24.0in
-
Serial171J5B055, 171G5B037, 171G5B041, 171G5B034, 171G5B035
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

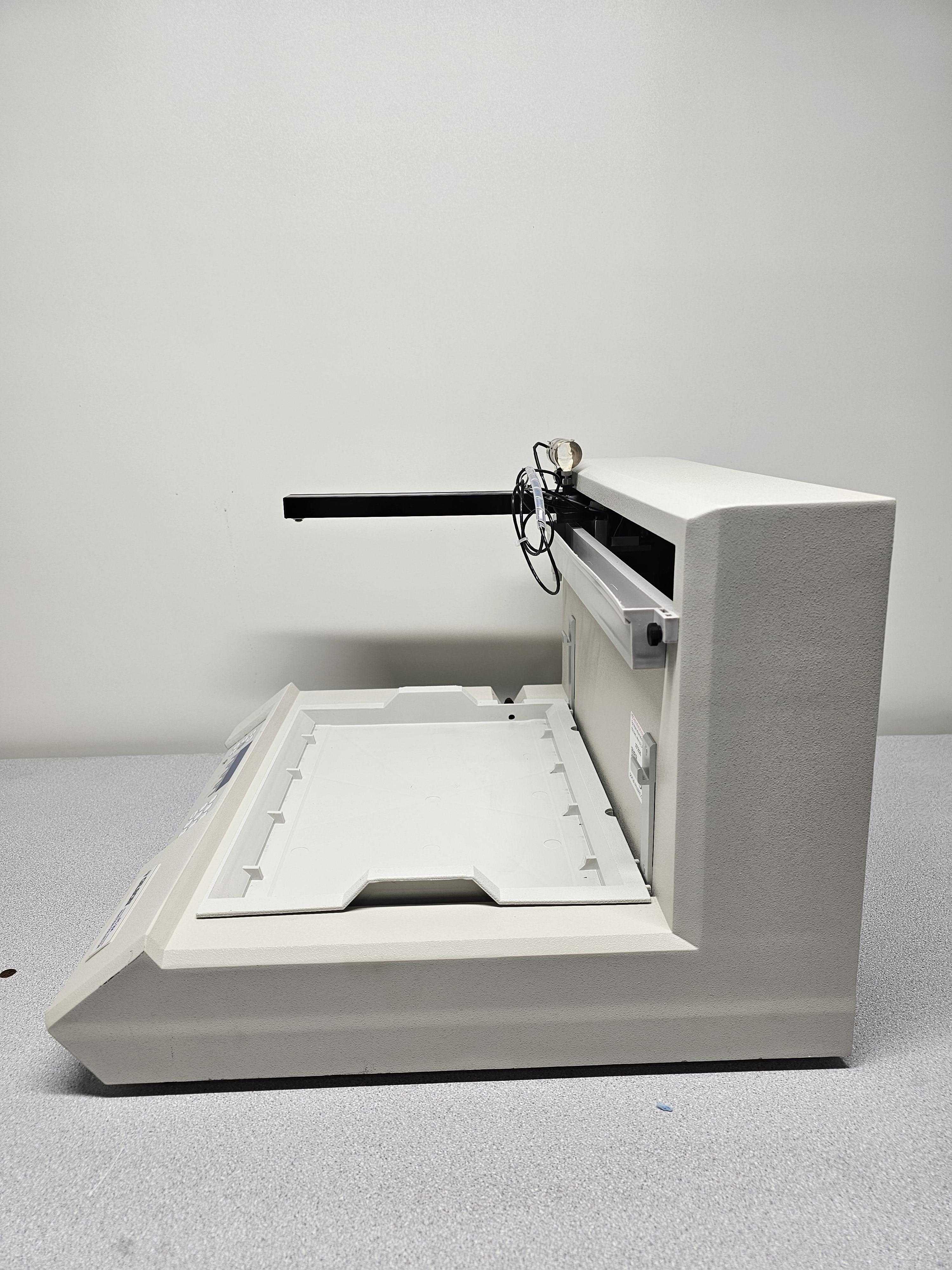

The Gilson FC 204 Fraction Collector is a versatile and robust large-bed collection system, ideal for handling a range of vessels from microplates to vials and tubes. This unit, manufactured by Gilson, features a built-in keypad for simple setup and operation, allowing fraction collection by time, drop, or peak for diverse liquid chromatography (LC) applications. Though used, the device has been tested to specifications with no major functional issues, but it does present slight cosmetic blemishes from prior use. Key features include peak detection through an adaptive-slope algorithm, programmable time windows for selective collection, and a 3-way diverter valve to eliminate contamination risks. Compatible with many HPLC systems, it fits comfortably in most fume hoods and supports simultaneous collection from up to 18 channels with optional adapters. Compliance with UL and CE standards ensures reliability in a variety of settings. Make: Gilson, Model: Fc204, Functionality: Yes, Voltage: 120V, Hertz: 60Hz.
Key Features
- Handles vessels: microplates, vials, tubes

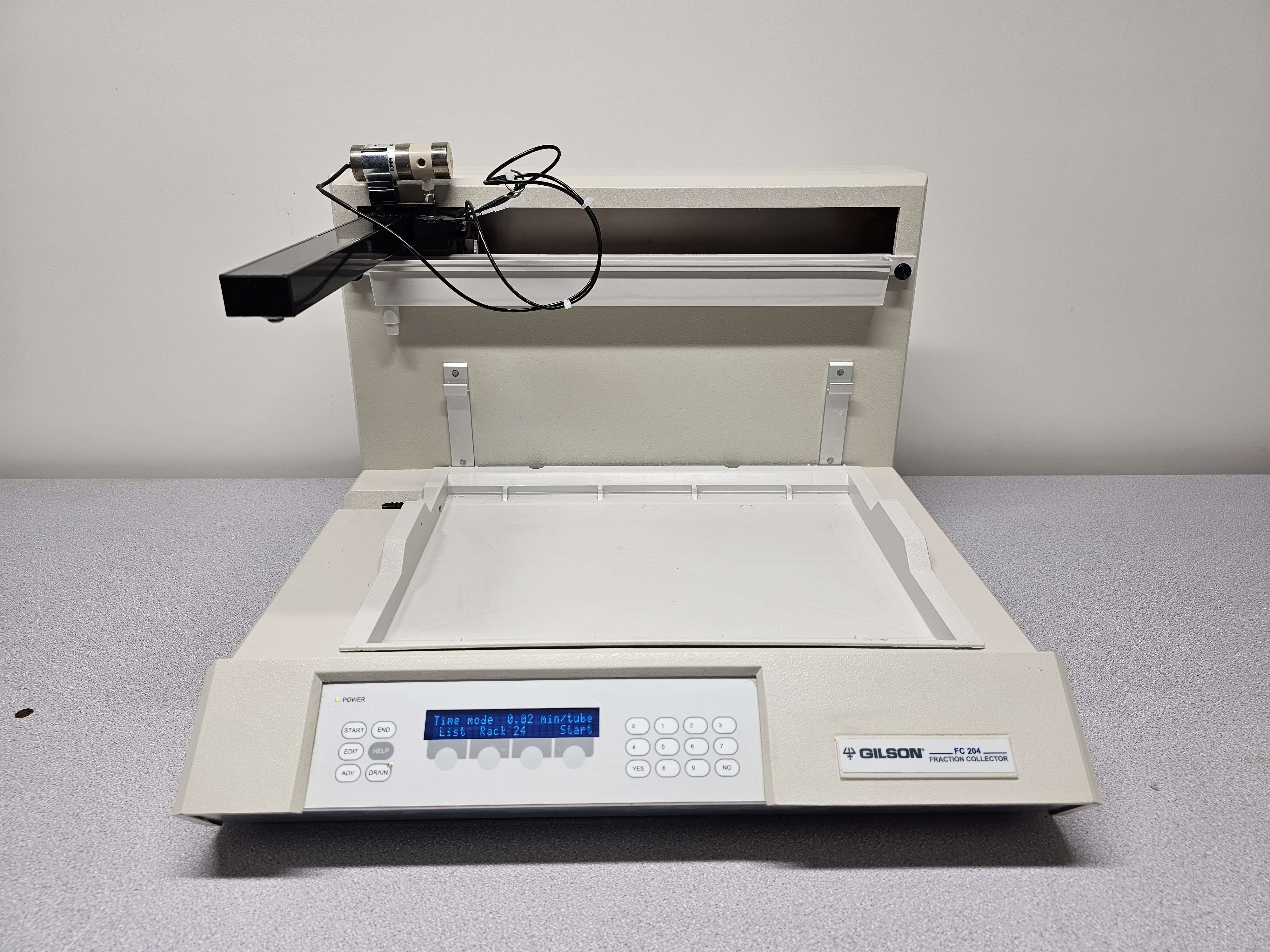

- Built-in keypad for easy setup
- Collect fractions by time, drop, or peak
- Peak detection with adaptive-slope algorithm
- 3-way diverter valve prevents contamination
- Fits in most fume hoods

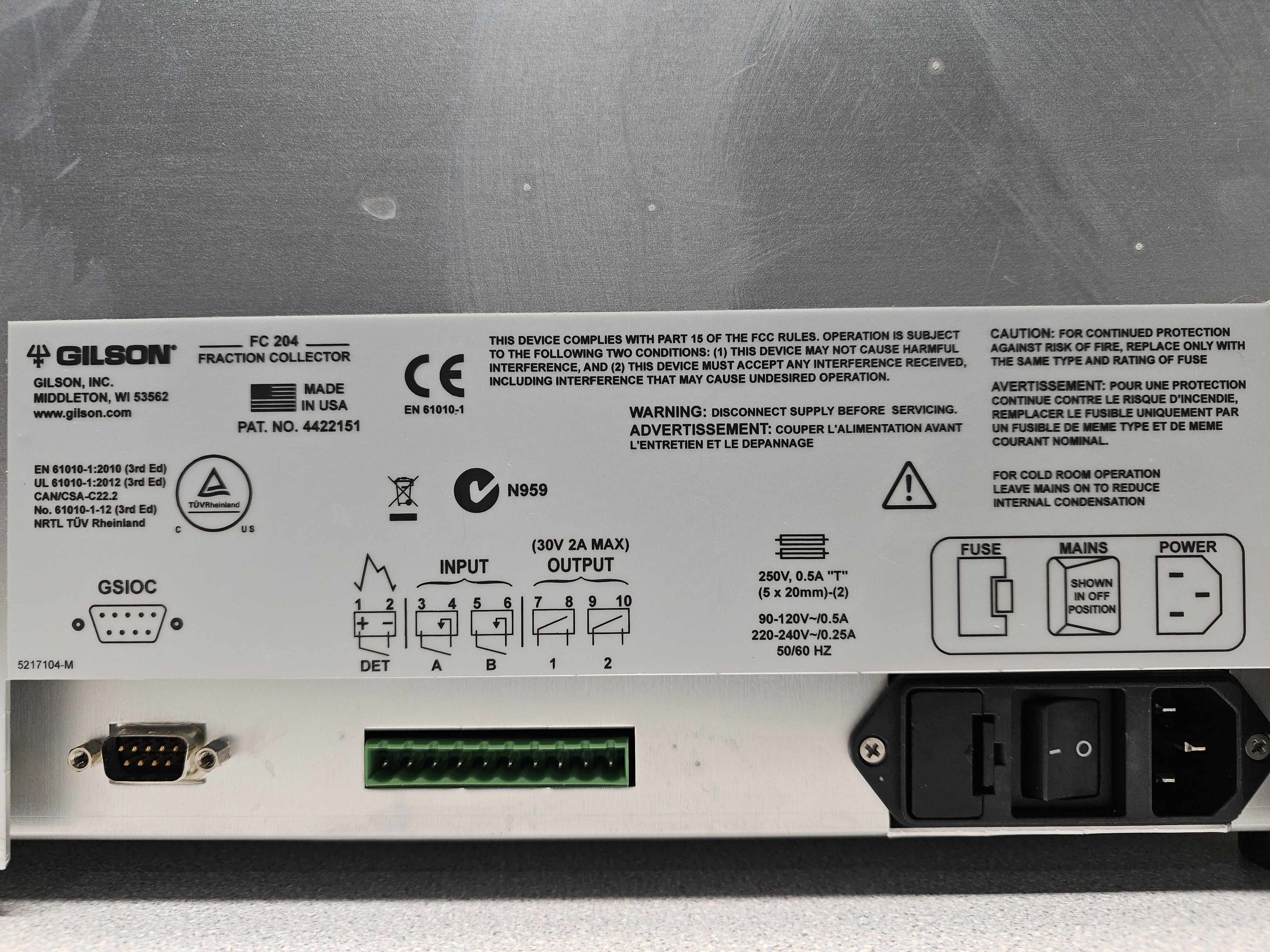

- RS-232 or GSIOC communication interface
- Up to 18 simultaneous channels with adapters
- UL and CE certified
Specifications
- 3-port, PTFE valves
- Internal volume: 114 mL
- Dead volume: 6 L from common port to closed port
- Flow rate: up to 200 mL/min
- Programmable 10 collection windows
- Detector input: 100 mV full scale
- Drop counting: up to 9,999 drops per fraction
- Compatible with 100120 or 220240V
- Supports 0.5A or 0.25A current ratings
- Maximum fractions: Up to 768 with specified racks
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 28.8 lb x 28.8 lb
Metric: 106.68 cm x 73.15 cm x 73.15 cm
Harmonized Code
9027.20.40.80
Harmonized Code Details
9027.20.40.80 - Chromatography apparatus for use in scientific analysis. Selected based on the Gilson Fc204's function as a fraction collector for liquid chromatography.
