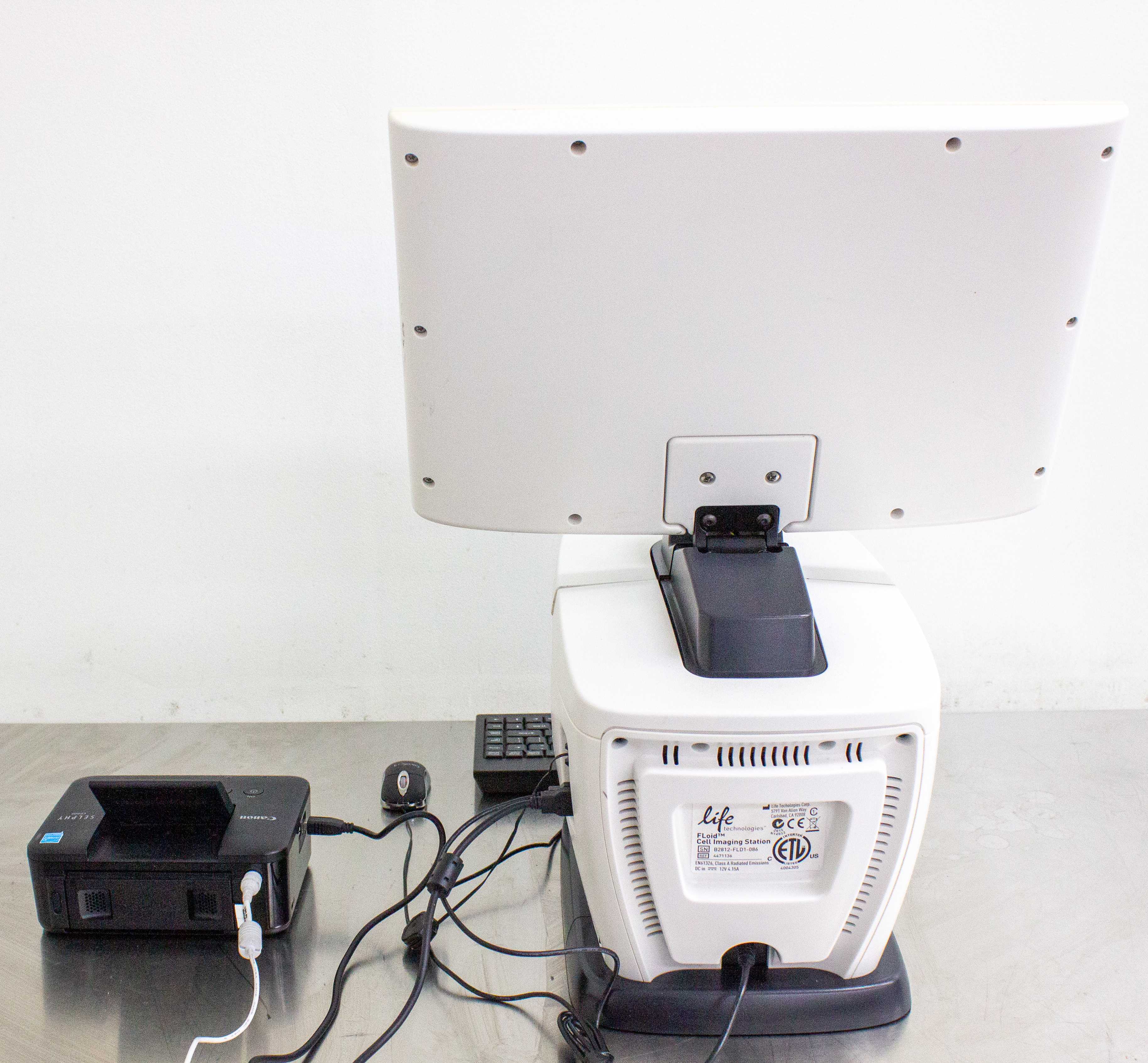

Life Technologies FLoid Cell Imaging Station Fluorescence Imaging Solution
Life Technologies
Details
-
CategoryMicroscope / Imager
-
Dimension14.0in x 17.0in x 21.0in
-

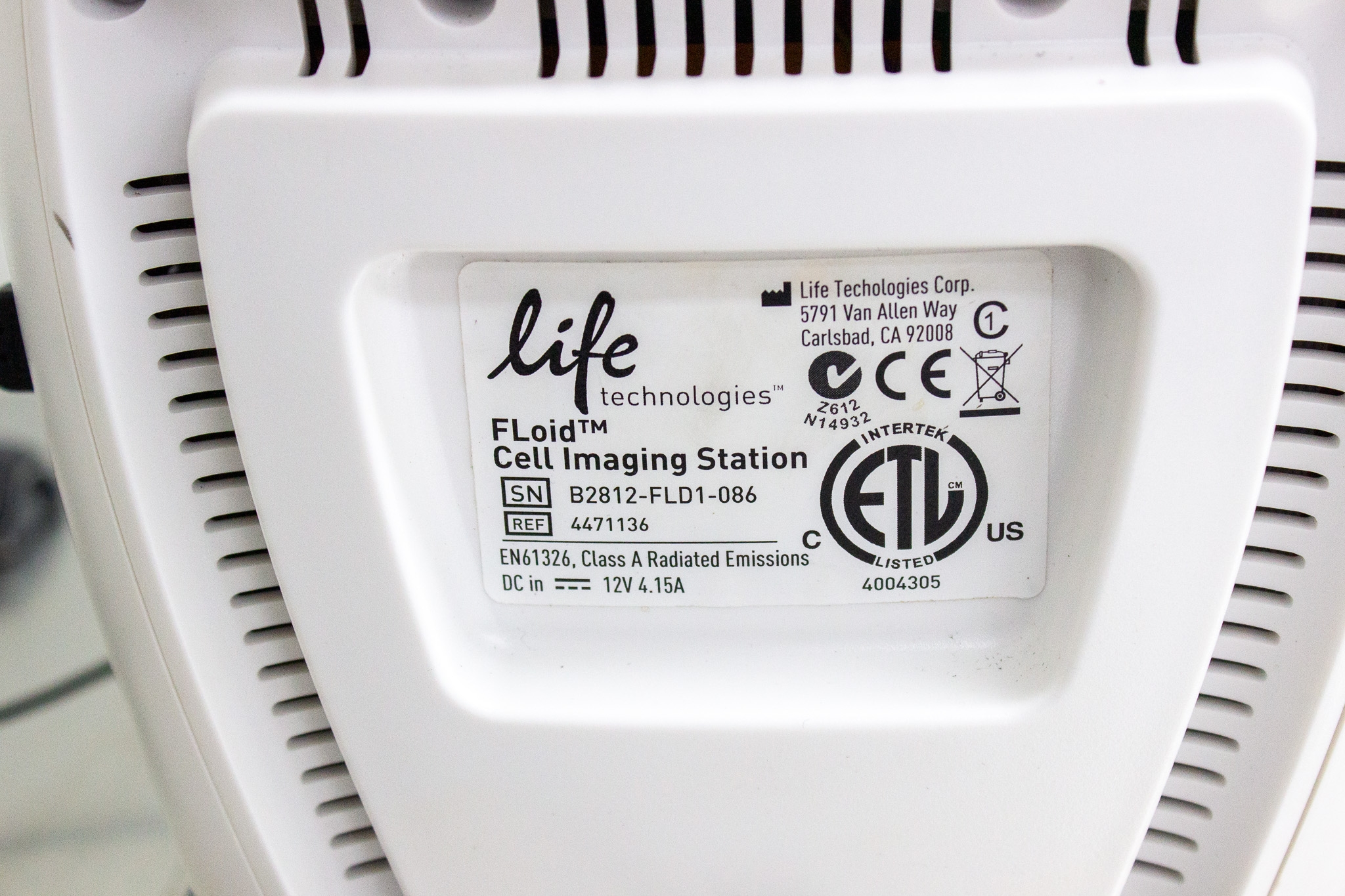

SerialB2812-FLD1-086
-
Shipping TypeGround
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

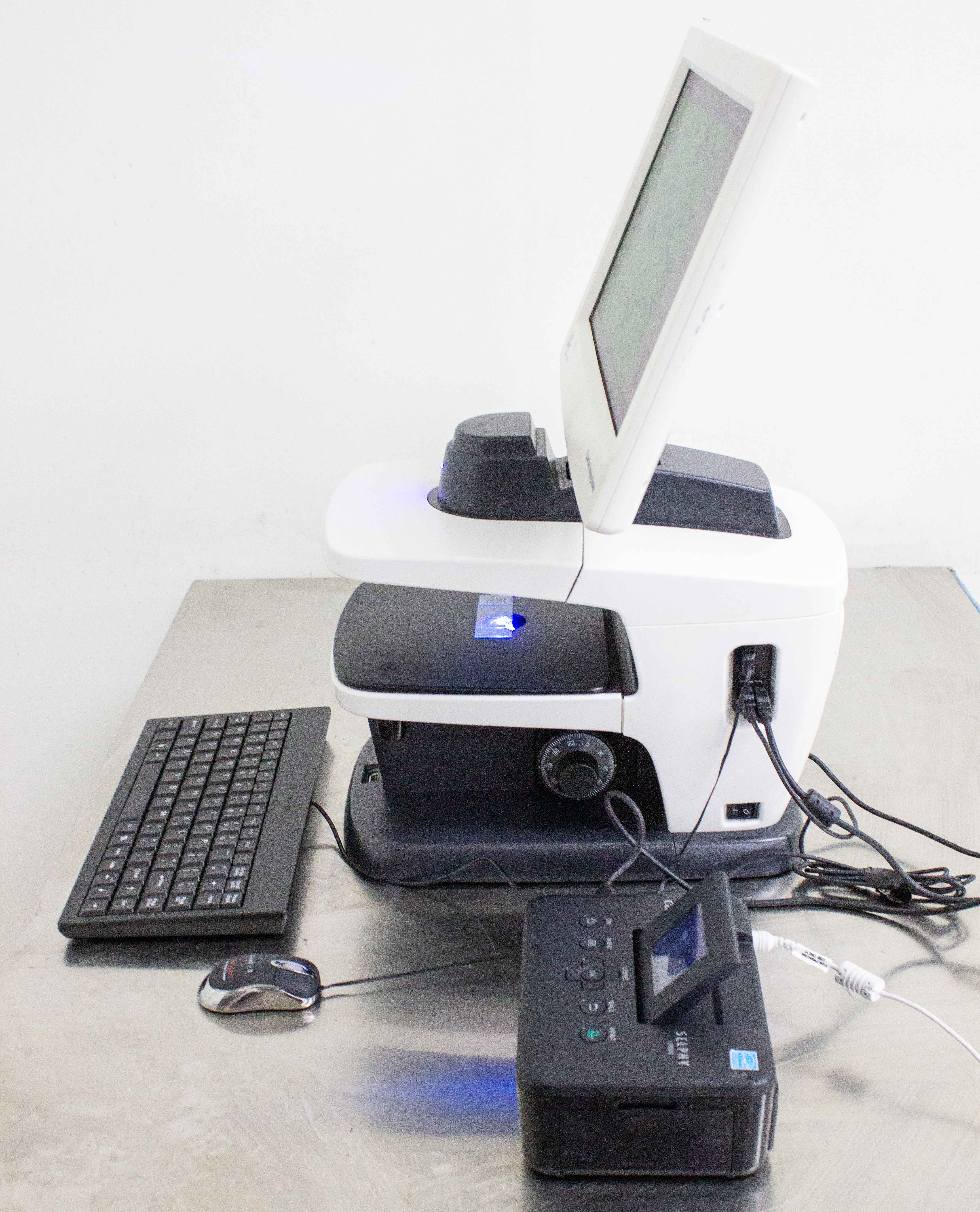

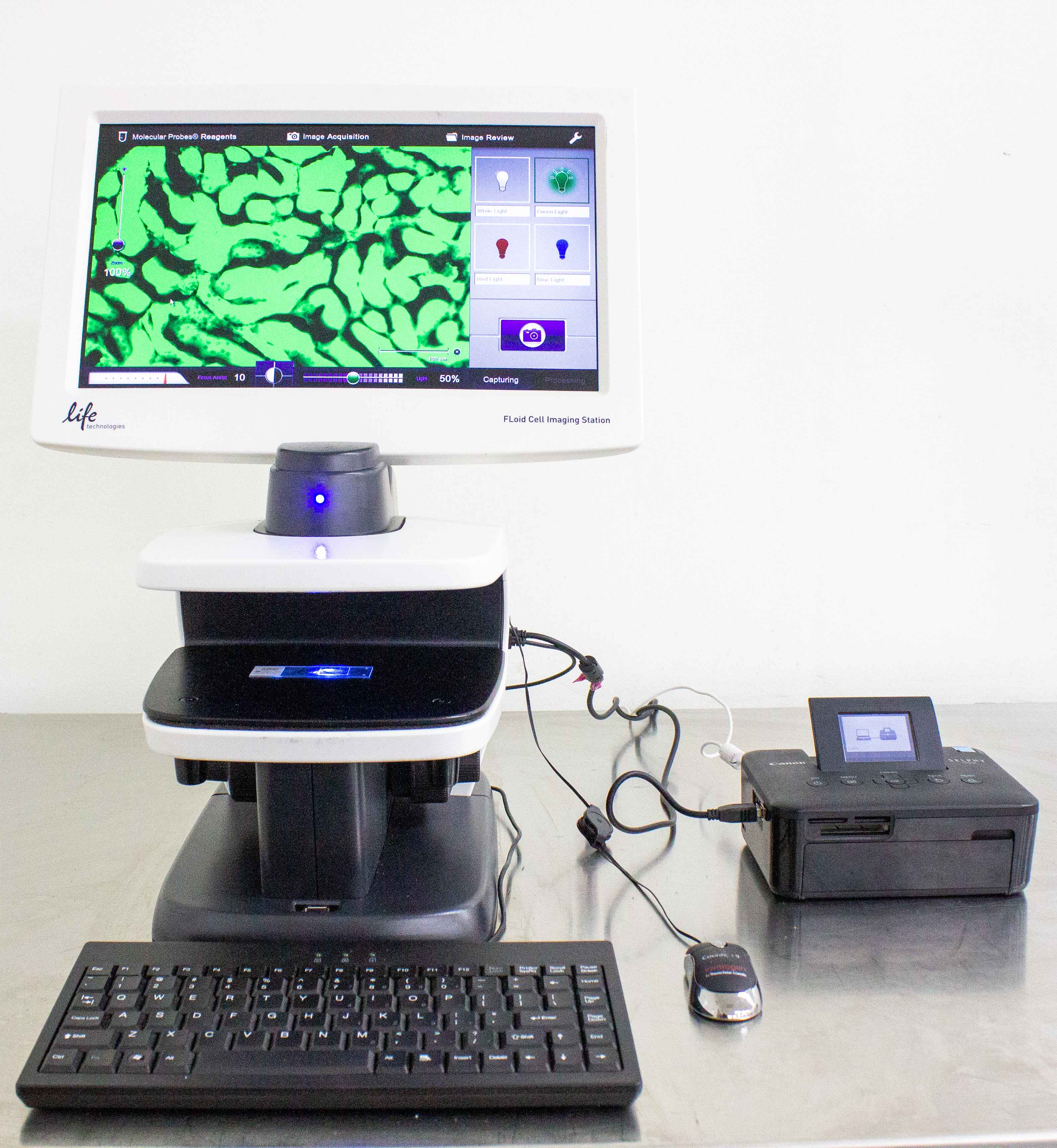

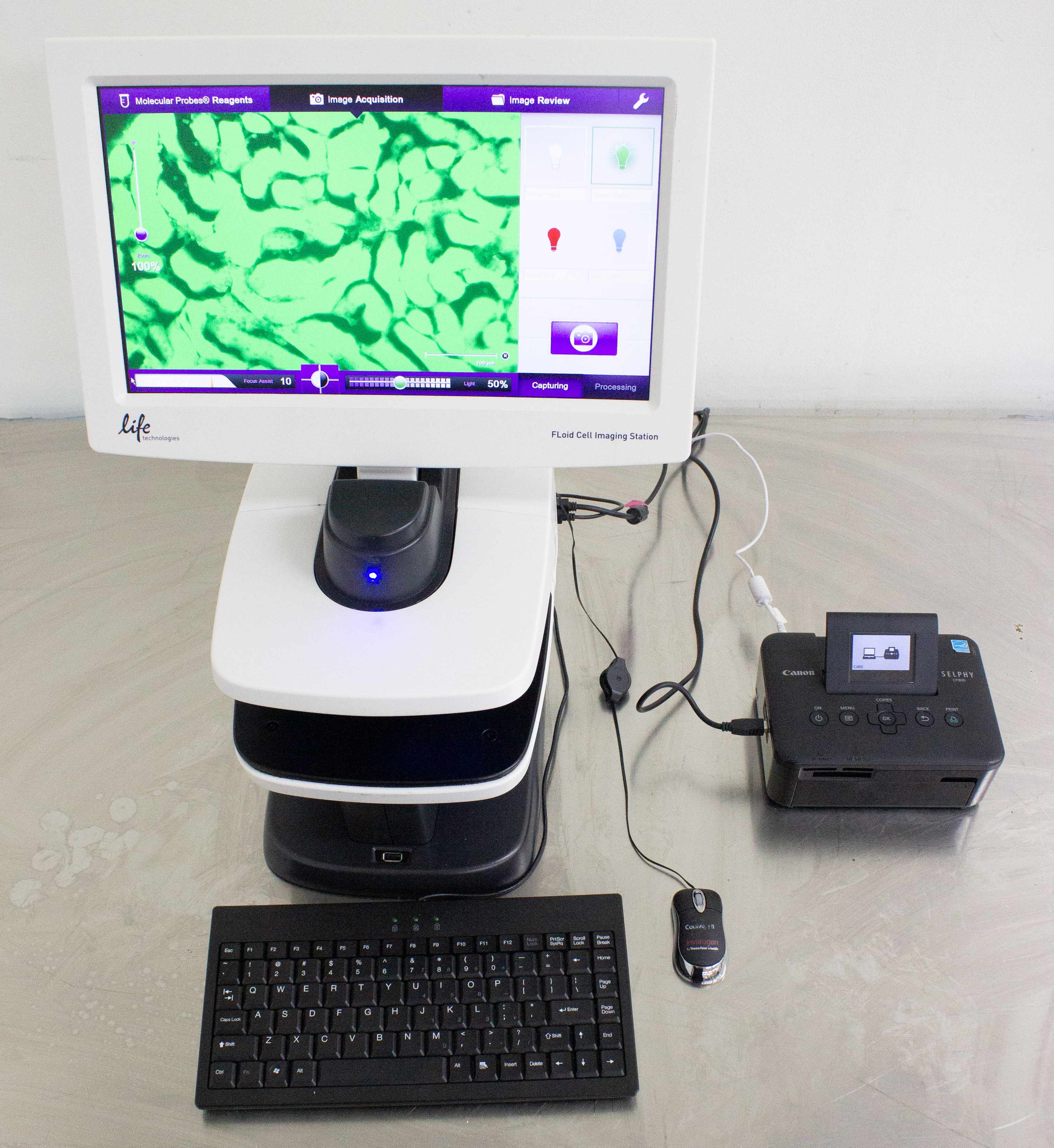

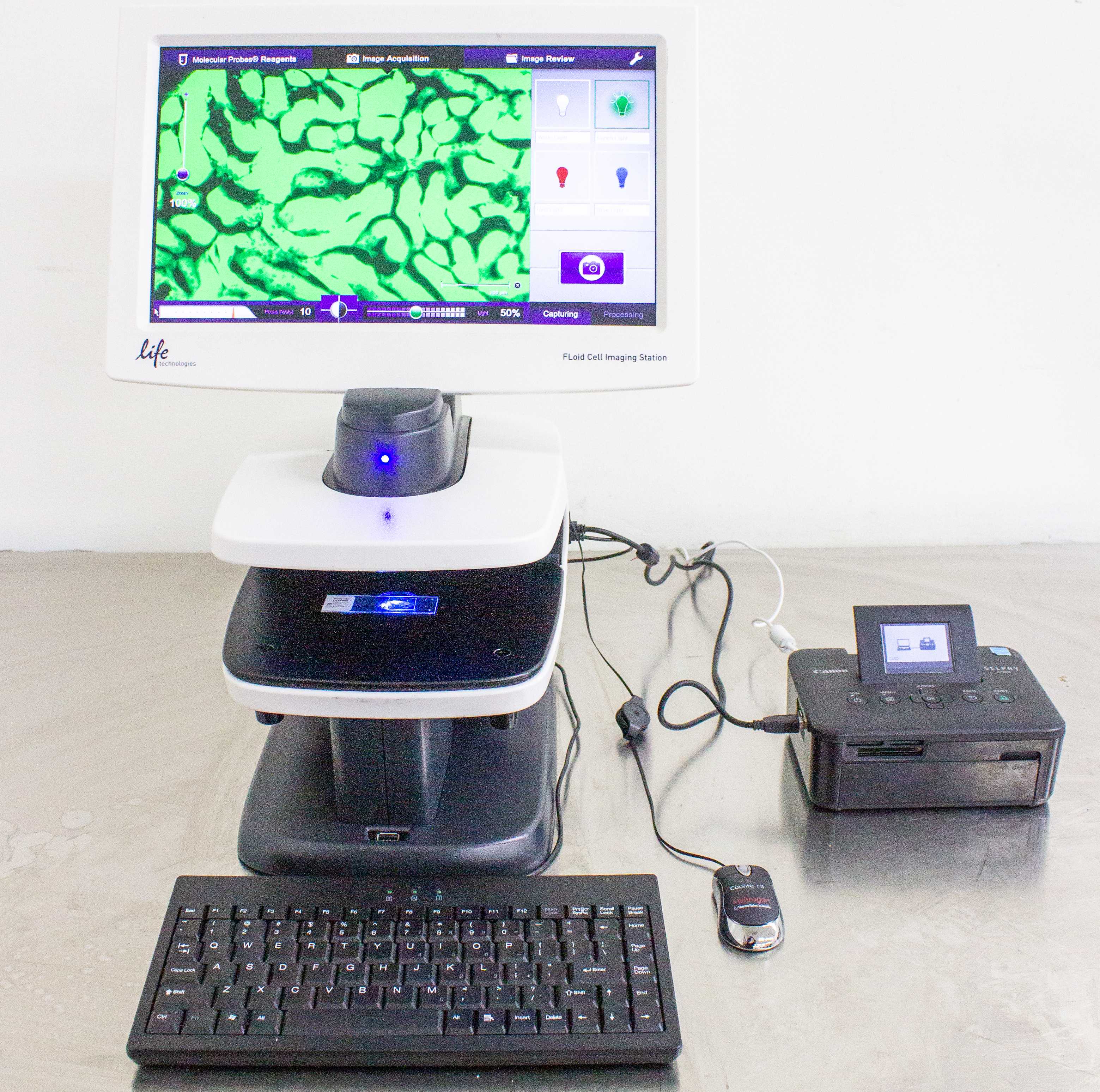

The 2012 Life Technologies FLoid Cell Imaging Station offers an excellent solution for detecting and verifying fluorescently-labeled samples. As a used device in very good condition, it has undergone thorough function testing. The unit captures both transmitted light and three-color fluorescent images at your benchtop, making it ideal for high-quality imaging directly in your lab. Featuring a user-friendly interface and multilingual operation, it simplifies the imaging process, even for novices. Equipped with high-quality optics and a 20x plan fluorite objective, it captures images in DAPI, FITC, and Texas Red channels. Despite some cosmetic wear, it performs reliably, blocking ambient light for optimal usage anywhere in the lab.
Key Features
- Three-color fluorescence imaging (DAPI, FITC, Texas Red)
- 20x fixed plan fluorite objective

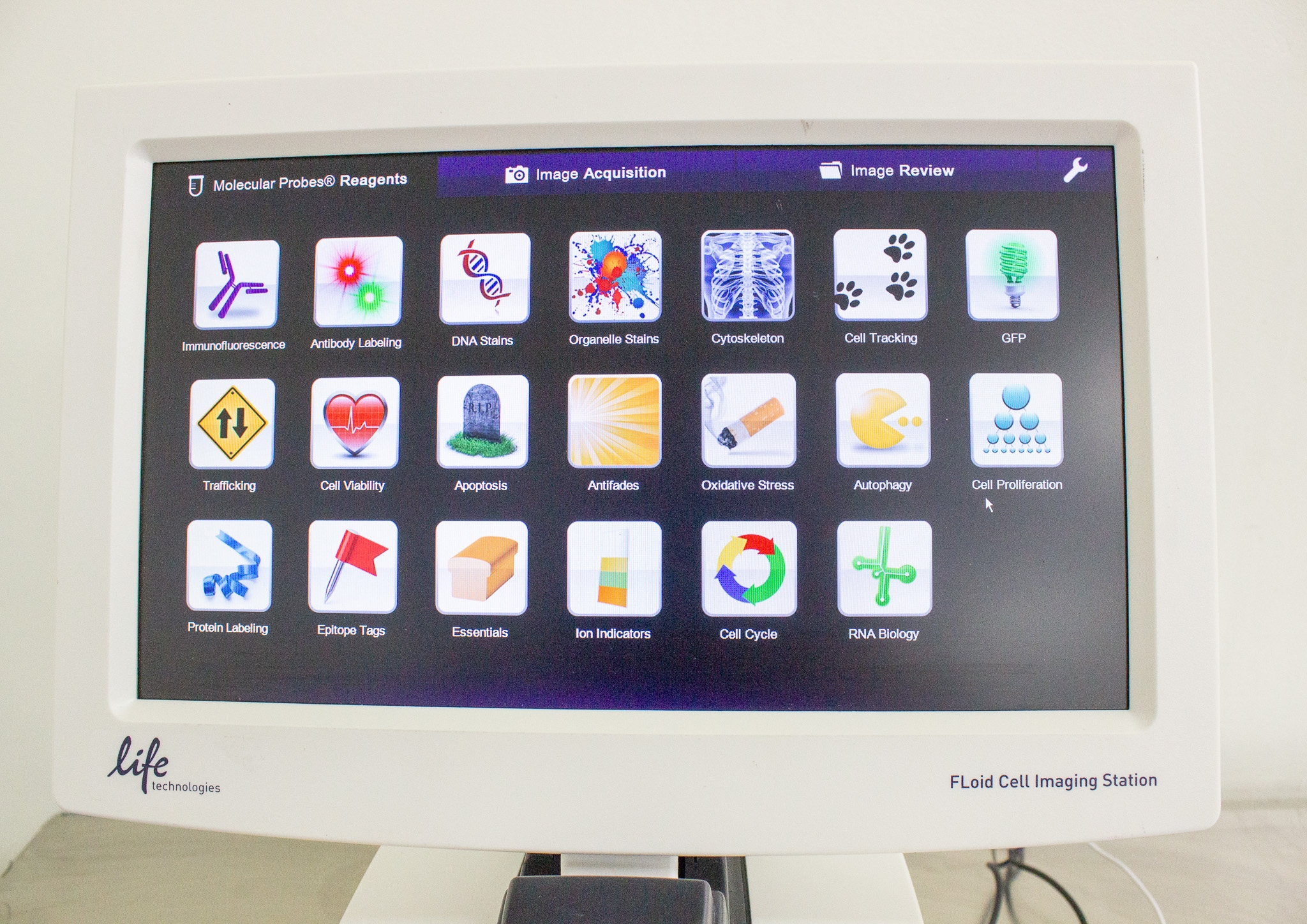

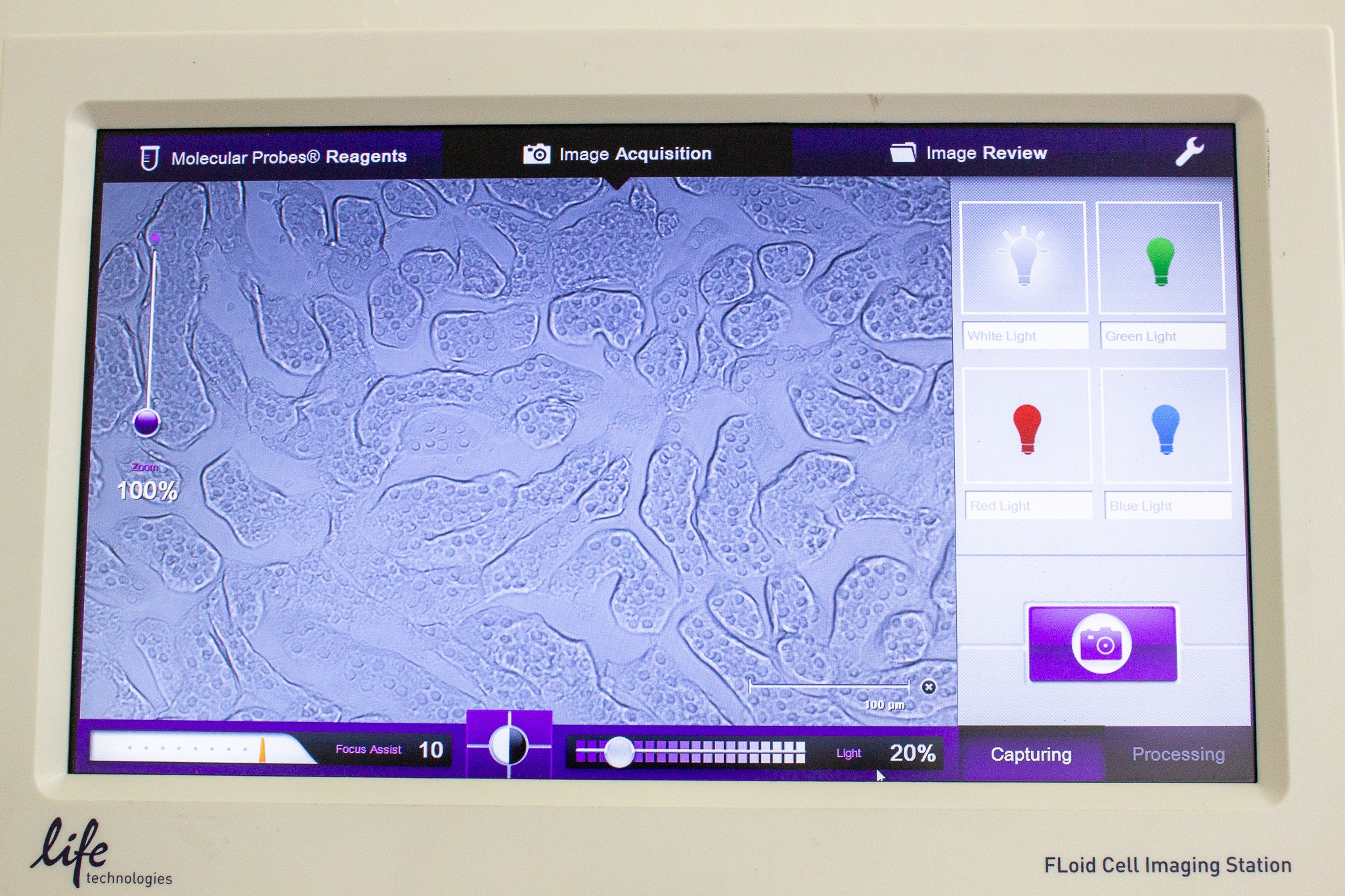

- User-friendly interface with multilingual support

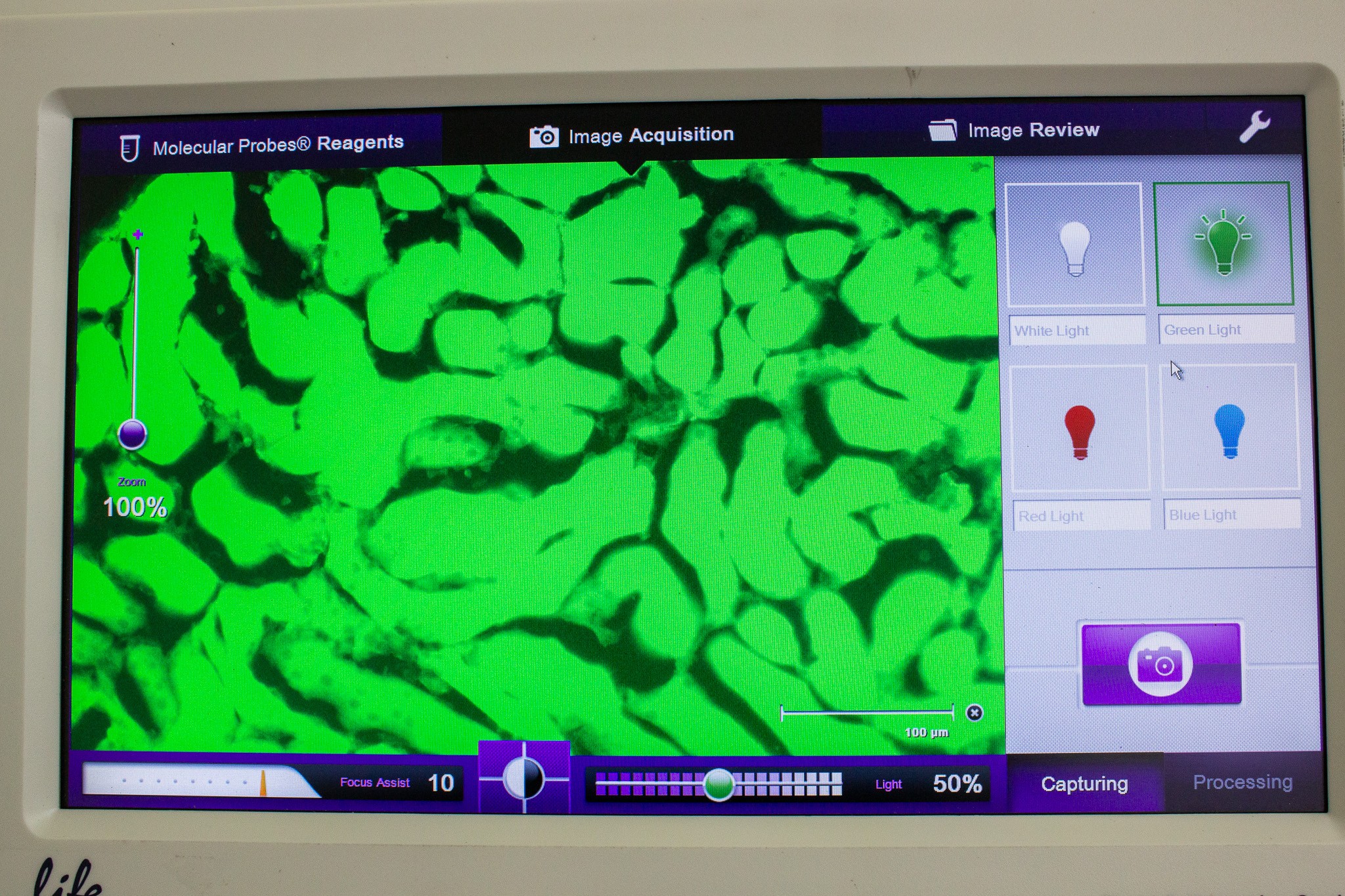

- Real-time, multicolor display
- No warm-up or cool-down required
- Images saved in JPEG, TIFF, BMP, PNG formats
- Robust with no moving parts

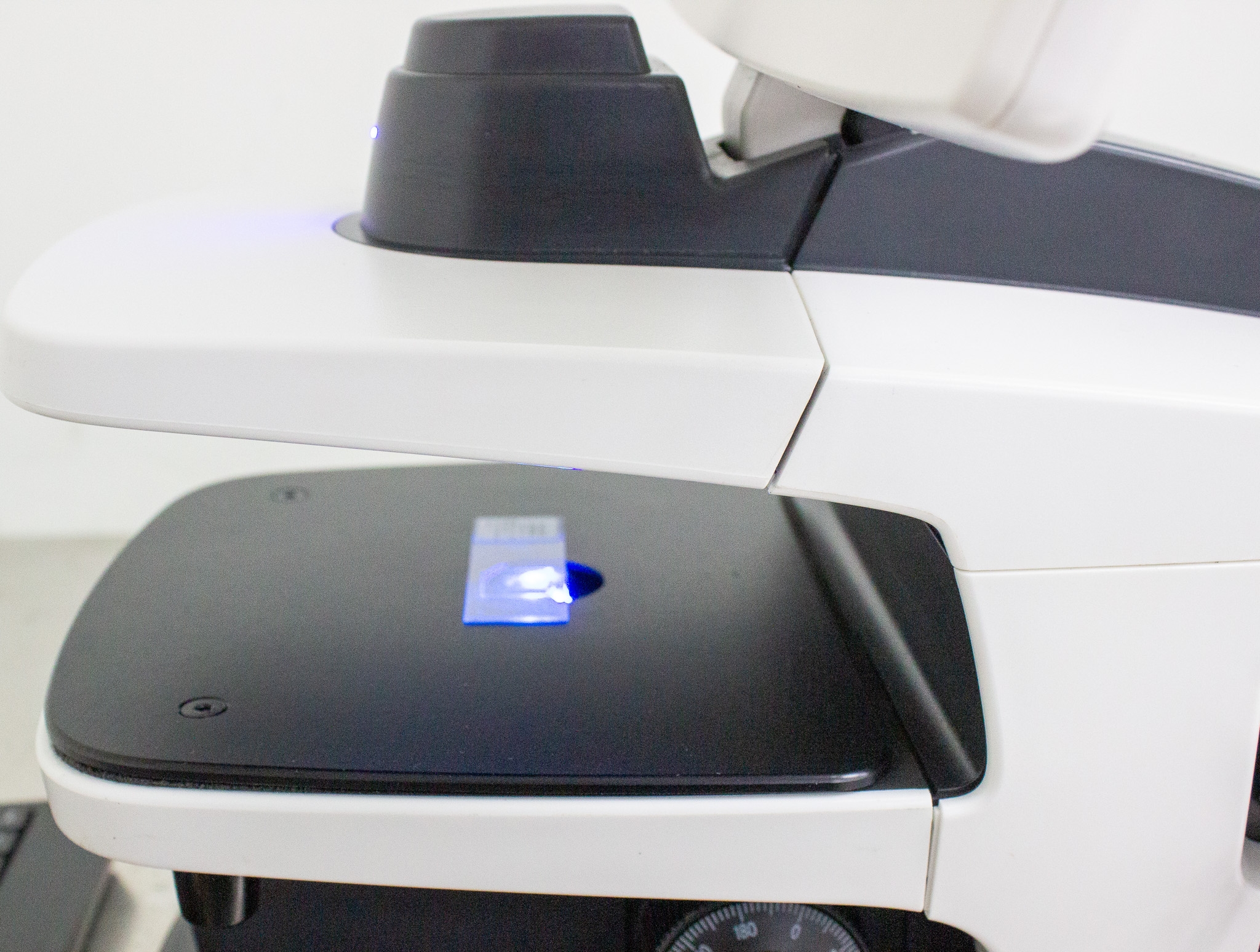

- Ambient light shield
Specifications
- Objective: Fixed 20X plan fluorite; numerical aperture (NA) = 0.45; working distance (WD) = 5.9 mm
- Color Channels: 4 channels (relief phase, blue, green, and red fluorescence)
- Illumination: LED (50,000 hour life), adjustable intensity
- Excitation Wavelengths: Blue channel: 390/40 nm; Green channel: 482/18 nm; Red channel: 586/15 nm
- Emission Wavelengths: Blue channel: 446/33 nm; Green channel: 532/59 nm; Red channel: 646/68 nm
- Captured Images: 16-bit monochrome; resolution 1296 x 964 pixels
- LCD Display: 15-inch color; resolution 1366 x 768 pixels; with adjustable tilt
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 20.4 lb x 25.2 lb
Metric: 42.67 cm x 51.82 cm x 64.01 cm
Harmonized Code
901180
Harmonized Code Details
Harmonized code 901180 fits with optical instruments and appliances, specifically for equipment that captures light or images such as telescopes and microscopes. It suits the FLoid Cell Imaging Station due to its specialized use in capturing fluorescent images and light transmission.
