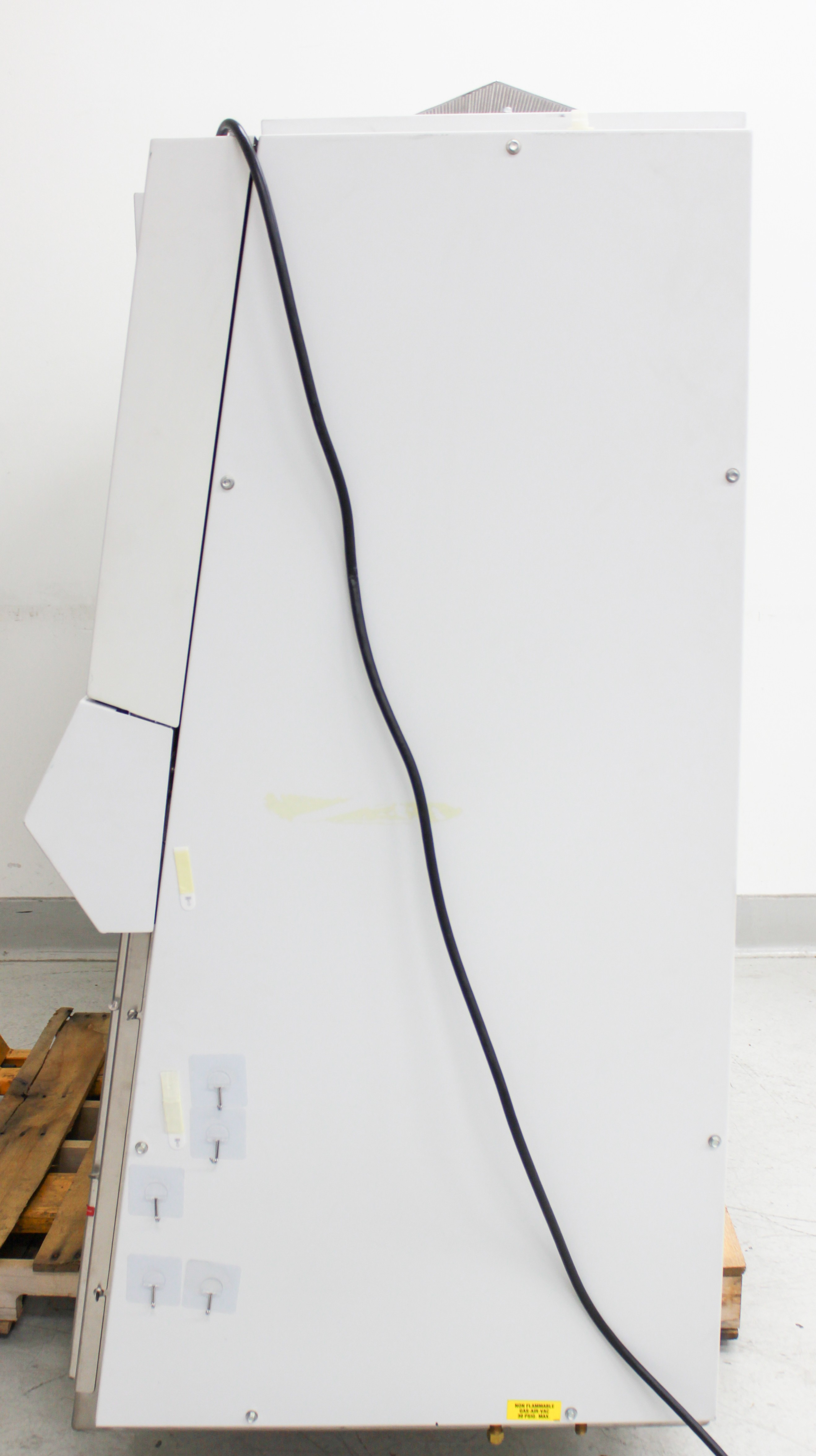

Baker SG603 Class II A2 Biosafety Cabinet, Vertical Laminar Flow, HEPA Filter
The Baker Company
Details
-
CategoryHood
-
Dimension30.0in x 77.0in x 63.0in
-

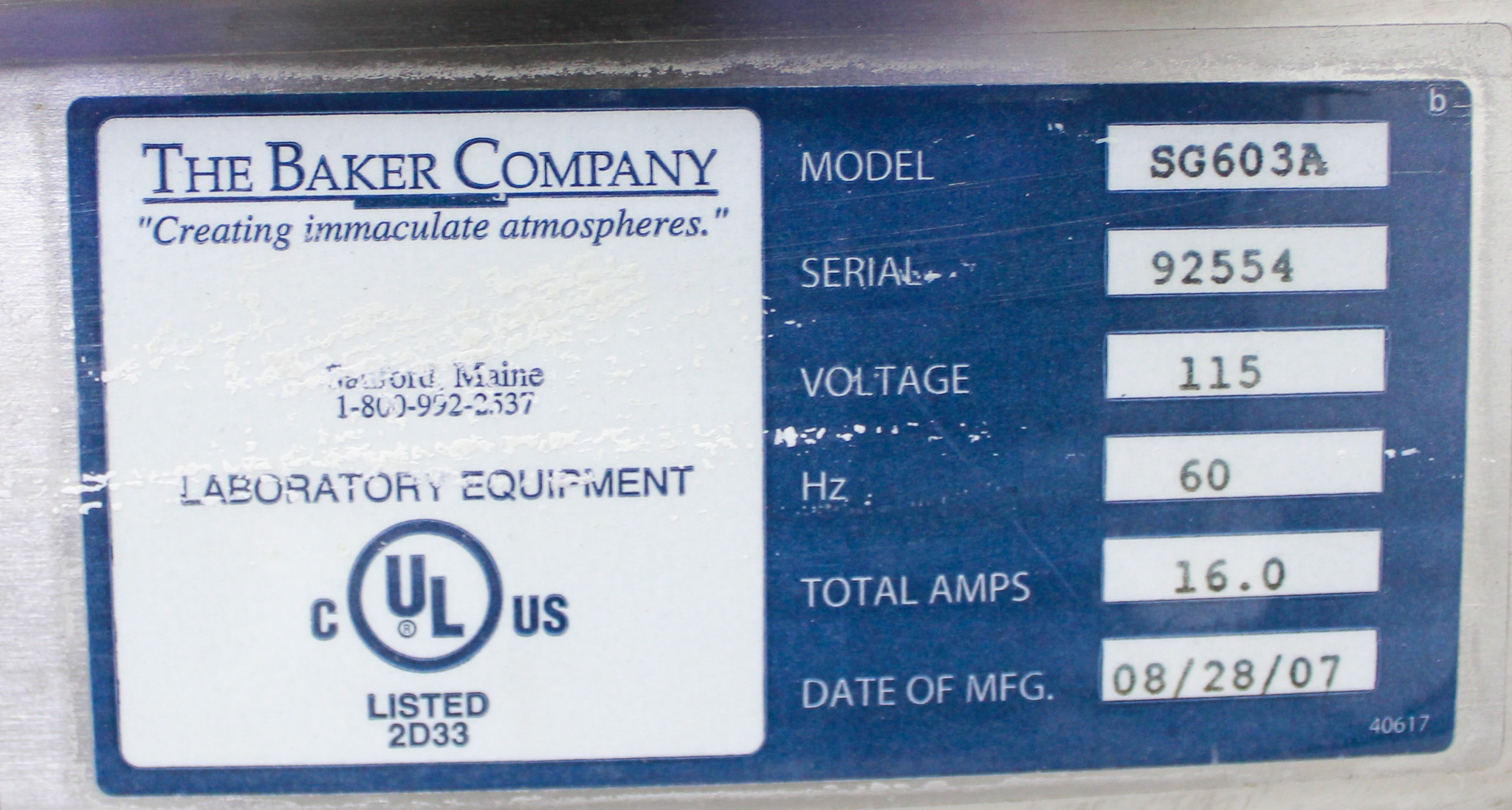

Serial92554
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

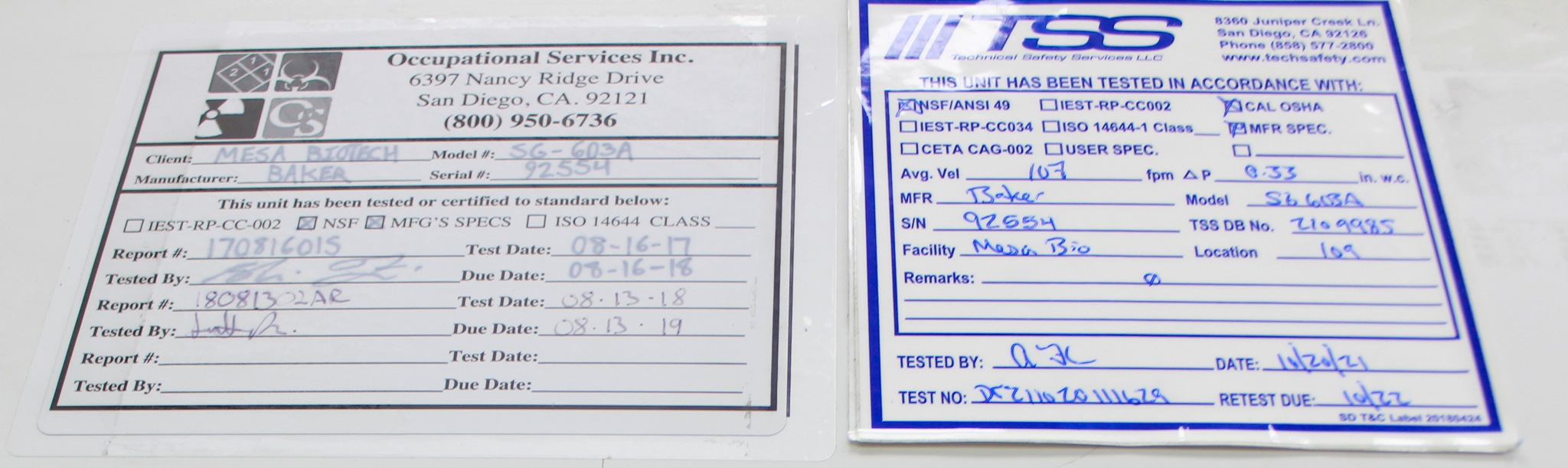

The Baker Company SterilGARD III Advance SG603 is a Class II A2 Biological Safety Cabinet offering vertical laminar airflow and a front access opening designed to ensure the safety of both user and environment from airborne contaminants. Integrated with HEPA filters and Baker's momentum air curtain technology, it effectively maximizes protection. The unit, manufactured with durable metal UniPressure Preflow plenums and a corrosion-resistant stainless-steel surface, retains spills and features easy-to-clean radiused cove corners. This ergonomic design also includes a sliding view screen and a 10-degree sloped front for optimal user comfort. The SG603 model does not include a stand, power cords provided. Please note this is a used unit in very good condition, tested to specifications, and fully functional with minor cosmetic wear.
Key Features
- Class II A2 Biological Safety Cabinet
- Vertical laminar airflow
- Integrated HEPA filters
- Momentum air curtain technology
- Metal UniPressure Preflow plenums

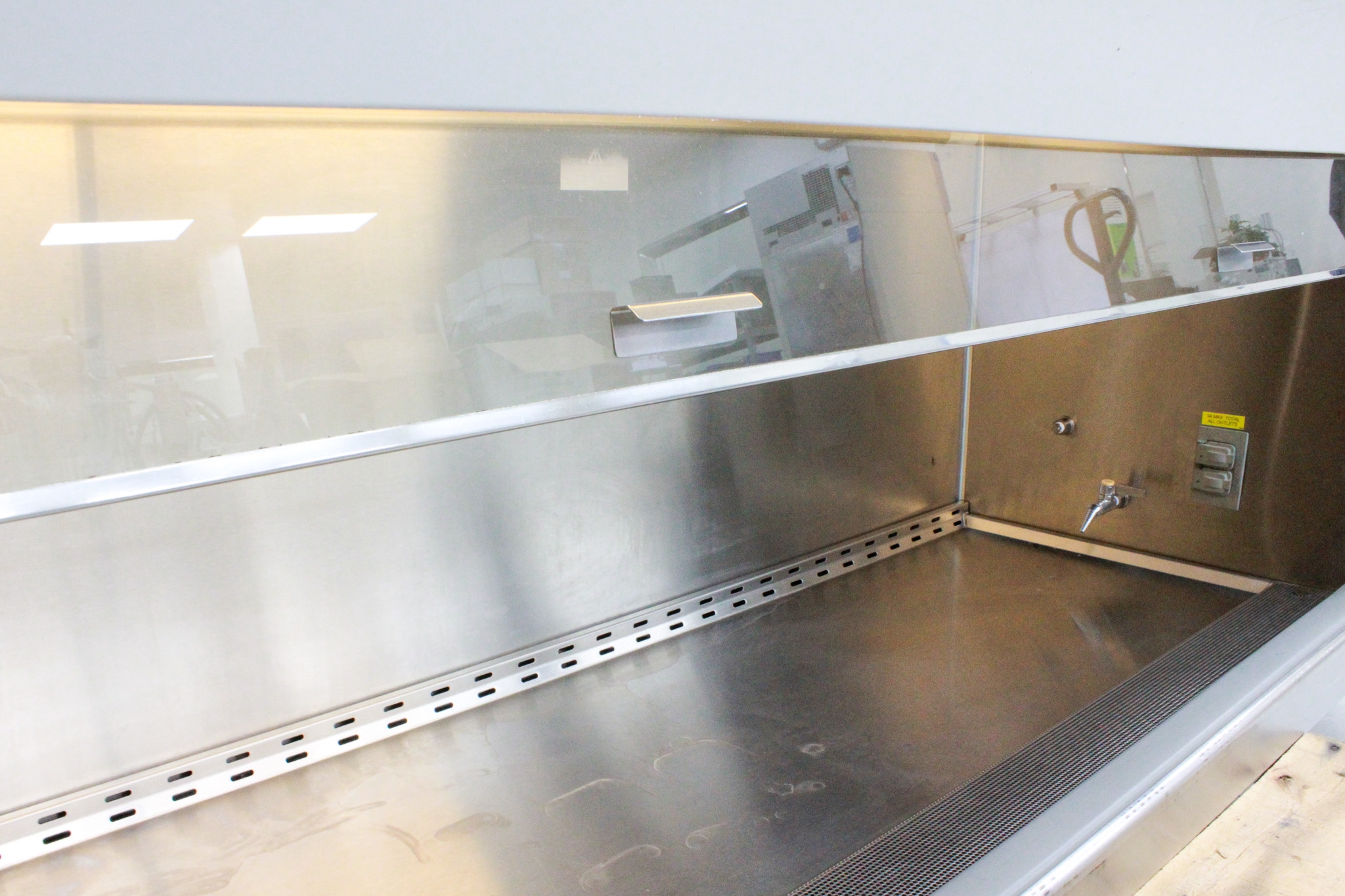

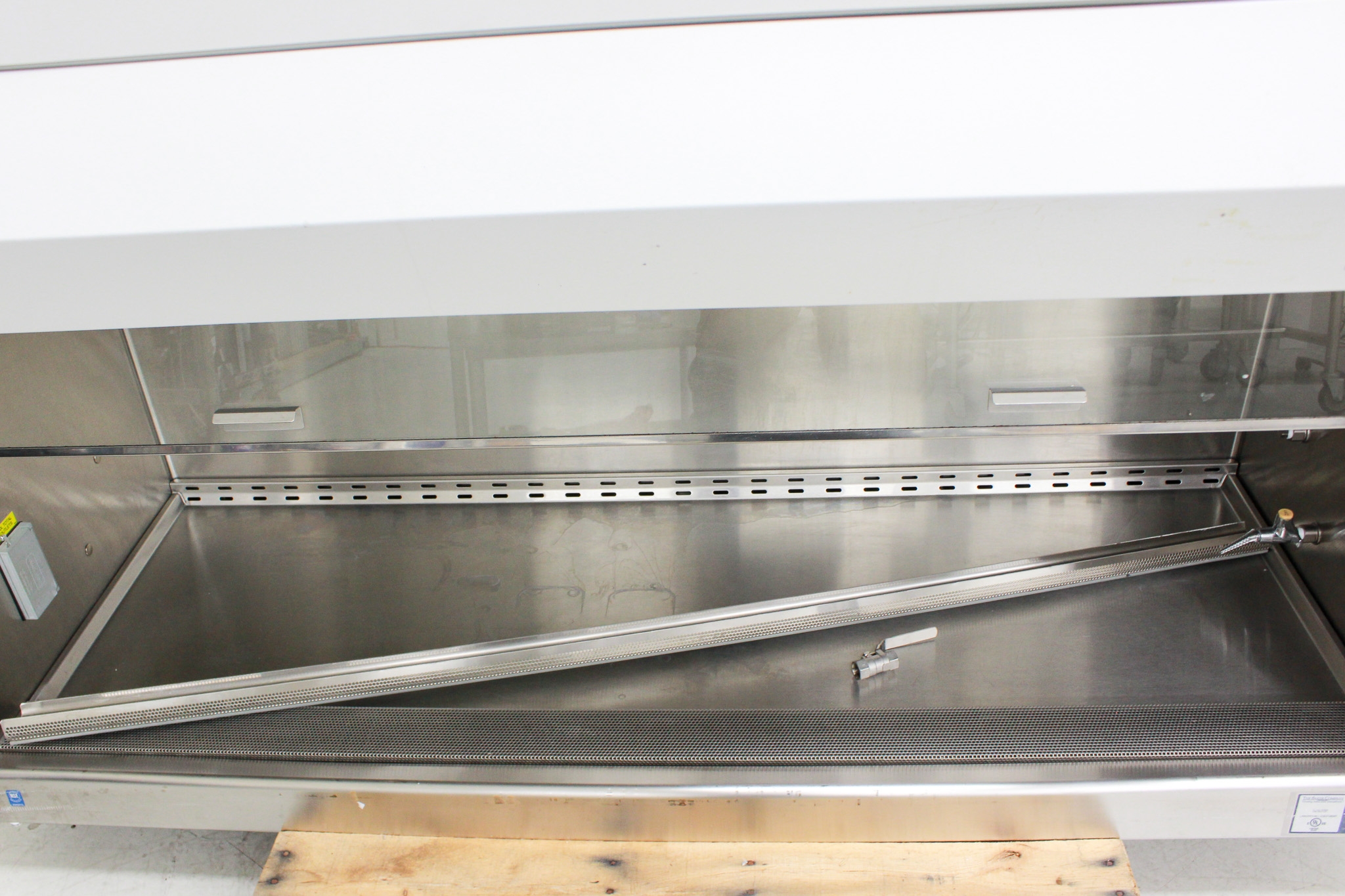

- Stainless-steel, spill-retaining work surface
- Ergonomic design with sliding view screen
- 10-degree sloped front for comfort
Specifications
- Model: SG603
- Weight: 700 lbs
- Interior dimensions (D x W x H): 26.5 x 70 x 27.5 inches
- Electrical Specifications: 115V AC, 1 Phase, 60 Hz
- Blower Motor: 9.9 amps
- Fluorescent Light (ballast): 0.8 amps
- Duplex Outlets (G.F.I.): 4.0 amps
- Total Running Load: 14.7 amps
- Indoor use at altitudes up to 2000 meters
- Operational temperature range: 5 C to 40 C
- Supports relative humidity up to 80%
Weight
Imperial: 840.0 Pounds
Metric: 381.02 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 92.4 lb x 75.6 lb
Metric: 91.44 cm x 234.7 cm x 192.02 cm
Harmonized Code
841460
Harmonized Code Details
841460 - Ventilating or recycling hoods incorporating a fan, whether or not fitted with filters. This code captures large equipment used to protect laboratory environments from contaminants.
