ATS Custom Module SCARA Robot Automation Used 120V/220V High Speed
ATS Life Sciences
Details
-
CategoryRobotic / Automation
-
Dimension70.0in x 84.0in x 88.0in
-

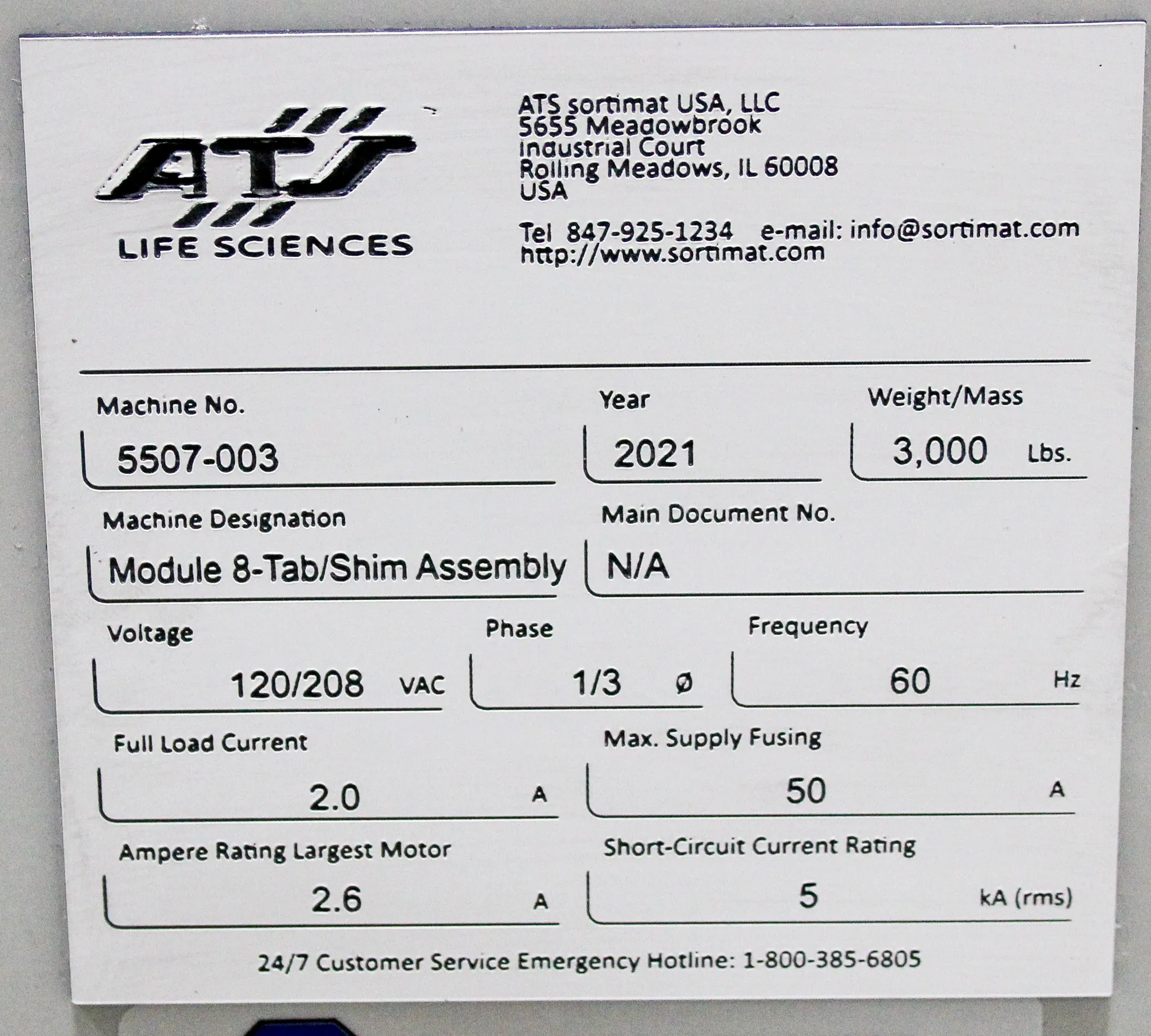

Serial5507-003
-
Shipping TypeFreight
-
Manufacturing2021-01-01
-
Voltage / Hertz120V/220V / 60Hz US
Description

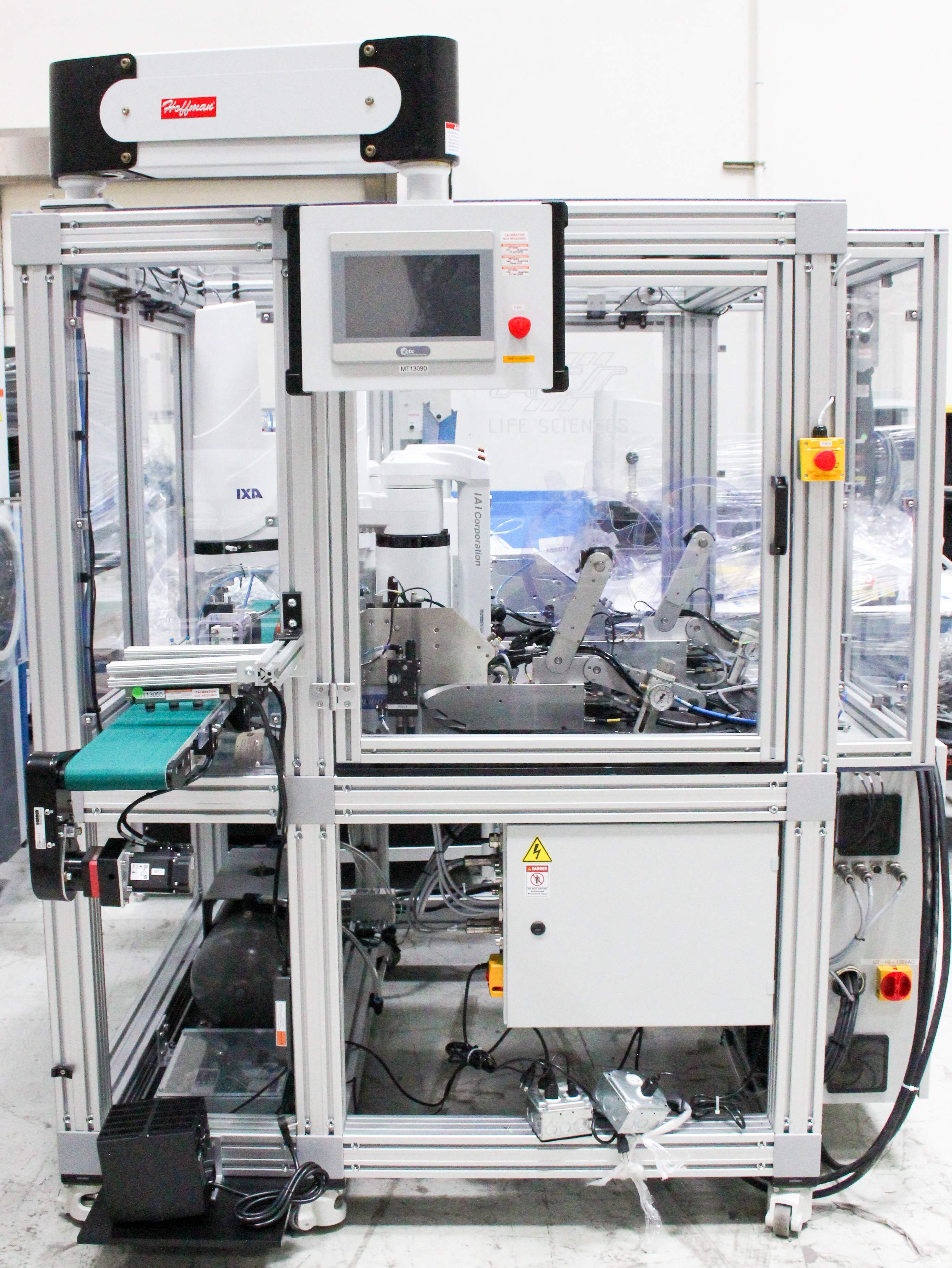

The ATS Custom Module 8-Tab/Shim Assembly, manufactured in 2021 by ATS Life Sciences in the United States, is a versatile automated system designed for efficient high-speed assembly processes. This used module includes two IAI High Powered SCARA Robots (Model IXA-4NSN4533-5L-T2) known for their fastest cycle times, delivering seamless horizontal and vertical motion through arch motion cycles. Additionally, it incorporates two Nautilus PL100EPi Placer Adhesive Component Applicators, ensuring accurate placement of die-cut adhesive components up to 100 x 100mm in size. The robust custom ATS workstation, mounted on a mobile platform with castors, allows easy maneuverability. Functionality and reliability are enhanced by features such as low vibration and accurate positioning with a battery-less absolute encoder, minimizing maintenance needs. Despite being unable to fully test this unit, initial assessments indicate functioning power and basic operational capability, evident in the basic pass of tests. This cost-effective system integrates seamlessly into automated assembly solutions, tailored to specific applications in industrial environments.
Key Features

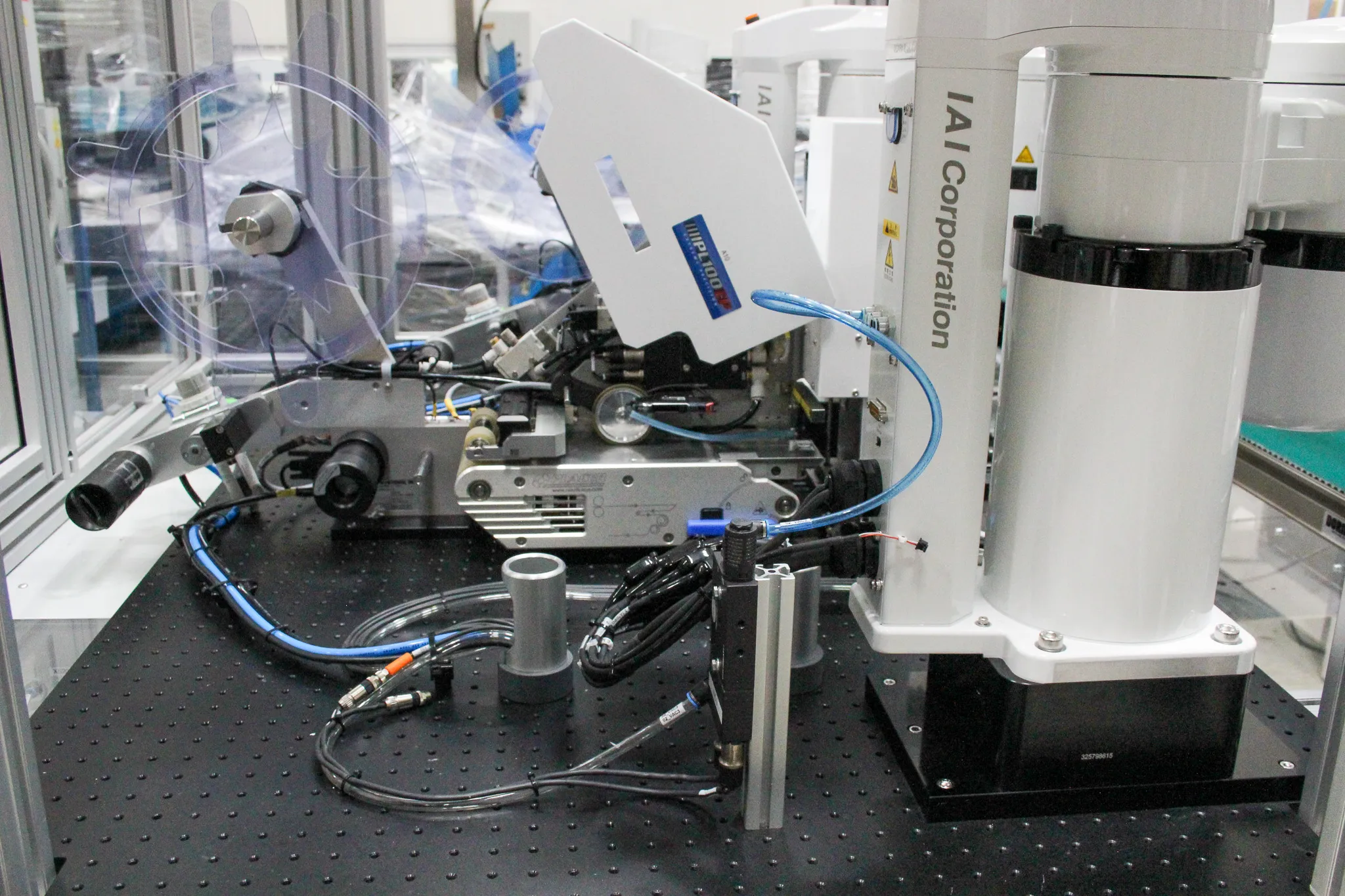

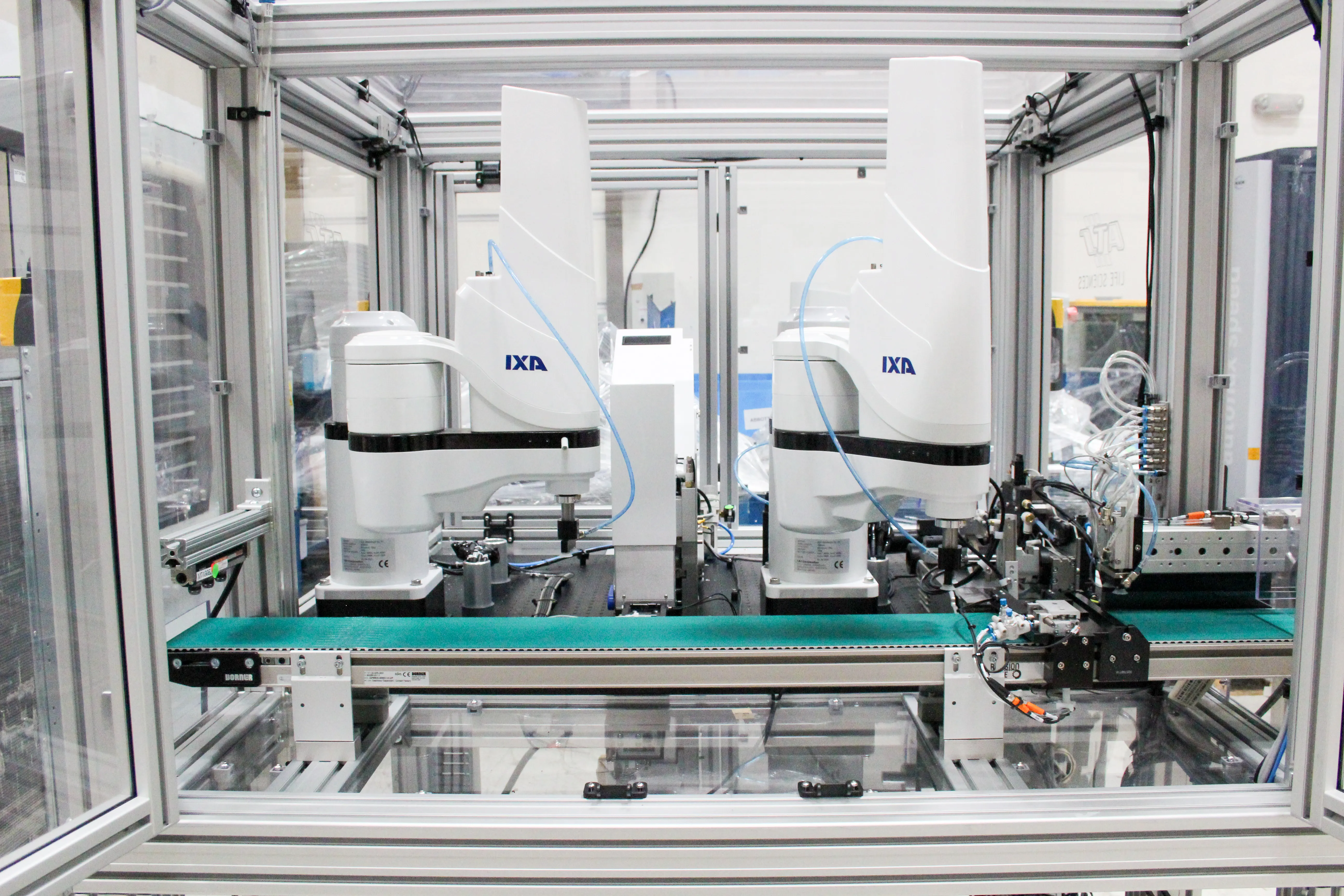

- Includes two IAI High Powered SCARA Robots Model IXA-4NSN4533-5L-T2
- Fastest cycle times with seamless arch motion

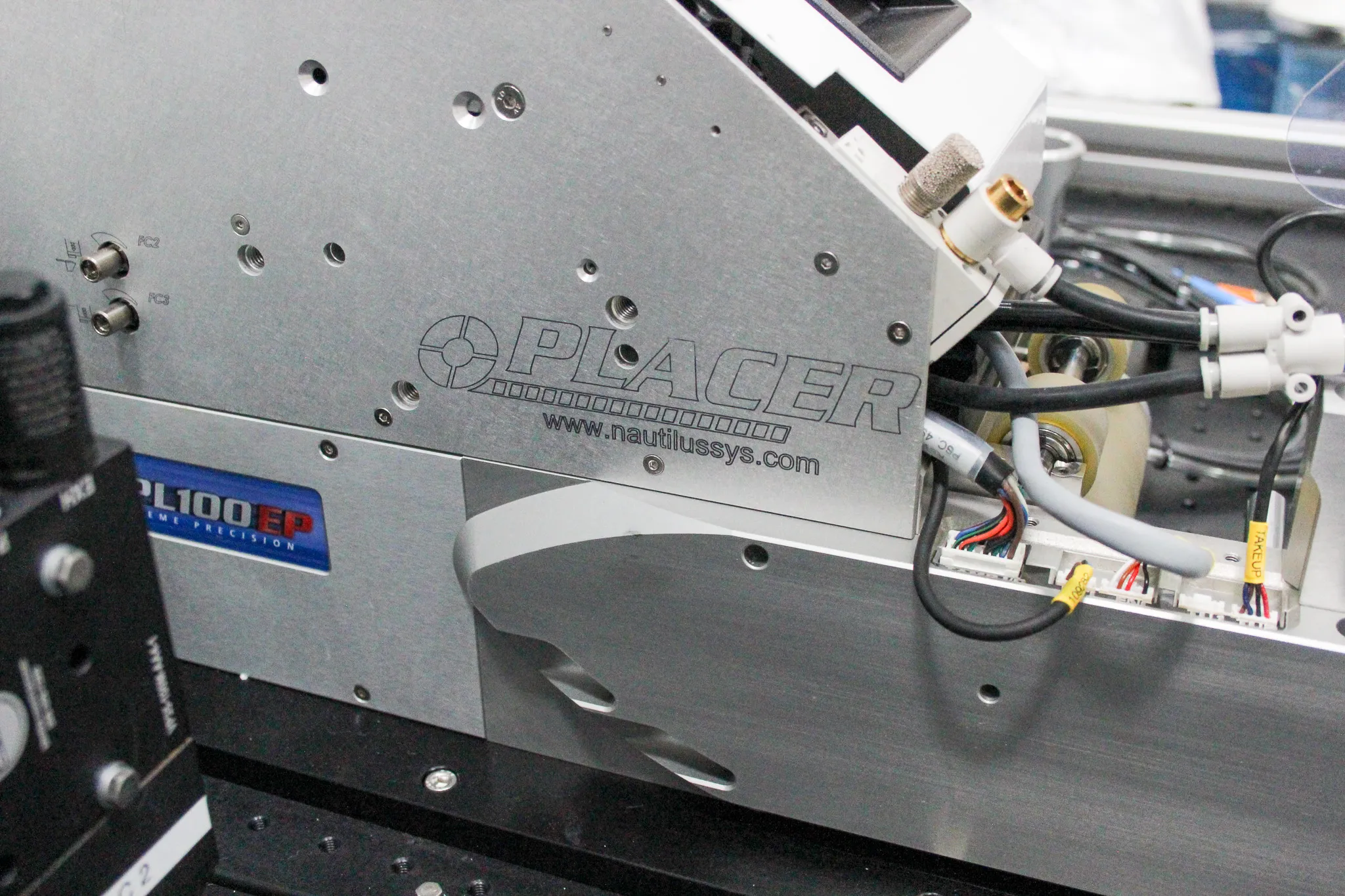

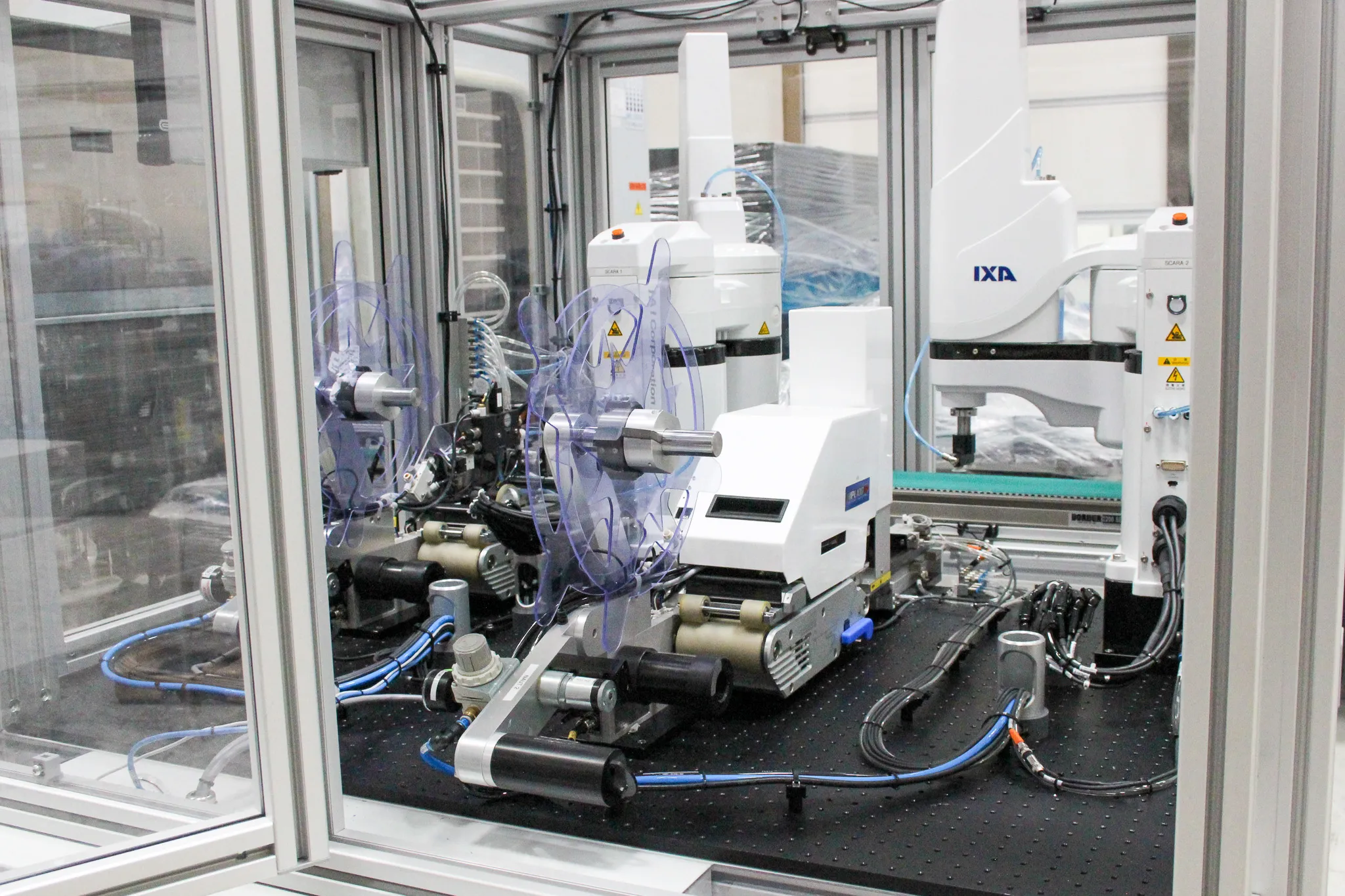

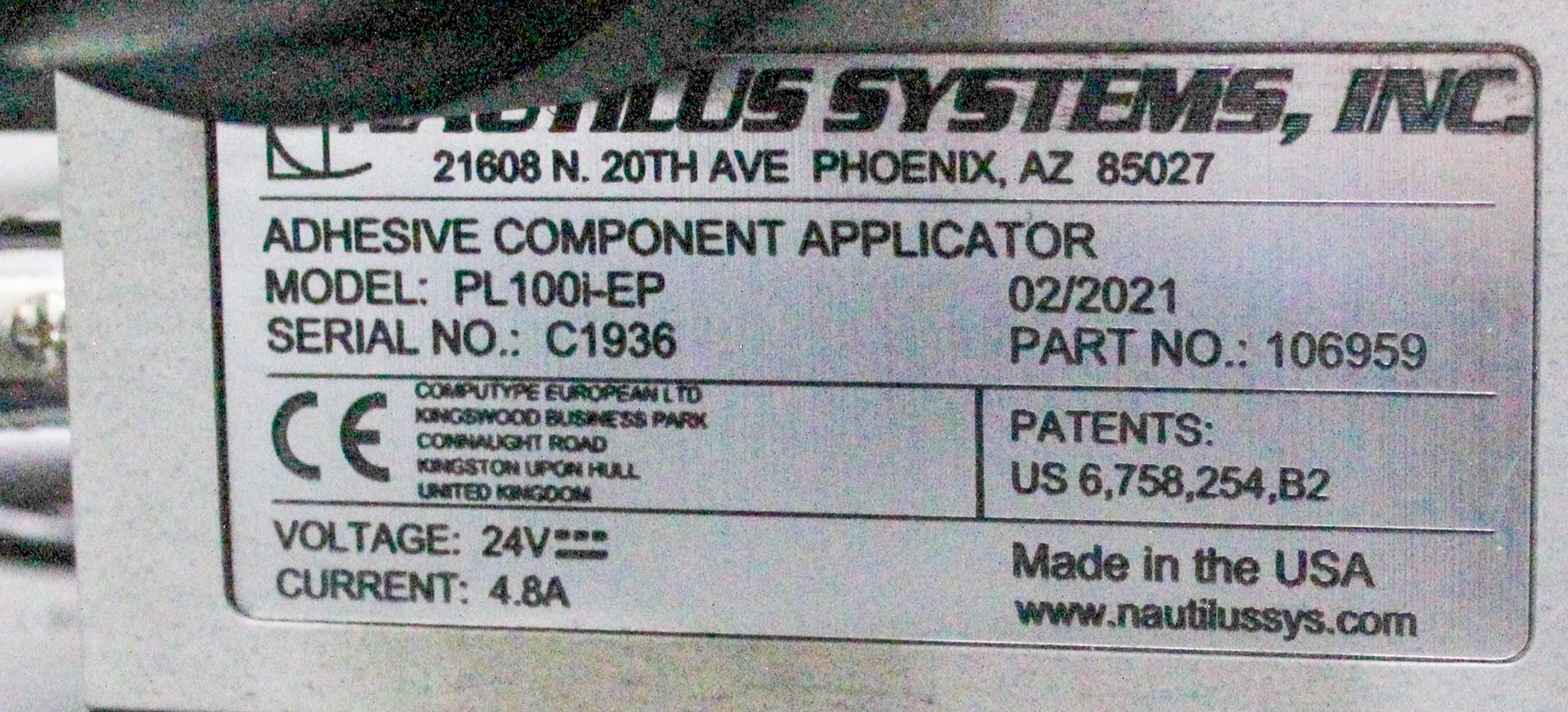

- Two Nautilus PL100EPi Placer Adhesive Component Applicators
- Configured for integration into automated assembly solutions
- Accurate placement for components up to 100 x 100mm

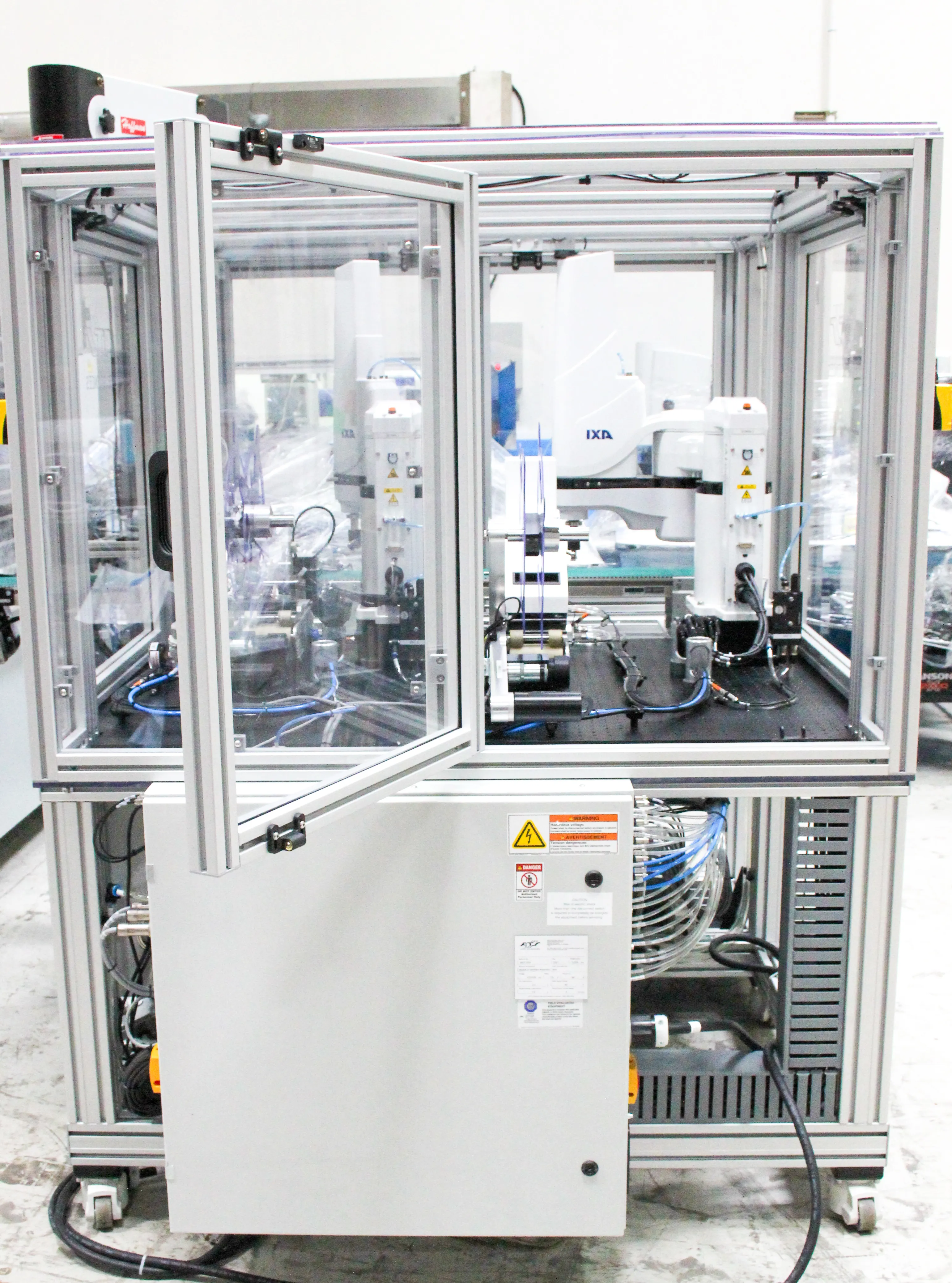

- Custom ATS workstation on castors for mobility
- Battery-less absolute encoder for reduced maintenance
- Low vibration and precise positioning
Specifications
- Power: 120V/220V, 60Hz US
- Includes: Power Cord
- SCARA Robots: Model IXA-4NSN4533-5L-T2
- Adhesive Component Applicator Capacity: up to 100 x 100mm
- Component Placement Accuracy: +/- 0.035mm
- Mobile Workstation for flexible use
- Manufactured: United States, 2021
- Total weight: 2000 Pounds
Weight
Imperial: 2400.0 Pounds
Metric: 1088.62 Kilograms
Shipping Dimensions
Imperial: 84.0 lb x 100.8 lb x 105.6 lb
Metric: 213.36 cm x 256.03 cm x 268.22 cm
Harmonized Code
8479500000
Harmonized Code Details
8479500000 - Industrial robots, not elsewhere specified or included. This code is chosen as the item is a robotic assembly module used in industrial production and manufacturing settings.
