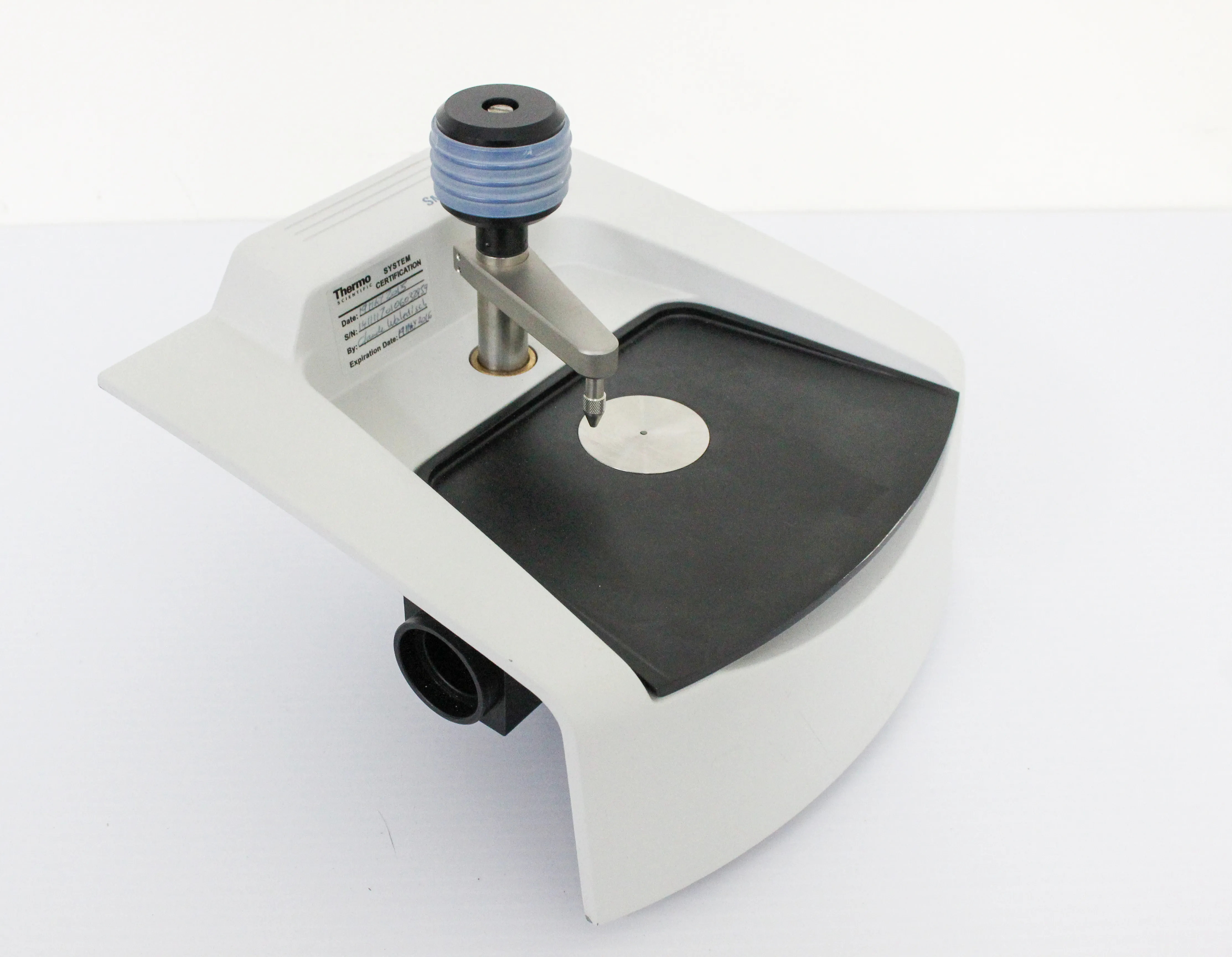

Thermo Smart iTR Attenuated Total Reflectance (ATR) Sampling Accessory

Product Information

As an used Smart iTR Attenuated Total Reflectance (ATR) Sampling Accessory by Thermo Scientific, this item provides exceptional sensitivity and IR throughput. It's designed for the analysis of solids, liquids, pastes, and gels and offers different crystal options to meet diverse sampling needs, from general purpose material identification to increased sensitivity with three reflection crystals. The Smart iTR Accessory has a number of features for flexibility and ease of use, including options for analyzing coatings on reflective materials, easy removal and replacement of crystal plates, and high pressure clamping. It's compatible with various Thermo Scientific spectrometers and recommended for use with a wide range of samples including paints, fibers, and caustic materials.

• Exceptional sensitivity and IR throughput
• Various crystal options for diverse sampling needs
• Analyzes coatings on reflective materials
• Easy removal and replacement of crystal plates
• High pressure clamping for hard and soft samples
• Compatible with various Thermo Scientific spectrometers
• Recommended for use with a wide range of samples

• Ideal for the analysis of solids, liquids, pastes, and gels
• Available with different crystals for diverse sampling needs
• Option for a single reflection crystal for general purpose material identification
• Optional three reflection crystal for increased sensitivity
• Optional specular plate for analyzing coatings on reflective materials
• Crystal plates are pinned in place with quick-release mounting for easy removal and cleaning
• High pressure clamp calibrated to deliver up to 10,000 psi of pressure
• Active Sample Area: 1.5mm for the single bounce ATR and 6mm for the 3 bounce ATR
• Compatible with Thermo Scientific Nicolet iS 10 FT-IR Spectrometer, Nicolet iZ 10 Auxiliary Module, and Nicolet 6700 and Nicolet 8700 FT-IR Spectrometers
• Recommended for use with most solids, liquids ranging from pH 1 to 14, fibers, abrasive, caustic, or corrosive materials, large or small samples, and paint chips

Metric: 2.97 kg
Imperial: 6.54 lbs

Metric: 35.56 cm x 35.56 cm x 40.64 cm
Imperial: 14 in x 14 in x 16 in

902790

The harmonized code 902790 is for spectrometers, spectrographs and monochromators; apparatus for measuring or checking optical properties.
