CEP 6506-GU Power Distribution Unit GFCI 50A 125/250V Outdoor Use
CEP
Details
-
CategoryFacility
-
Dimension15.0in x 22.0in x 11.0in
-
Serial21762
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

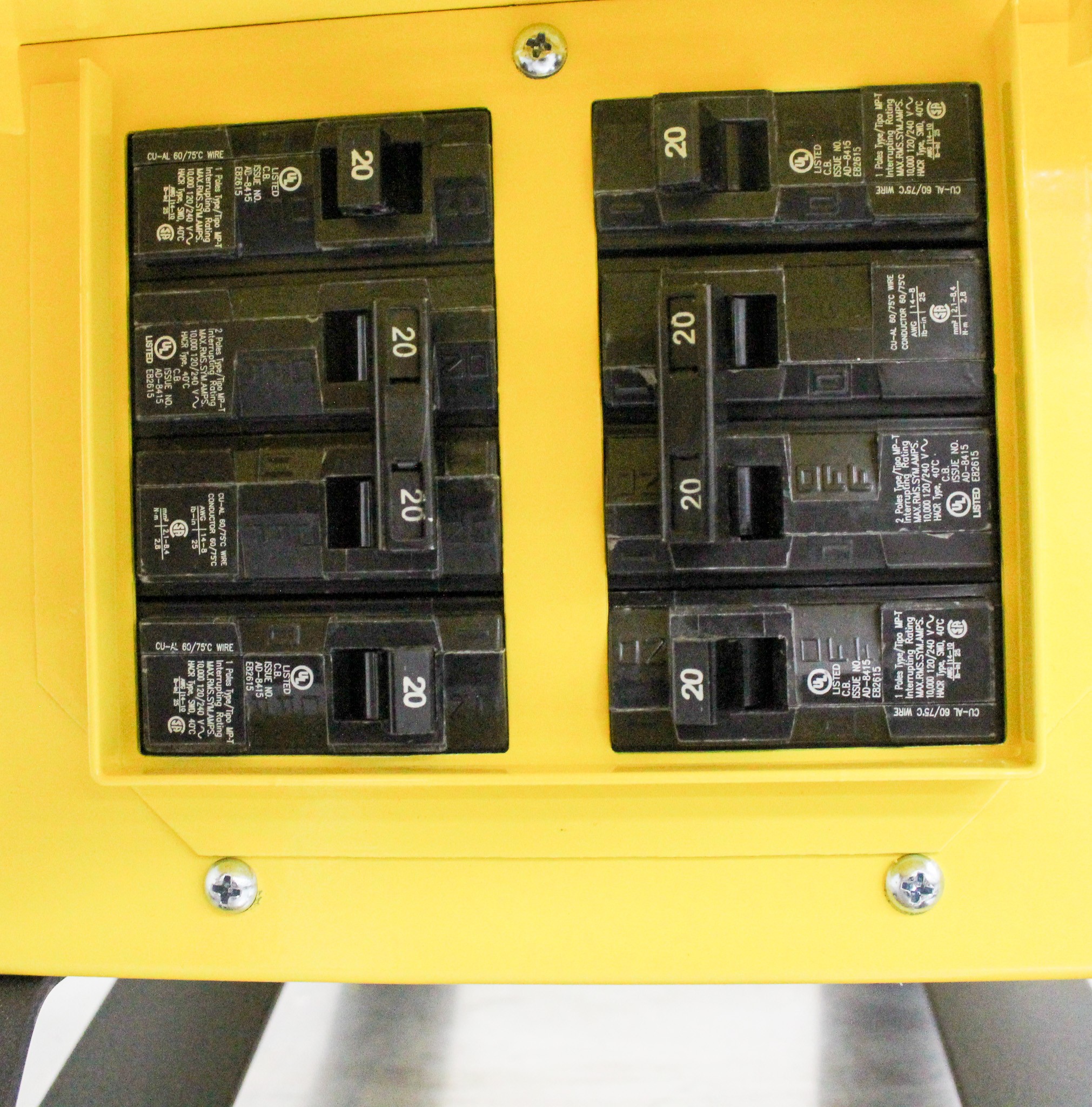

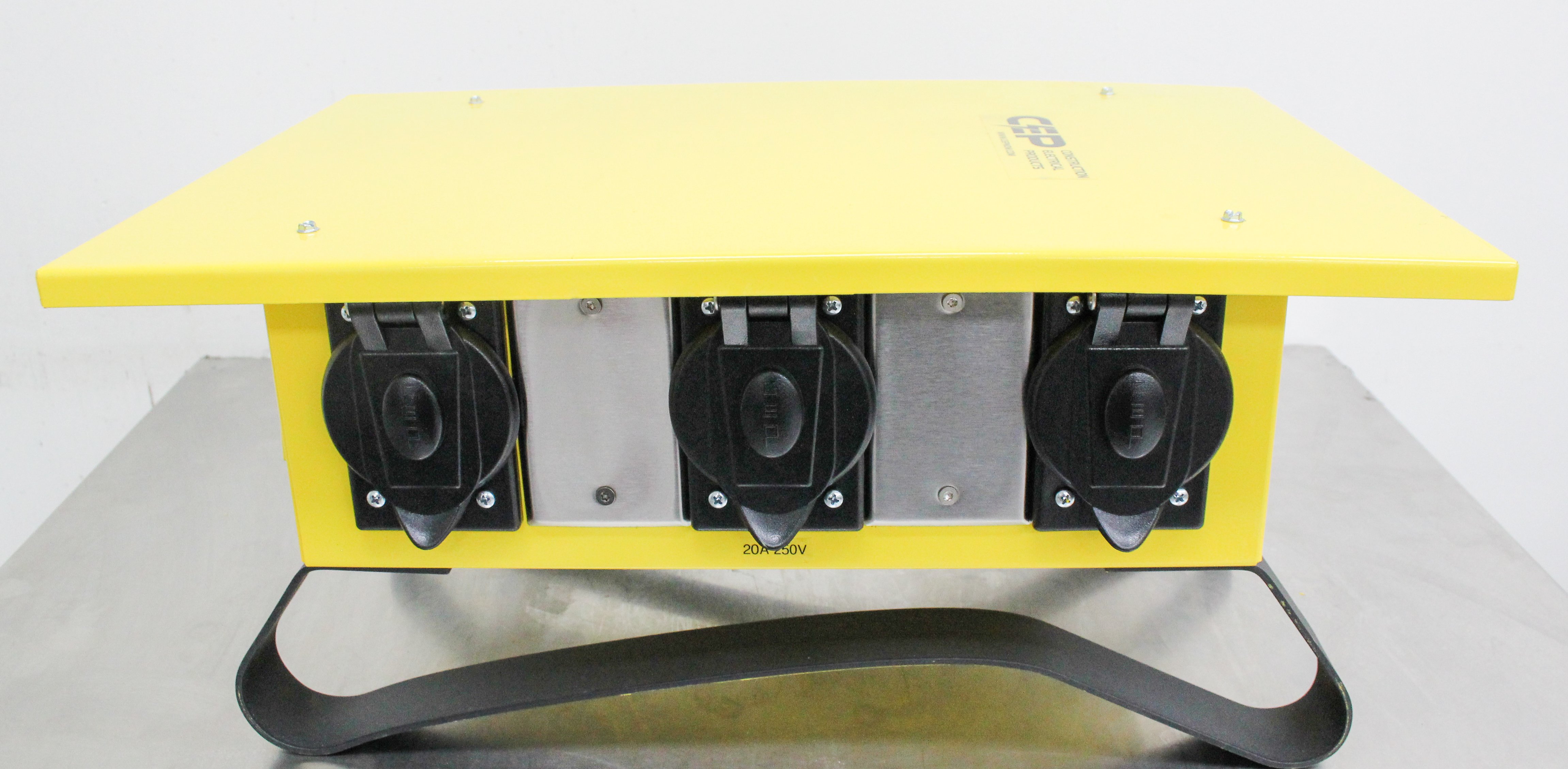

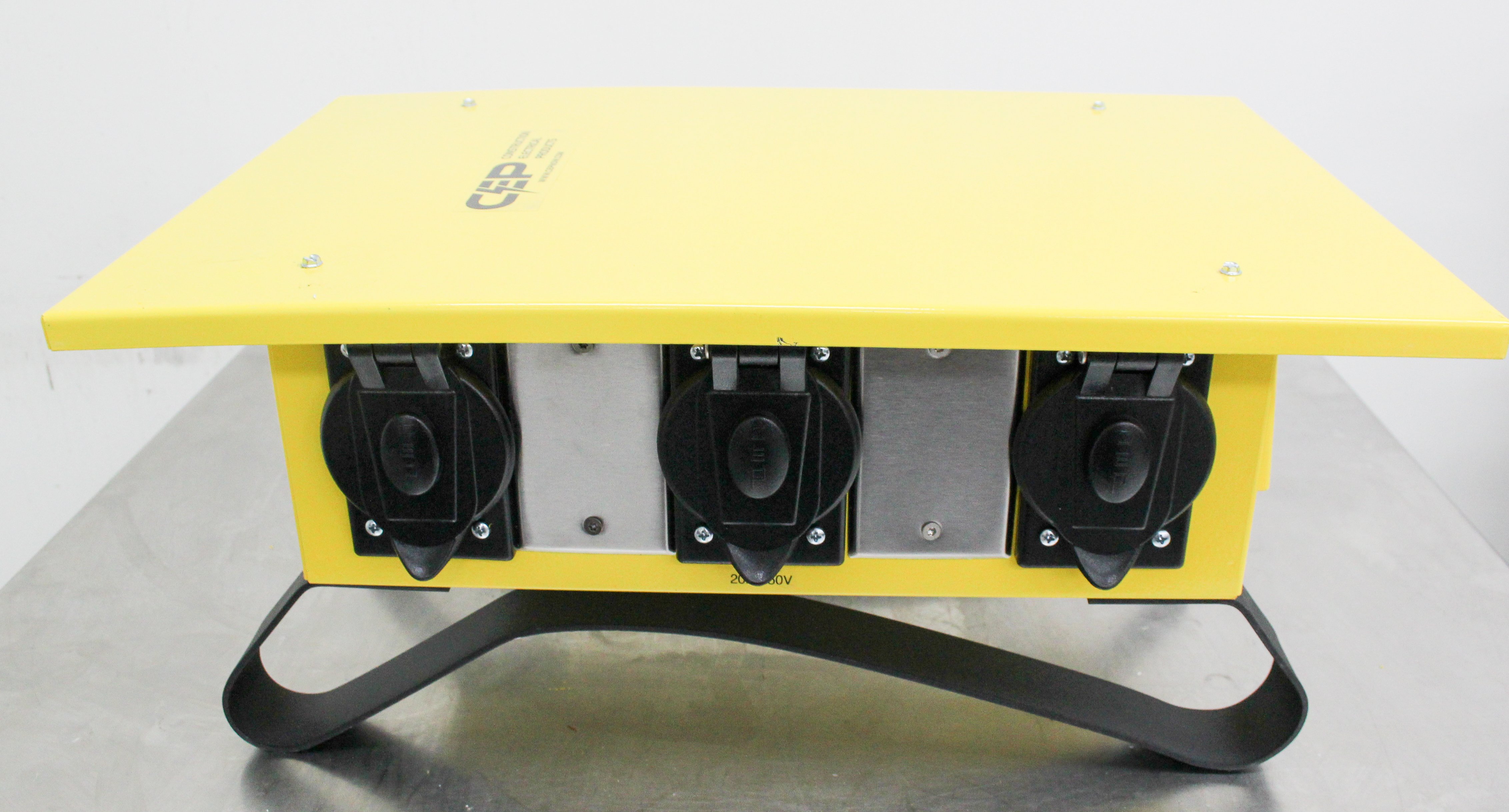

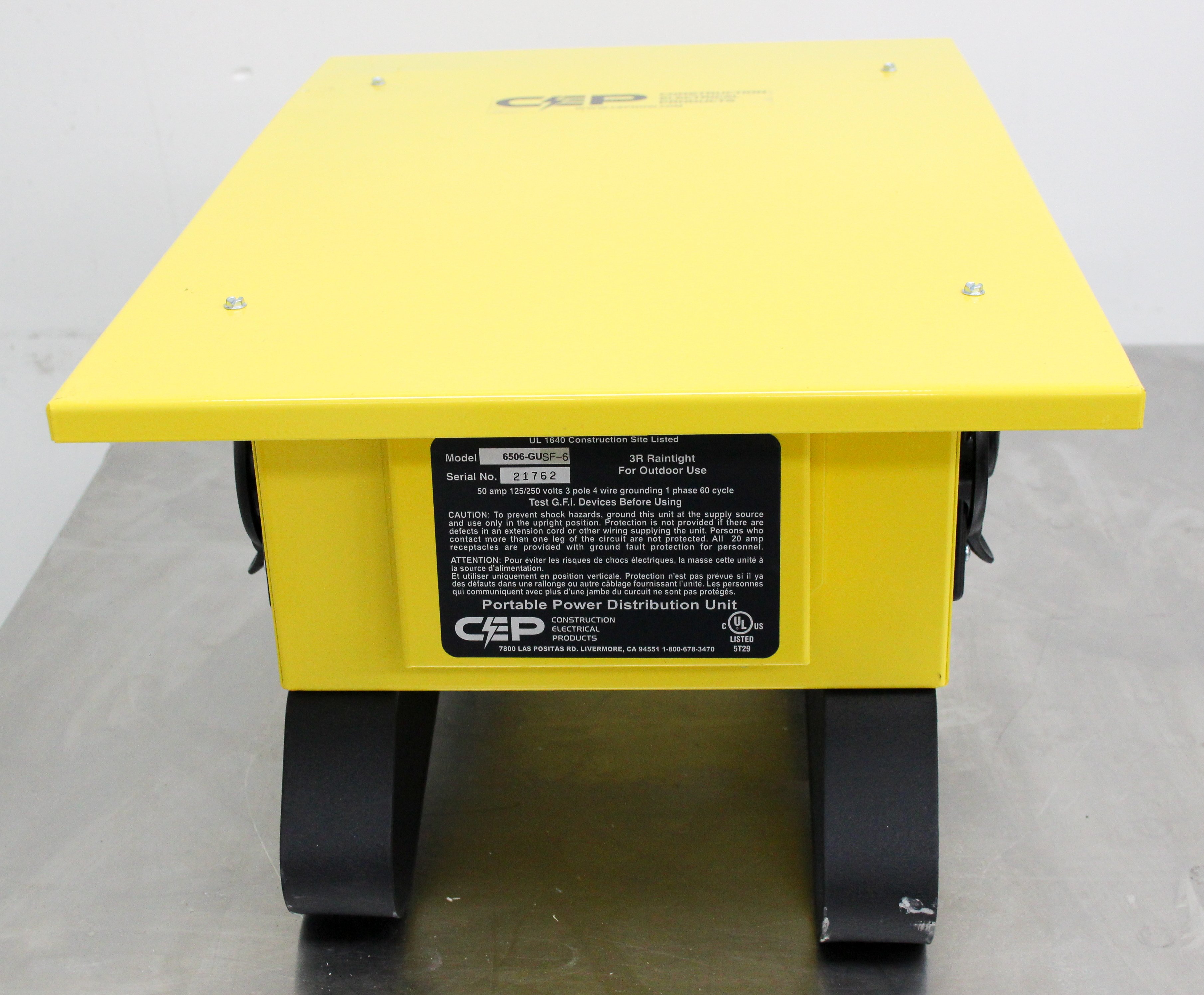

Introducing the CEP Model 6506-GU Portable Power Distribution Unit, an exemplary choice for temporary power needs at industrial sites. Assembled with high precision, this used unit offers substantial durability despite showing minimal cosmetic wear typical of regular use. Adhering to UL1640 standards and current OSHA safety regulations, the unit is protected by the latest GFCI technology, ensuring user safety against ground faults, open neutrals, and reverse phasing. With robust steel or stainless steel construction and a 50 Amps capacity, this unit is well-equipped for demanding environments. The power distribution unit also features 1 L6-30R and 6 GFCI 5-20R receptacles adaptable to varied power requirements. Despite its used status, the equipment powers on and passes basic functionality tests, with no known operational issues. Please note, power cord and operational manuals are not included.
Key Features
- Utilizes advanced GFCI technology for enhanced electrical safety
- Designed for temporary power distribution in robust jobsite conditions

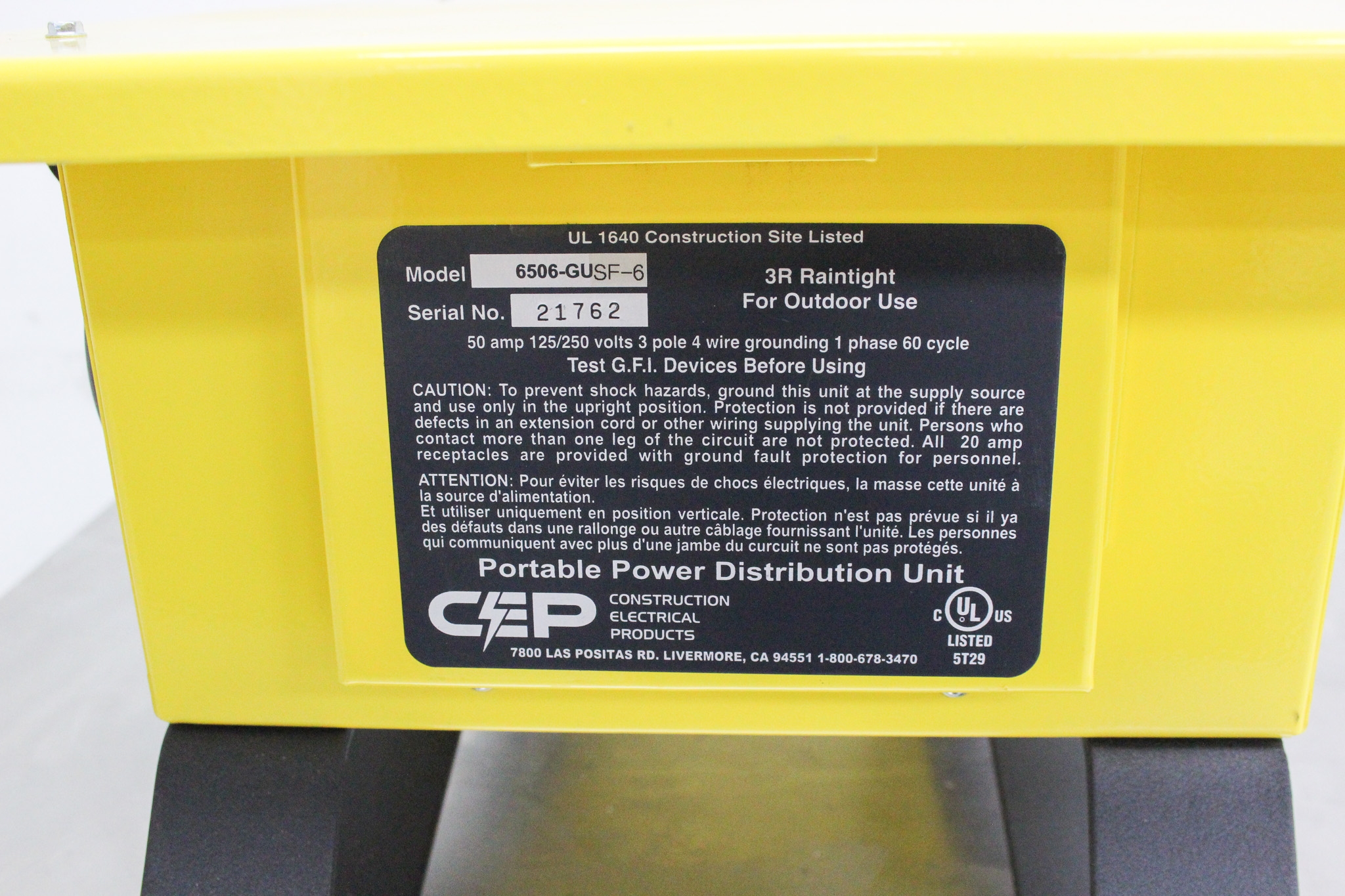

- UL1640 certified and complies with OSHA standards
- Equipped with 50 Amps capacity to handle high power demands

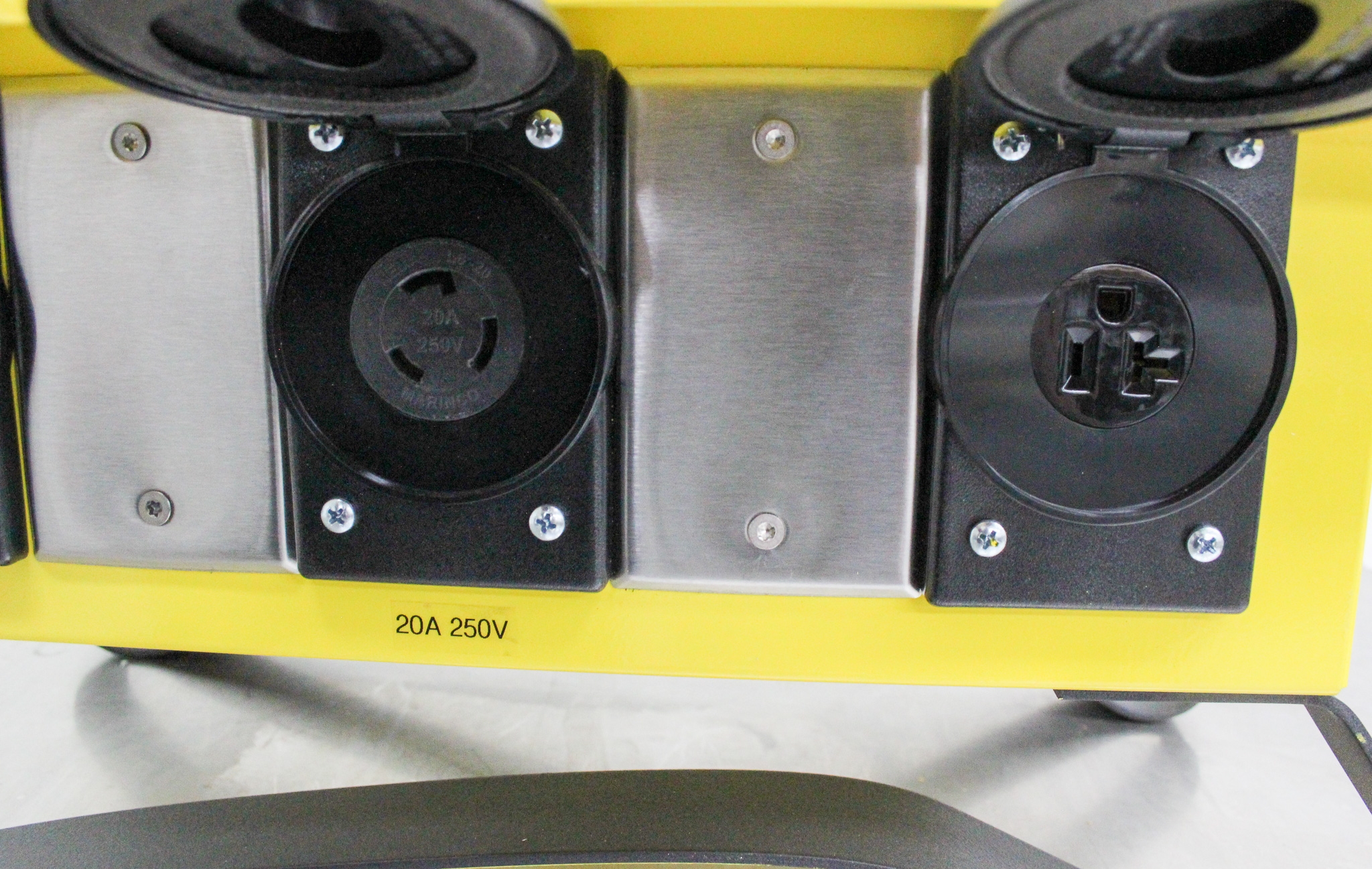

- Features multiple receptacle options: 1 L6-30R and 6 GFCI 5-20R
- Constructed from 16 ga. steel or stainless steel to withstand wear
Specifications
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Power Inlet: CS6375
- Power Outlet: CS6369
- GFCI protection with 4-6 milliamp trip level and <25 milliseconds trip time
- 3R rated for outdoor use
- Dimensions: 11 x 21 x 14.5 inches (HxWxD)
- Weight: Approximately 29lbs
Weight
Imperial: 32.4 Pounds
Metric: 14.7 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 26.4 lb x 13.2 lb
Metric: 45.72 cm x 67.06 cm x 33.53 cm
Harmonized Code
8537.10.90
Harmonized Code Details
This code is for boards, panels, consoles, desks, cabinets and other bases, equipped with two or more apparatus of heading 8535 or 8536, for electric control or the distribution of electricity. The selection of this code is justified by the product functions as a power distribution unit with GFCI protection.
