CEP 6506-GU SF-6 Power Distribution Unit Outdoor Temp Electrical Safety
CEP
Details
-
CategoryFacility
-
Dimension15.0in x 22.0in x 11.0in
-
Serial21747
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The CEP Model 6506-GU SF-6 Portable Power Distribution Unit is a reliable outdoor solution for temporary power needs. Built with advanced GFCI technology, it offers comprehensive electrical safety with ground fault protection, open neutral, and reverse phasing protection. The unit adheres to UL1640 standards and is OSHA compliant, ensuring it withstands rugged jobsite conditions. Featuring a durable 16-gauge steel or stainless steel construction and equipped with multiple receptacles including 1 L6-30R and 6 5-20R GFCI, this power box handles 50 amps and operates at 125/250V. Weighing approximately 29 lbs, it is compact and easily portable. Note: This used unit powers on and passes basic tests but has not been fully tested; exhibits slight cosmetic wear from previous use.
Key Features
- GFCI technology for electrical safety
- UL1640 standard compliance
- OSHA compliant
- 50 Amps capacity
- 125/250V dual voltage
- 1 L6-30R and 6 5-20R GFCI receptacles
- 16-gauge steel or stainless steel construction
- Compact and portable design
Specifications
- Power Inlet: CS6375
- Power Outlet: CS6369

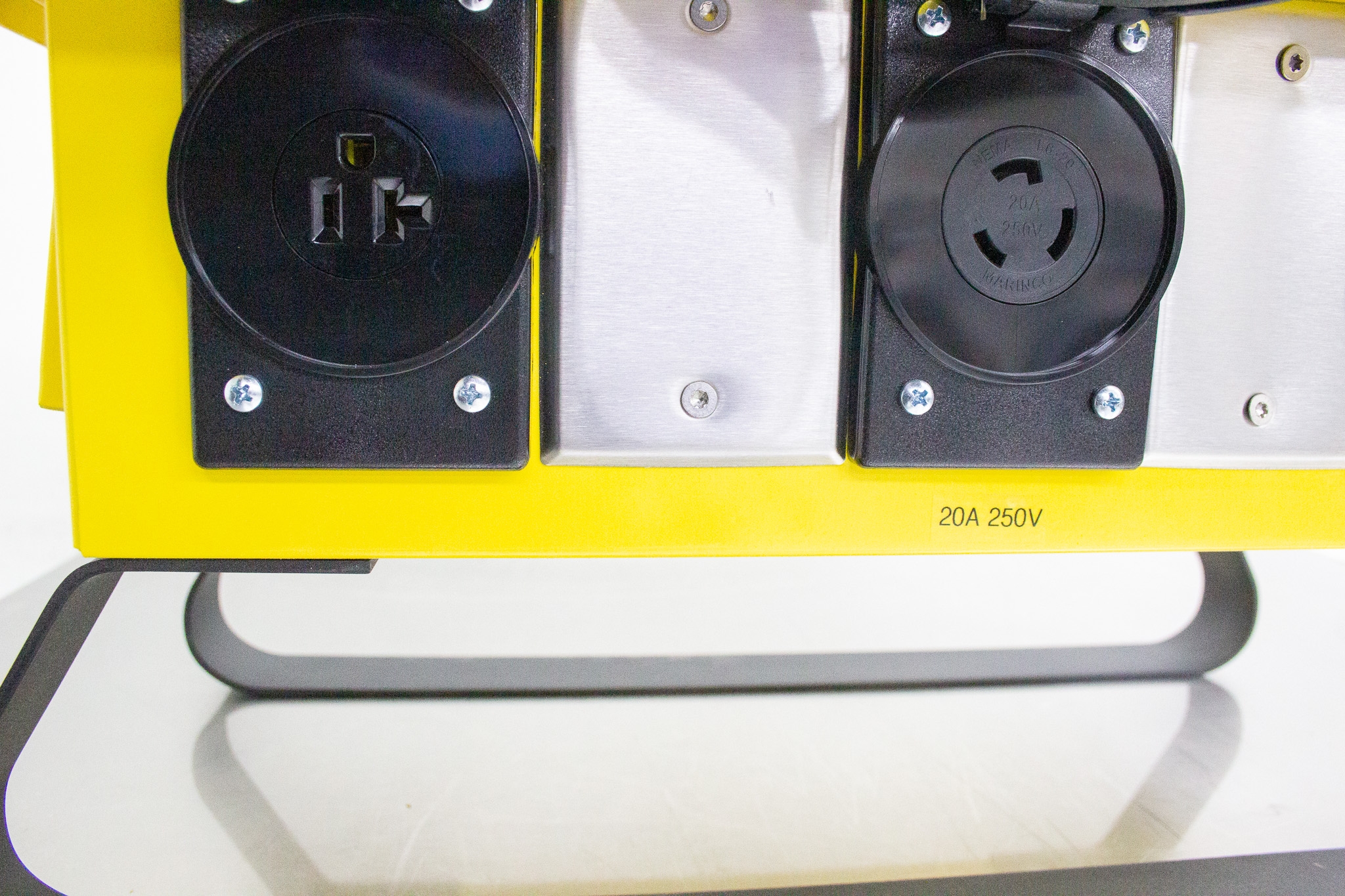

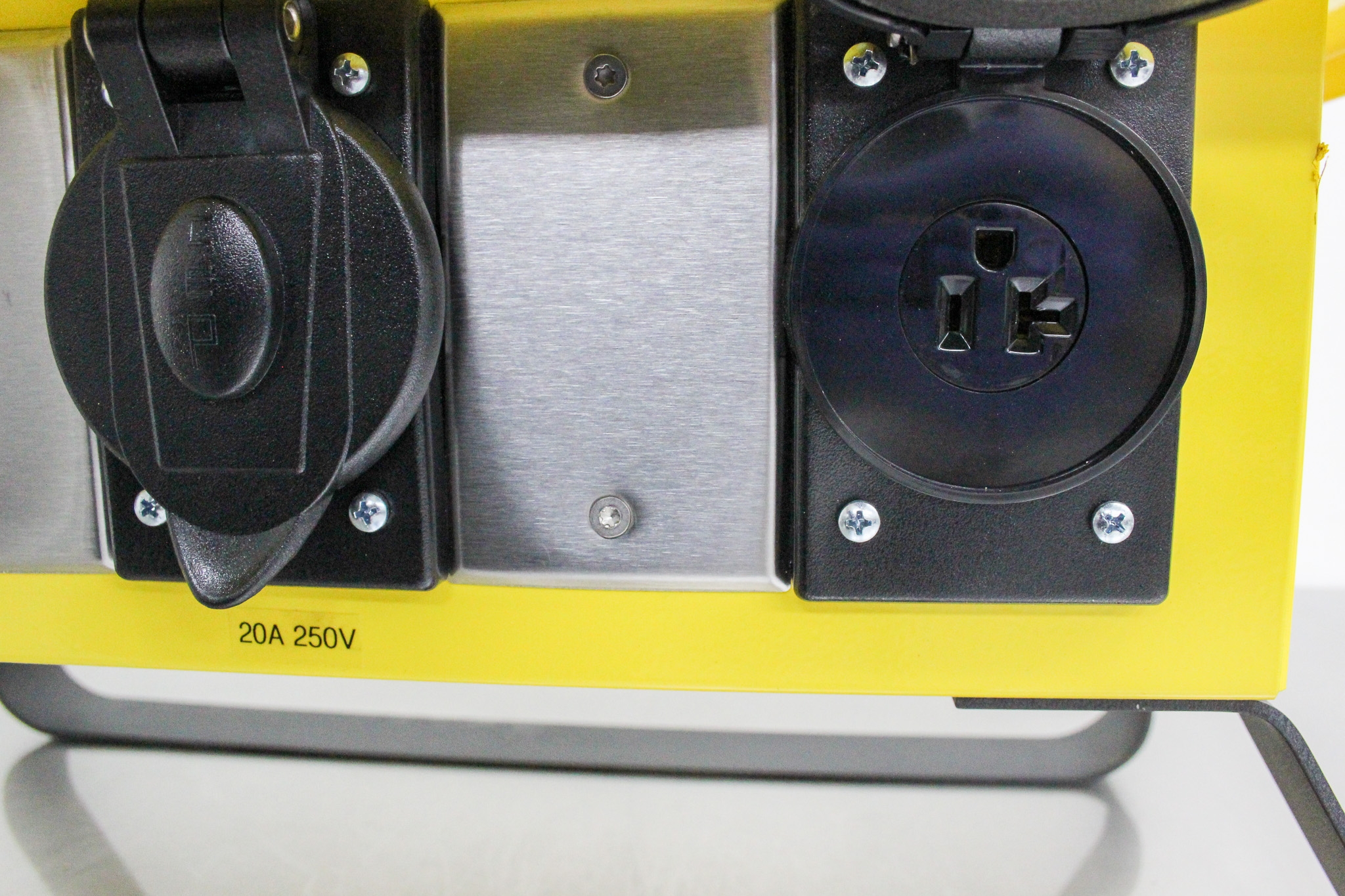

- Receptacles: 1 L6-30R, 6 5-20R GFCI
- GFCI Specs: 4-6 milliamp trip level, <25 milliseconds trip time
- AMPS: 50 Amps
- Voltage: 125/250V
- Frequency: 50Hz/60Hz
- Weight: 29 lbs
- Dimensions (In.): 11 x 21 x 14.5
- Safety: 3R Rated
Weight
Imperial: 32.4 Pounds
Metric: 14.7 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 26.4 lb x 13.2 lb
Metric: 45.72 cm x 67.06 cm x 33.53 cm
Harmonized Code
853710
Harmonized Code Details
Harmonized code 853710 covers boards, panels, consoles, and other bases for connecting to an electrical circuit. This code applies to the CEP Portable Power Distribution Unit, as it manages and distributes electrical circuits.
