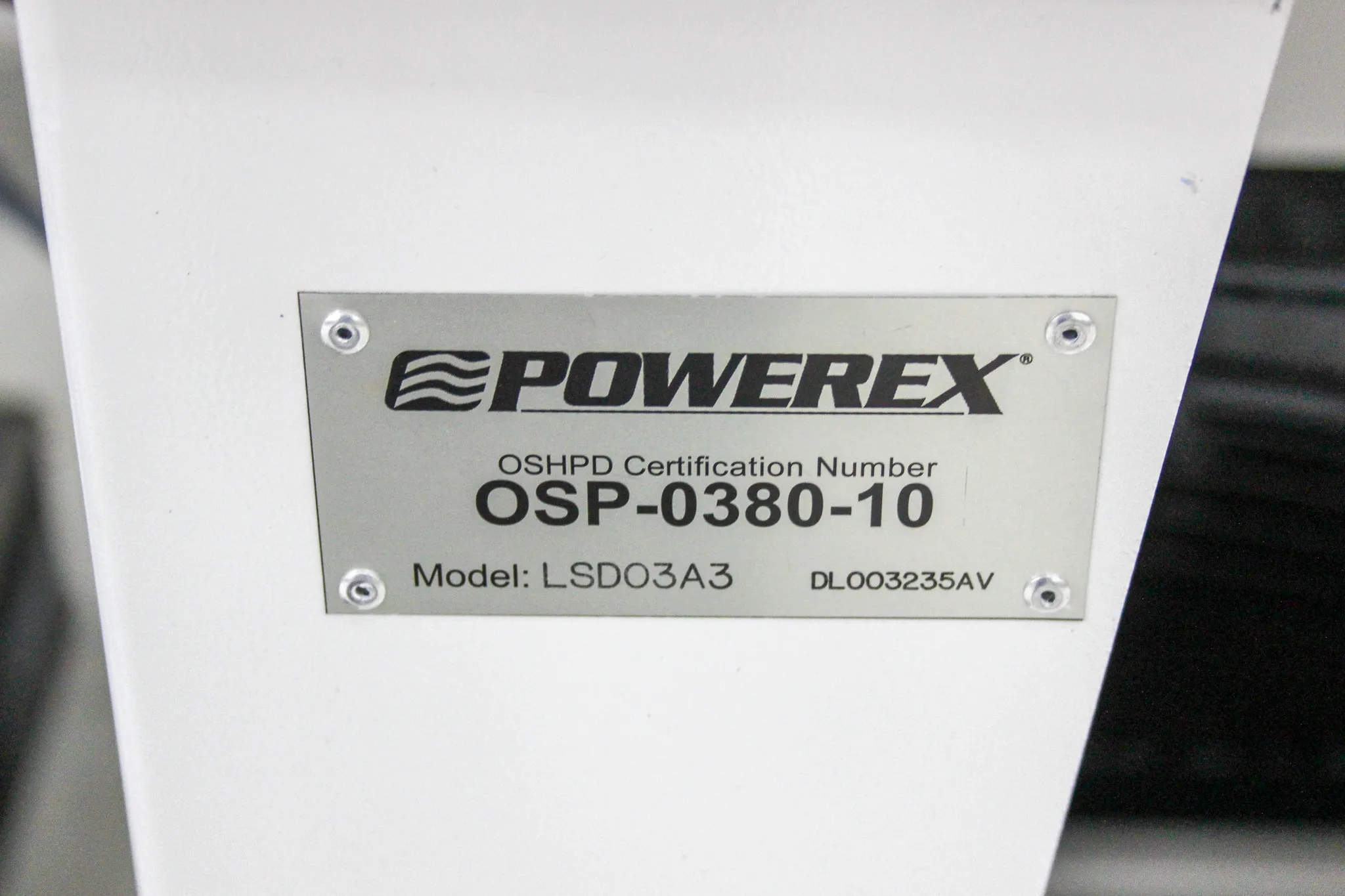

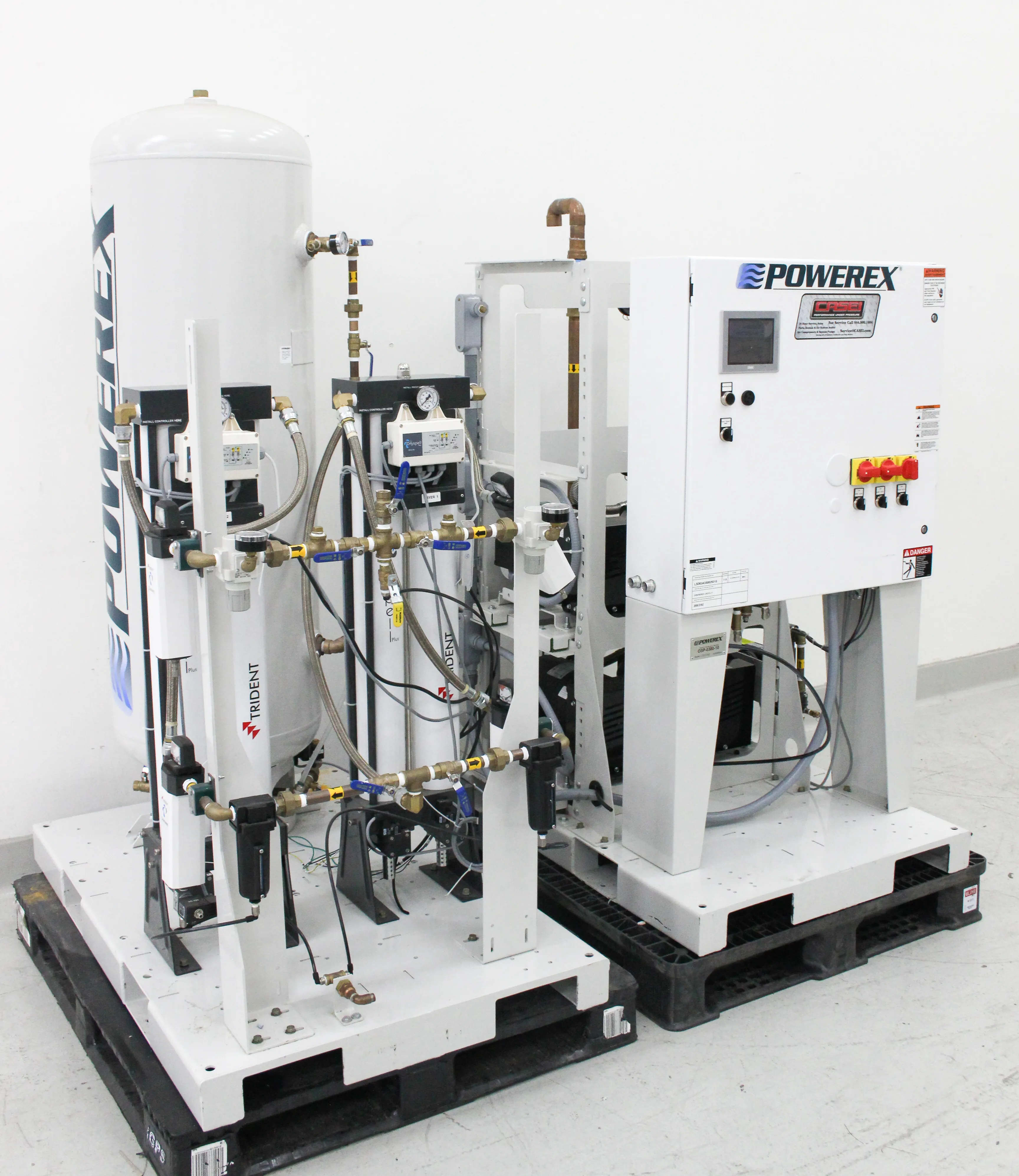

Powerex LSD03A3 Lab Open Scroll Air Compressor System with 80 Gallon Tank

Product Information

Powerex LSD03A3 is a lab open scroll air compressor system with premium controls. It was removed from a working environment and is available in an excellent preowned condition. It is designed to provide clean, dry air for critical air compression applications. The rotary design requires no oil for operation and has features like tip seals of composite PTFE material, external compressor bearings, and an integral radial flow fan for cooling. The premium NFPA control panel, automatic lead/lag sequencing, and advanced air purification package make it a reliable and efficient solution for various laboratory settings. The unit comes with a 30-day warranty.

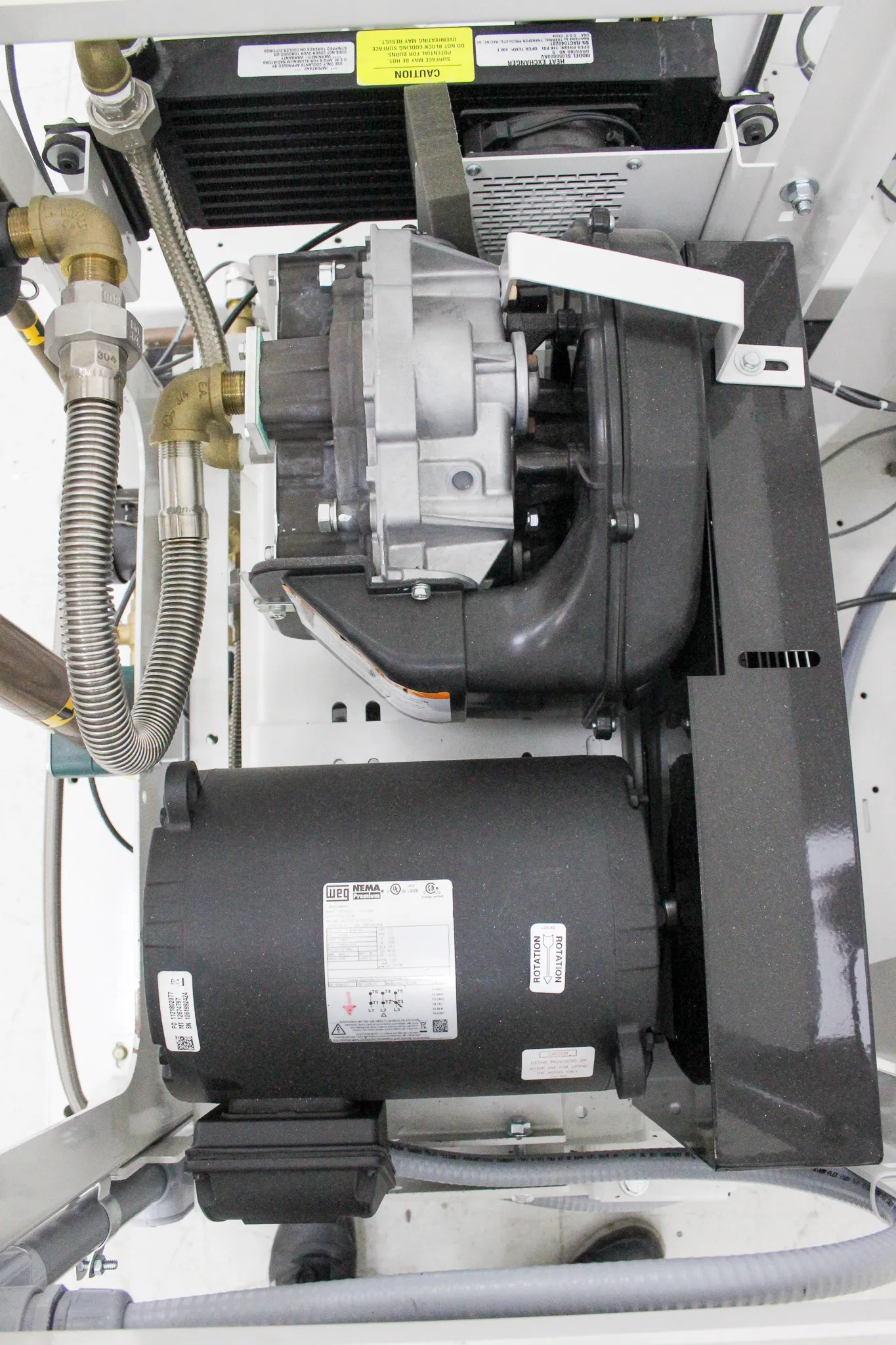

• Belt-driven oil-less rotary scroll single stage construction

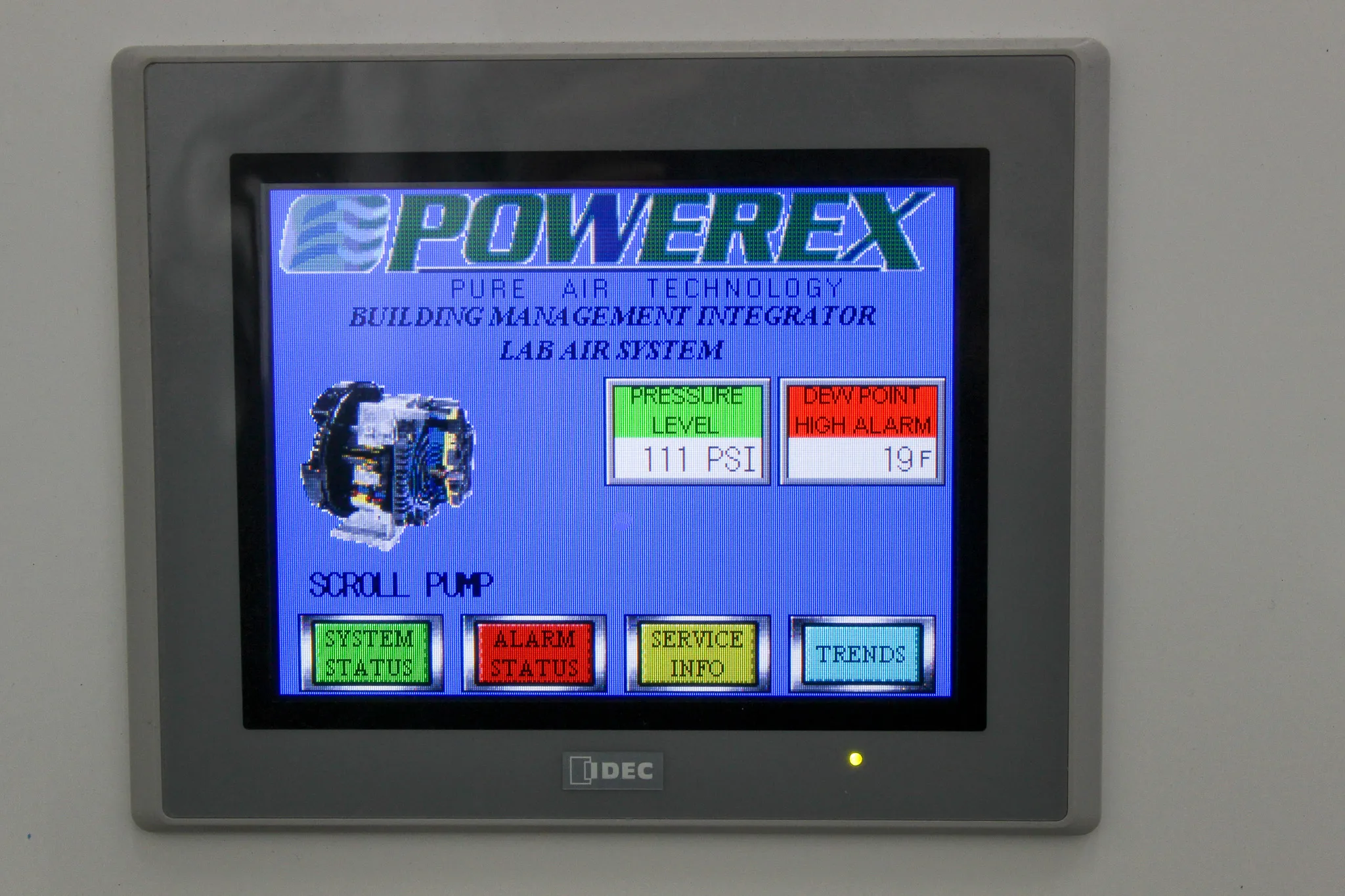

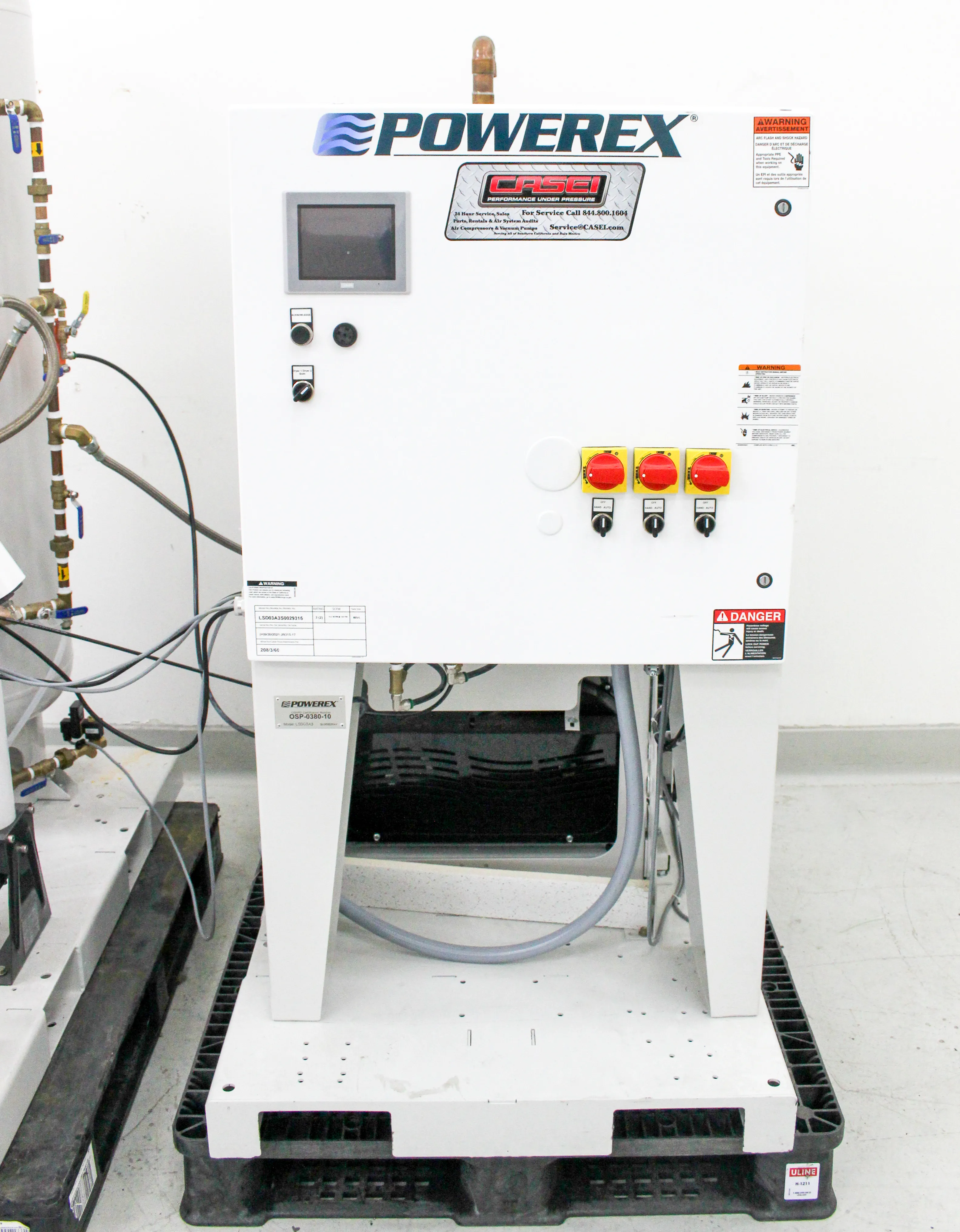

• Premium NFPA control panel with automatic lead/lag sequencing

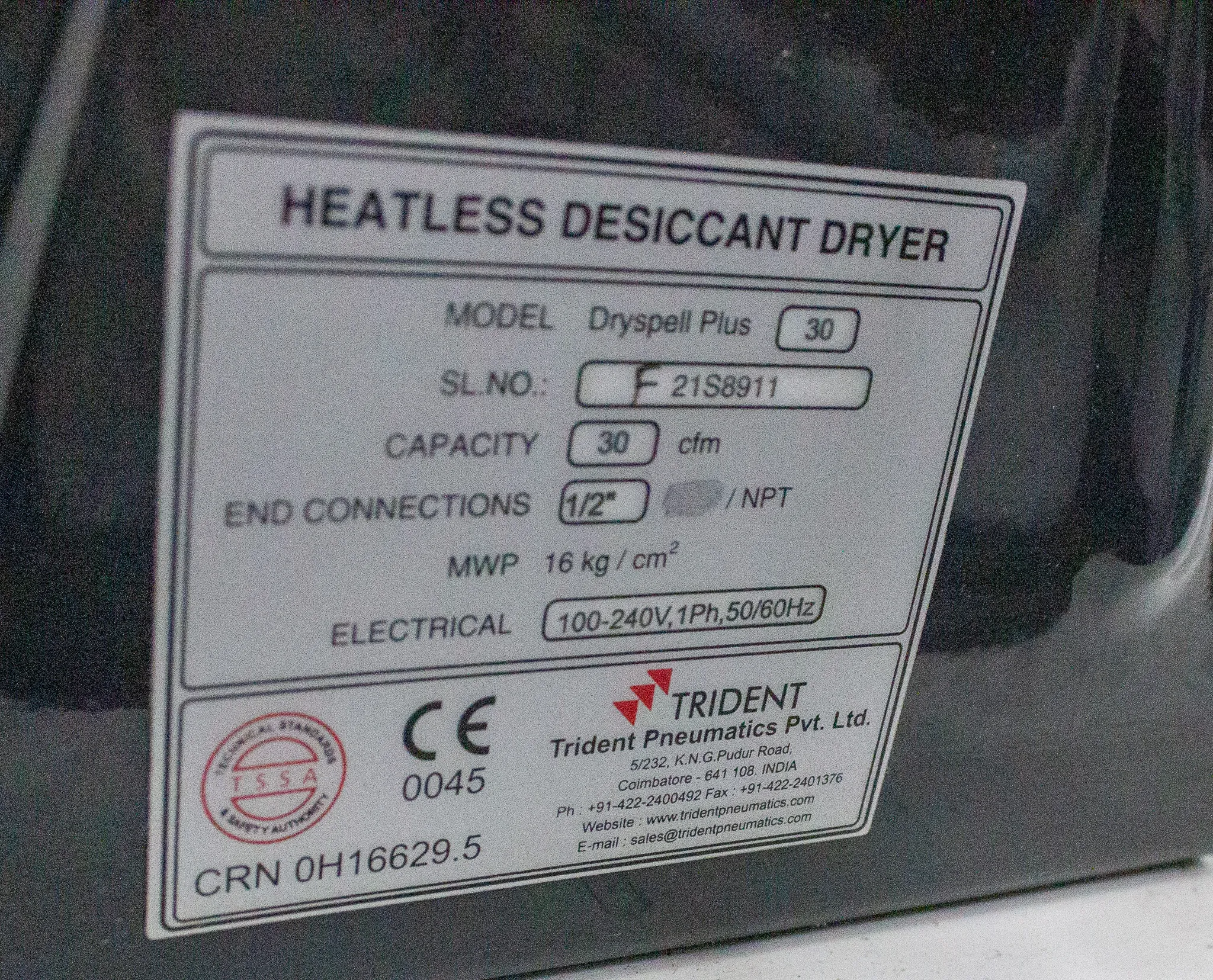

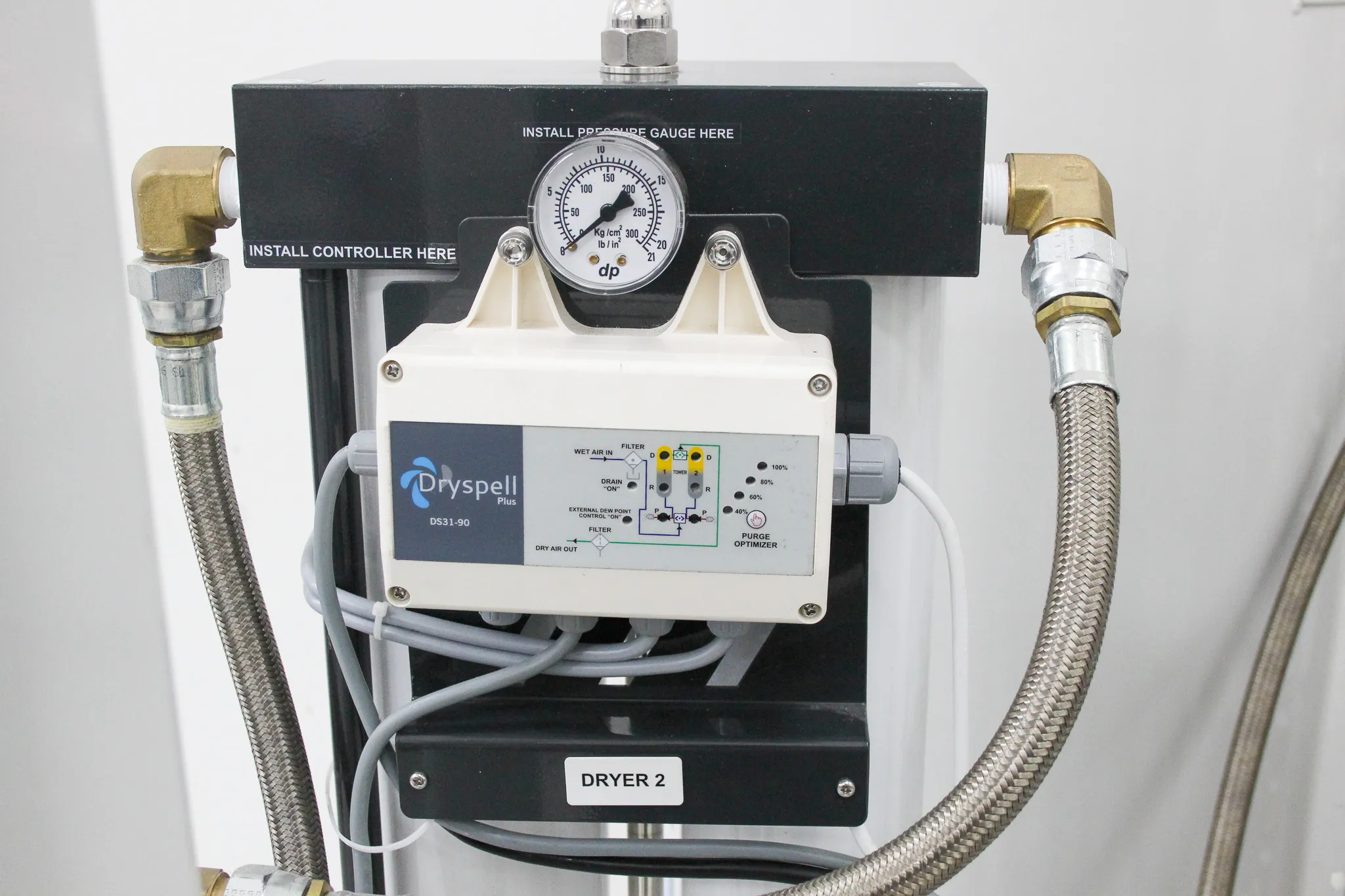

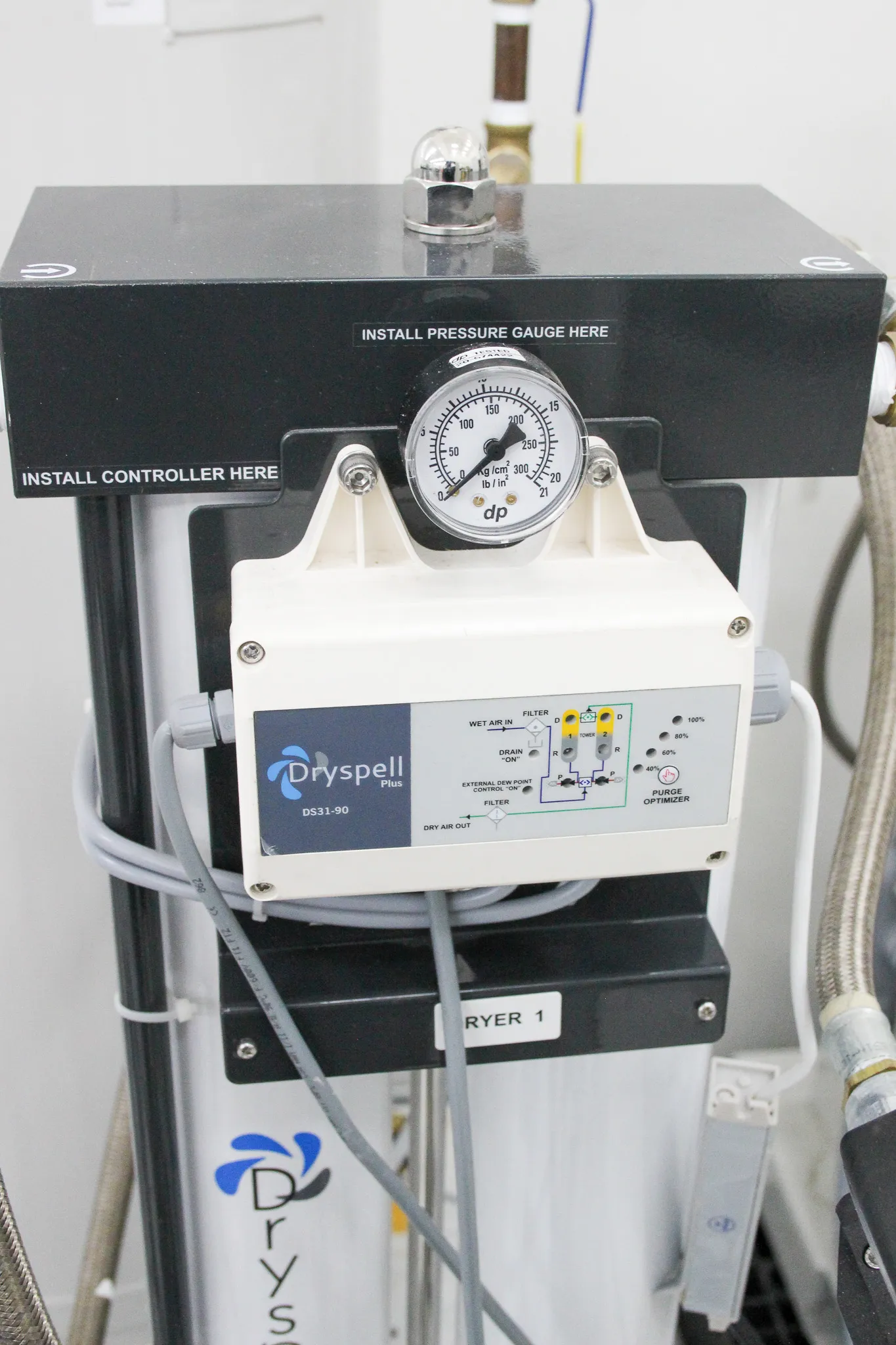

• Dual desiccant air dryers with dual filter and regulator bank
• ASME air receiver rated for 200 PSI MAWP
• Rated for a maximum of 145 psig

• Air Flow at 145 psig: 14.2 scfm

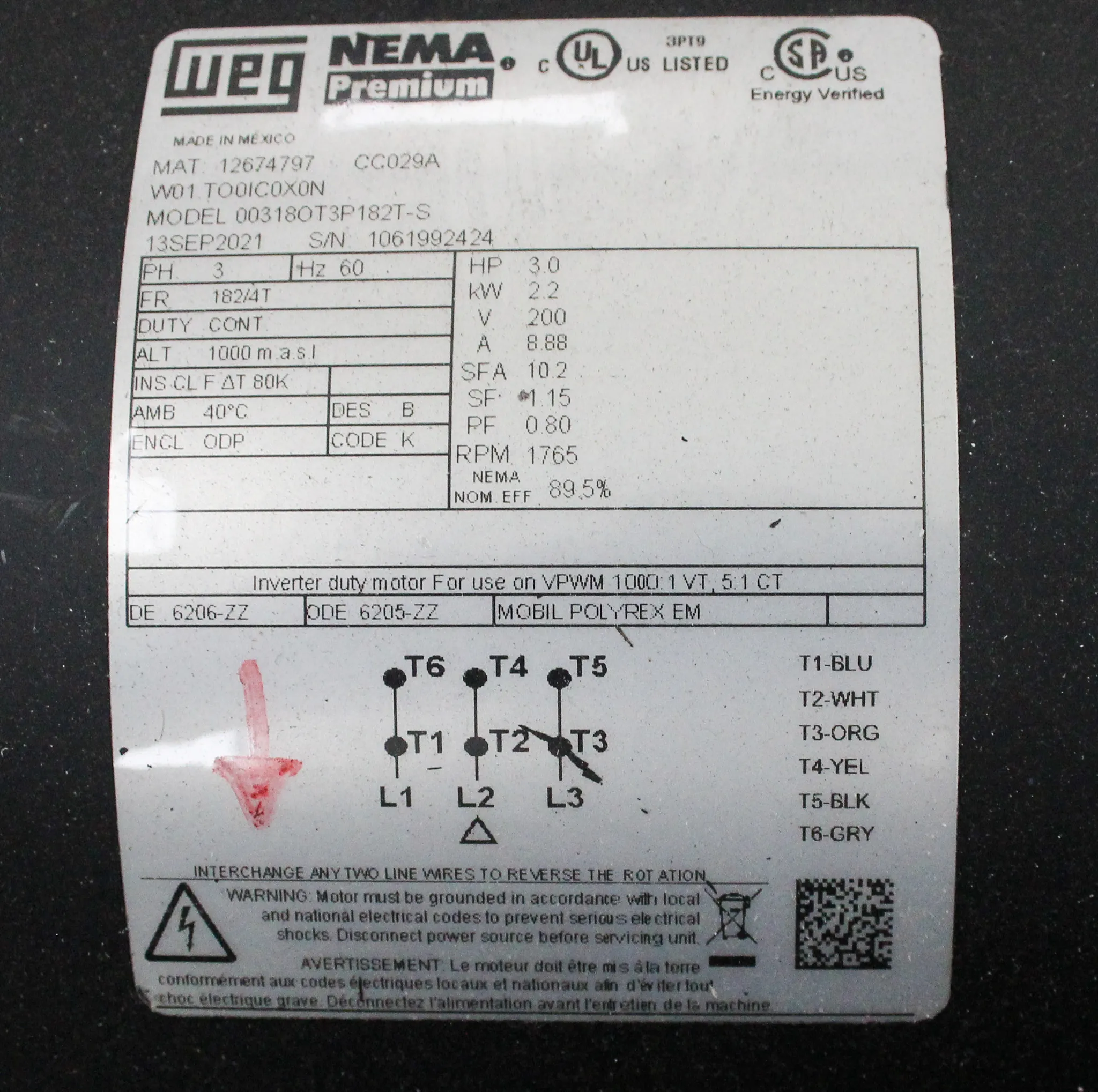

• Motor Power: 3 hp
• System Weight: 1450 lb
• Tank Capacity: 80 gal
• Optional Inlet (X2): 3/4
• Outlet Size: 1/2 in
• System Full Load Current (F.L.A) at 208 V: 21.2 A
• System Full Load Current (F.L.A) at 230 V: 19.2 A
• System Full Load Current (F.L.A) at 460 V: 9.6 A
• Sound Level: 75 dBA
• Electrical Panel Opening: 42 in
• Minimum Clearance for Ease of Maintenance: 24 in

Metric: 657.7 kg
Imperial: 1450 lb

Metric: 142.24 cm x 173.74 cm x 210.82 cm
Imperial: 56 in x 68.25 in x 82.99 in

8414808080

The harmonized code 8414808080 is used for air compressors and is specifically for rotary type compressors. It covers air compressors that are used and capable of being operated without the use of oil and has a discharge flow rate not exceeding 141.6 cubic meters per minute.
