Scinomix Sci-Print MP2+ Automated Microplate Deep Well Labeler 600 DPI Used
Scinomix
Details
-
CategoryComputer / IT
-
Dimension32.0in x 26.0in x 15.0in
-
Serial0523
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

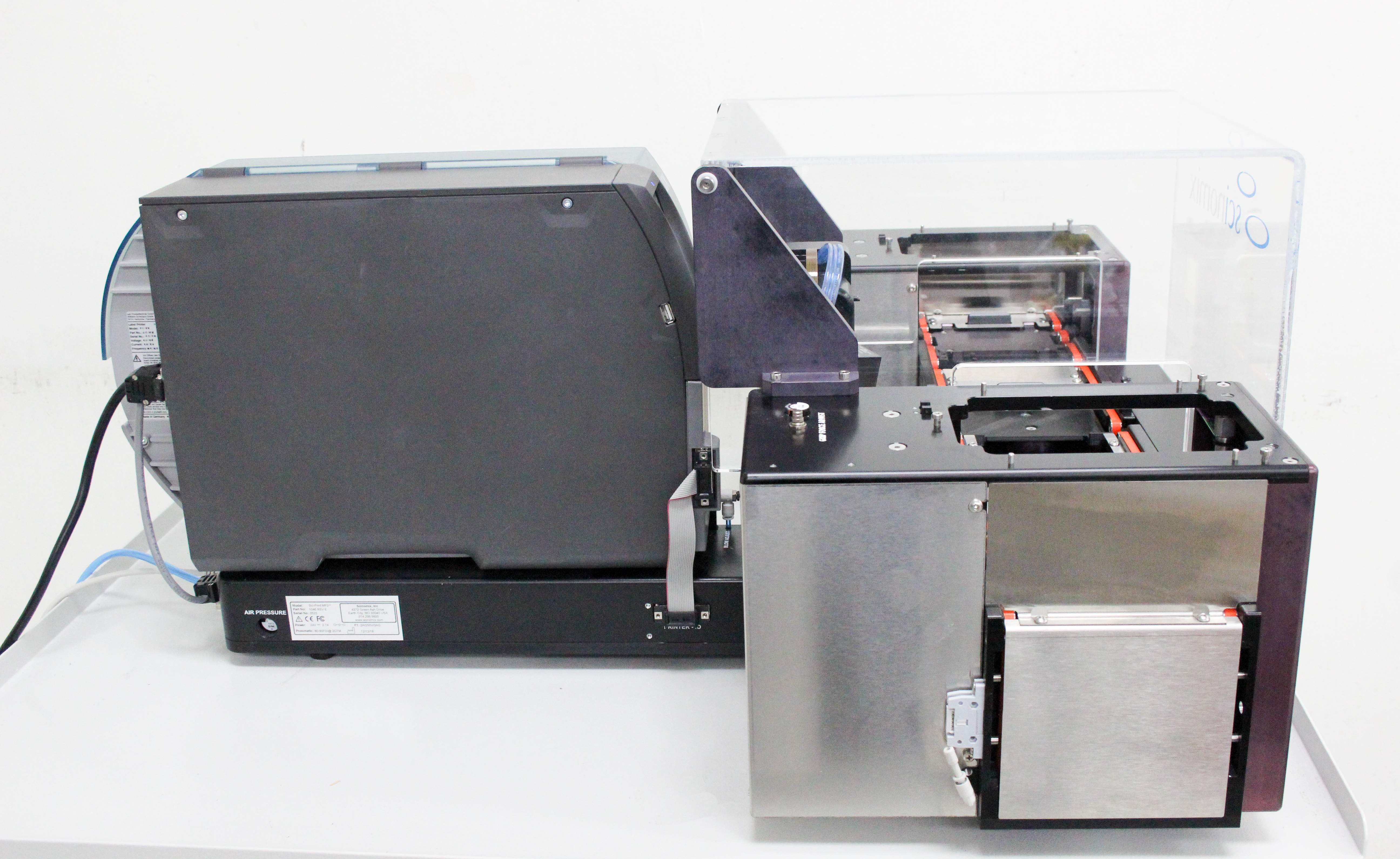

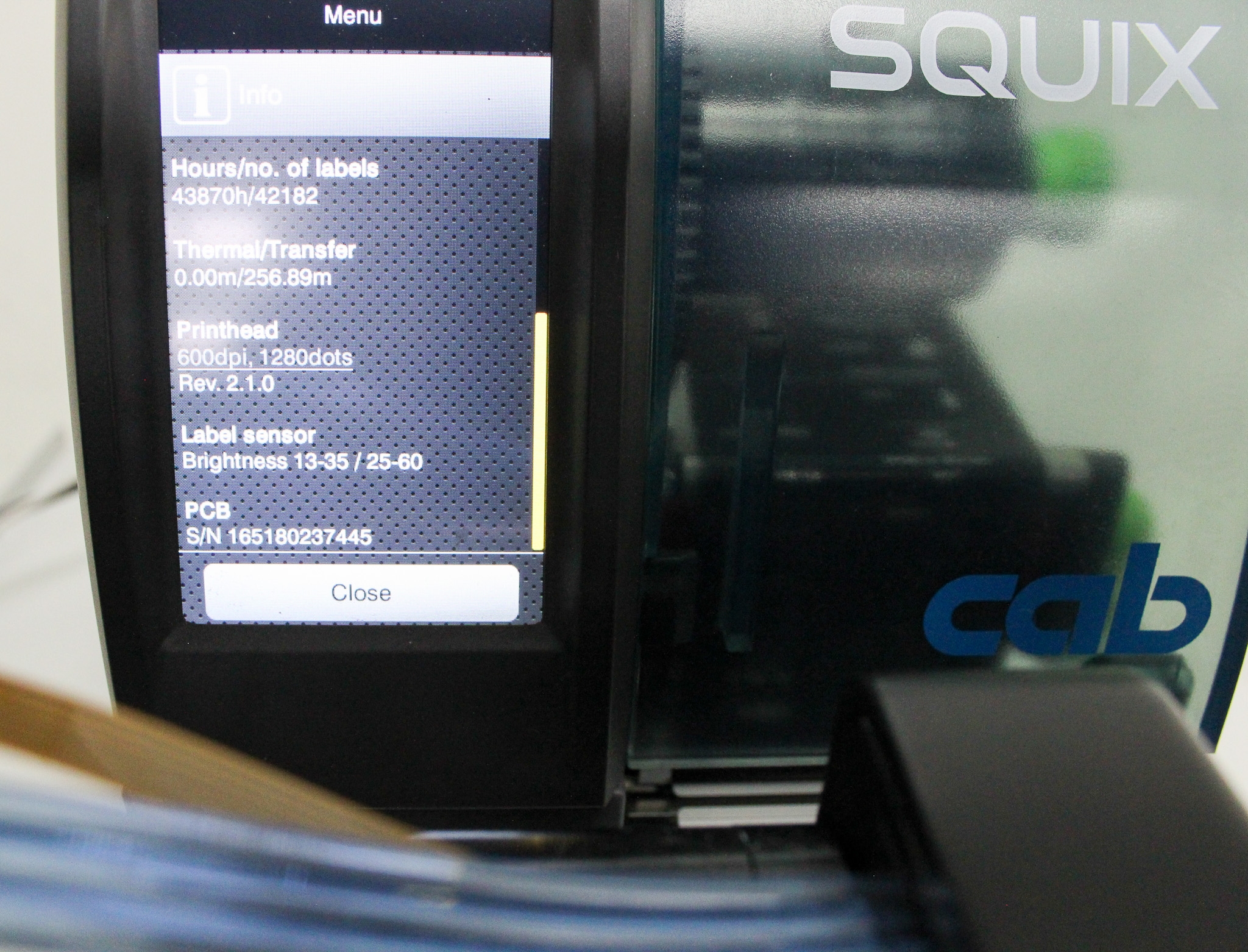

Explore the Scinomix Sci-Print MP2+, a fully automated microplate and deep well block labeler designed for robust laboratory workflows. This equipment, manufactured by Scinomix in the United States, features a Cab Squix 2/600P printer, delivering 600 DPI thermal transfer printing. With secure functionality and minimal wear from typical use, the MP2+ suits high-throughput needs and provides walk-away time advantages. It boasts capabilities to apply labels on all plate sides, includes user-configurable fields, and features a barcode scanner for validation. Although vertical stackers are not included, additional stackers can be purchased to enhance loading capacity up to 48 plates or 13 deep well blocks. The printer power supply requirements range from 110-240V AC and are ideal for standard RS232 serial port connections. Air supply should be oil-free and regulated between 80-90 PSI. Ideal for applications requiring fast cycle times and reliable barcode systems.
Key Features
- 600 DPI thermal transfer printing capability
- Compatible with a variety of microplates and deep well blocks
- Apply labels to all sides of the plate in any combination
- Includes barcode scanner for validation
- User-configurable label fields
- Additional stackers can increase capacity up to 48 plates
- Fast cycle times for increased lab efficiency
- RS232 and USB connectivity
Specifications
- System Requirements: Windows 7/8/8.1 or Windows XP with Service Pack 3, .NET Framework 3.5
- Network Requirements: RS232 serial port or USB-serial port adaptor

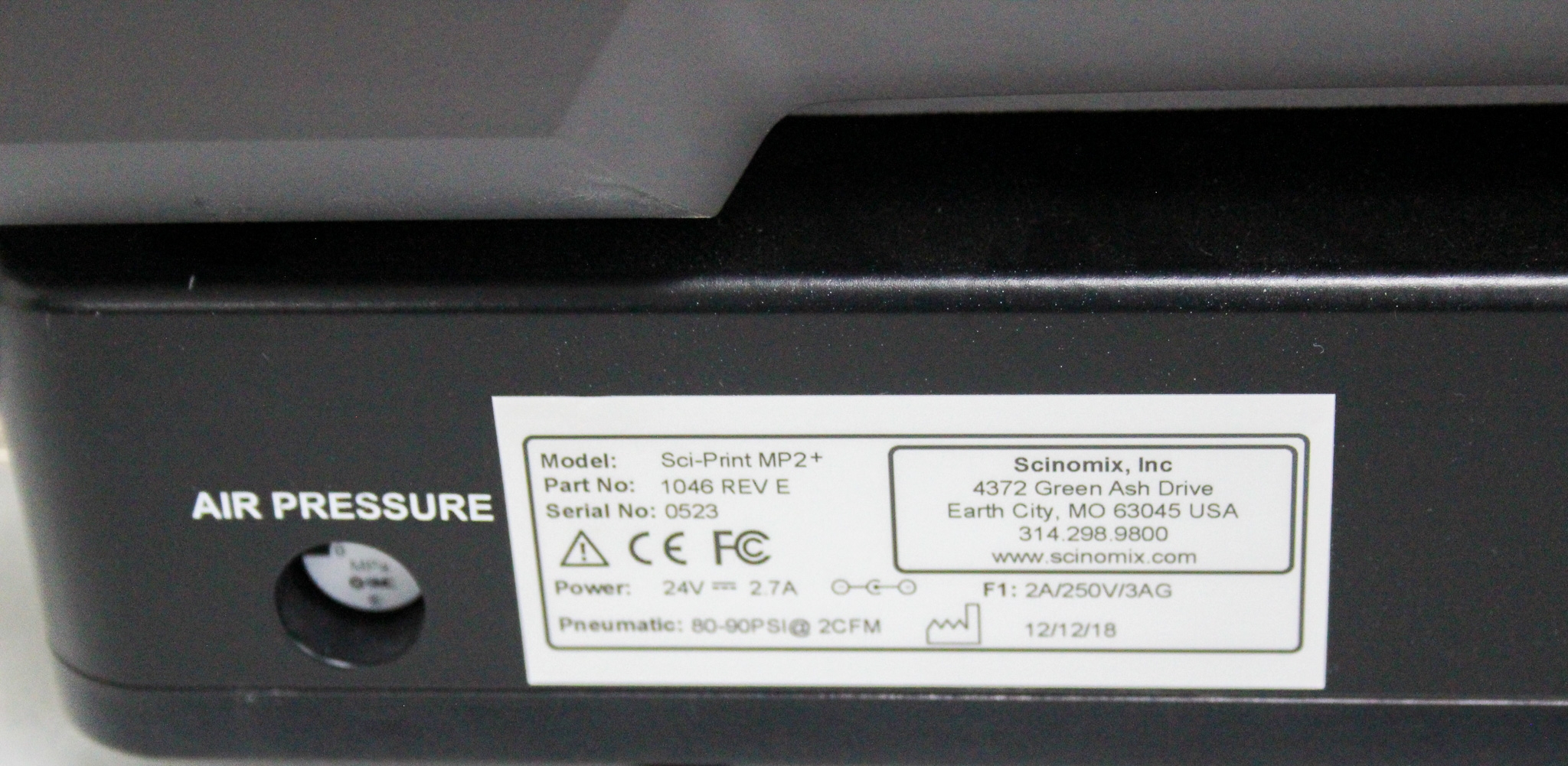

- Air Requirements: 80-90 PSI @ 2.5 CFM, oil/contaminant-free
- Main Power Requirements: Printer: 110-240V AC @2A 50-60Hz
- Provided Power Supply: 24 V DC, Max Output Current: 2.71 A, Max Output Power: 65 W
- Physical Dimensions: Height: 35 inches, Width: 22 inches, Depth: 31 inches, Weight: 160 lbs.
- Plate Capacity: 48 half-height microplates or 13 deep well blocks
Weight
Imperial: 192.0 Pounds
Metric: 87.09 Kilograms
Shipping Dimensions
Imperial: 38.4 lb x 31.2 lb x 18.0 lb
Metric: 97.54 cm x 79.25 cm x 45.72 cm
Harmonized Code
8443321040
Harmonized Code Details
Harmonized code 8443321040 refers to printers that are capable of connecting to computers or networks. This code is appropriate given the Sci-Print MP2+ features connectivity via RS232 serial ports and USB for integration with computers and peripherals.
