Edwards RV3 A65201903 Vacuum Pump 3.3m3/hr 2.3cfm Chem Process Pumping
Edwards
Details
-
CategoryPump
-
Dimension17.0in x 7.0in x 10.0in
-

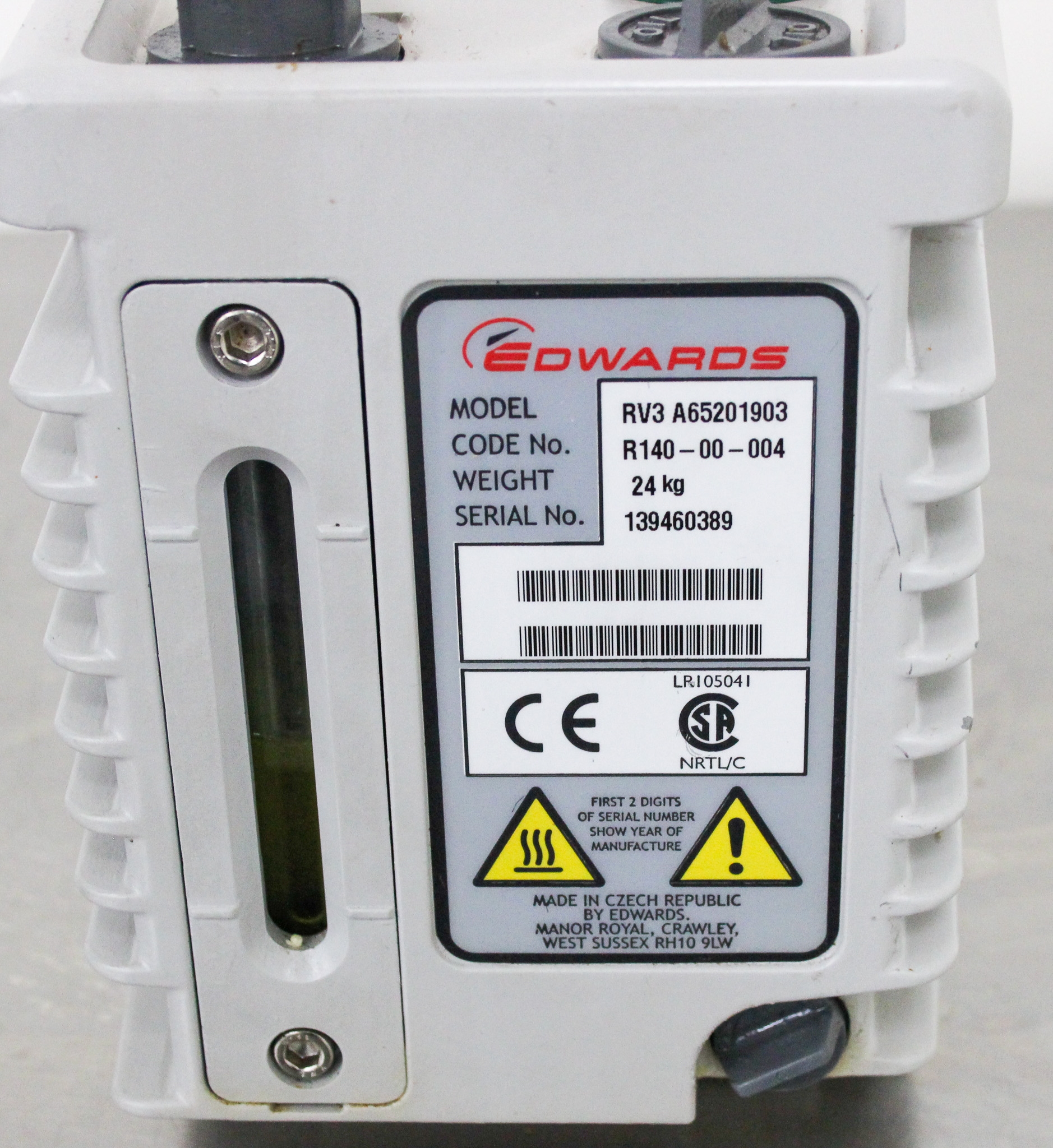

Serial139460389
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

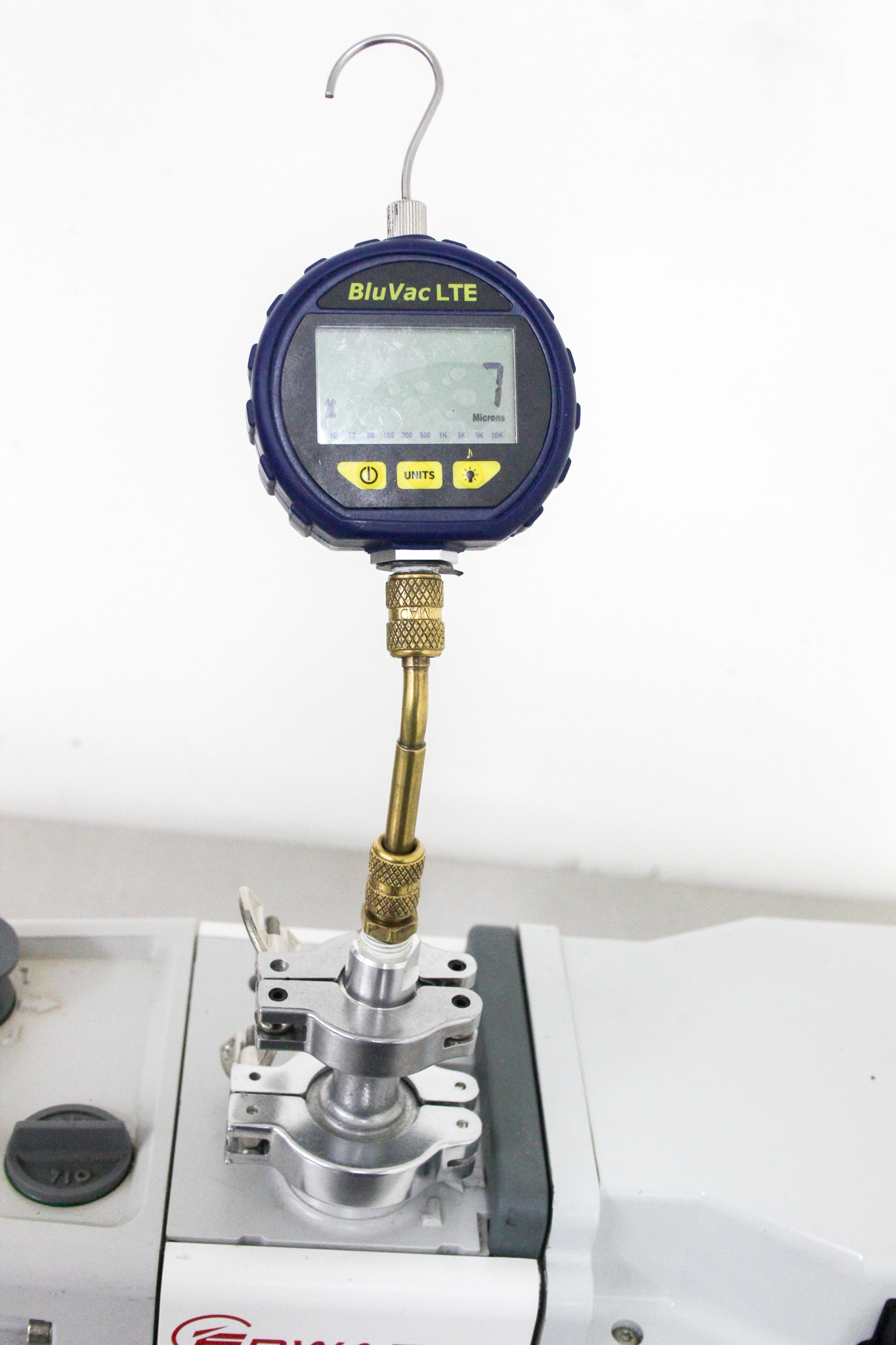

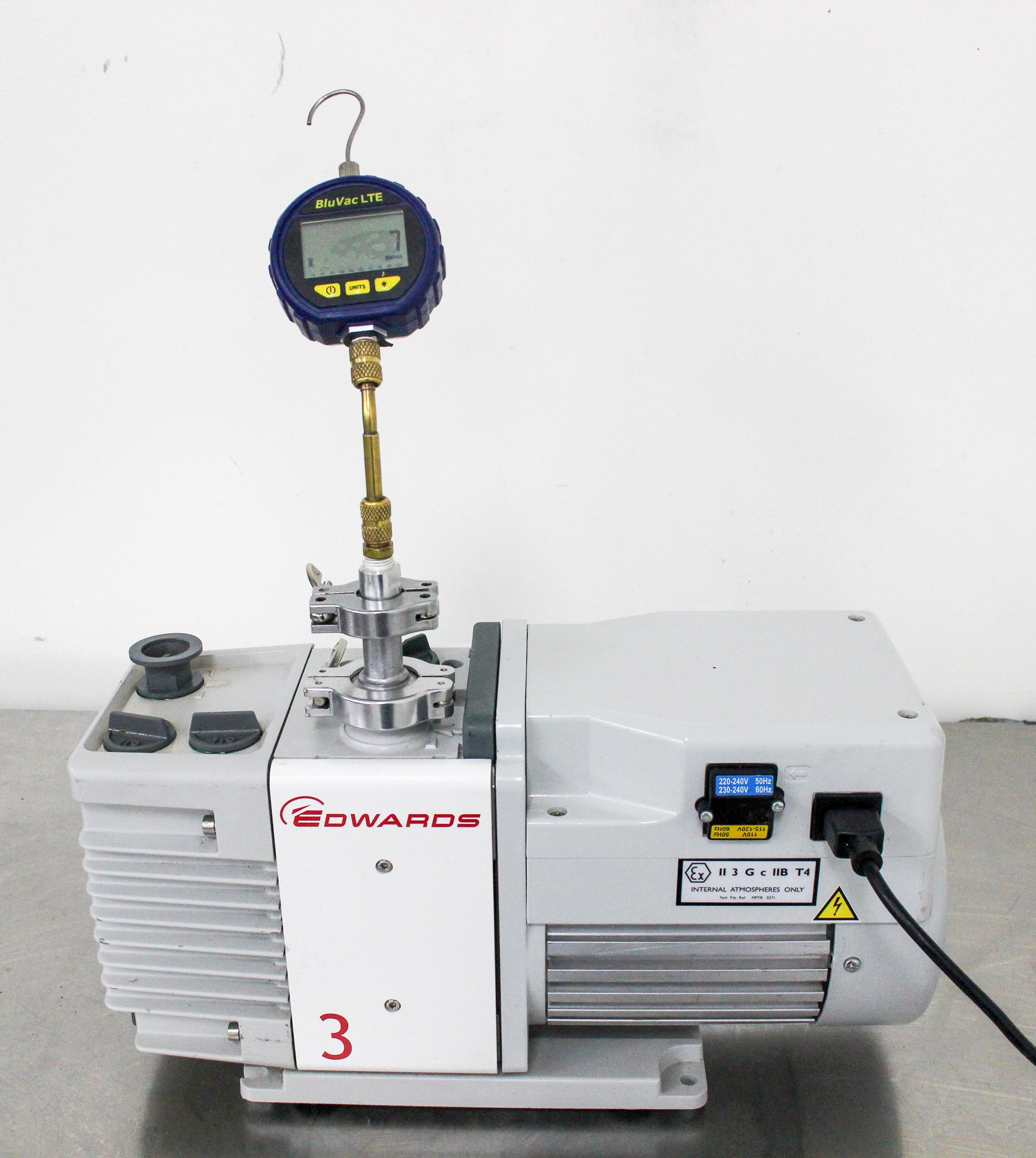

The Edwards Rotary Vane Vacuum Pump, model RV3 A65201903, is a robust and reliable solution for laboratory vacuum needs. With over 75 years of design experience, this used vacuum pump, in very good condition, has minimal cosmetic wear from regular use. It effectively reached 7 microns on our pressure gauge. The Edwards RV series pumps are renowned in the industry, boasting high reliability with over 200,000 units sold globally. Ideal for high vapour handling and superior particulate control, this model offers a fast-acting inlet valve for anti-suck back protection and a two-position gas ballast to adapt to your vacuum requirements. This pump provides a peak pumping speed of 3.3 m3/hr and can maintain an ultimate pressure of 1.5 x 10^-3 Torr. The NW25 KF flange supports flexible connectivity, and the single-phase motor operates at 120V/220V, 50Hz/60Hz. Perfect for scientific applications that demand consistent vacuum performance with easy maintenance.
Key Features
- High reliability with over 200,000 units sold
- Peak pumping speed: 3.3 m3/hr (2.3 cfm)
- Ultimate pressure: 1.5 x 10^-3 Torr
- NW25 KF inlet/outlet flange
- Dual voltage capabilities: 120V/220V, 50Hz/60Hz
- Fast-acting inlet valve for anti-suck back protection
- Two-position gas ballast mode for varied vacuum needs
- Quieter operation for a better work environment
Specifications
- Peak Pumping Speed: 3.3 m³/hr (2.3 cfm)
- Ultimate Pressure (Total): 1.5 x 10^-3 Torr (60Hz)
- Water Vapour Capacity - GBII: 220 g/h
- Inlet/Outlet Flange: NW25 KF

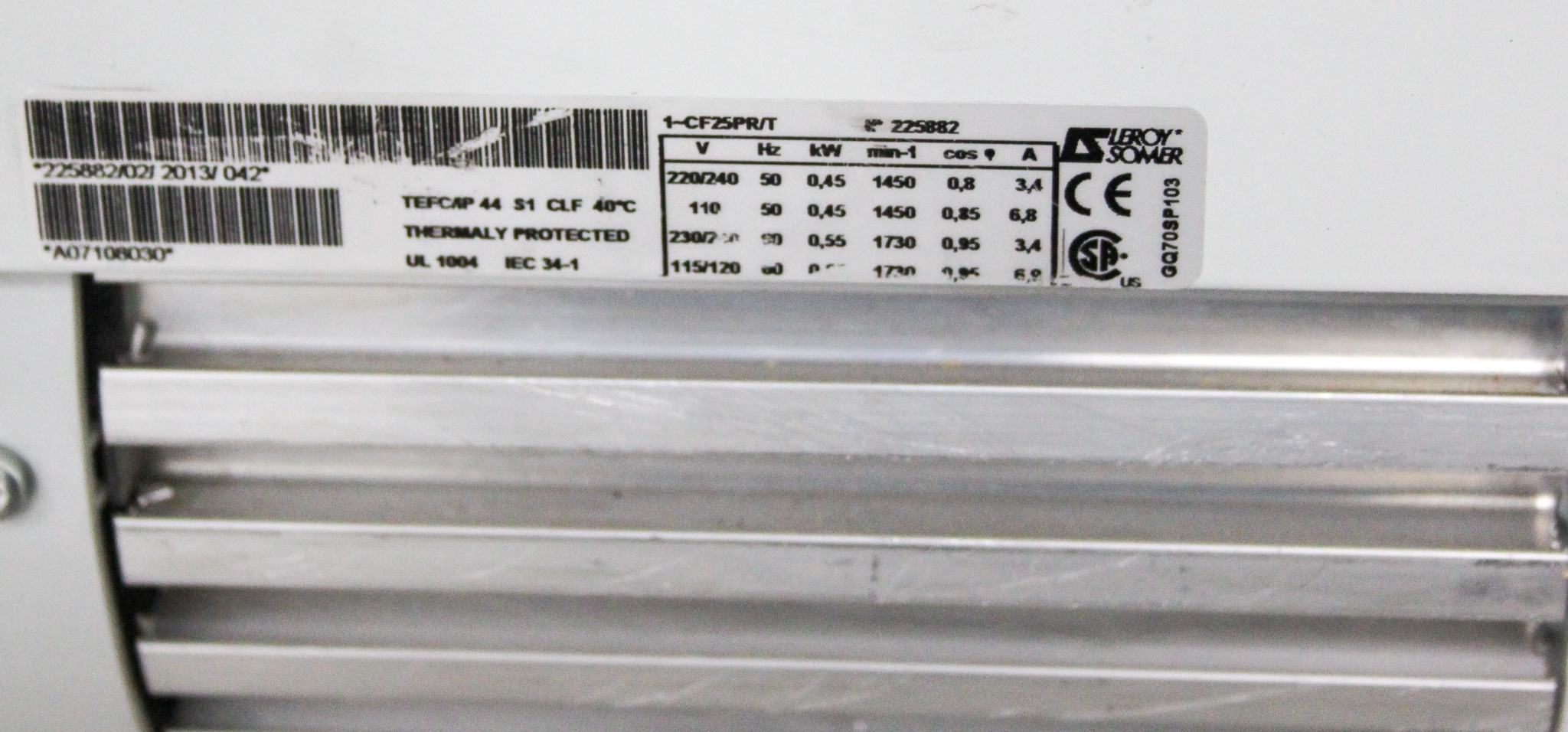

- Motor Type: Single-phase, 115/230V, 50/60Hz
- Weight: Approx. 57 lb (actual), 62 lb (shipping)
- Dimensions: 17 x 7 x 10 inches (actual), 24 x 14 x 17 inches (shipping)
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 8.4 lb x 12.0 lb
Metric: 51.82 cm x 21.34 cm x 30.48 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps; this classification covers machinery and apparatus for the extraction of air or other gases from a container. Suitable for the Edwards RV3 model based on its function in vacuum processing.
