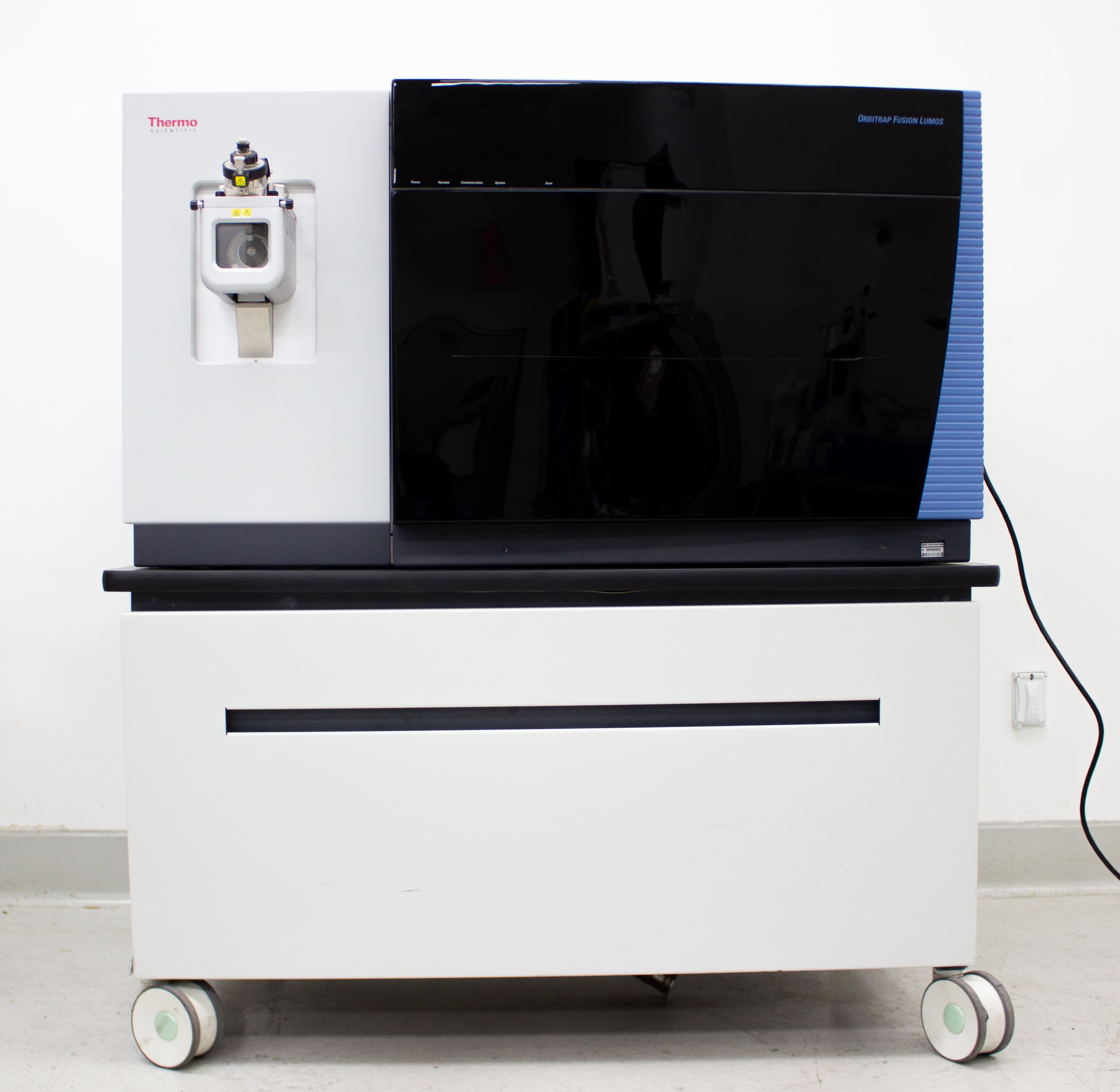

Thermo Orbitrap Fusion Lumos Mass Spec Tribrid High Sensitivity Detection
Thermo Scientific
Details
-
CategoryMass Spectrometry
-
Dimension50.0in x 65.0in x 40.0in
-

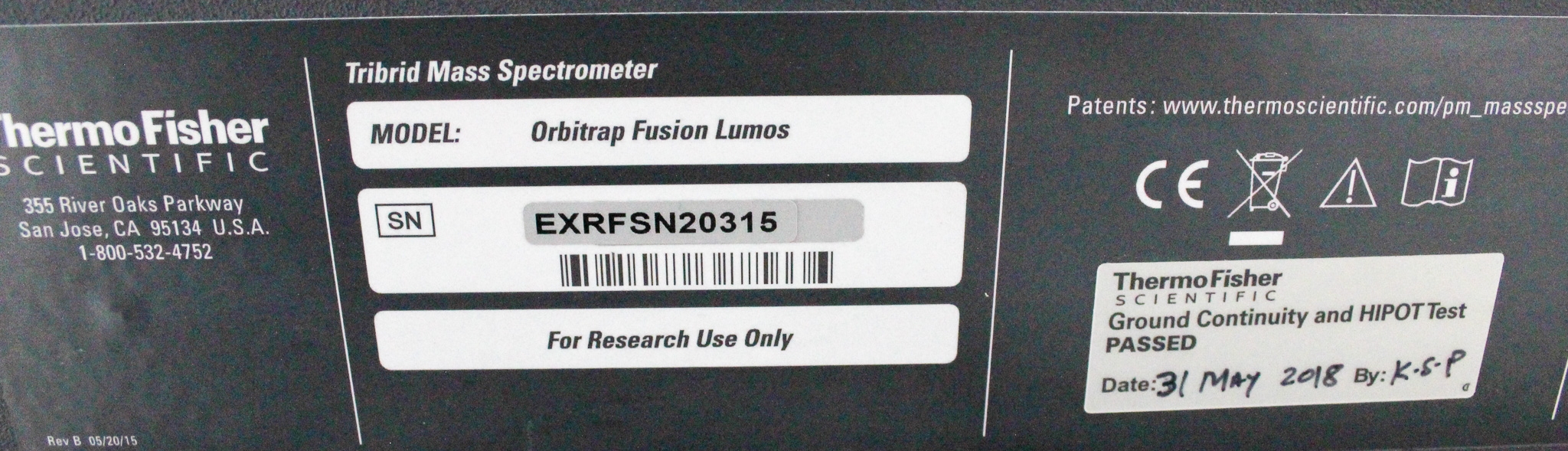

SerialEXRFSN20315
-
Shipping TypeFreight
-
Manufacturing2018-05-31
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Thermo Scientific Orbitrap Fusion Lumos Tribrid Mass Spectrometer, manufactured in 2018, is a high-performance instrument known for its enhanced sensitivity and advanced technologies such as a High Capacity Transfer Tube and Electrodynamic Ion Funnel. It features built-in calibration for improved mass accuracy and an Advanced Quadrupole Technology that provides high selectivity. Suitable for applications like low-level PTM analysis, intact protein characterization, and small molecule MS analysis, it is designed to support complex workflows. This pre-owned model includes two SogeVac SV65BI FC Vacuum Pumps and operates without a computer on 220V power.
Technician comment

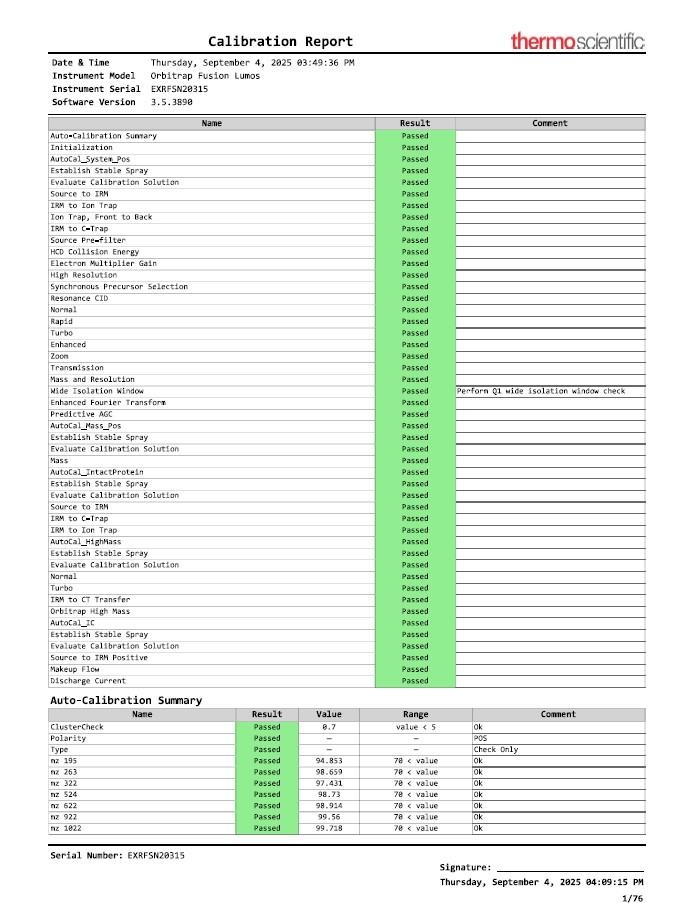

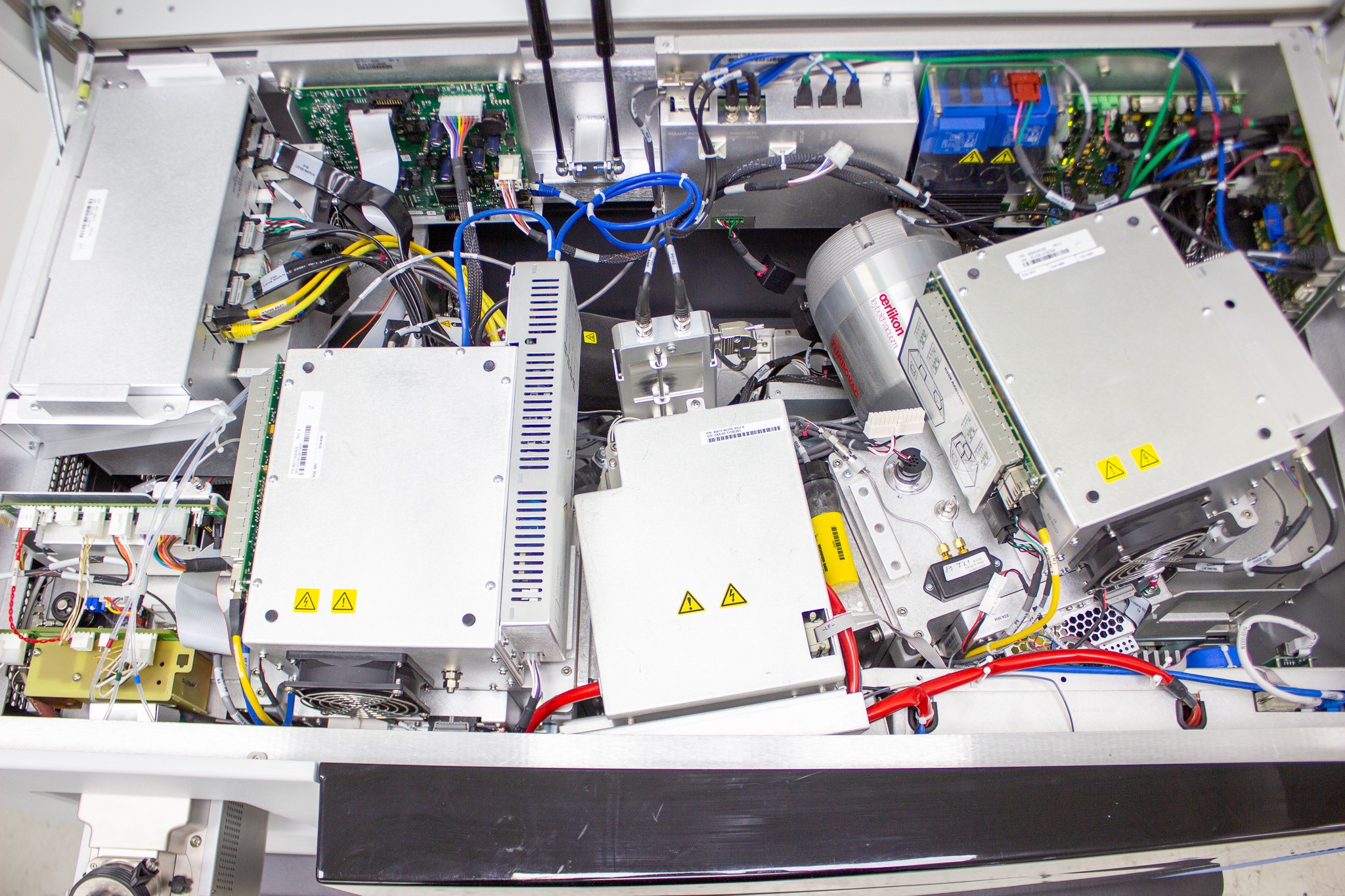

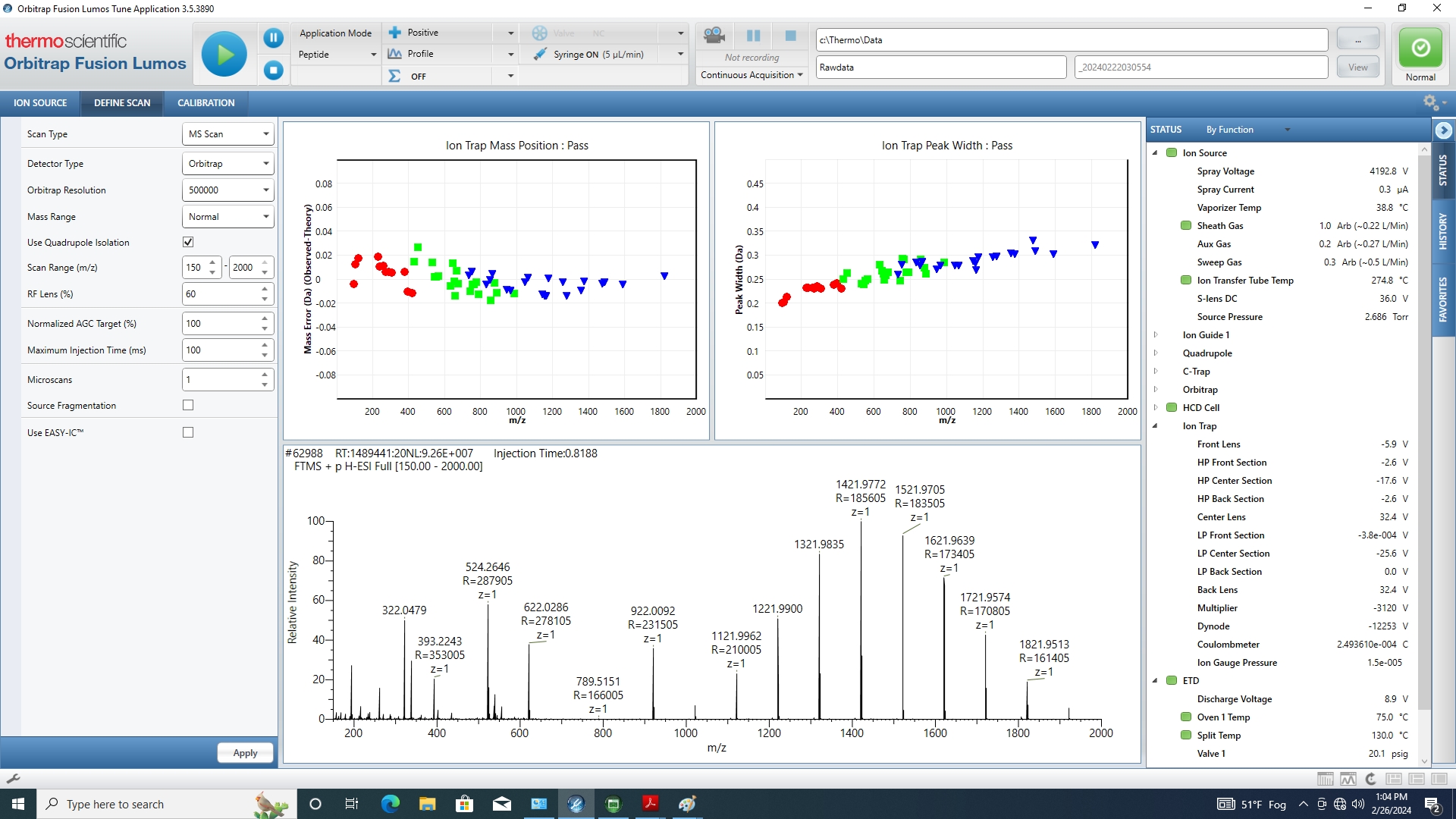

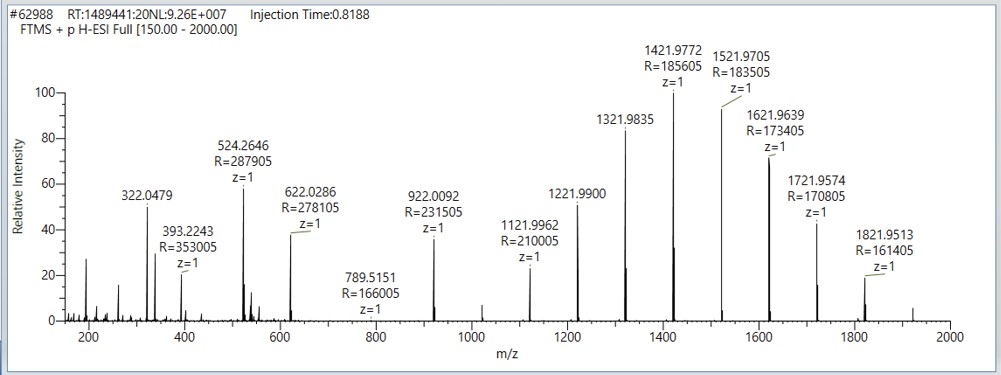

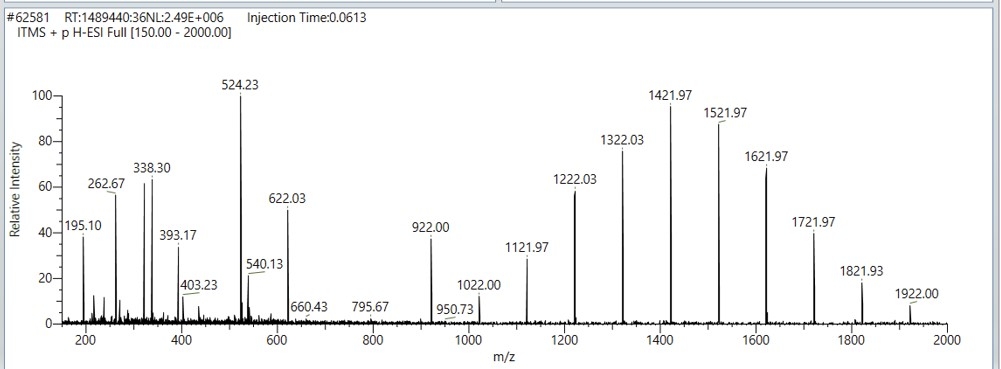

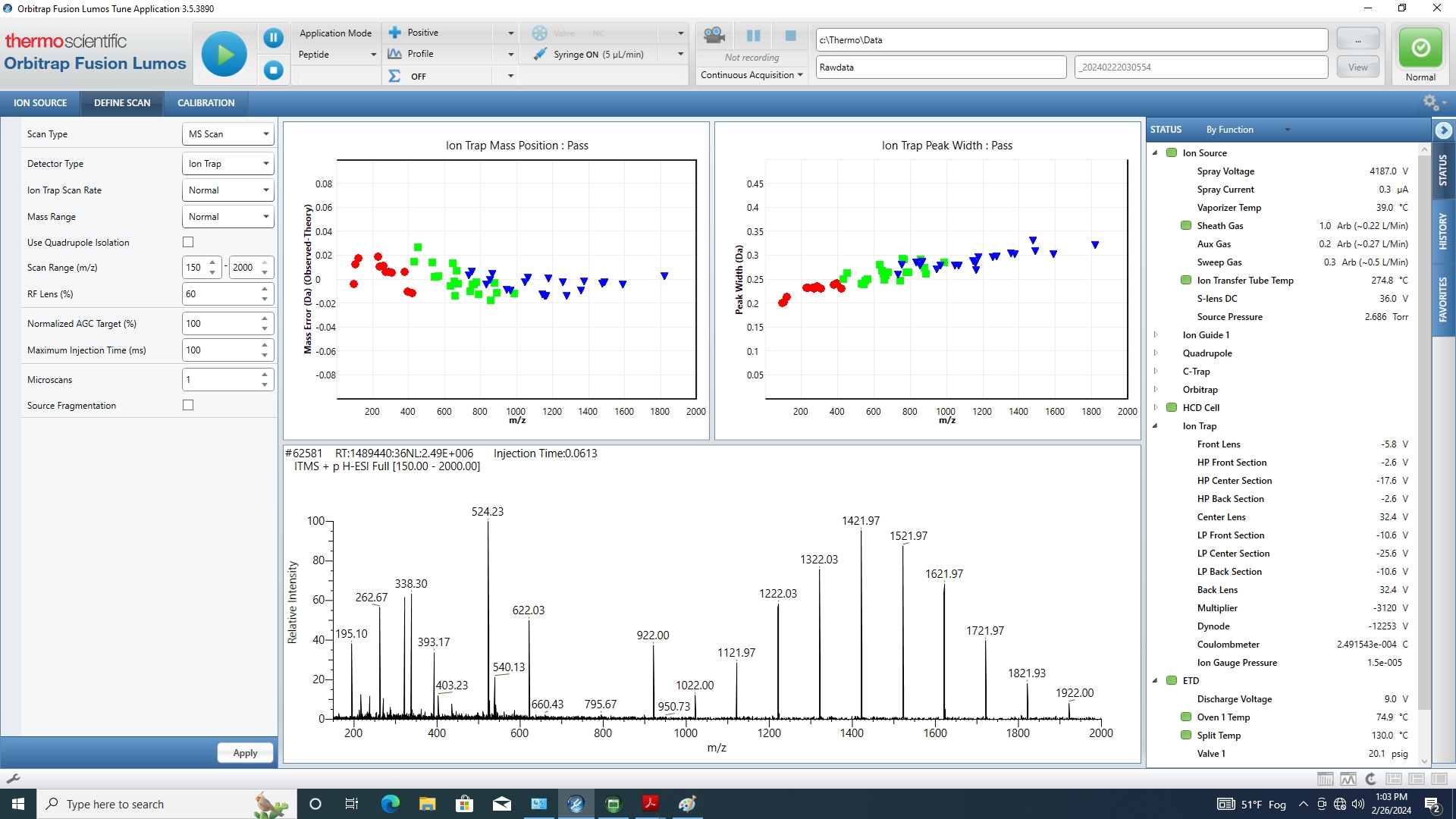

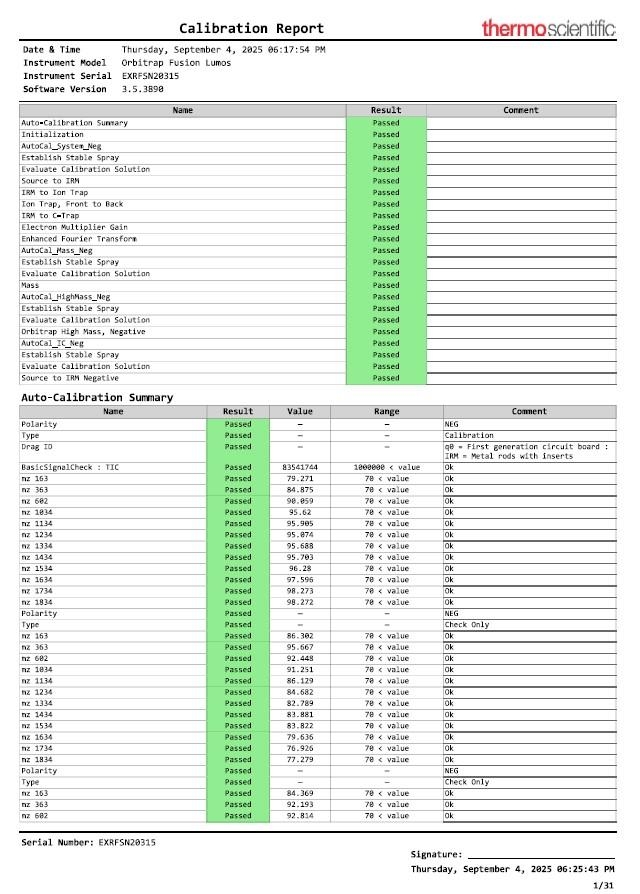

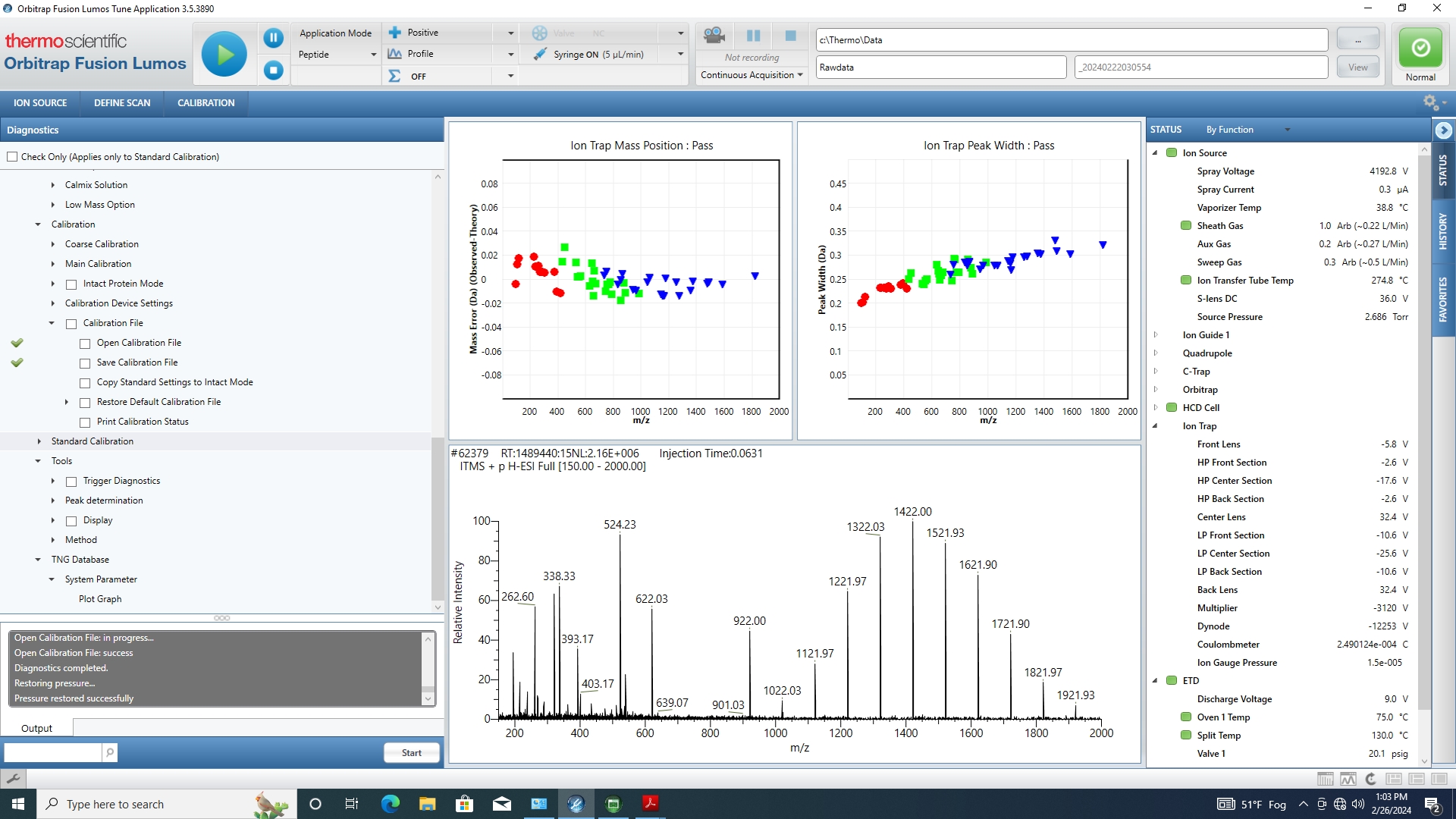

**Pre-owned. System has been fully calibrated. Signal intensity is excellent. Positive and Negative calibration reports available upon request. (Crack on left panel corner.) See photos for further details.
Key Features
- High-sensitivity API interface with Electrodynamic Ion Funnel
- Advanced Quadrupole Technology for high transmission of ions
- Enhanced Vacuum Technology for better ion transmission
- Novel ETD HD providing high fragment ion coverage
- Advanced Peak Determination algorithm for data-dependent experiments
- Tribrid architecture with quadrupole, linear ion trap, and Orbitrap mass analyzer
- Ultra-high resolving power up to 500,000 FWHM
- Synchronous Precursor Selection for accurate peptide quantification
Specifications
- Mass Range: m/z 50-6,000
- Resolution OTMS: 7500-500,000 (FWHM) at m/z 200
- Scan Rate: OTMSn up to 30 Hz, ITMSn up to 40 Hz
- Mass Accuracy OTMS: < 3 ppm RMS using external calibration, < 1 ppm RMS using internal calibration
- Dynamic Range: > 5,000 within a single OTMS spectrum
- ETD Efficiency: >15%, infusion of 1 pmol/μL angiotensin at 3 μL/min
- Polarity Switching: One full cycle in < 1.1 sec at resolution setting of 30,000
- Voltage: 220V, Hertz: 50Hz/60Hz
Weight
Imperial: 600.0 Pounds
Metric: 272.16 Kilograms
Shipping Dimensions
Imperial: 60.0 lb x 78.0 lb x 48.0 lb
Metric: 152.4 cm x 198.12 cm x 121.92 cm
Harmonized Code
902730
Harmonized Code Details
Harmonized code 902730 is used for spectrometers and spectrographs using optical radiations. This code is suitable as the Orbitrap Fusion Lumos is a high-performance mass spectrometer utilized for analyzing optical radiations in laboratory settings.
