TRAK Machine Tools, DPM RX2 Bed Mill
sku: 3374357
1 In Stock
Condition :
Pre-owned
Warranty :
30-Day Warranty, 100% Parts and Labor
Region :
US
$17,000.00
Apply For Finance
Make Offer
Enquiry Here
- Make TRAK Machine Tools
- Hertz 60Hz
- Model DPM RX2 Bed Mill
- Serial 192EA530
- Weight 3500
- Voltage 220V
- Working Working
- Includes Power Cord
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 75×55×94 in
- Shipping Type Freight
- Item Condition Pre-owned

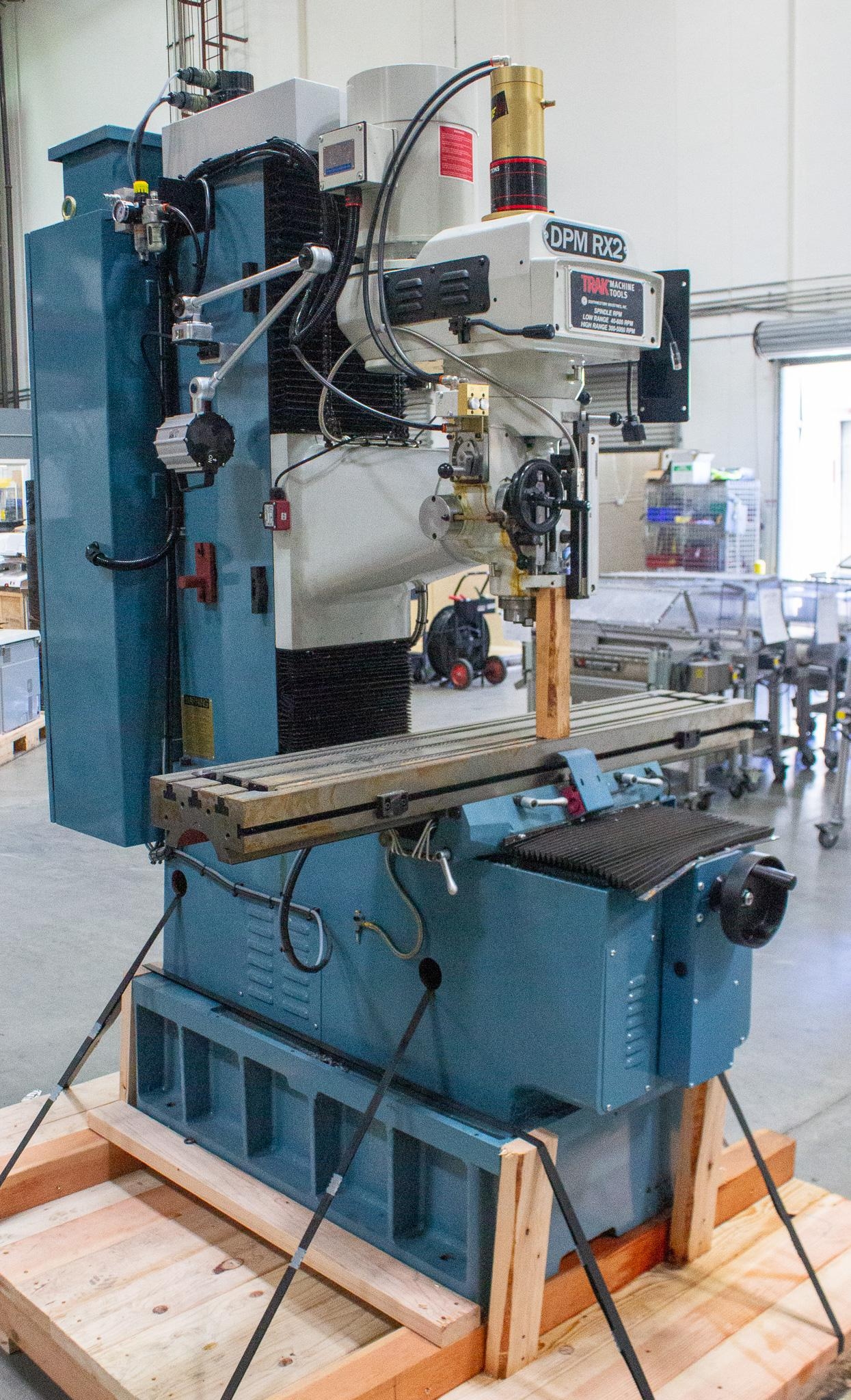

TRAK Machine Tools, DPM RX2 Bed Mill

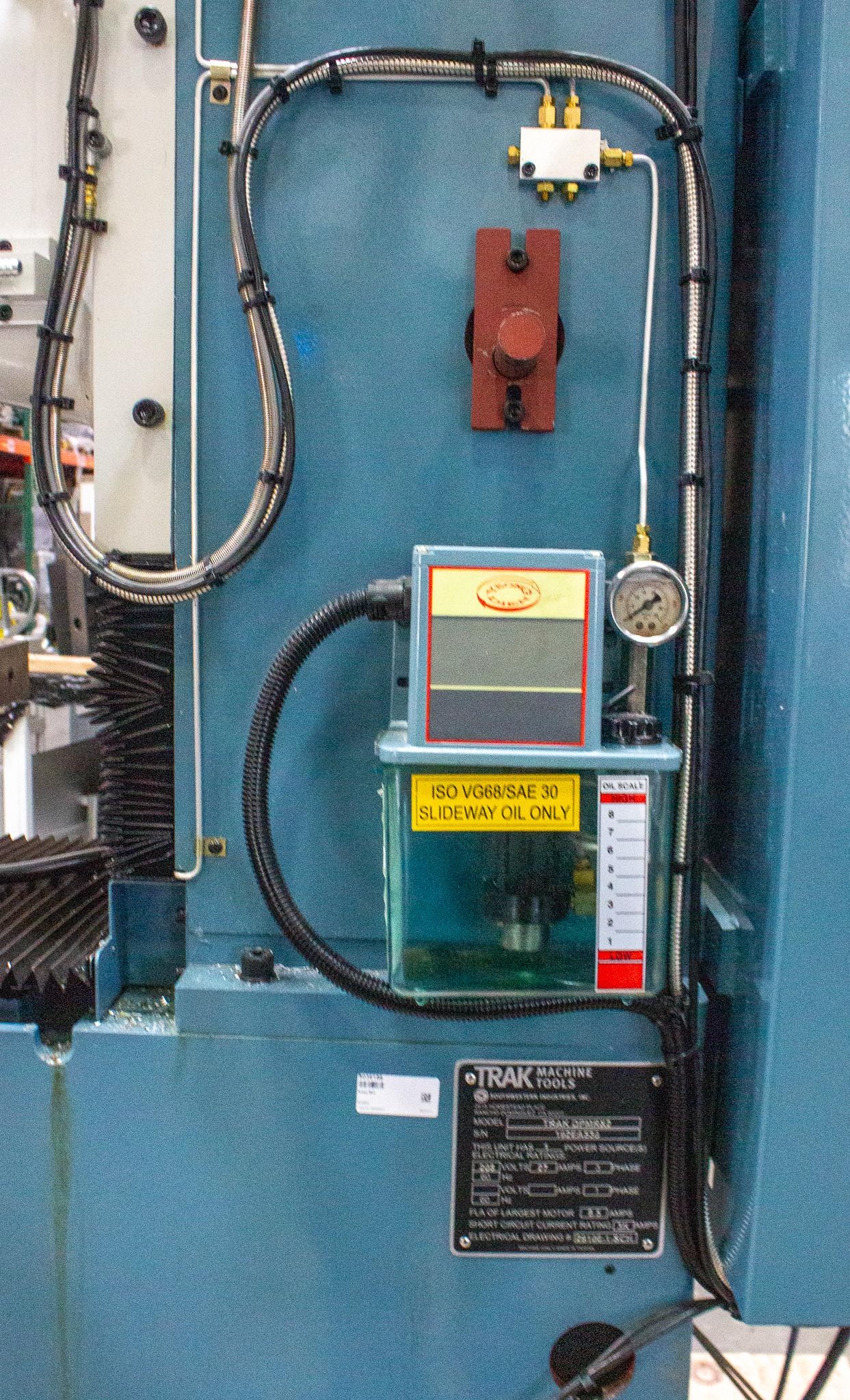

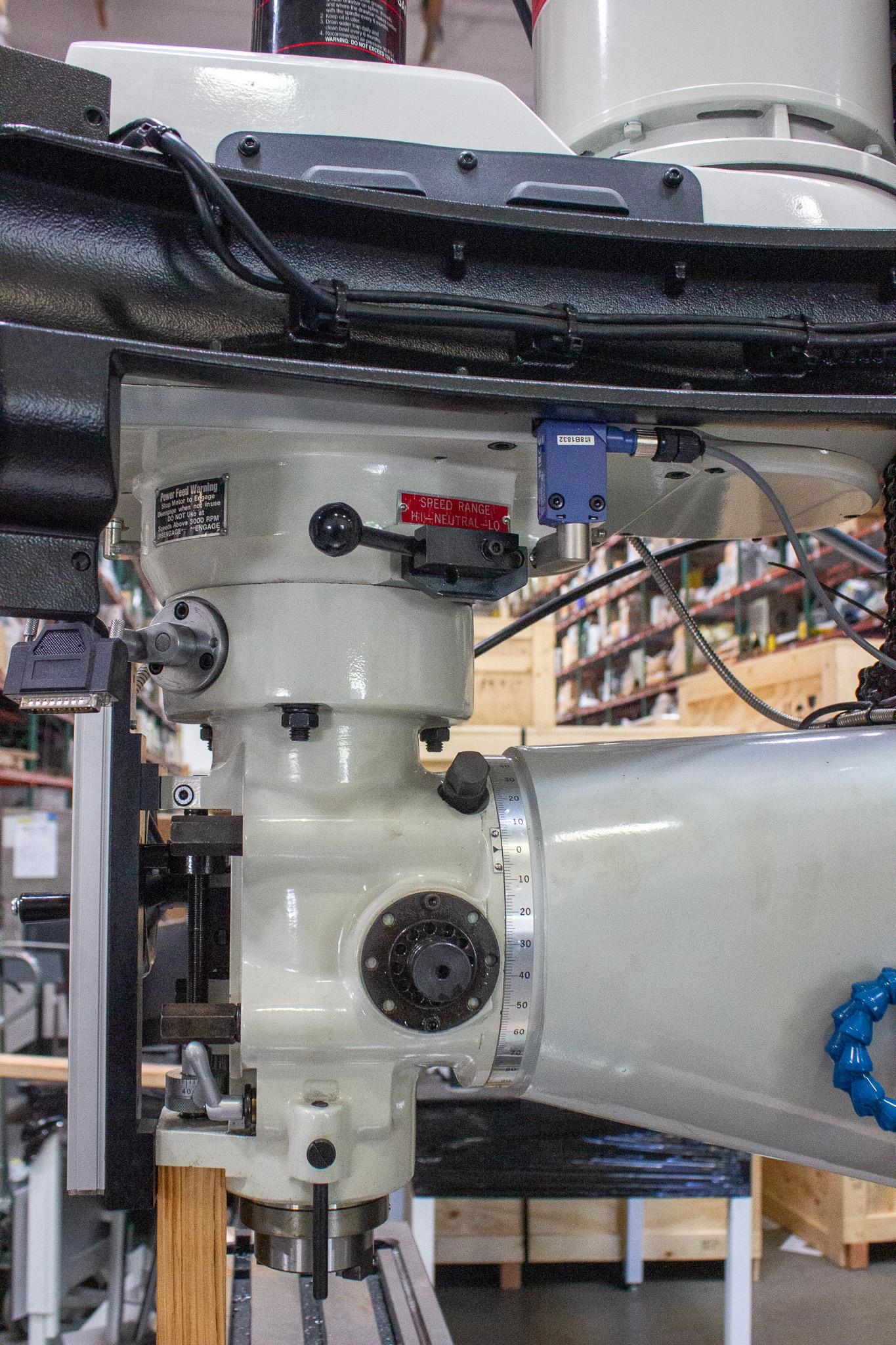

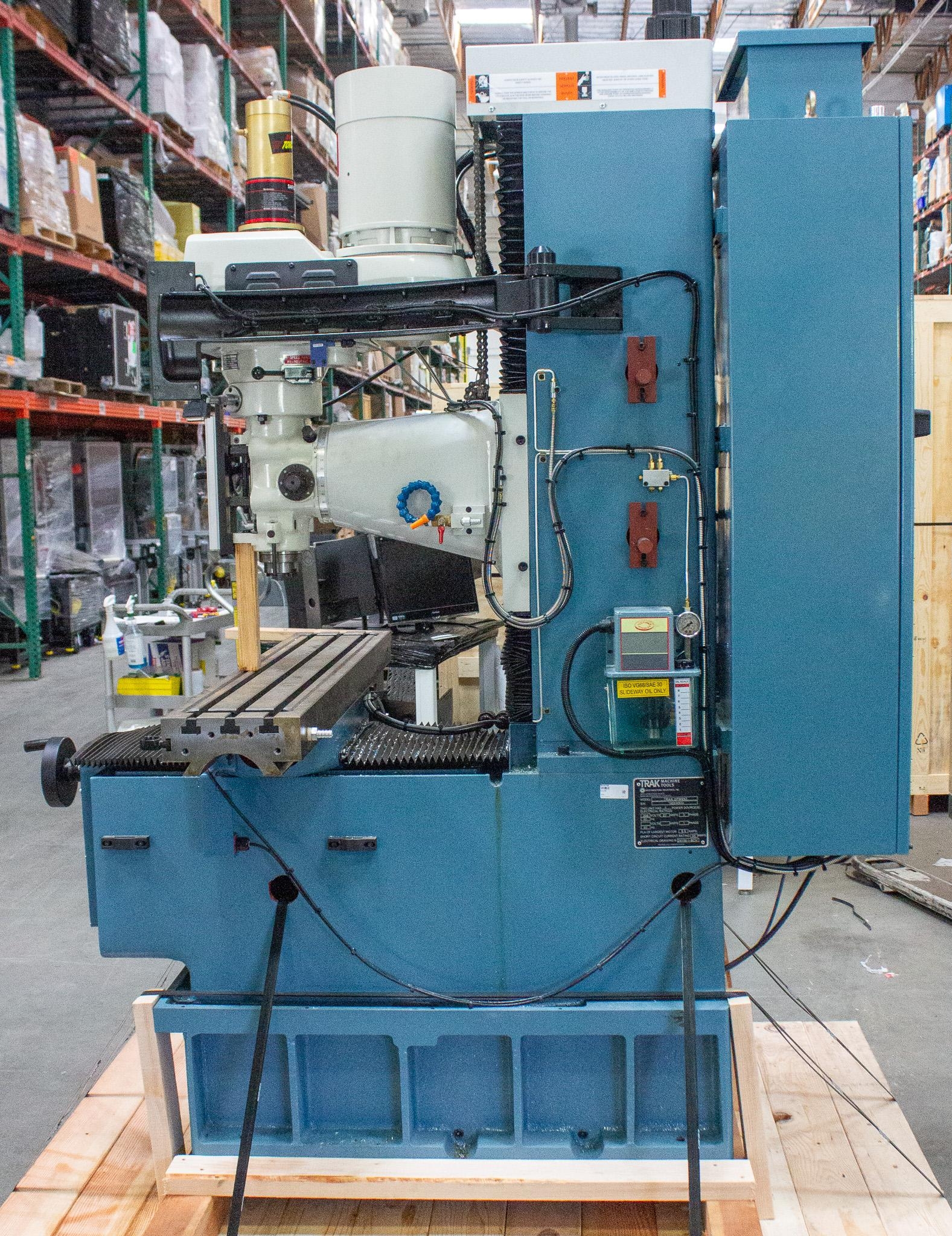

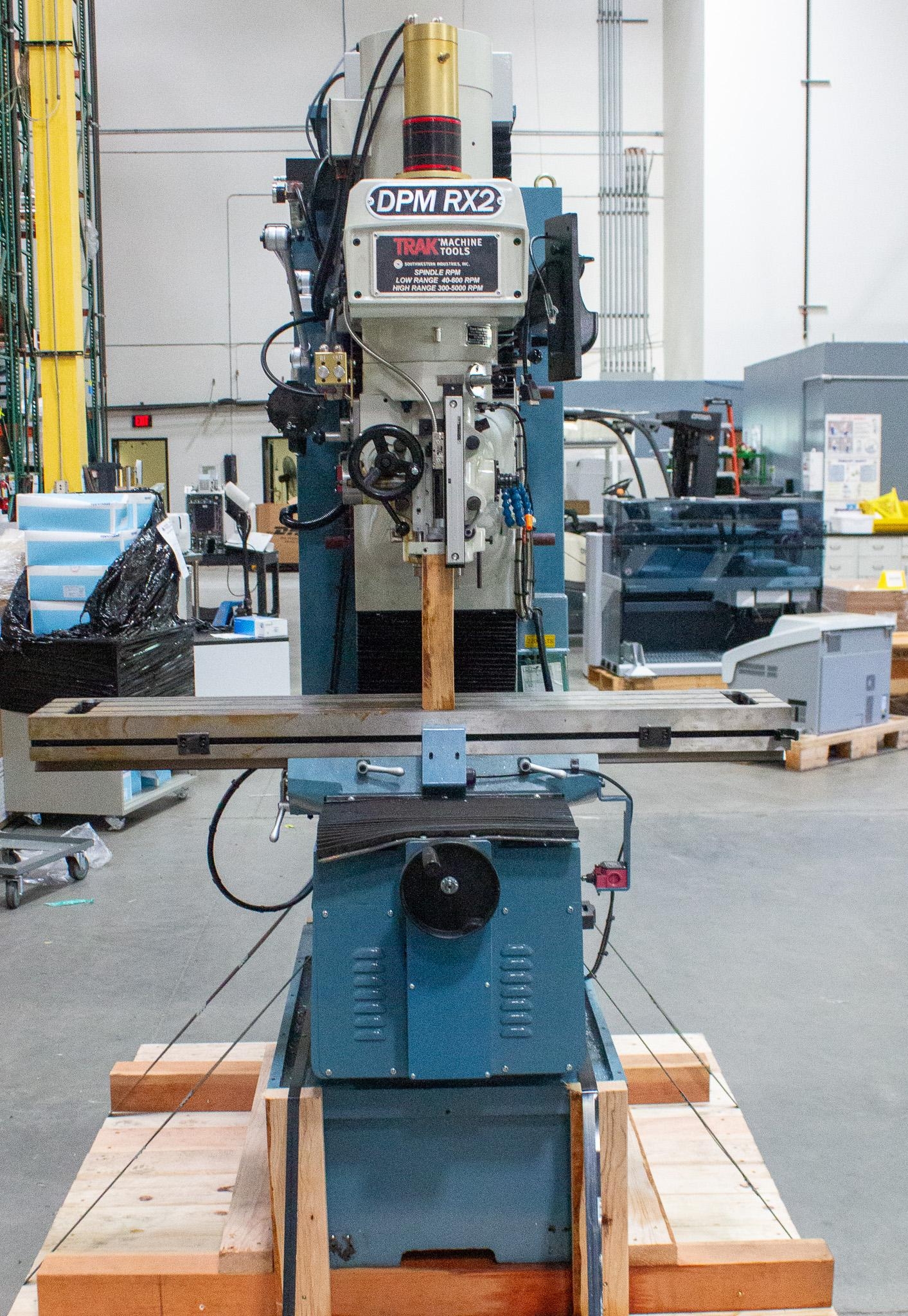

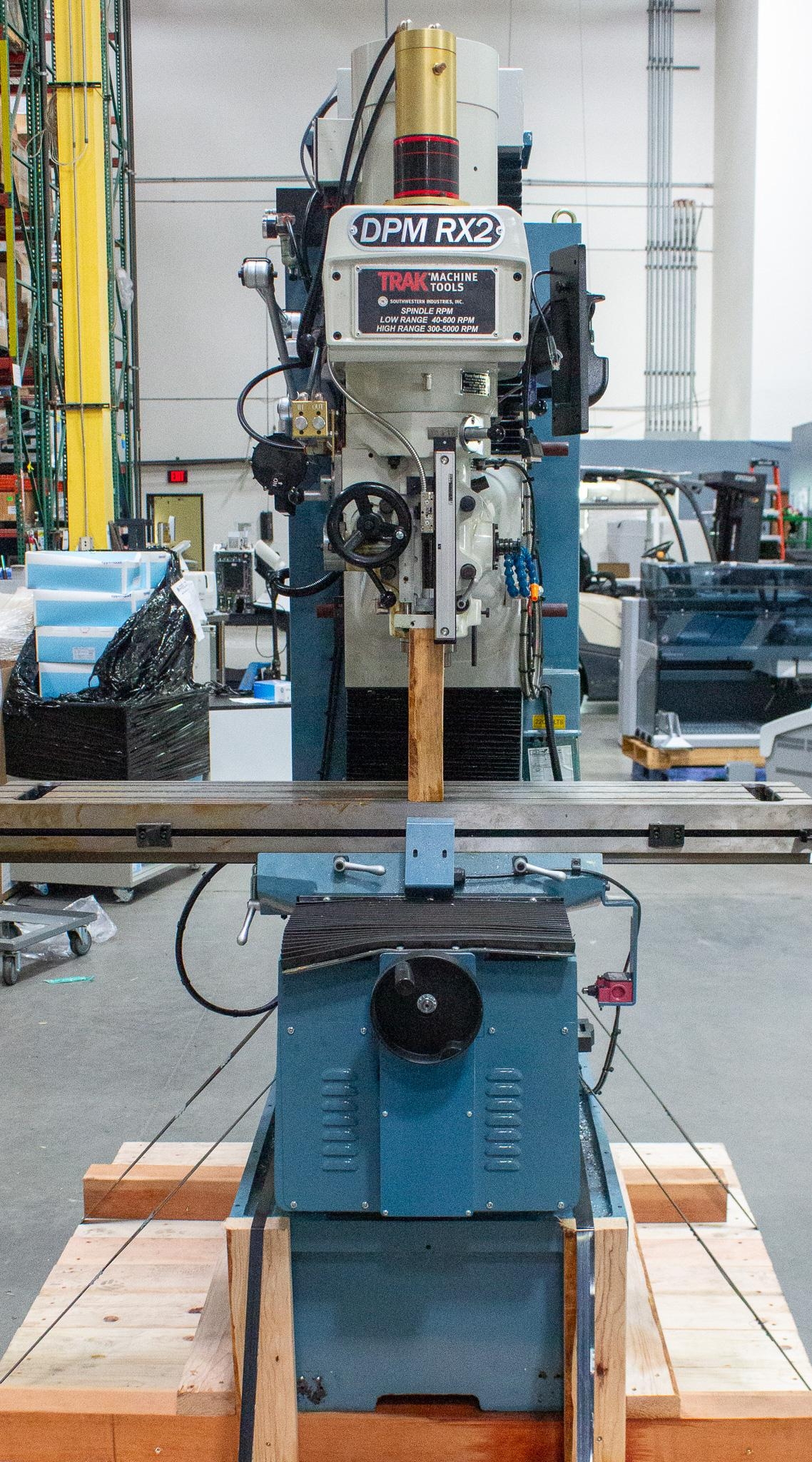

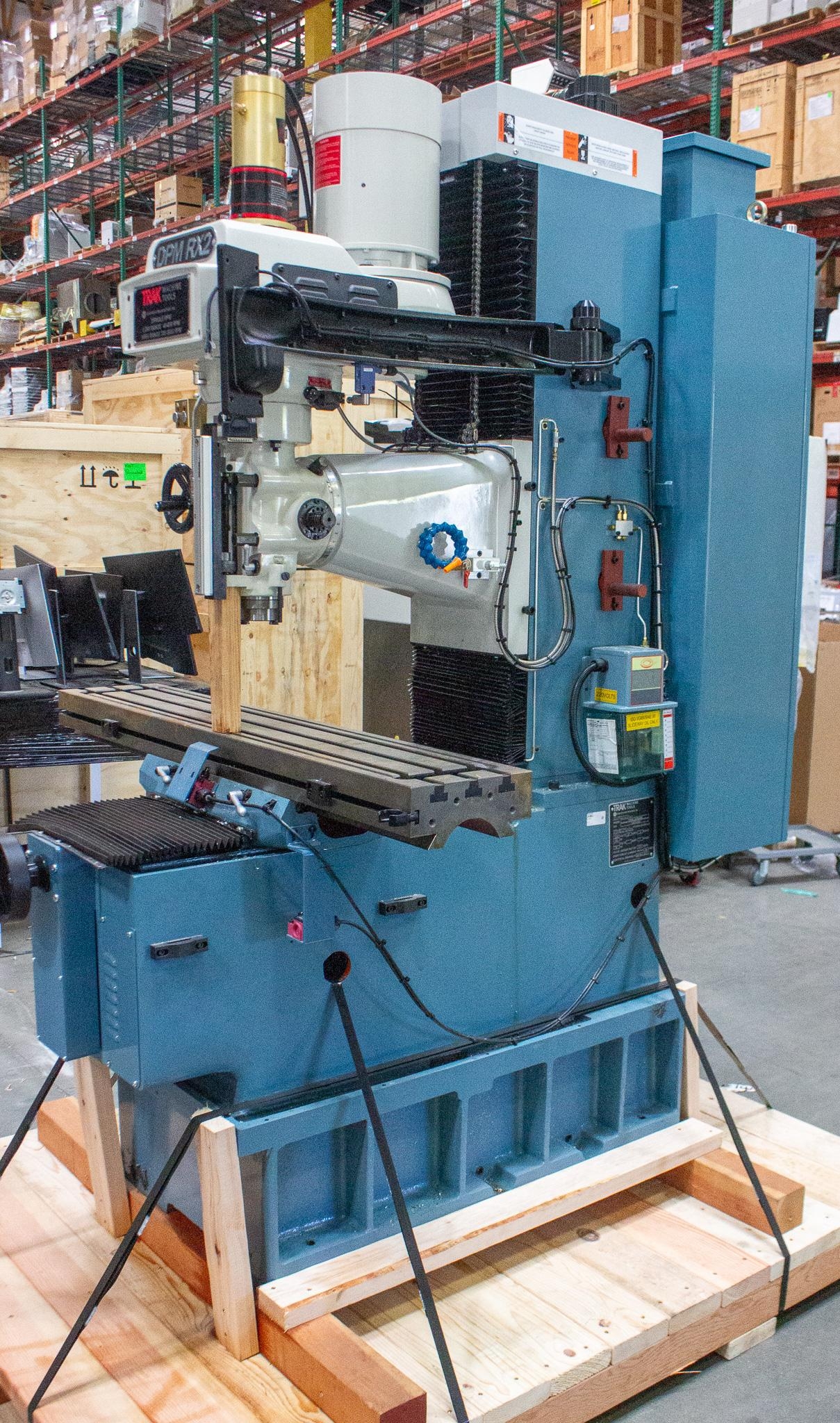

***Unit is preowned from a working environment. Unit has slight wear from normal use, (does not include ProtoTRAK RMX touchscreen.) Buyer can expect a working machine with 30-day warranty. See photos for details.
Footprint and feel of a knee mill, with added strength & capacity
- 49″ x 9″ table size
- 31.75″ X axis / 16″ Y axis / 25.5″ Z axis travel
- 3 HP continuous spindle motor
- R8 spindle taper
Standard Features:
- ProtoTRAK RMX CNC integrated into the machine at the factory
- Solid ram moves along the column providing mass for heavy cuts
- Generous Z-axis CNC travel
- Strong and rigid
- Efficient for any job: manual, 2-axis CNC or 3-axis CNC

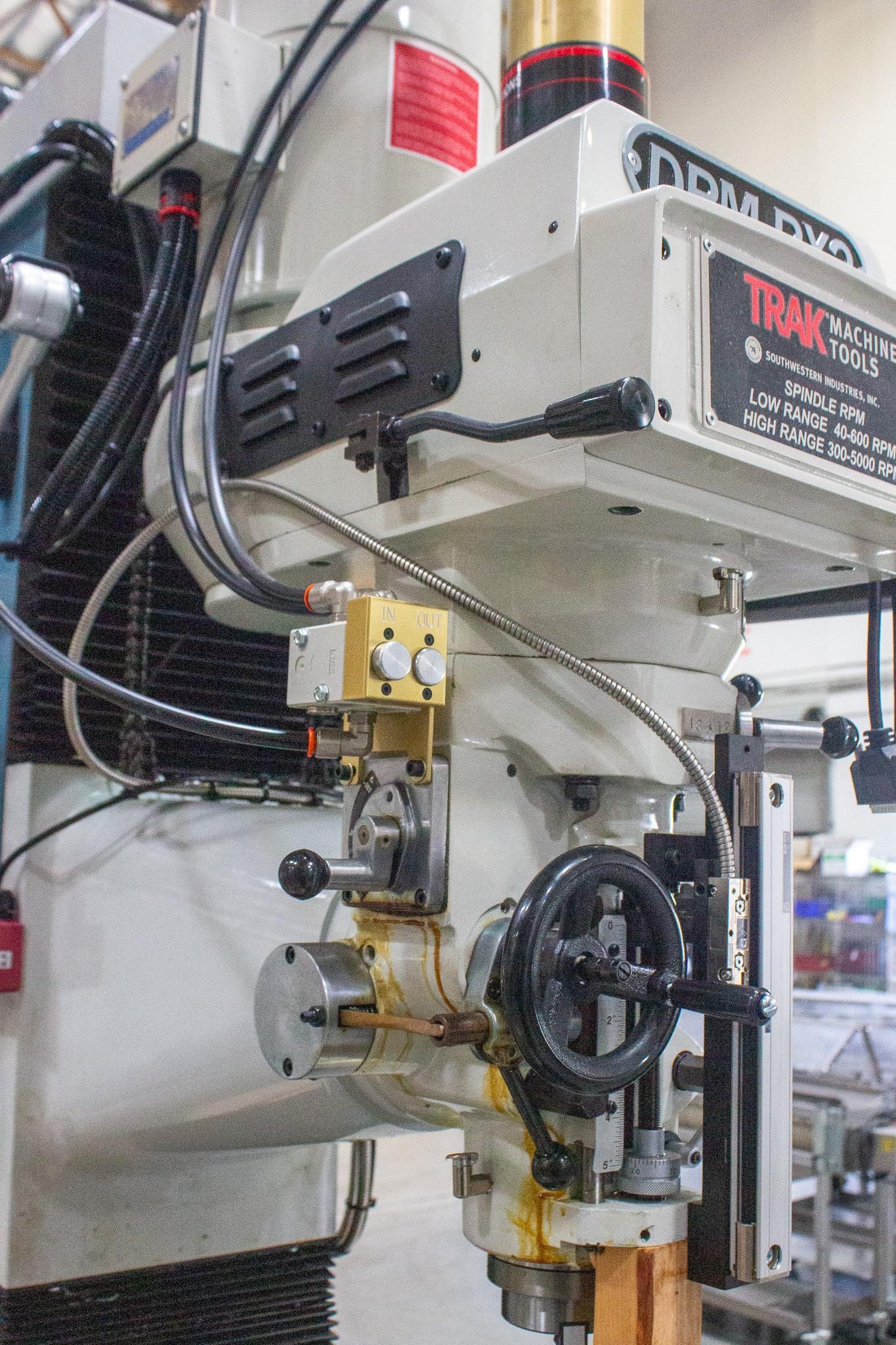

- Standard electronic head for programmable spindle speeds and tapping
- Precision ground ballscrews installed in the table, saddle and column
- Manual quill with integrated quill and ram encoders
- Wide way surfaces are hardened and ground, slideways are Turcite® coated
- Real handwheels so you can work manually
RX2 | |
---|---|
ProtoTRAK CNC Model | RMX |
Table Size | 49″ x 9″ |
T-Slots (Number x Width) | 3 x .63″ x 2.5″ |
Travel (X, Y, Z Axis)* | 31″ x 16″ x 22″ Note |
Quill Diameter | 3 3/8″ |
Maximum Quill Travel | 5″ |
Spindle Taper | R8 |

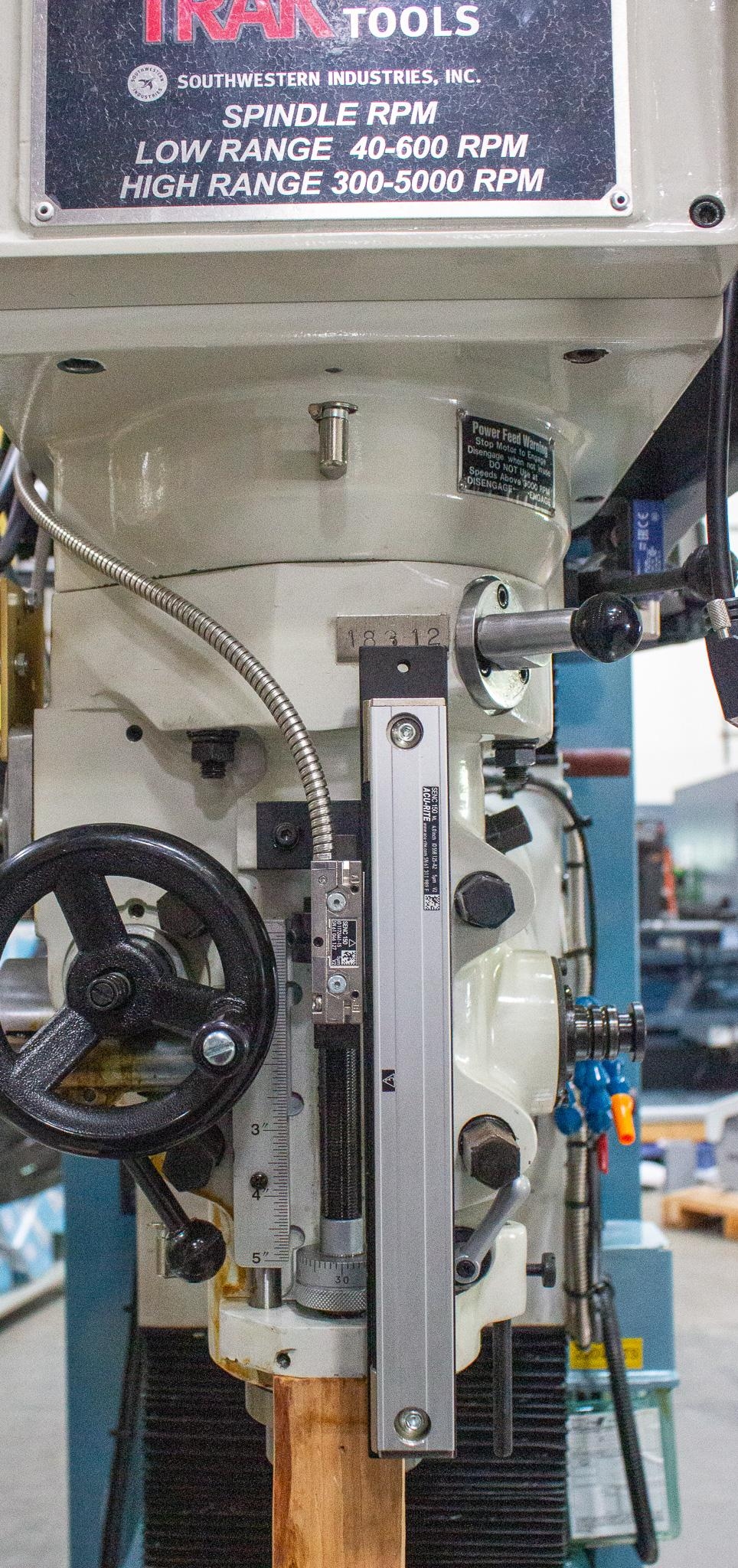

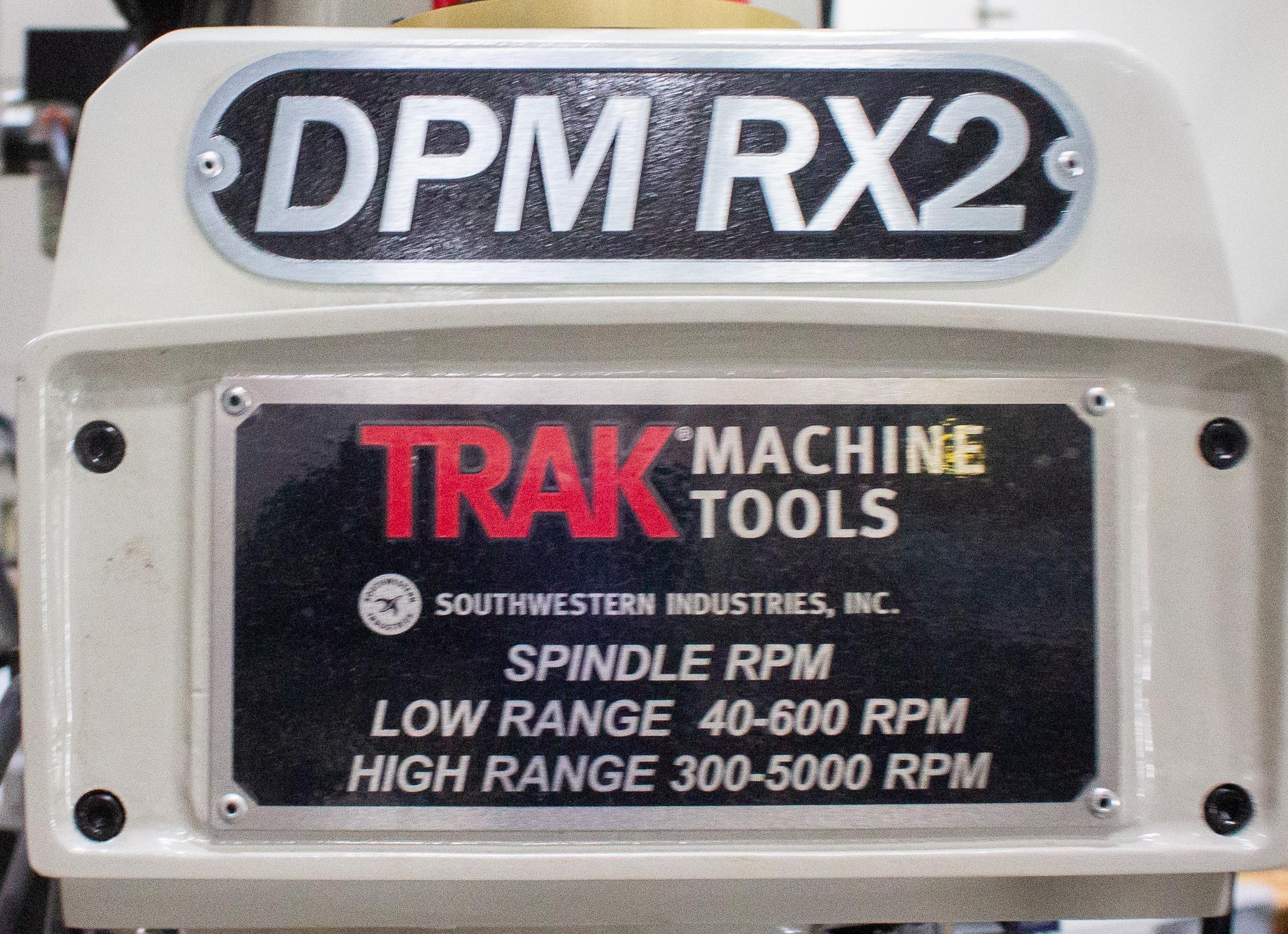

Spindle Speed Range RPM | 40 - 600, 300 - 5000 |
Spindle Center to Column Face | 18.5″ |
Head Swivel (side to side) | +/- 90° |
Quill Feeds per Revolution of Spindle | 0.0015/0.003/0.006″ |

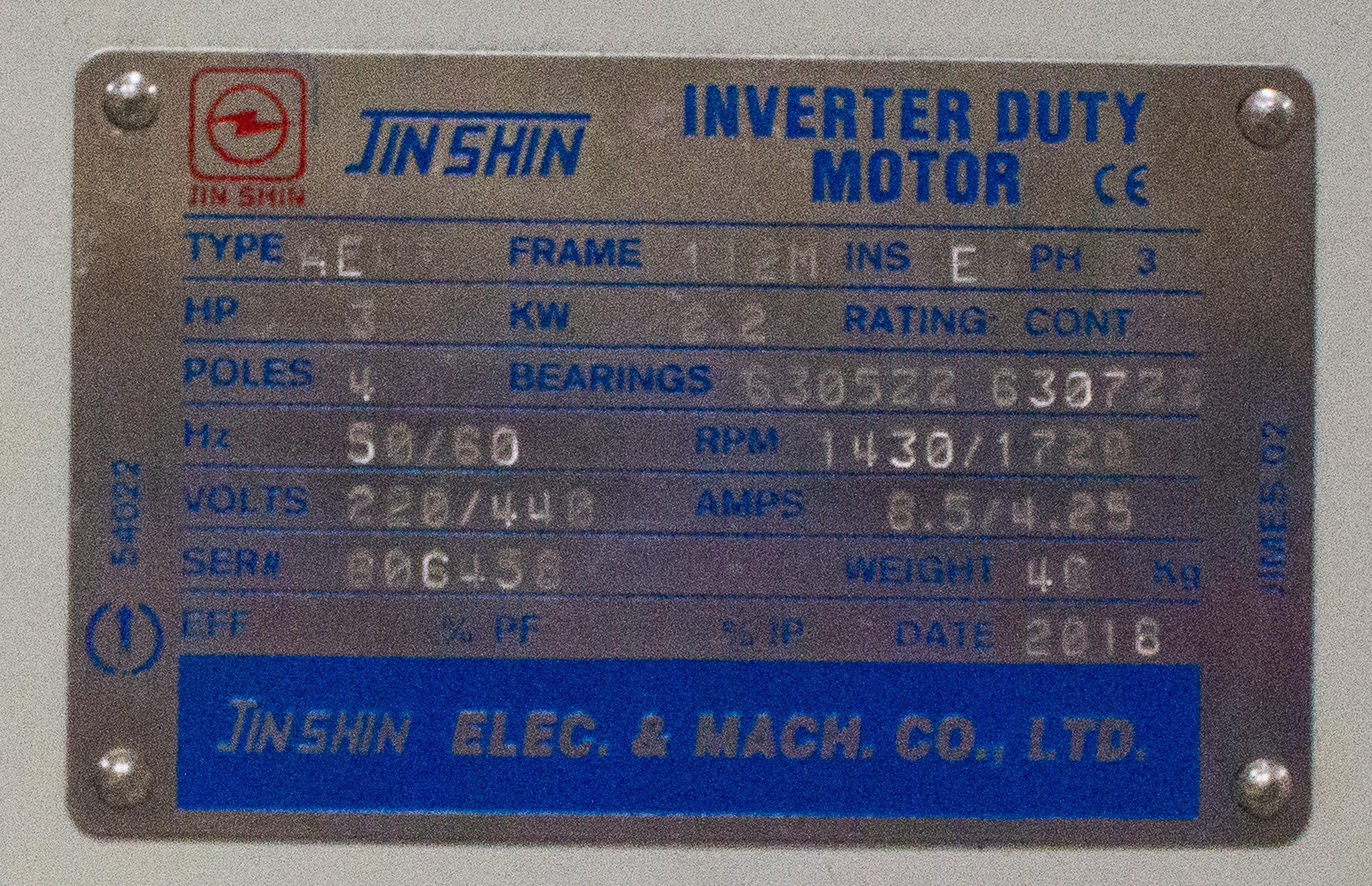

Spindle Motor HP | 3 HP |
Power Requirements | 200-240V, 3P, 27A |
Maximum Weight of Workpiece | 1320 lbs |
Height Of Table From Bottom Of Bed | 36.75″ |
Max Spindle Nose To Table | 25.5″ |
Min Height | 86.625″ |
Max Height | 98.75″ |
Width Of Machine Including Table | 71.25″ |
Overall Length With Electric Door Closed | 73.31″ |
Overall Length With Electrical Door Open | 93.88″ |
Overall Width Inc Full Table Traverse | 102.53″ |
Footprint Of Machine | 23.13″ x 40.5″ |
Weight Net / Shipping Lbs. | 3200 / 3500 |
Rapid Traverse X, Y, Z | Mechanical Handwheels: 250 IPM on X, Y and Z Electronic Handwheels: 400 IPM on X and Y, 250 IPM on Z |
Coolant Reservoir Capacity | 10 gallons |
Drilling Max Capacity (diameter) | 1″ dia. |
Milling Max Capacity | 3 inch³/min |
Tapping Max Capacity | ¾ - 10 |
