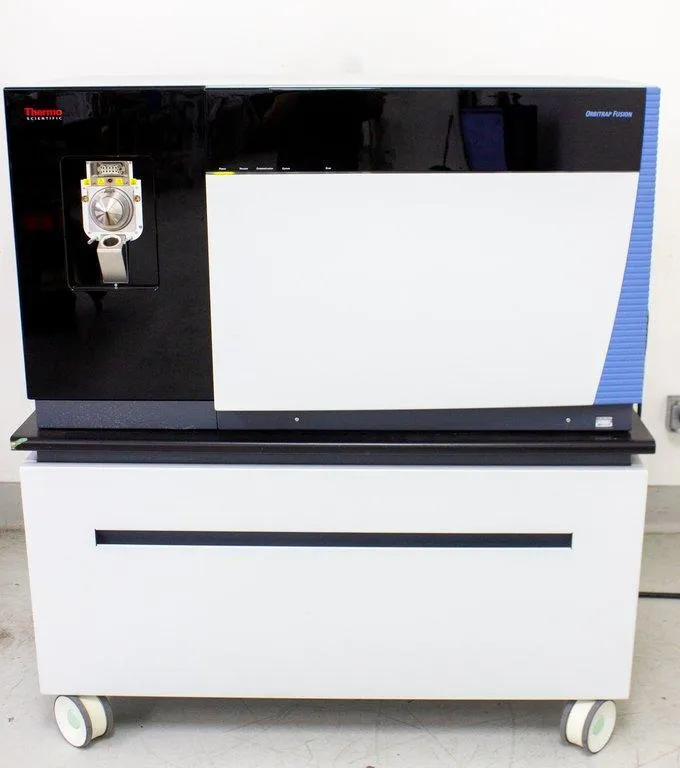

Thermo Orbitrap Fusion Mass Spectrometer Tribrid Architecture, CID, HCD, ETD
Thermo Fisher Scientific
Details
-
CategoryMass Spectrometry
-
Dimension38.4in x 62.4in x 68.4in
-
Serial
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Thermo Orbitrap Fusion is a cutting-edge mass spectrometer that integrates quadrupole, Orbitrap, and linear ion trap mass analysis within its revolutionary Tribrid architecture. This versatile instrument delivers comprehensive analysis capabilities, allowing life scientists to identify, quantify, and characterize even the most complex and low-abundance samples in proteomics, metabolomics, and glycomics. With unmatched resolution and a multiplicity of fragmentation techniques, such as CID, HCD, and optional ETD and EThCD, this model is in excellent condition, showing minimal use and no significant cosmetic damage. Ideal for laboratories, this powerful mass spectrometer efficiently processes complex MSn experiments and provides real-time high-quality data. Computer is not included.
Technician comment
Includes core unit
Key Features
- Tribrid architecture: quadrupole, Orbitrap, linear ion trap
- Multiple fragmentation techniques: CID, HCD, ETD, EThCD
- Unmatched resolution: up to 500,000 FWHM
- Wide MSn capabilities for in-depth analysis
- High mass accuracy with internal calibration
- High-throughput and parallel data acquisition
Specifications
- Linear Ion Trap Mass Range: Standard – m/z 50–2,000, High Mass – m/z 200–4,000
- Orbitrap Mass Range: Up to m/z 6000
- Resolution: 15,000–500,000 (FWHM) at m/z 200
- Scan Rate: Orbitrap MSn up to 20 Hz, Ion trap MSn up to 20 Hz
- Mass Accuracy: <3 ppm RMS (external), <1 ppm RMS (internal)
- Dynamic Range: >5,000 within a single scan
- Polarity Switching: Full cycle in 1.1 sec at 30,000 resolution
- ETD fragmentation efficiency: >15%

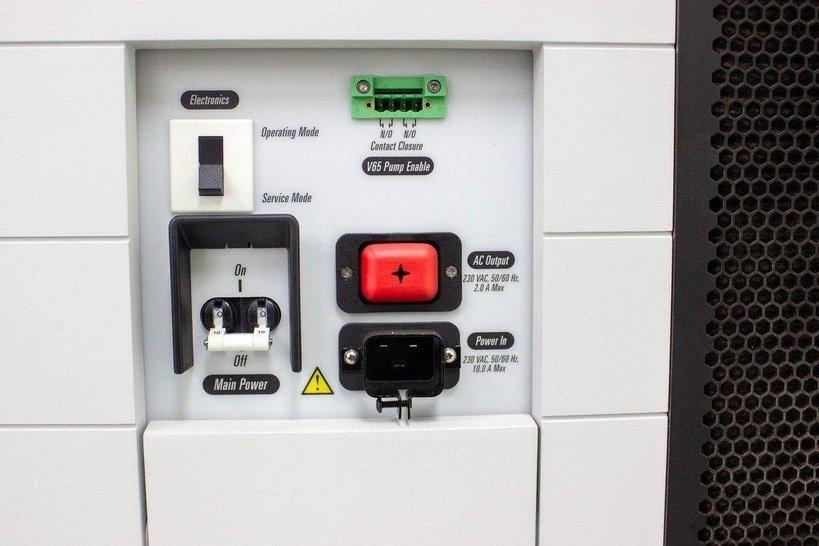

- Installation Power: 230 Vac ± 10% single phase, 15 Ampere, 50/60 Hz
Weight
Imperial: 1008.0 Pounds
Metric: 457.22 Kilograms
Shipping Dimensions
Imperial: 46.08 lb x 74.88 lb x 82.08 lb
Metric: 117.04 cm x 190.2 cm x 208.48 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Spectrometers and spectrophotometers, using optical radiations, like UV, visible, or IR. Used due to its relevance to high-tech analysis equipment, such as mass spectrometers.
