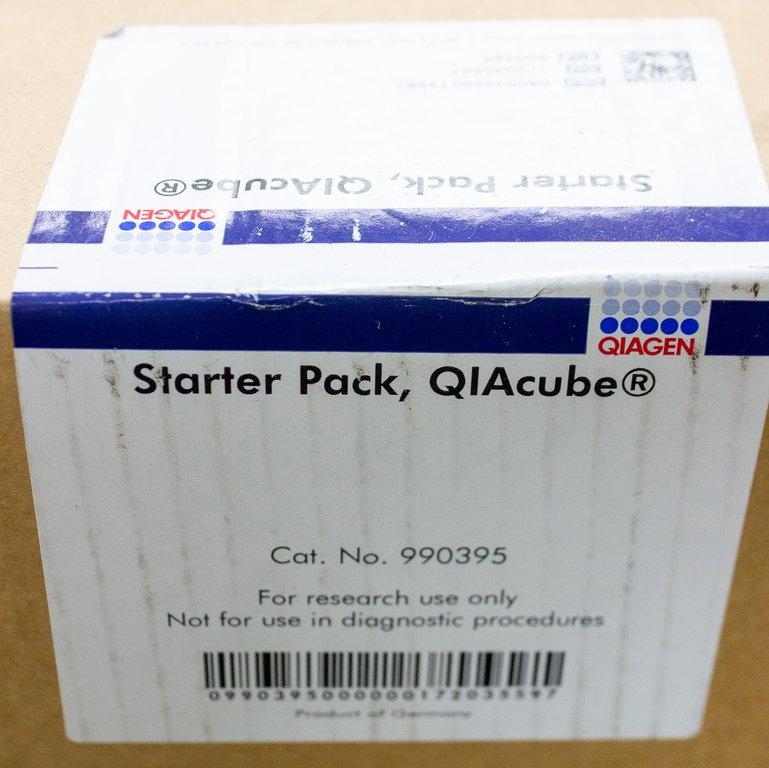

Qiagen QIAcube Connect Device Protein Analyzer with QIAcube Starter Pack and Sample Tubes RB (2 ml) 1000

Product Information

The brand new Qiagen QIAcube Connect offers fully automated processing of up to 12 samples of selected Qiagen kits. The automated system performs nucleic acid and protein purification in molecular biology applications. The controls integrate a centrifuge, heated shaker, pipetting system, UV LED, and robotic gripper. It comes preinstalled with various protocols for processing Qiagen spin columns for purification of RNA, genomic DNA, plasmid DNA, viral nucleic acids or proteins, plus DNA and RNA cleanup. It is designed for professional users and offers simplicity, reproducible results, remote run monitoring with the QIAsphere App, UV LED contaminated worktable, and a handheld barcode scanner. It is suitable for academic, pharmaceutical, biotechnology, and biomedical research laboratories.

• Automates over 80 QIAGEN kits with 140 standard protocols
• Includes UV LED decontamination
• Controlled via a large touchscreen interface
• Preinstalled protocols for various genomic applications
• Offers remote run monitoring through the QIAsphere App

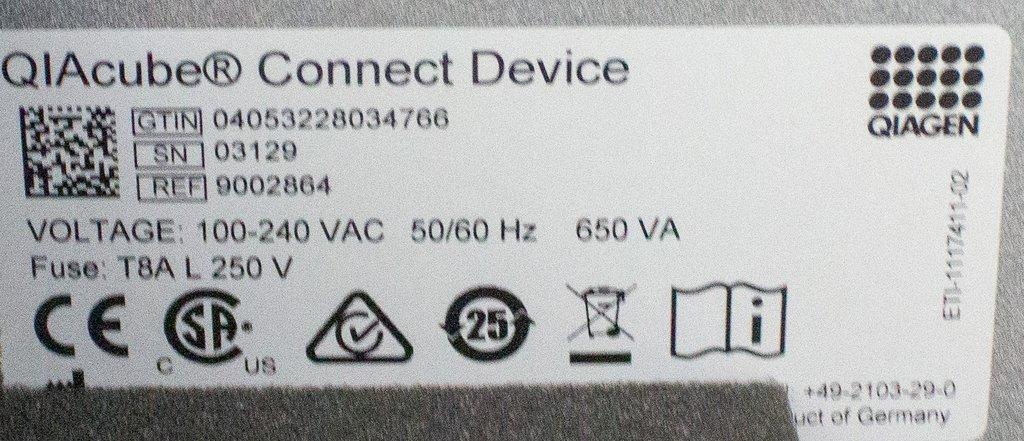

• Power: 100–240 V AC, 50/60 Hz, fuse: 2x T6.3A L 250V, Overvoltage category: II
• Operating temperature: 18 to 28ºC (64.4 to 82.4ºF), relative humidity: 15–75% (non-condensing)
• Place of operation: For indoor use only, Pollution level: 2, Environmental class: 3K2 (IEC 60721-3-3)
• Storage conditions: Temperature: 15ºC to 30ºC (59ºF to 86ºF), Relative humidity: Max. 75% (non-condensing), Environmental class: 1K2 (IEC 60721-3-1)
• Instrument dimensions: Dimensions (hood closed): width 65 cm (25.6 in.), height 58 cm (22.8 in.), depth 62 cm (24.4 in.), Mass: QIAcube Connect: 71.5 kg (157.6 lb.), Accessories: 3 kg (6.6 lb.)
• Centrifuge: 10,640 rpm maximum, 12,000 x g maximum, swing-out rotor maximum 45°, 12 rotor positions
• Pipetting system: Syringe size 1 ml, pipetting range 5–900 µl, Table capacity: Up to 12 samples per run
• Touchscreen: 10.4” TFT Touchscreen, active area 211.2 x 158.4 mm, resolution 800*600 SVGA
• Data output: USB stick: USB2.0; Compatible OS: Windows 8, Windows 7, Windows Vista, Windows XP (SP3 or later), Mac OS x 10,1 or later
• UV lamp: Wavelength: 278nm; Optical power: 200-300mW, -25°C to 60°C transportation conditions

Metric: 204 kg

Imperial: 448.8 lb

Metric: 62 cm x 65 cm x 86 cm
Imperial: 24.4 in x 25.6 in x 33.9 in

9027300000

The harmonized code 9027300000 is suitable for laboratory chromatography and electrophoresis instruments. It is applicable to devices for weighing and measuring ion concentrations designed for laboratory use. The use is justified as the Qiagen QIAcube Connect is an analytical tool for processing and purifying nucleic acids and proteins in laboratory settings.
