Biometra Thermoblock 96 TRobot Thermocycler Automated PCR System
Biometra
Details
-
CategoryMolecular Biology
-
Dimension15.0in x 14.0in x 8.0in
-

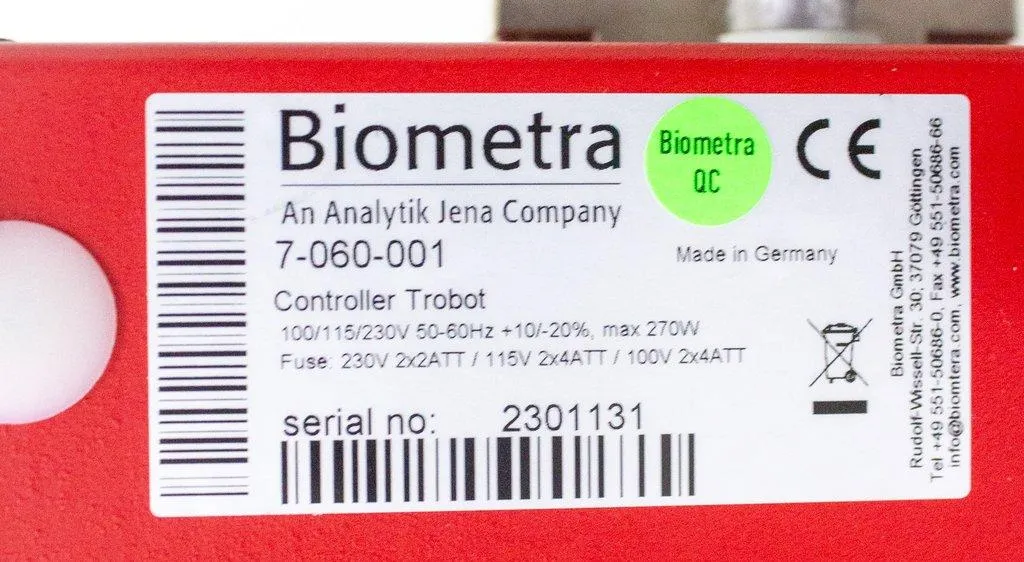

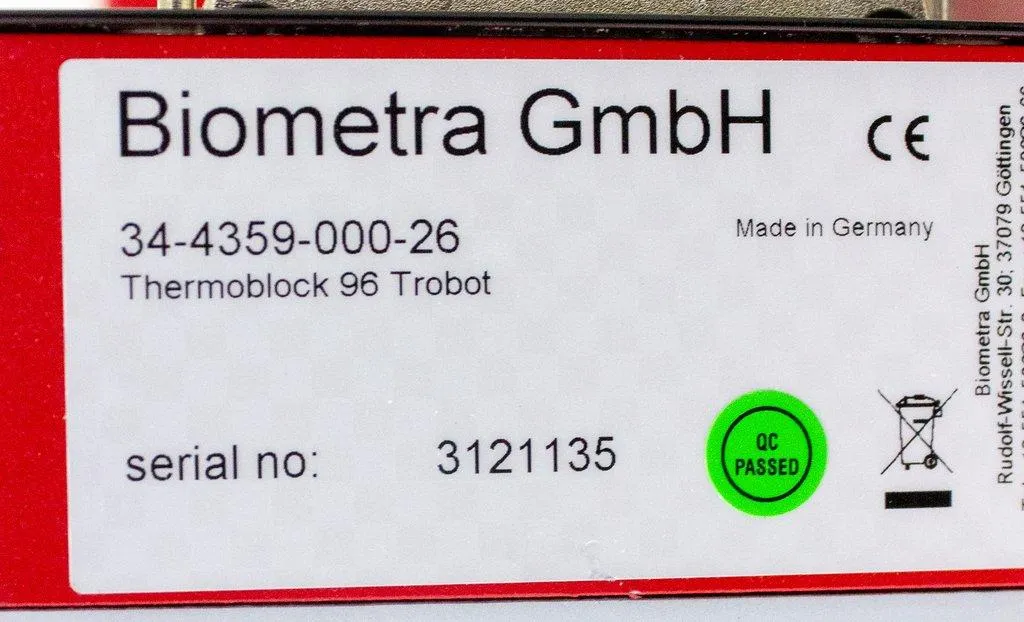

Serial3121135 & 2301131
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

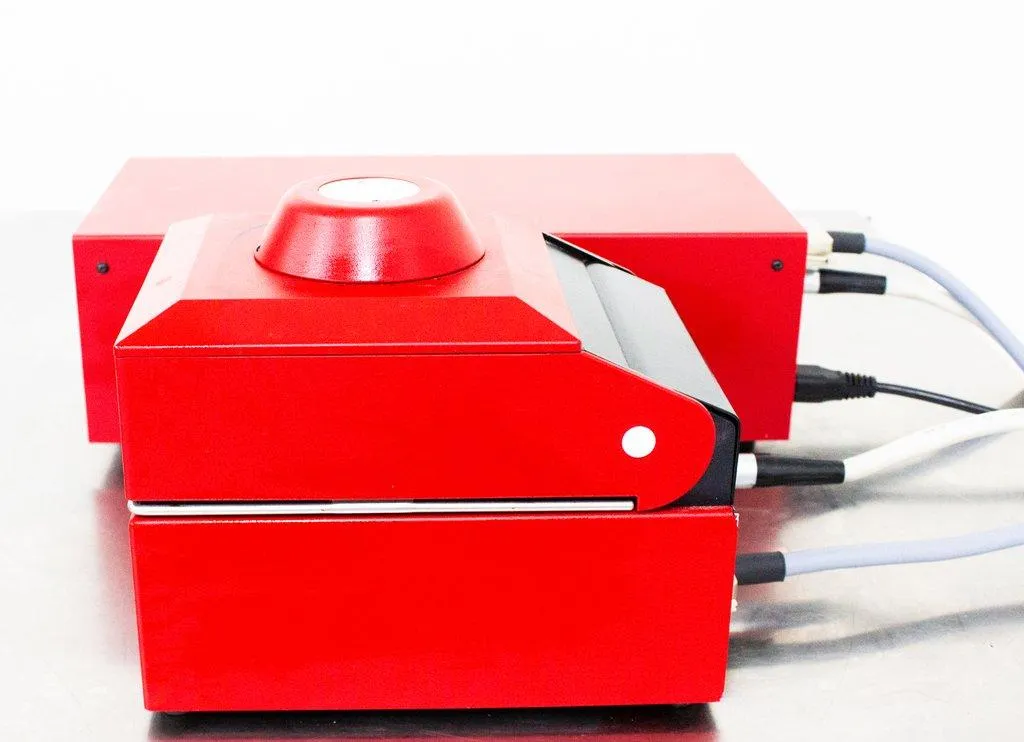

The Biometra Thermoblock 96 TRobot with Controller is a robust thermal cycler designed for integration into automated robotic systems, commonly used in molecular biology laboratories for high-throughput applications. Manufactured in Germany, this equipment powers on and passes basic tests, despite not being fully tested, and displays no known functional issues. Features include a motorized plate lifter and heated lid, ensuring precise thermal cycling within the -3.0 to 99.9ºC range, with a maximum heating rate of 3.5ºC/sec and a cooling rate of 2.5ºC/sec. It supports a 96-well PCR format and offers communication via RS232 serial interface, compatible with existing automation software. Compact in design, it operates efficiently with low power consumption and adjustable lid pressure. The unit includes a power cord but does not come with additional software, manuals, or service records.
Technician comment

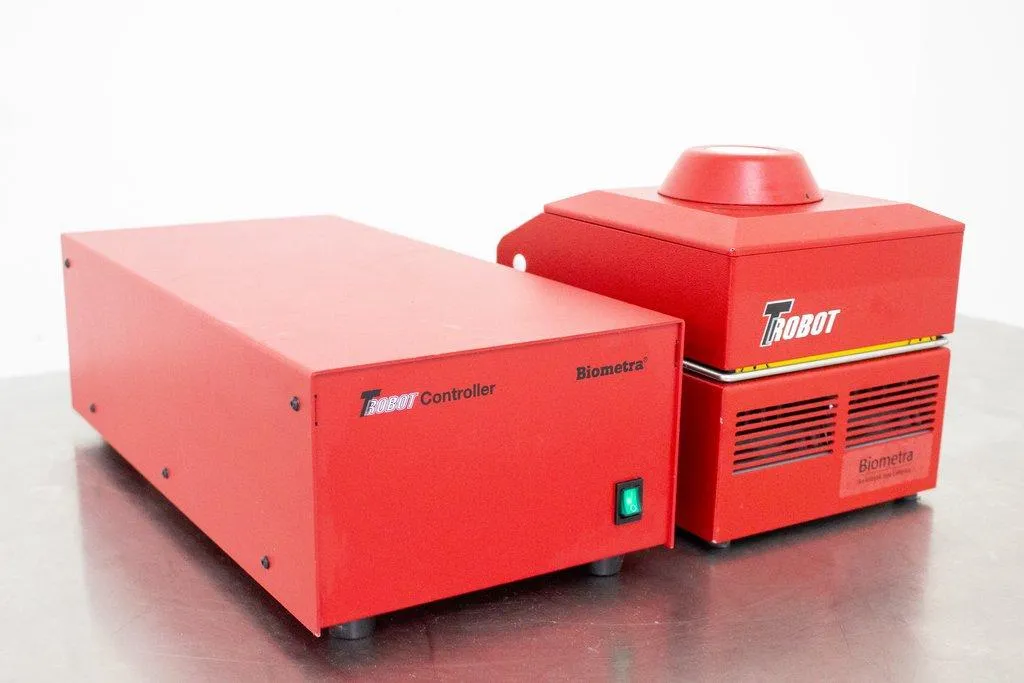

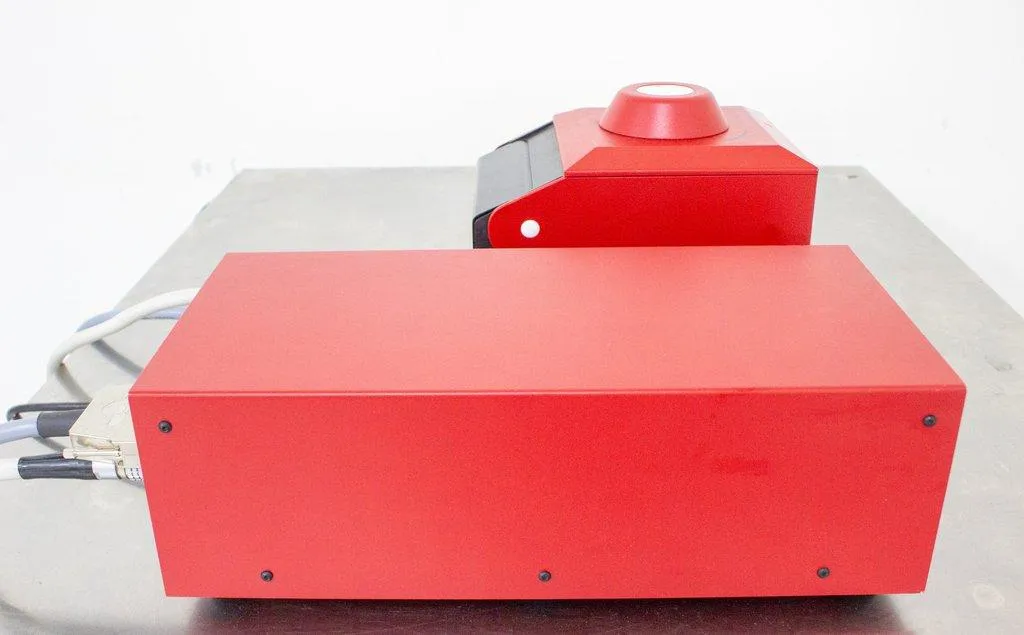

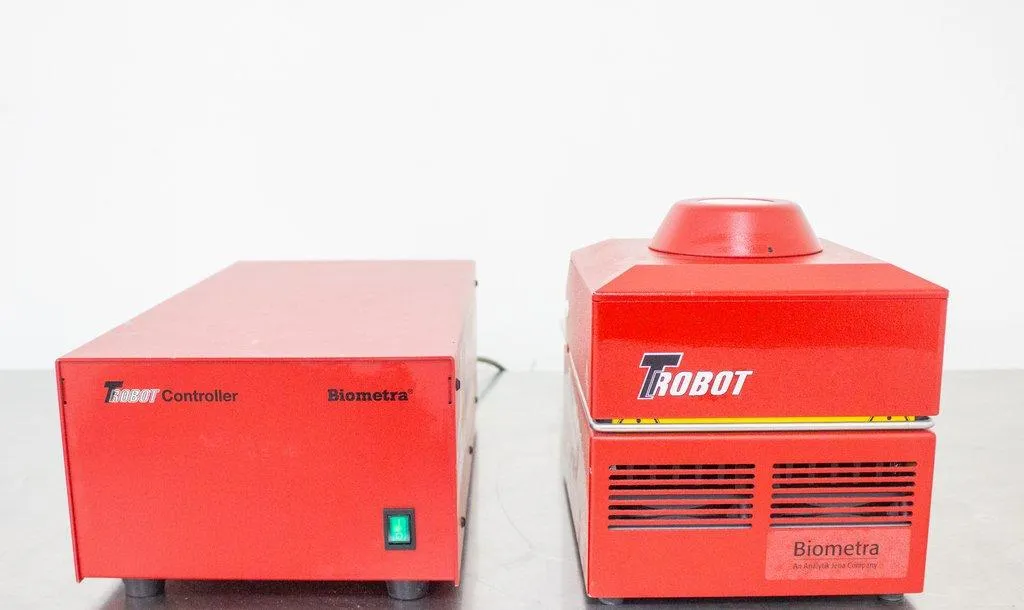

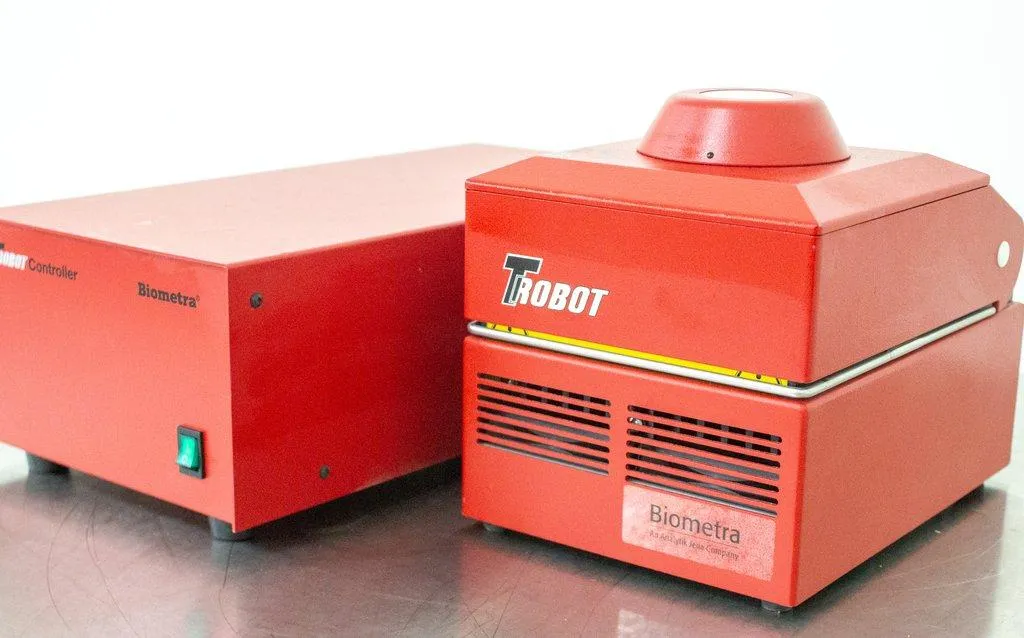

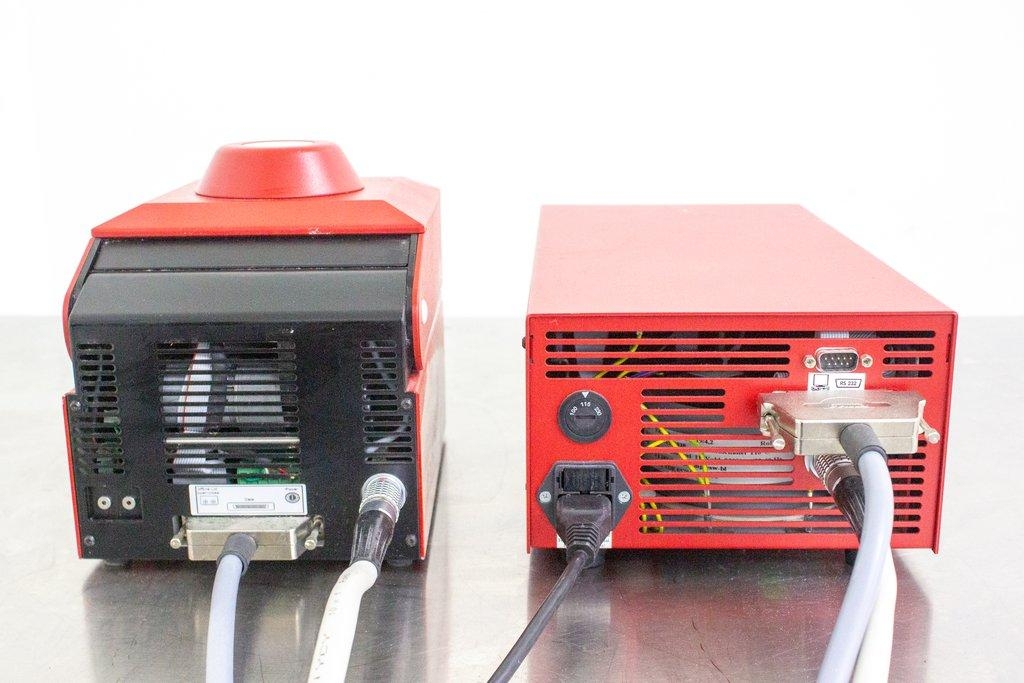

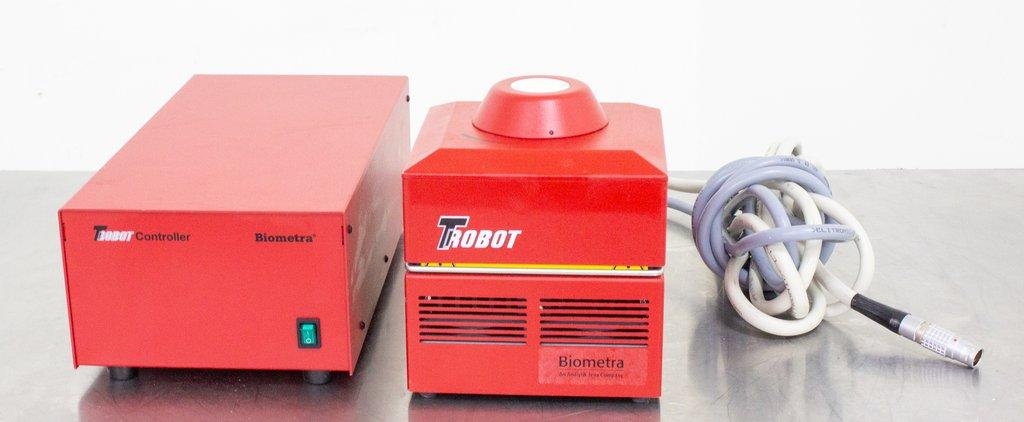

Powers on but unable to fully test. Includes Thermoblock 96 with TRobot Controller.
Key Features
- Integrated cycler with external controller

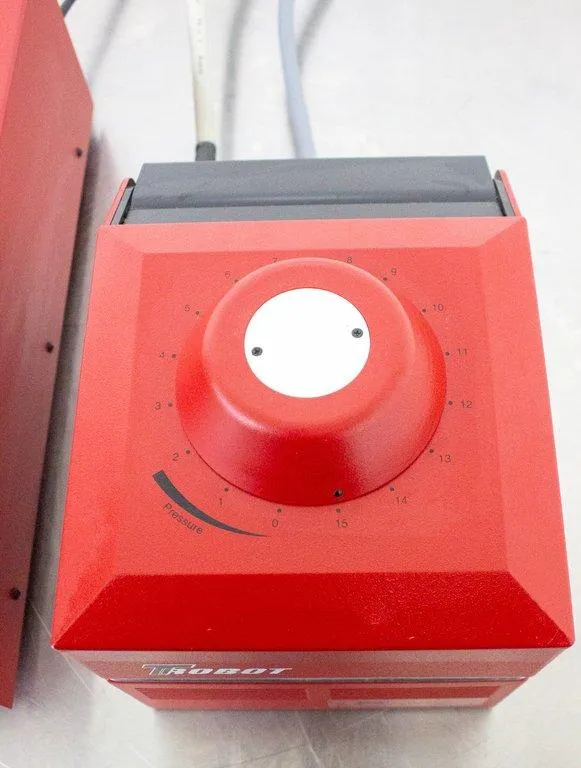

- Motorized plate lifter and heated lid
- 110° lid opening angle

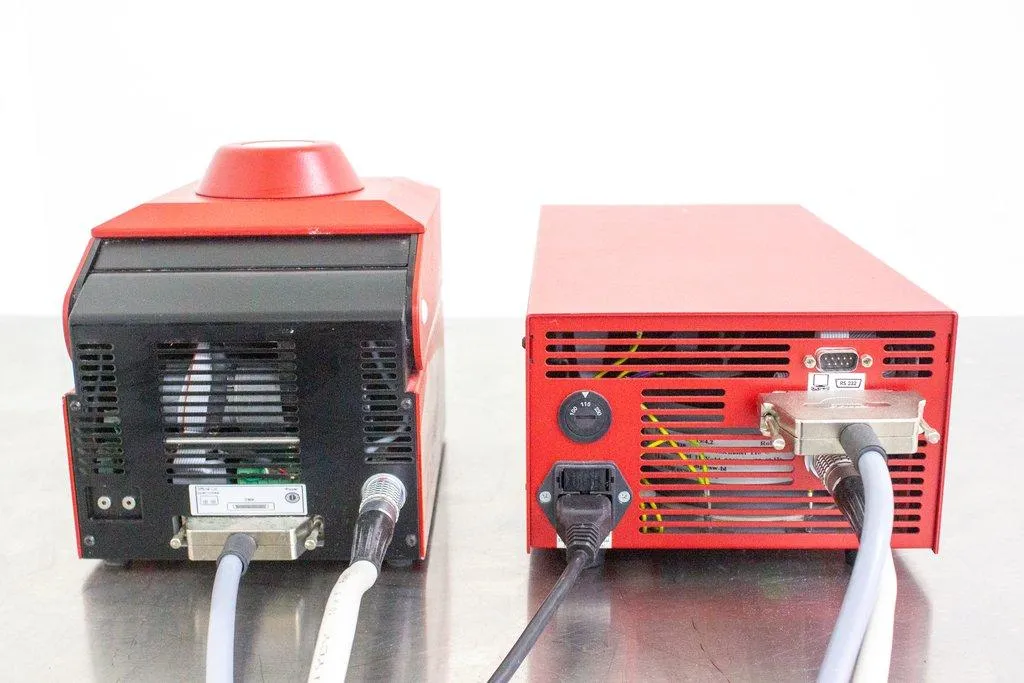

- RS232 serial interface
- 96-well format
Specifications
- - Temperature Range: -3.0 to 99.9ºC
- - Heating Rate: 3.5ºC/sec
- - Cooling Rate: 2.5ºC/sec
- - Heated Lid Temperature Range: 30-99ºC
- - Plate Pressure Range: 0-10kg
- - Voltage: 120V/220V
- - Hertz: 50Hz/60Hz
- - Power Consumption: 270W
Weight
Imperial: 39.6 Pounds
Metric: 17.96 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 16.8 lb x 9.6 lb
Metric: 45.72 cm x 42.67 cm x 24.38 cm
Harmonized Code
84798200
Harmonized Code Details
84798200 - Machines and mechanical appliances having individual functions, not specified or included elsewhere. This code is appropriate given that the Thermoblock 96 TRobot is specialized laboratory equipment for PCR processes.
