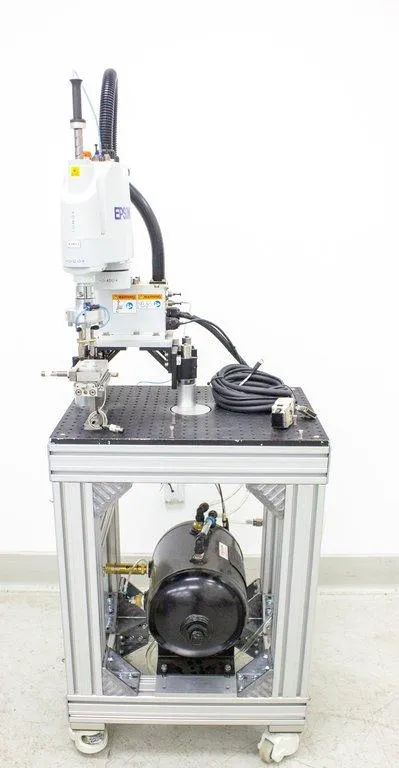

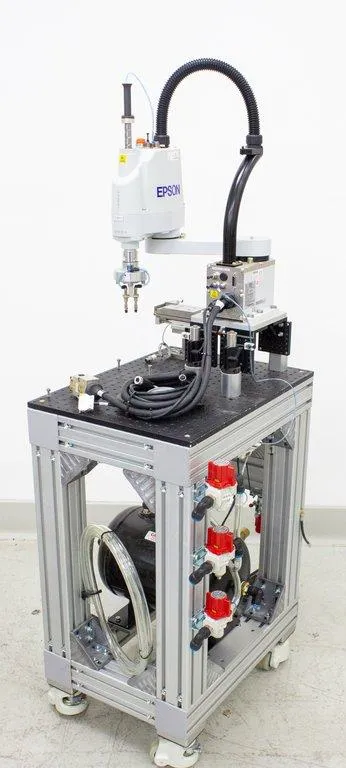

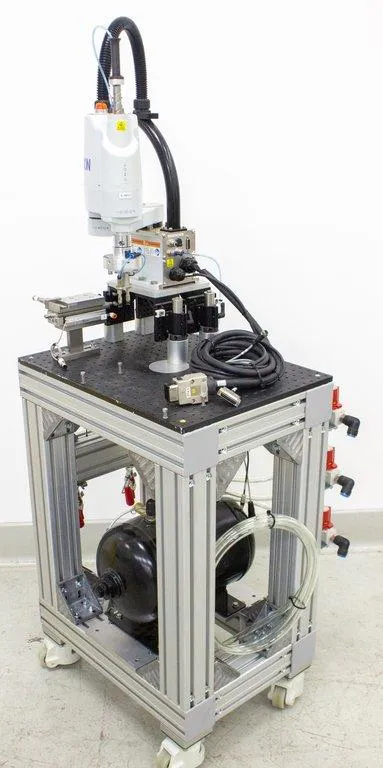

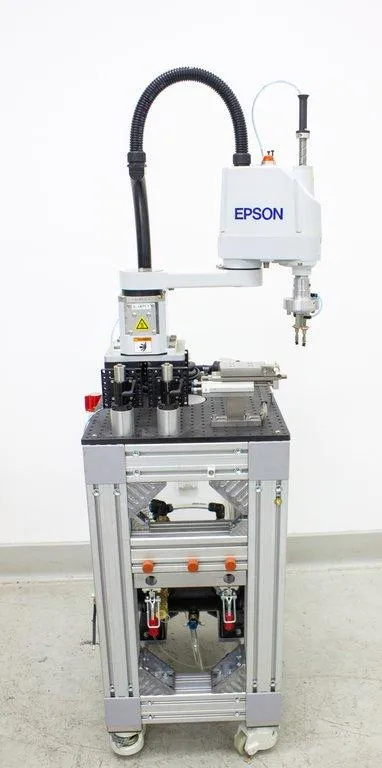

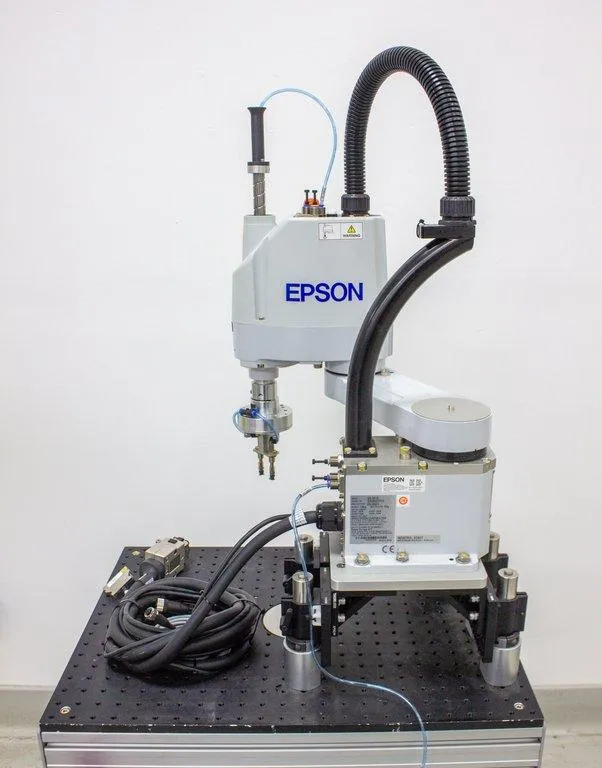

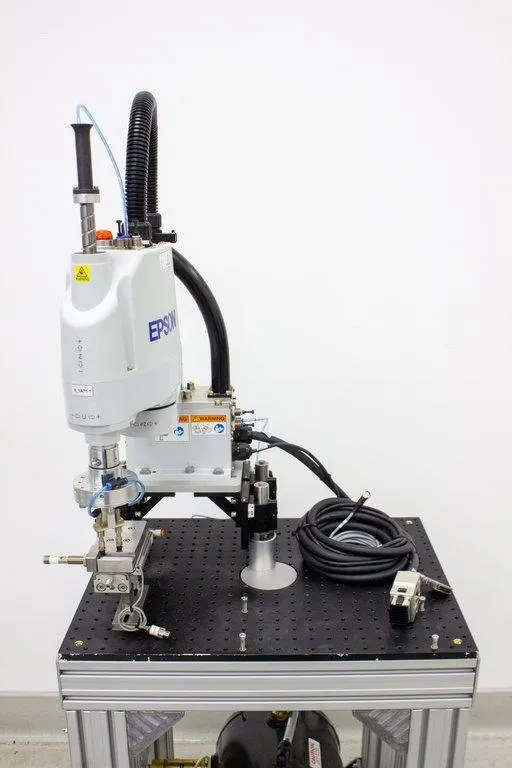

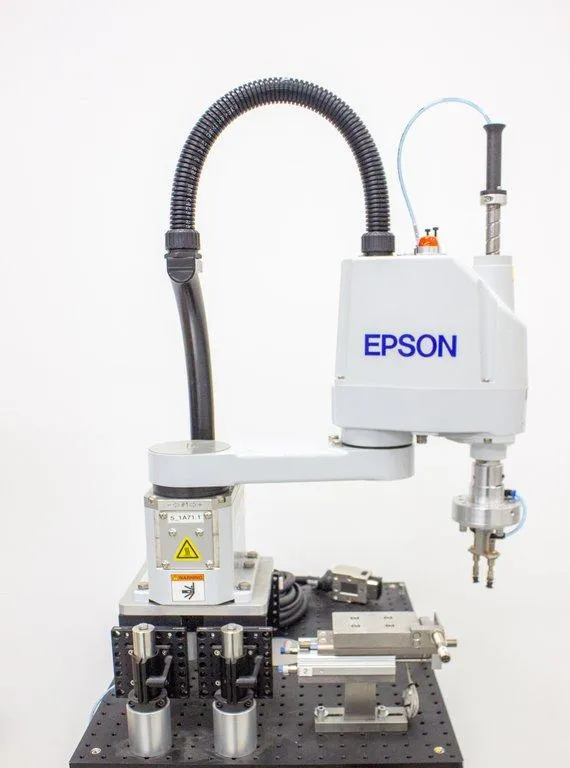

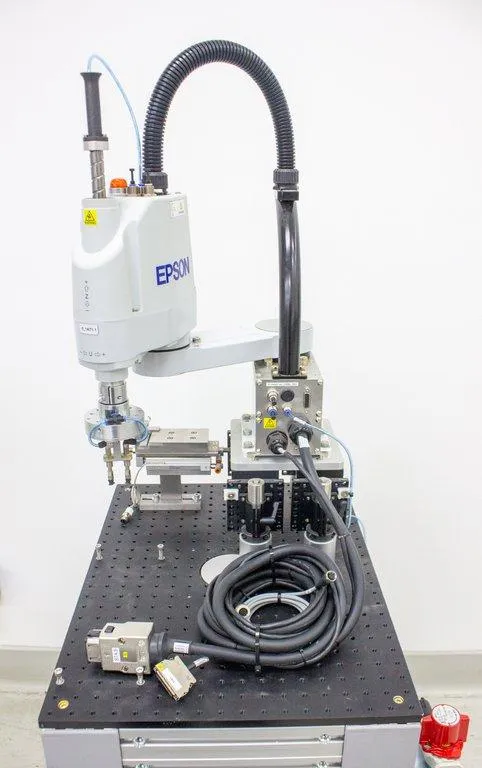

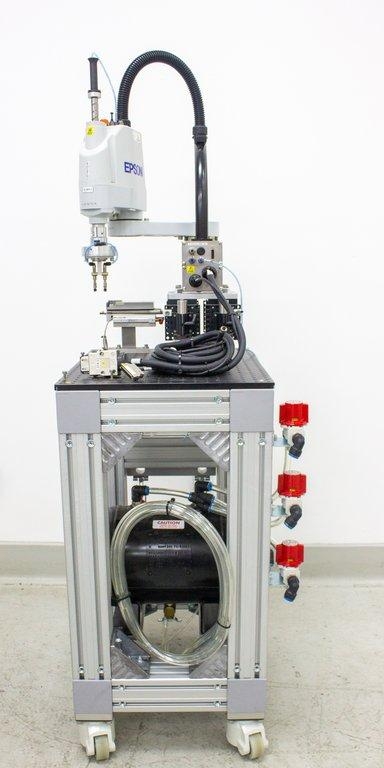

Epson G3-351S Scara Robot on Custom Cart - Compact, Powerful, and Cost-Effective

Product Information

The Epson G3-351S Scara Robot on Custom Cart is a high-performance and cost-effective solution for high precision, high-speed applications in various industries, including hard drive assembly, lab automation, electronics assembly, medical device assembly, photonics, semiconductor, telecommunications, solar, and more. The G3-351S robot leads the industry with best-in-class cycle time, precision, and motion range, making it suitable for a wide variety of applications. This compact and powerful robot features a new curved arm option, providing users with a versatile and efficient work envelope. It is designed to deliver outstanding performance, with excellent motion range, cycle times, and accel/decel rates, making it ideal for continuous operation. With a wide variety of arm configurations and mounting options, the G3-351S offers maximum flexibility and adaptability, catering to diverse application needs. Additionally, it is equipped with best-in-class controllers and development software, ensuring ease of use, high performance, and reduced development time. The G3-351S Scara Robot's applications span across multiple industries, including automotive, hard drive, medical, lab automation, consumer products, industrial products, telecommunications, pharmaceutical, solar, semiconductor, and electronics.

Unable to test or power on.

• Best in class cycle time, precision, and motion range
• New curved arm option for versatile work envelope
• High rigidity arms and PowerDrive servo technology for high performance
• Variety of arm configurations and mounting options
• Ease of use with best-in-class controllers and development software
• Applications across automotive, hard drive, medical, lab automation, consumer products, industrial, telecommunications, pharmaceutical, solar, semiconductor, and electronics industries

• Arm Length / Reach: 350 mm J1+J2 (220+130 mm) | J3 (Z): 150 mm (120 Clean)
• Repeatability: J1 + J2: +/-0.010mm, J3: +/-0.010mm, J4: +/-0.005 deg
• Payload (Kg): Max: 3 Kg, Rated: 1 Kg
• Cycle Time: 0.37 secs
• Maximum Operating Speed: J1 + J2: 4,350 mm/sec, J3: 1,100 mm/sec, J4: 3,000 deg/sec
• Optional Arm Configurations: Mounting Type: Tabletop, Multimount (ceiling/wall), Clean & ESD: ISO 3 Clean & ESD
• Other: Insertion Force: 150N (15.3 kgf), U Inertia (Max/Rated): 0.05 / 0.005 kg*m2
• Motor Wattage: J1: 200 Watts, J2: 150 Watts, J3: 150 Watts, J4: 150 Watts
• User Lines: Electric: 24 lines (15 pin, 9 pin), Air: 6mm x 2, 4mm x 2
• Environmental: Temperature: 5- 40 deg C, Humidity: 10 - 80% (non condensing)
• Weight: 14 Kg
• Dimensions: Mounting Hole Footprint(mm): 120 x 120 (4-M8), Z Axis Diameter: 16 mm, Robot Cables: 3M (standard), 5M (optional), 10M (optional)

Metric: 14 kg

Imperial: 30.86 lb

Metric: 30.48 cm x 30.48 cm x 40.64 cm
Imperial: 12 in x 12 in x 16 in

8479500040

This code is used for Industrial Robots. As the Epson G3-351S Scara Robot is an industrial robot designed for precision and speed in various applications, this harmonized code seems appropriate.
