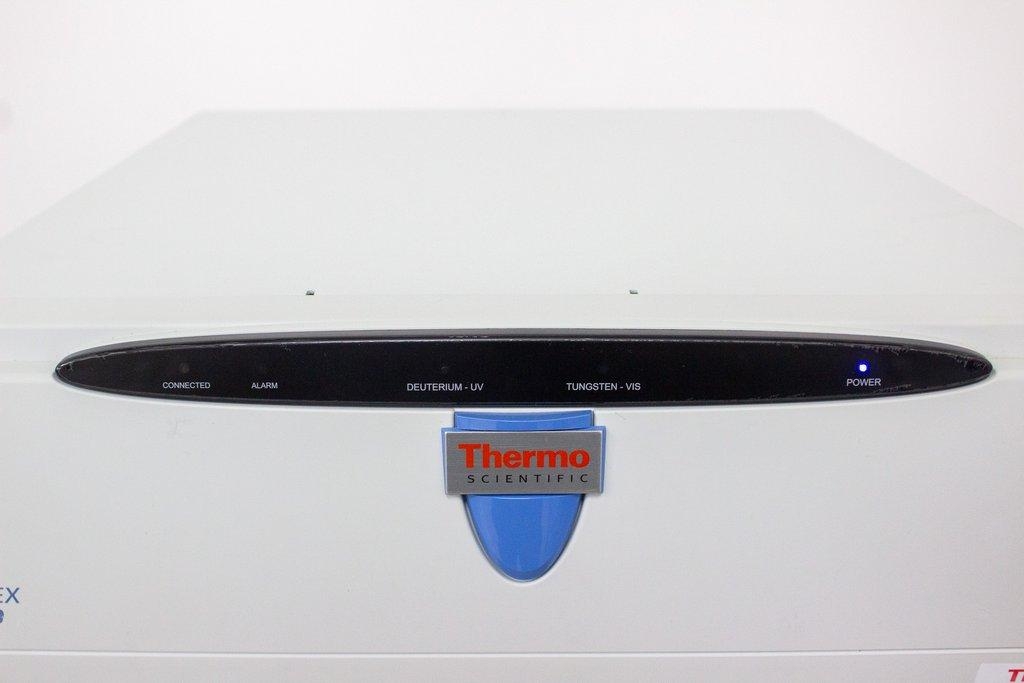

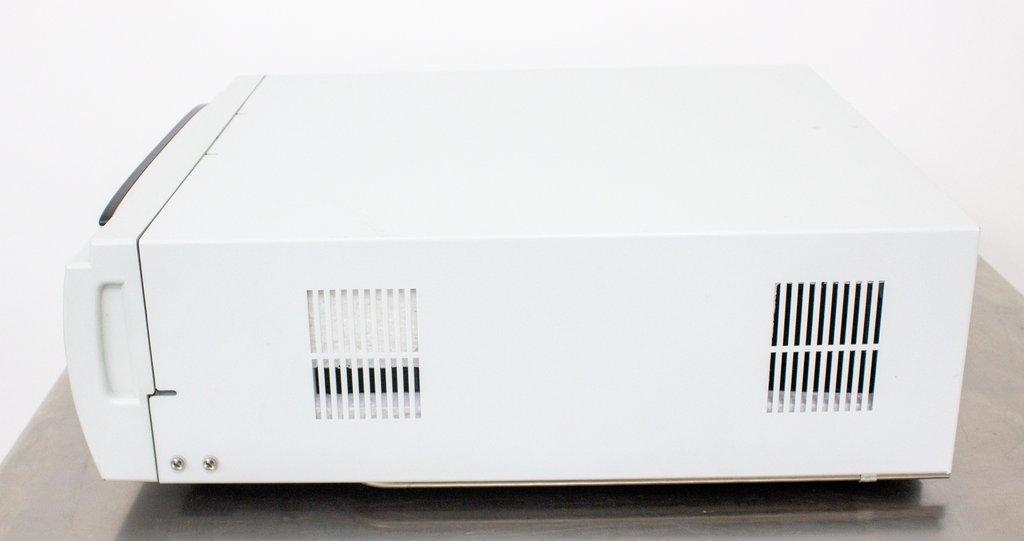

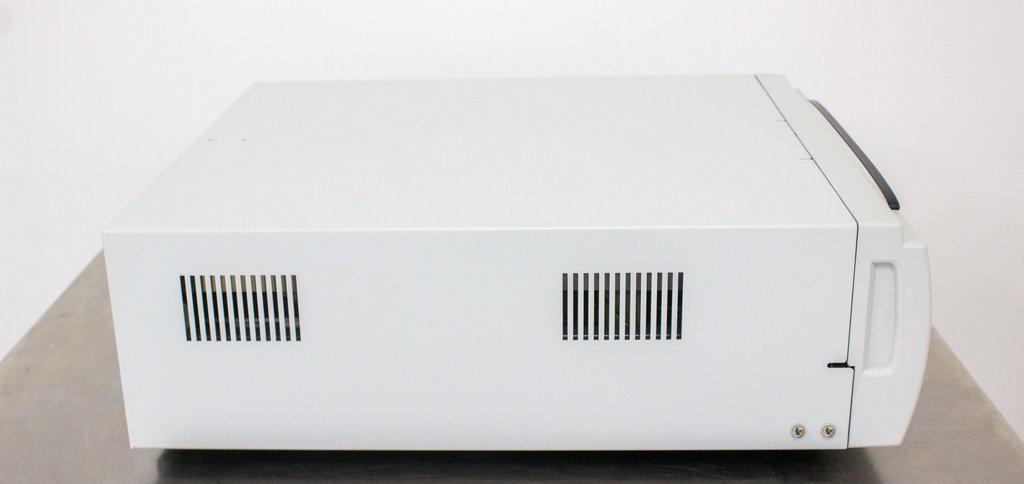

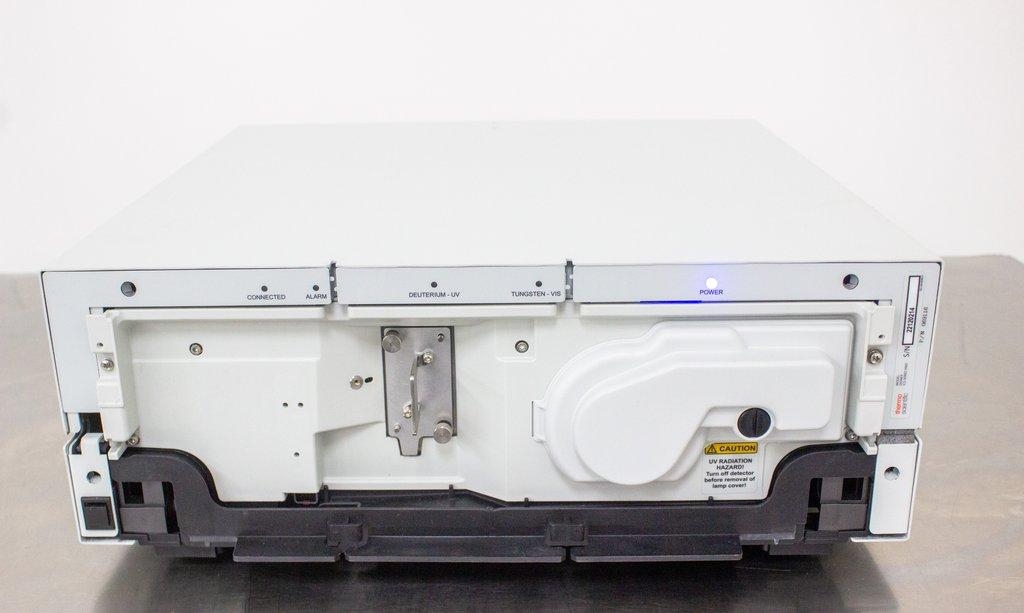

Thermo Scientific Dionex VWD Variable Wavelength Detector
- Make Thermo Scientific
- Hertz 50Hz/60Hz
- Model Dionex VWD

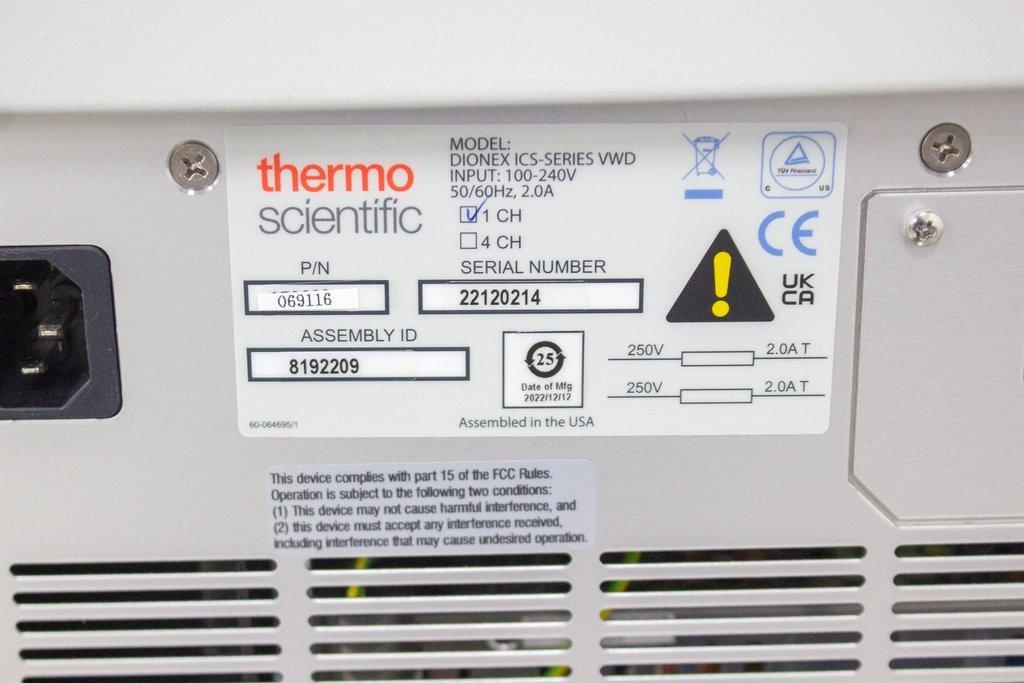

- Serial 22120214
- Weight 38.0 Lb
- Voltage fe7d08c00c

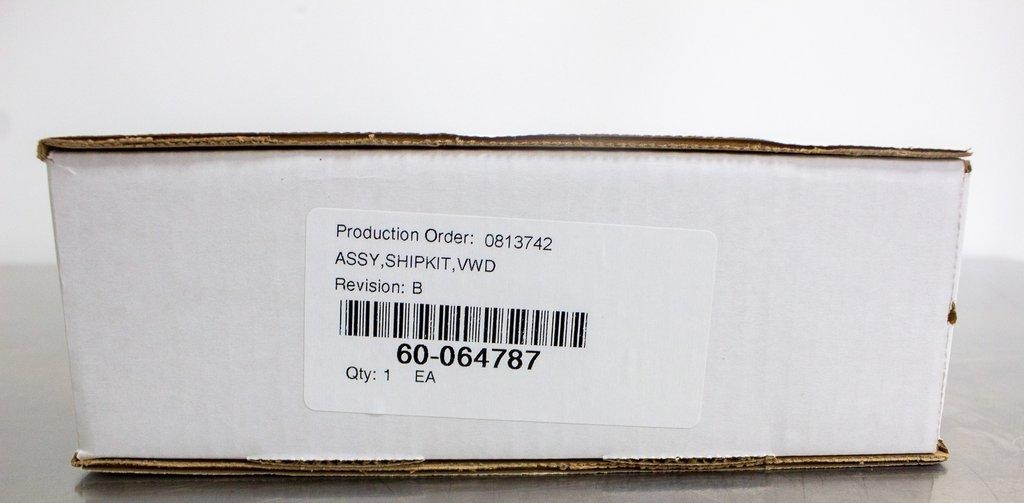

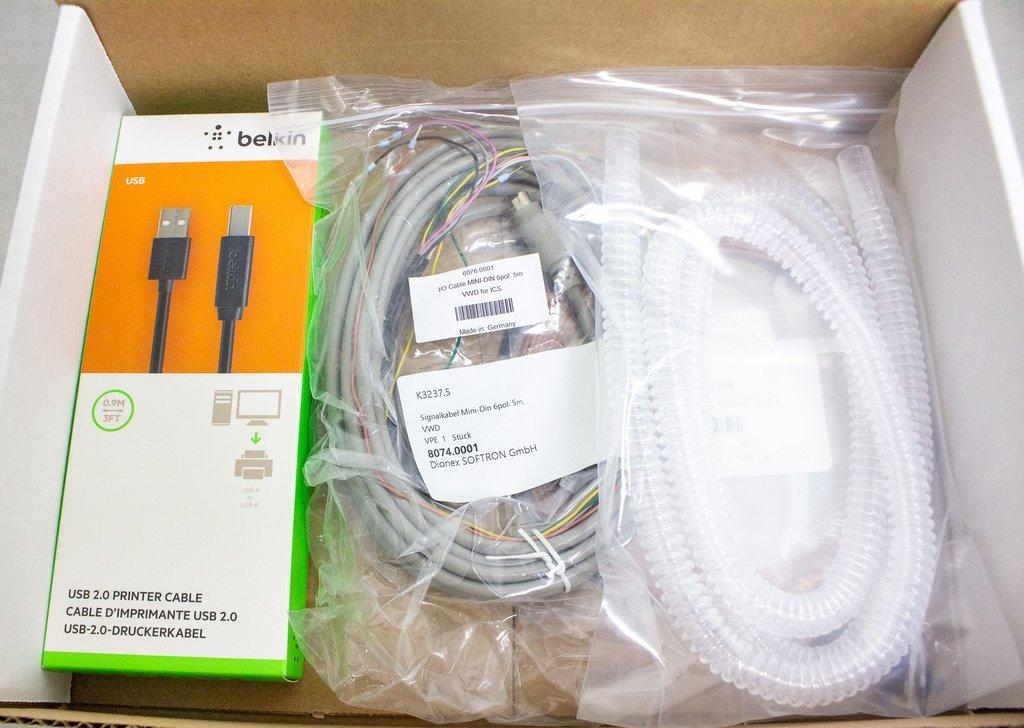

- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 24.0in x 22.0in x 8.0in
- Shipping Type FedEx Ground
- Item Condition AS-IS
- Manufacturing Date 2022-12-12
Product Information
The Thermo Scientific Dionex™ ICS-Series VWD Variable Wavelength Detectors provide high-performance, multiple wavelength UV-Vis detection for routine ion chromatography. These detectors offer outstanding sensitivity for routine ion chromatography applications with dual-lamp configurations. They ensure low baseline drift, high signal-to-noise ratio, and excellent resolution. The VWD Variable Wavelength Detectors have a broad wavelength range of 190–900nm and data collection rates of up to 100Hz. They are used for ion chromatography applications that require multiple wavelength monitoring capability. The unit is in good condition and comes with a 30-Day Warranty, 100% Parts and Labor.
Technician comment
"Occasionally the error LED lights up when turning on the power and initializing. When checking in Windows Device Manager , it is recognized as VWD3000."
Key Features
- Up to four different wavelengths simultaneously
- Data collection rates of up to 100Hz
- Wavelength range of 190–900nm
- Integrated flow cell heat exchanger for thermal stability
Specifications
- Type: Variable Wavelength (VWD)
- Detector Type: Variable Wavelength (VWD)
- Data Collection Rate: Up to 10 Hz
- Drift: <0.1 mAU/hr
- Noise Level: < ±2.5 μAU (at 254 nm)
- Wavelength Accuracy: ±1 nm
- Wavelength Range: 190 to 900 nm

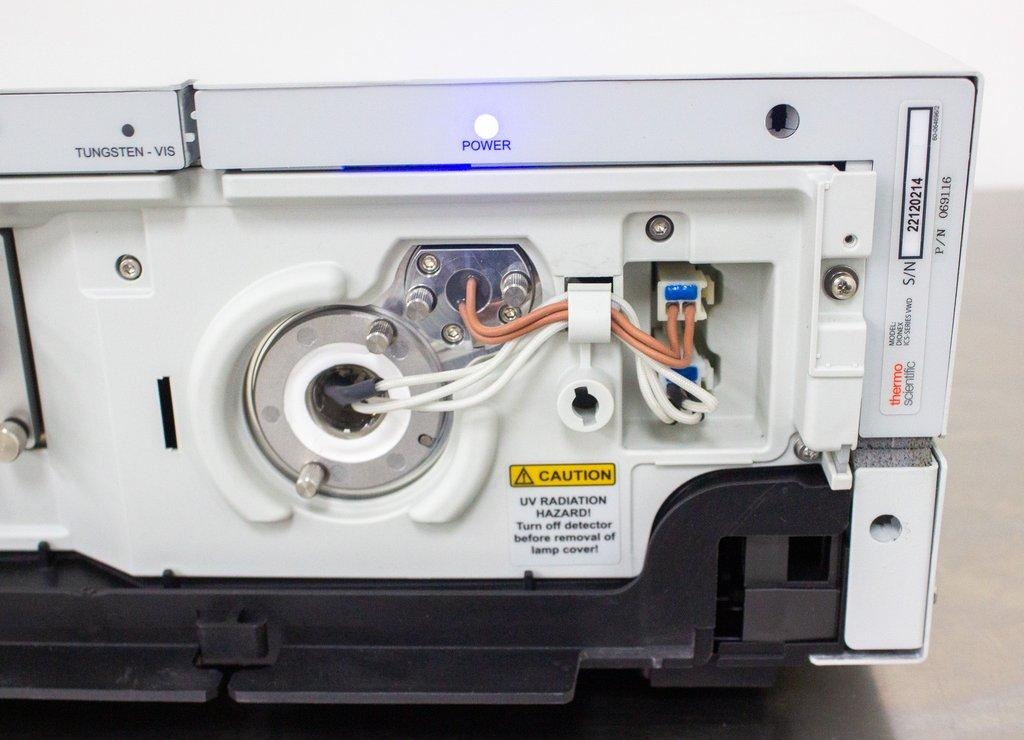

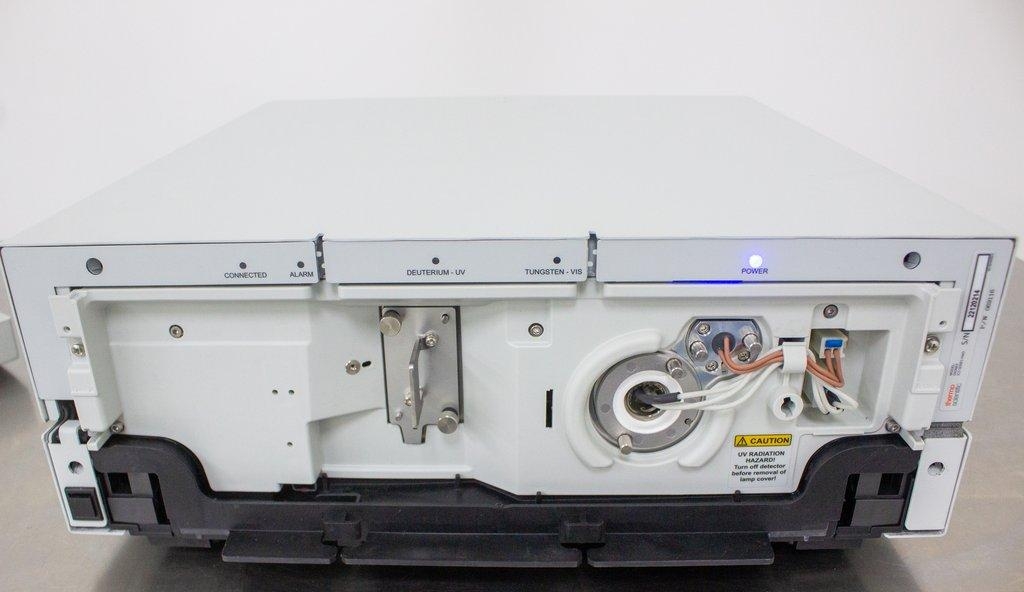

- Lamp: Simultaneous Tungsten and Deuterium
- Flow Cell: PEEK, 11 μL volume, 10 mm path length (analytical); 2.5 μL, 7 mm path length (semimicro)
- PC Connection: USB
- Wavelength Bandwidth: 6 nm (at 254 nm)
- Height (Metric): 15.2 cm
- Height (English): 6.0 in.
- Width (English): 17.5 in.
- Width (Metric): 44.4 cm
- Voltage: 85 to 265 VAC
- Electrical Requirements: 85 to 265 VAC 47/63 Hz
- Description: Single wavelength
- Frequency: 47/63 Hz

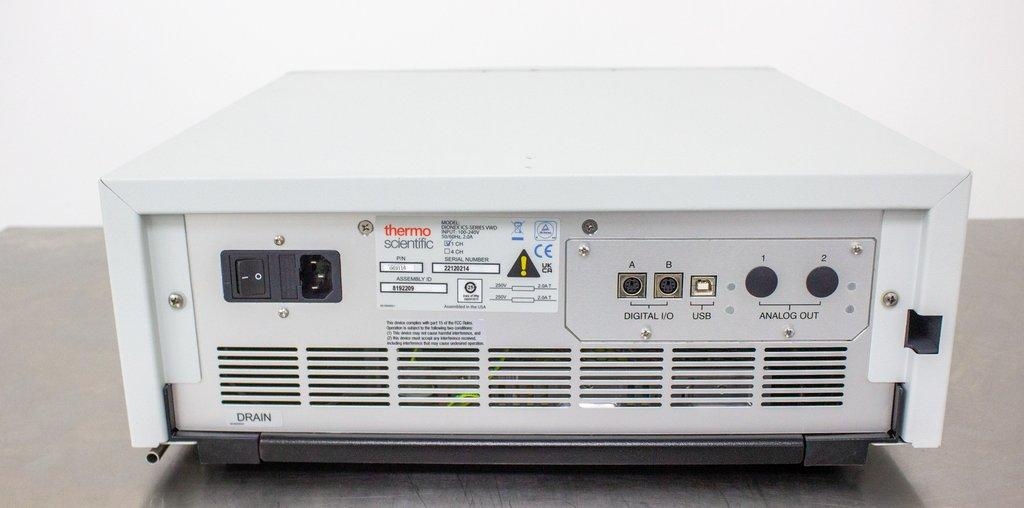

- Analog Outputs: Two: absorbance, 20-bit resolution, 0-1 V and 0-10 V
- Unit Size: Each
Weight
Metric: 8.5 kg
Imperial: 18.74 lb
Dimensions
Metric: 44.4 cm x 44.4 cm x 15.2 cm
Imperial: 17.5 in x 17.5 in x 6.0 in
Harmonized Code
902720
Harmonized Code Details
902720 - Liquid chromatographs for separating mixed solutions, with a flash-point detector
