Repligen XCell ATF 10 Device Cell Culture High Density Retention System
Repligen
Details
-
CategoryBioreactor / Fermenter
-
Dimension27.0in x 49.0in x 23.0in
-
Serial0002
-
Shipping TypeFedEx Ground
-
Manufacturing2019-02-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Repligen XCell ATF 10 Single-use Device, manufactured in 2019, is designed for cell retention to support high cell density and viability in cell culture operations. This device facilitates seamless linear scaling from XCell ATF 2 to XCell ATF 10, essential for diverse scales of cell culture development and cGMP manufacturing. Constructed for use with bioreactors ranging from 200L to 5000L, it supports SU (Single-Use) and SS (Stainless Steel) formats. The device features a PES chemistry with a typical SU pore size of 0.2µ and an effective surface area of 11m². The ATF flow range is between 30-80 Lpm, enhancing cellular productivity. The system employs an XCell C410 Controller and XCell LS Controller, ensuring optimized operation across high-throughput applications.
Technician comment

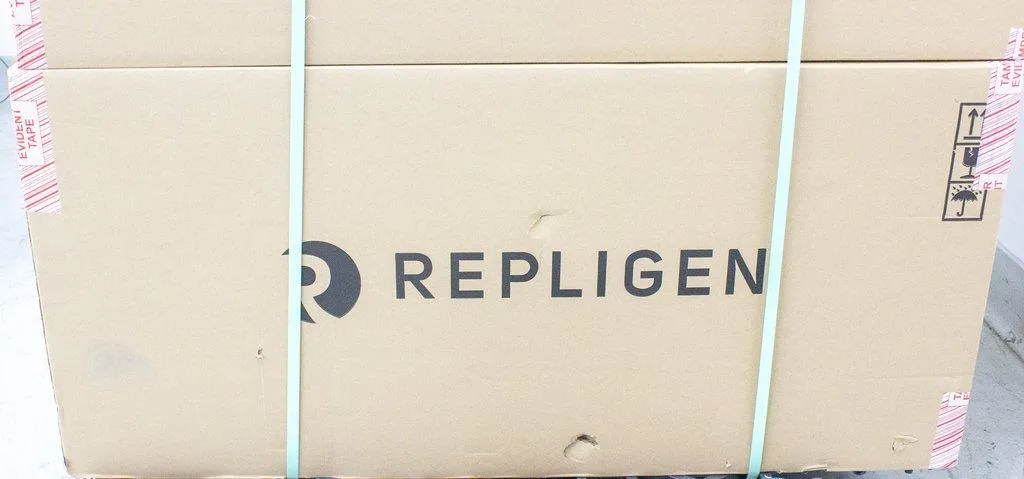

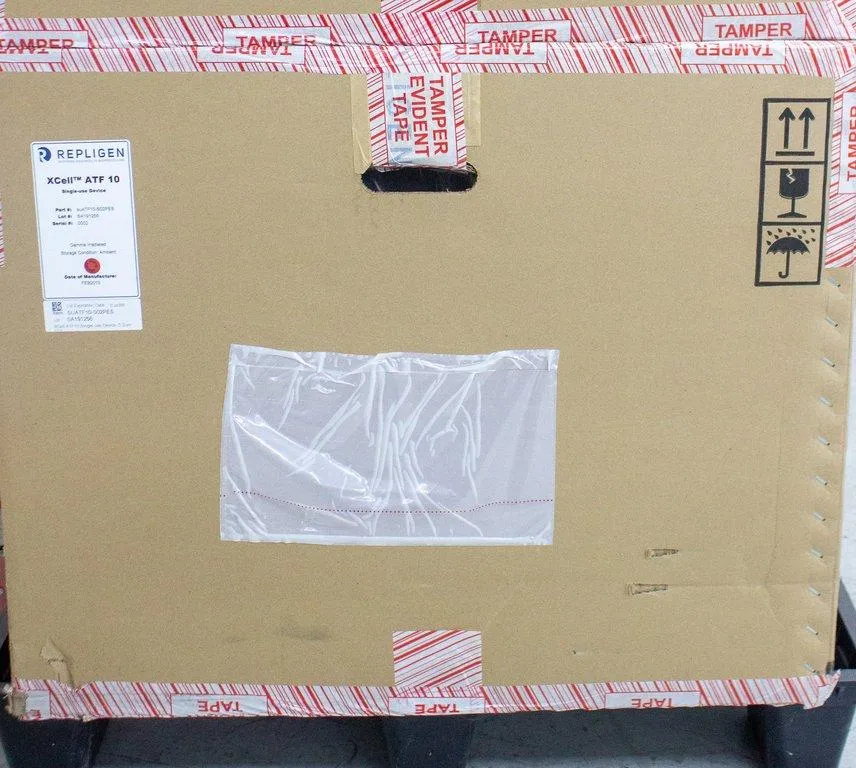

NEW in unopened box.
Key Features
- Designed for high cell density viability
- Facilitates linear scaling from XCell ATF 2 to ATF 10
- Compatible with bioreactors 200-5000L
- Single-use device with PES and SS formats
- Pore size: SU (0.2µ), SS (0.2µ, 0.5µ, 50KDa)
- Effective surface area: 11m²
- ATF flow range: 30-80 Lpm
- Includes XCell C410 and LS Controllers
Specifications
- Bioreactor compatibility: 200-5000L
- Formats: SU (Single-Use), SS (Stainless Steel)
- Chemistry: PES (Polyethersulfone), PS (Polysulfone)
- Typical pore size SU: 0.2µ
- Typical pore size SS: 0.2µ, 0.5µ, 50KDa
- Effective surface area: 11m²
- Filter height: 60 cm
- Displacement volume: 6L
- ATF flow range: 30-80 Lpm
- Scalable flow/fiber and filtrate rate: 12 mL/min/fiber and 4-6 LMH
- Controller: XCell C410 Controller, XCell LS Controller
Weight
Imperial: 90.0 Pounds
Metric: 40.82 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 58.8 lb x 27.6 lb
Metric: 82.3 cm x 149.35 cm x 70.1 cm
Harmonized Code
902710
Harmonized Code Details
Harmonized code 902710 applies to 'Instruments and apparatus for physical or chemical analysis (for example, polarimeters, refractometers, spectrometers, gas or smoke analysis apparatus)'. This code is used because the XCell ATF 10 Device is an apparatus for physical analysis in bioprocessing settings.
