BIODOT RR120 Web Handling System Dispensing Coating Inspecting Drying New
BIODOT
Details
-
CategoryProduction / Manufacturing
-
Dimension50.0in x 50.0in x 50.0in
-
SerialRR1200237
-
Shipping TypeFreight
-
Manufacturing2022-06-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The BIODOT RR120 Web Handling System, manufactured in June 2022, is designed for high-volume applications in the printing, coating, inspecting, and drying of rolls. Its modular construction allows users to customize it according to specific needs and throughput requirements. This system features up to 7 dispensers in tandem, handling membrane widths from 5 mm to 120 mm, and operates with a linear web speed of up to 100 mm/sec. Precision dispensing options, continuous dispensing, and adjustable tension make it suitable for sensitive materials. Notably, users have the ability to upgrade systems post-purchase, enhancing process adaptability. Utilized extensively in lateral flow tests, immunoblots, dry chemistry coating, and more. Dimensions measure approximately 139 x 295 x 66 cm and weigh 136 kg.
Technician comment

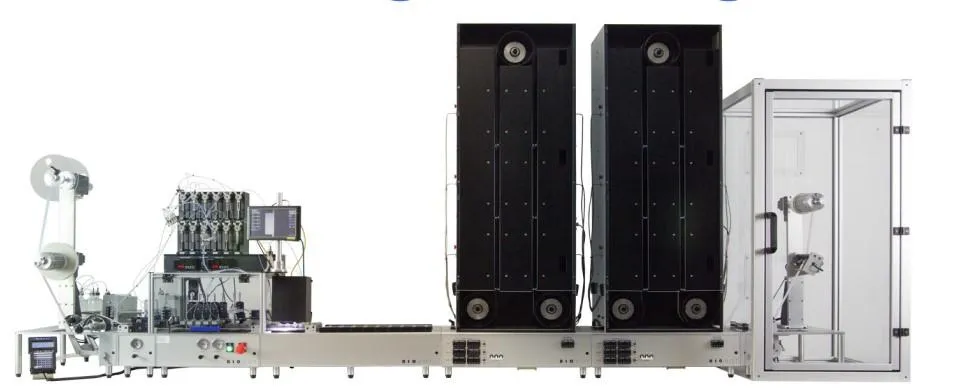

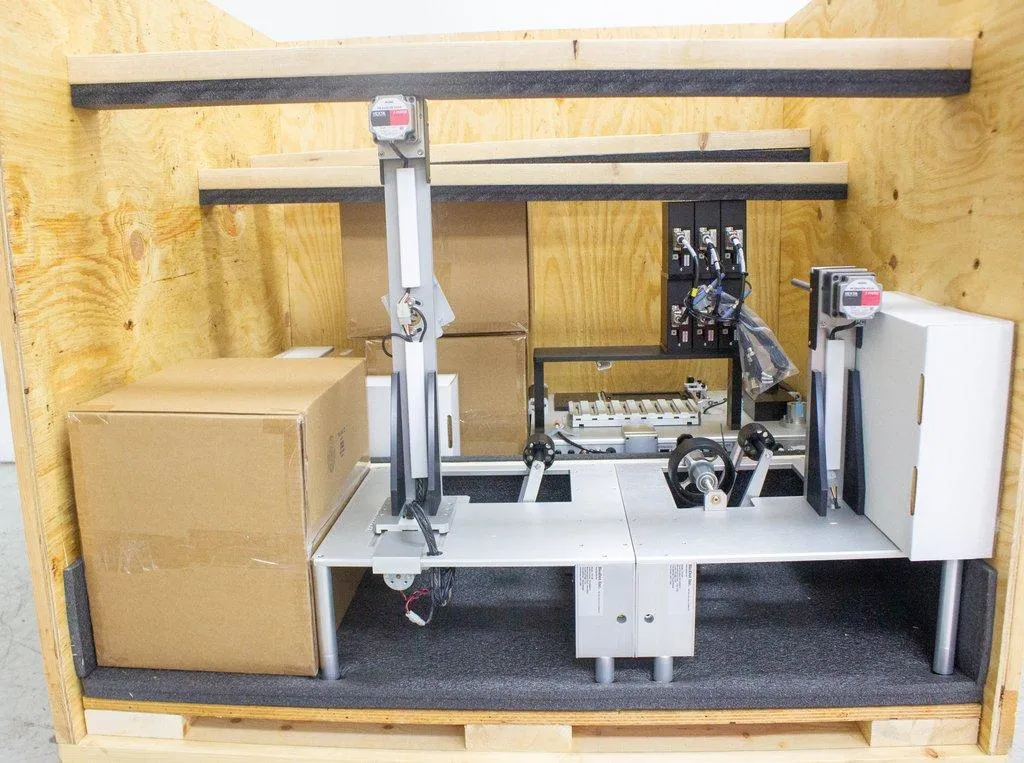

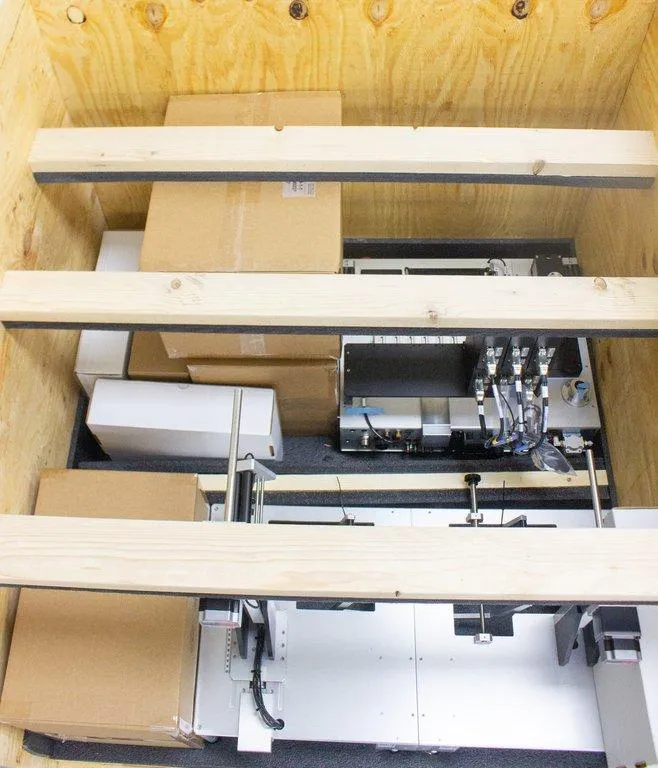

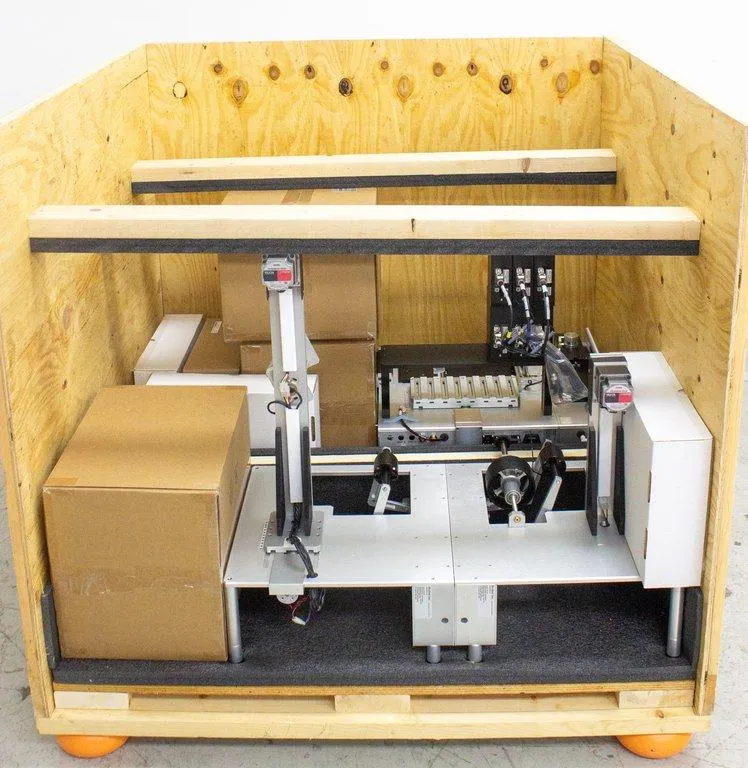

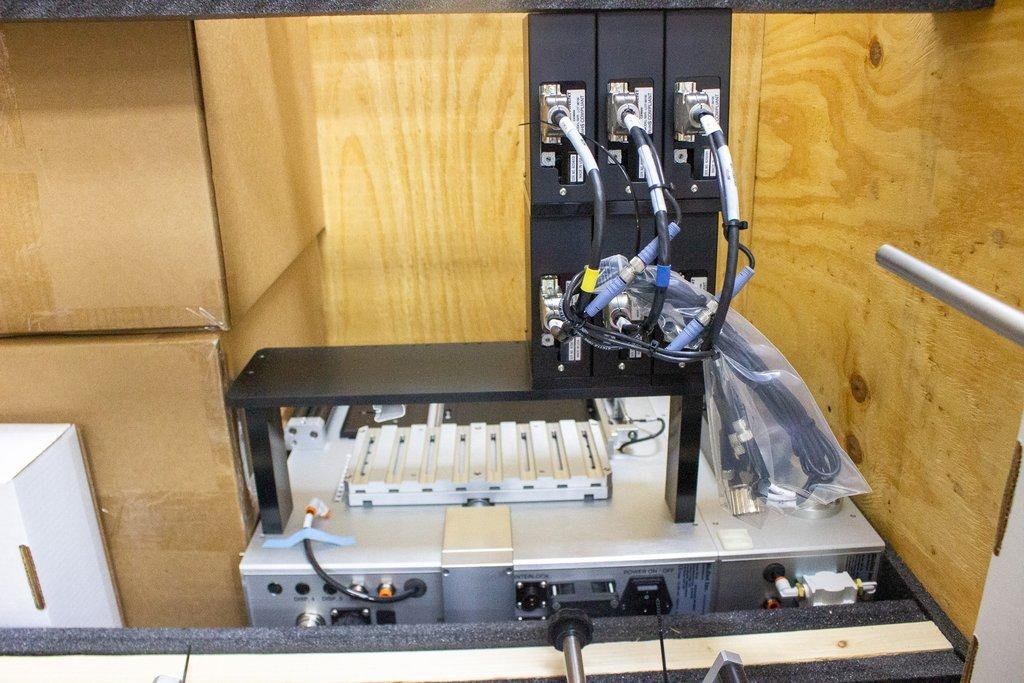

Featured image for display purposes only. Unit is brand NEW & never been used. Includes: RR120 Dispense Module, Payout Module & Takeup Module
Key Features
- High-volume printing, coating, inspecting, and drying system
- Modular design offering flexibility for various applications
- Up to 7 dispensers in tandem with a membrane width of 5 mm - 120 mm
- Linear web speed up to 100 mm/sec
- Precision dispensing and continuous coating capability
- Adjustable tension for fragile materials
- Upgradeable system
Specifications
- Manufacture Date: June 2022

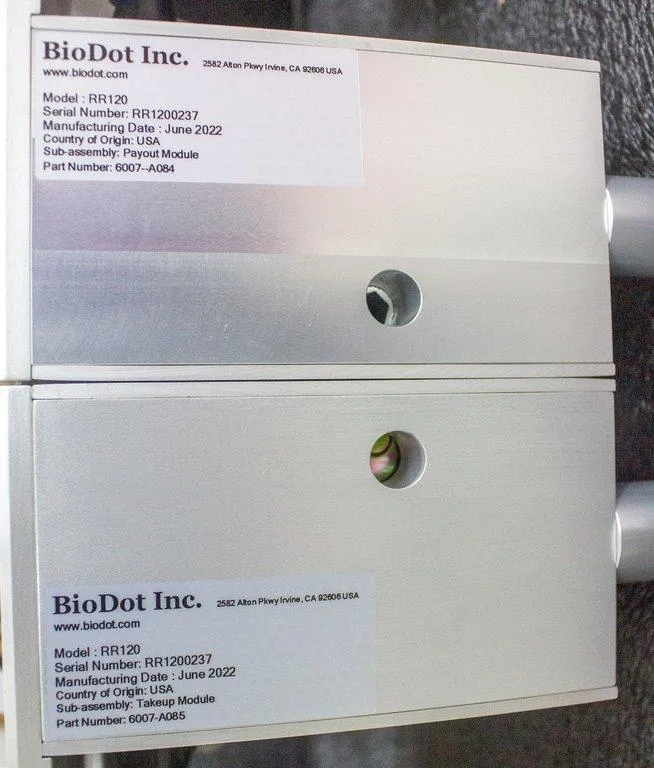

- Serial Number: RR1200237
- Dimensions: 139 x 295 x 66 cm
- Weight: 136 kg
- Power Requirement: 110/220 VAC, 50/60 Hz
- Air Requirement: 60-125 PSI (clean, dry air)
- Continuous Reagent Dispensing capability
- Suitable for applications like Lateral Flow Tests, Immunoblots, Dry Chemistry Coating
Weight
Imperial: 471.6 Pounds
Metric: 213.91 Kilograms
Shipping Dimensions
Imperial: 60.0 lb x 60.0 lb x 60.0 lb
Metric: 152.4 cm x 152.4 cm x 152.4 cm
Harmonized Code
84798997
Harmonized Code Details
84798997: Machines and mechanical appliances having individual functions, not specified or included elsewhere. This code is chosen as the BIODOT RR120 functions as an industrial machine for coating and drying, which falls under specialized equipment categories.
