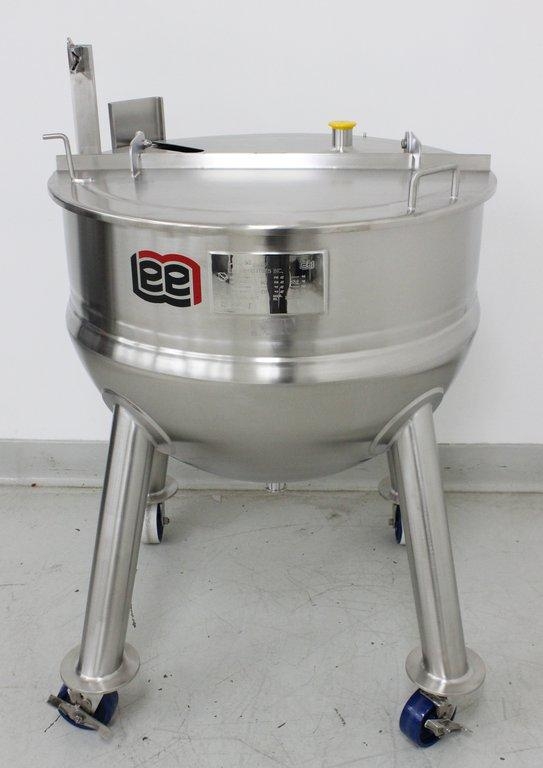

Lee 225 LD Kettle Process Mixer Stainless Steel Jacketed 225L Vessel 2020
Lee Industries
Details
-
CategoryProcess / Scale-Up
-
Dimension35.0in x 35.0in x 53.0in
-
Serial119195-3-1
-
Shipping TypeFreight
-
Manufacturing2020-01-01
-
Voltage / HertzN/A / N/A
Description

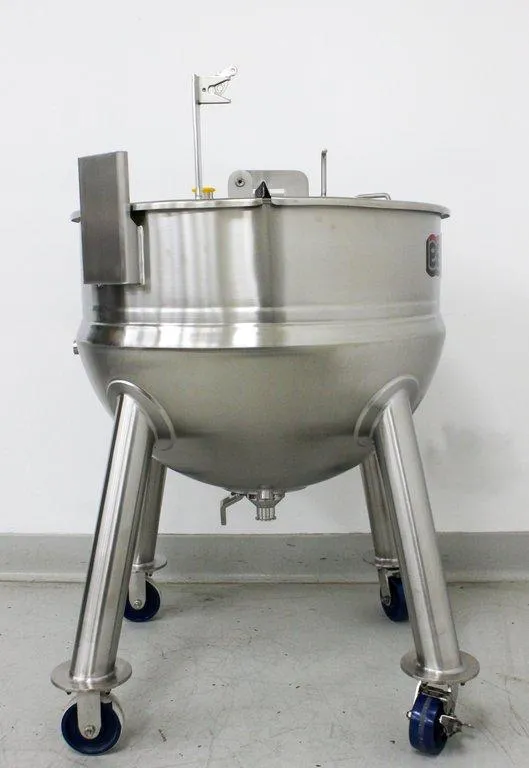

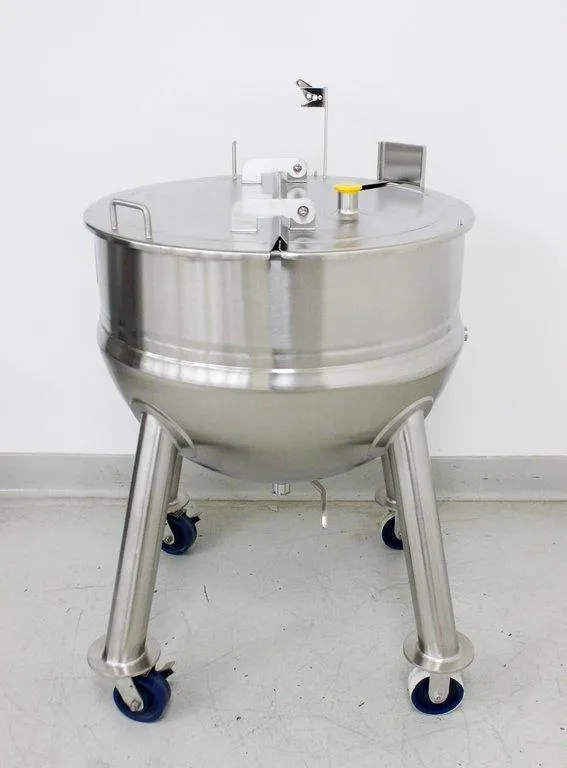

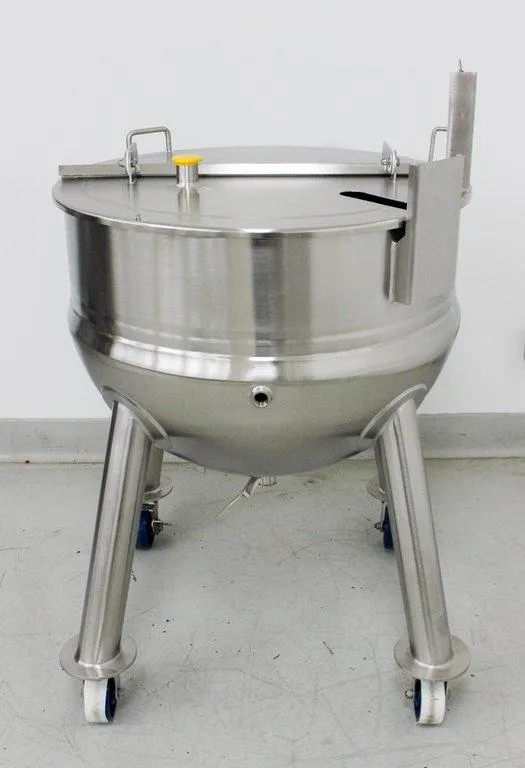

The Lee Industries 225 LD Kettle, manufactured in 2020, is a 225-liter 316 stainless steel jacketed kettle designed for optimal mixing with a unique hemispherical bottom and a jacket for both heating and cooling. Built to ASME specifications, this equipment is suitable for a variety of industrial and laboratory processes. Featuring a 32-inch diameter and 24-inch deep vessel with a 10-inch straight wall, this unit includes a flip-up cover and a 1½-inch tri-clamp center bottom discharge with a ball valve. The kettle is mounted on a four-tubular leg frame with locking casters for stability and ease of movement. With a Maximum Allowable Working Pressure (MAWP) of 90 PSI at 332°F and a Minimum Design Metal Temperature (MDMT) of -20°F at 90 PSI, it integrates advanced Lee designs such as sanitary flanged rims and outlet fittings. Ideal for chemical, food, or pharmaceutical processes requiring precise temperature control and efficient mixing.
Key Features
- 225-liter capacity
- 316 stainless steel construction
- Jacketed for heating and cooling
- Hemispherical bottom for optimal mixing
- Built to ASME specifications
- Mounted on tubular leg frame with locking casters
- 1½-inch tri-clamp bottom discharge with ball valve
- Sanitary finish and flanged rims
- Suitable for chemical, food, and pharmaceutical processing
Specifications
- Vessel Dimensions: 32-inch diameter x 24-inch depth
- Straight wall: 10 inches

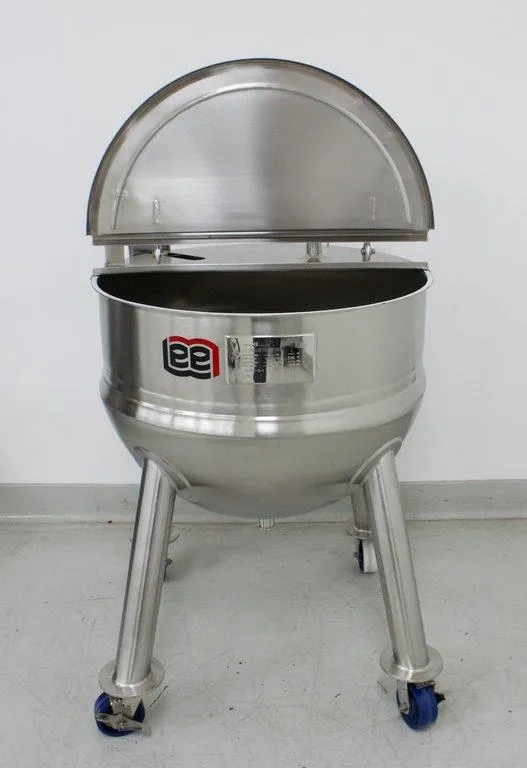

- Flip-up cover
- 15-inch ground clearance

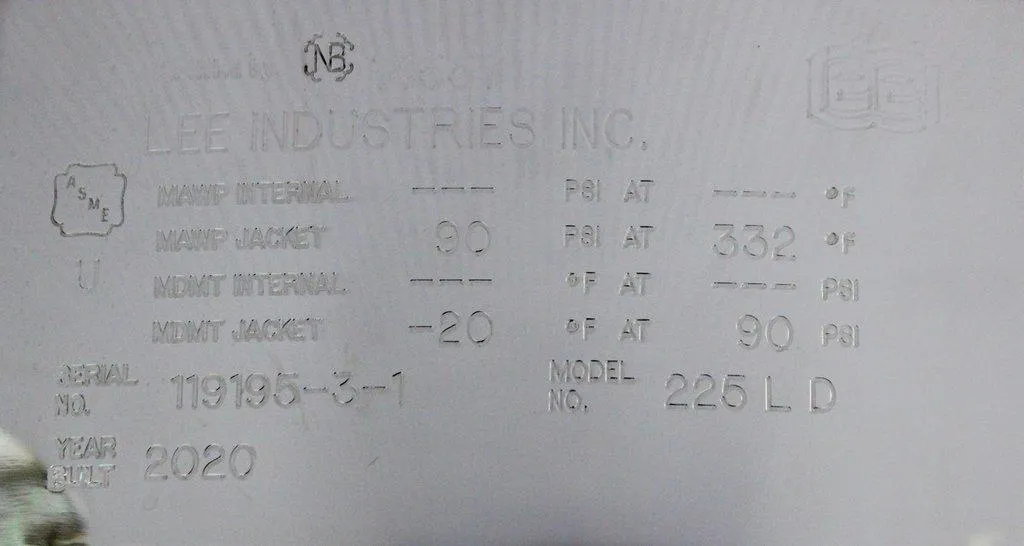

- MAWP: 90 PSI at 332°F
- MDMT: -20°F at 90 PSI
- Exclusive Lee designs for outlet fitting
- Optional sanitary ball valve outlet
- Year Built: 2020
- Model: 225 LD
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 42.0 lb x 63.6 lb
Metric: 106.68 cm x 106.68 cm x 161.54 cm
Harmonized Code
841989
Harmonized Code Details
841989 - Other machinery, plant, or laboratory equipment. This code is suitable as the kettle is used in processes requiring precise thermal management and mixing, common in industrial applications.
