APC SYPM4KP Power Module 4kVA 208V Online Double-Conversion New
APC
Details
-
CategoryComputer / IT
-
Dimension12.0in x 35.0in x 17.0in
-
SerialAD2215210516
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz208V / Does Not Apply
Description

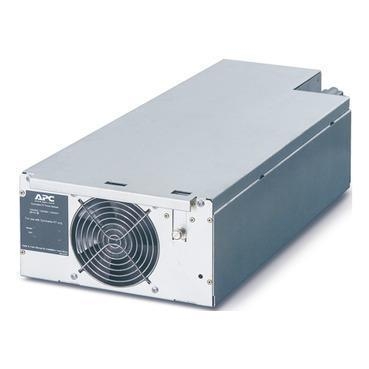

Introducing the APC SYPM4KP Symmetra LX 4kVA Power Module, designed for businesses requiring reliable and scalable online power protection. This new unit features a high-density, double-conversion topology offering scalable runtime. With modular architecture, Symmetra LX efficiently scales power as demand grows, providing unmatched runtime and power capacity in space-constrained environments. The system allows for rapid upgrades and maintenance with field-swappable components, maximizing availability and ensuring continuity. The power module has a main input voltage of 200-208V and provides output voltages of 100-240V. It delivers a power rating of 3200 W and 4000 VA, suitable for critical power management needs. This silver power module fits seamlessly without rack-mount preferences and operates efficiently under an array of temperature conditions (32-104 °F). Certified to CSA, and meeting UL 1778 standards, this module ensures efficiency, with minimal harmonic distortion and a compact form factor supporting double-conversion too.
Key Features
- High-density double-conversion online power protection
- Scalable runtime with modular architecture
- Main input voltage: 200V, 208V
- Output voltage range: 100V-240V
- Rated power: 3200W, 4000VA
- Field-swappable components for easy maintenance
- Compact design for space-constrained environments
Specifications
- Input Frequency: 45...65 Hz auto-sensing
- Max Configurable Power: 3200 W
- Harmonic Distortion: <5% at full load
- Efficiency at full load: 155...276 V
- Topology: Double Conversion Online, Sine wave
- Operating Temperature: 32...104 °F
- Relative Humidity: 0...95%
- Certifications: CSA, Standards: FCC Part 15 class A, UL 1778
- Dimensions: 5.91 in Height x 9.84 in Width x 22.24 in Depth
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 42.0 lb x 20.4 lb
Metric: 36.58 cm x 106.68 cm x 51.82 cm
Harmonized Code
85044085
Harmonized Code Details
85044085 - Static converters; uninterruptible power supply (UPS). Selected because it categorizes UPS systems designed for voltage and power regulation, fitting the description of APC power modules.
