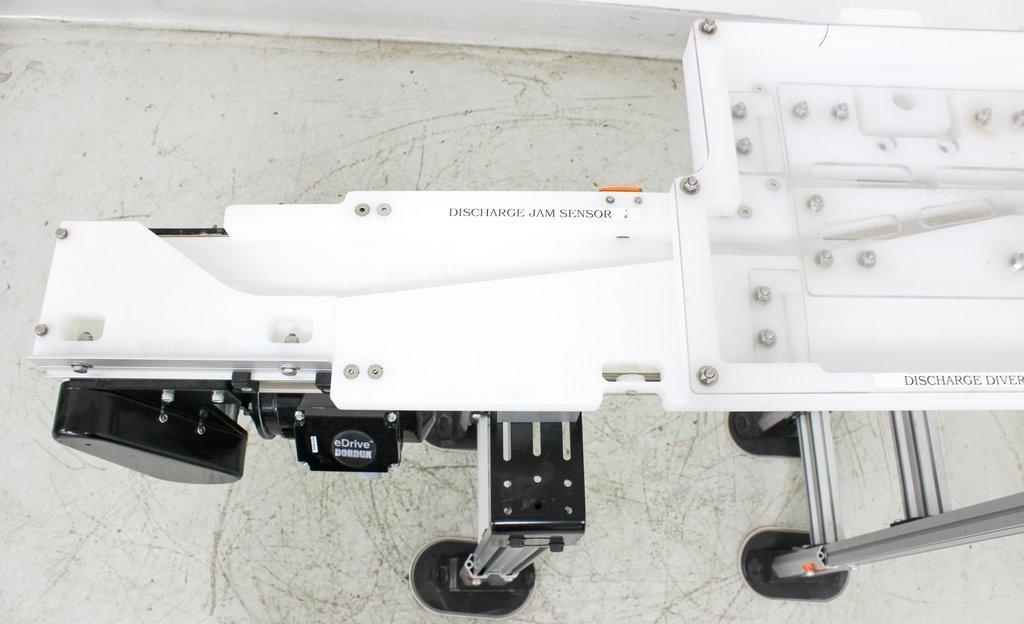

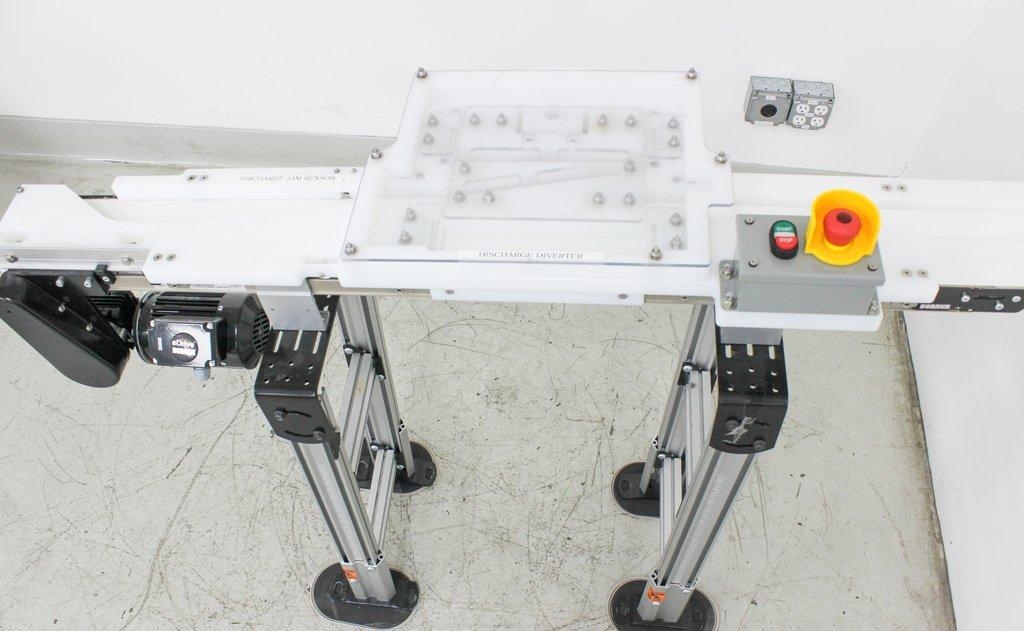

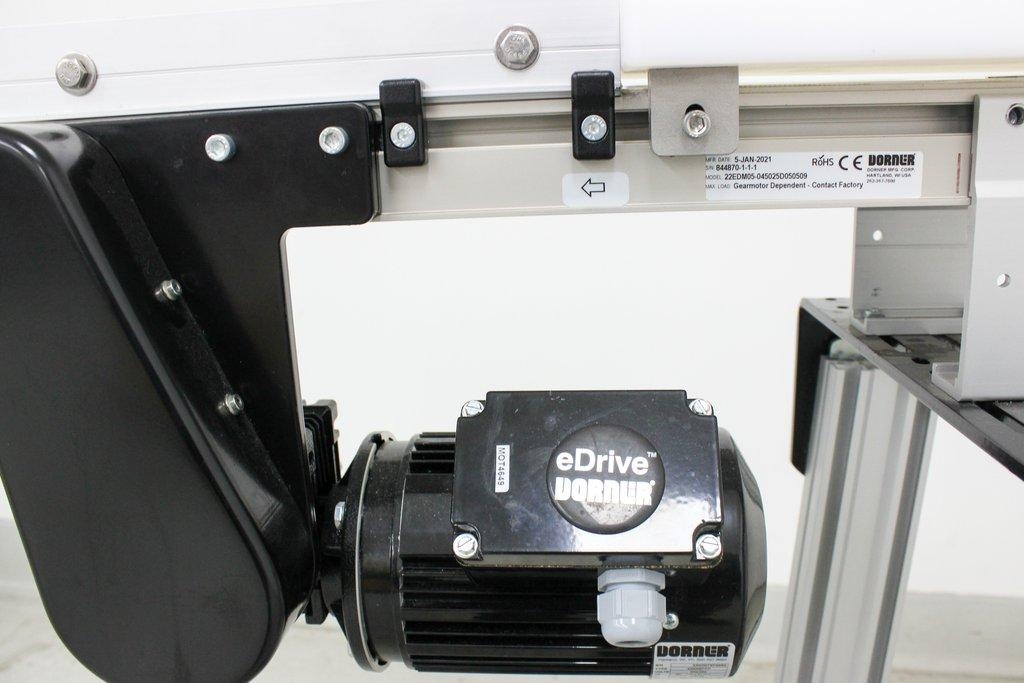

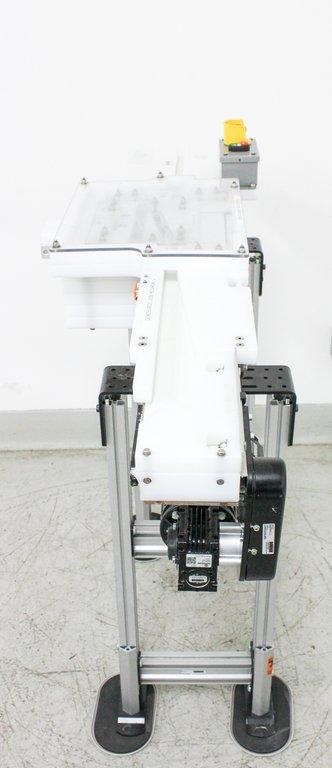

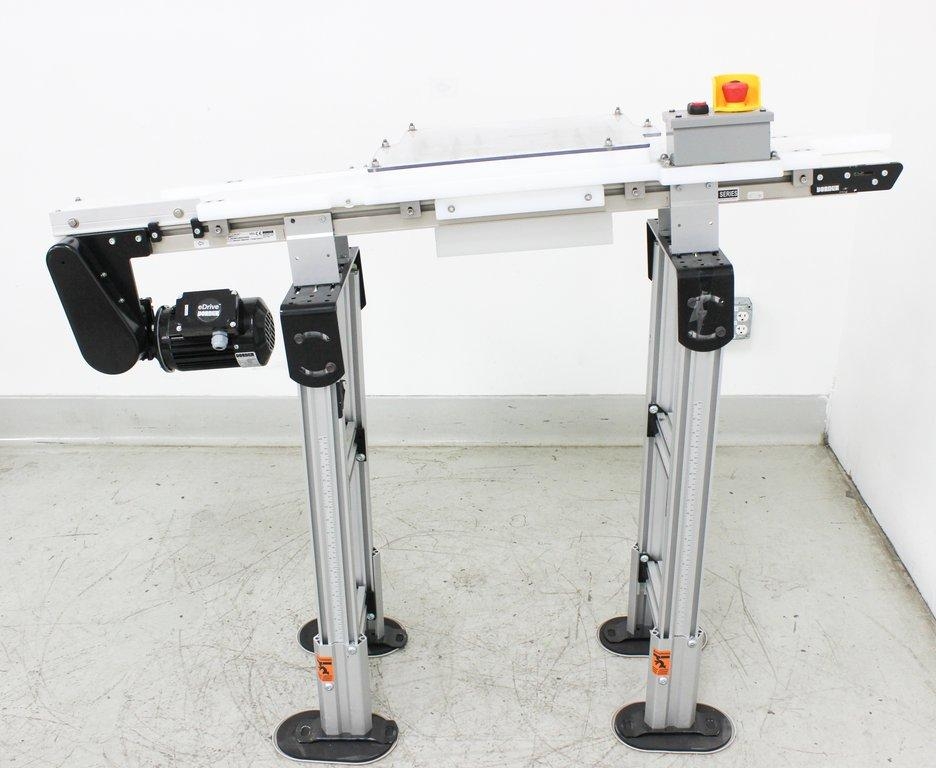

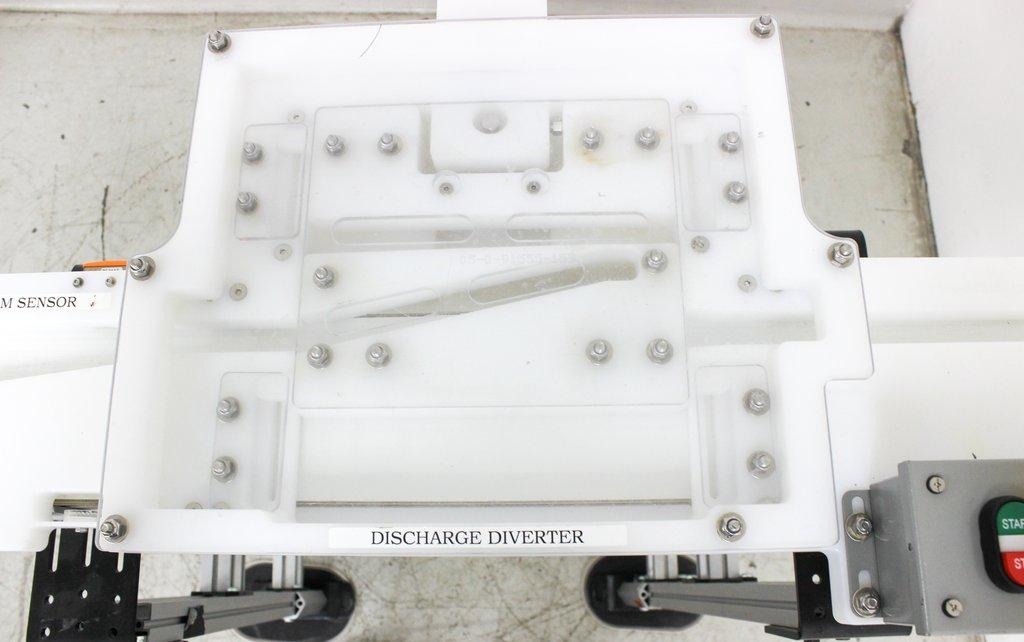

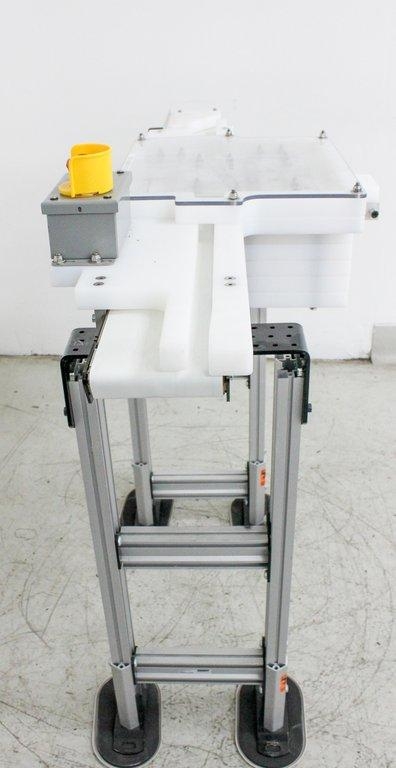

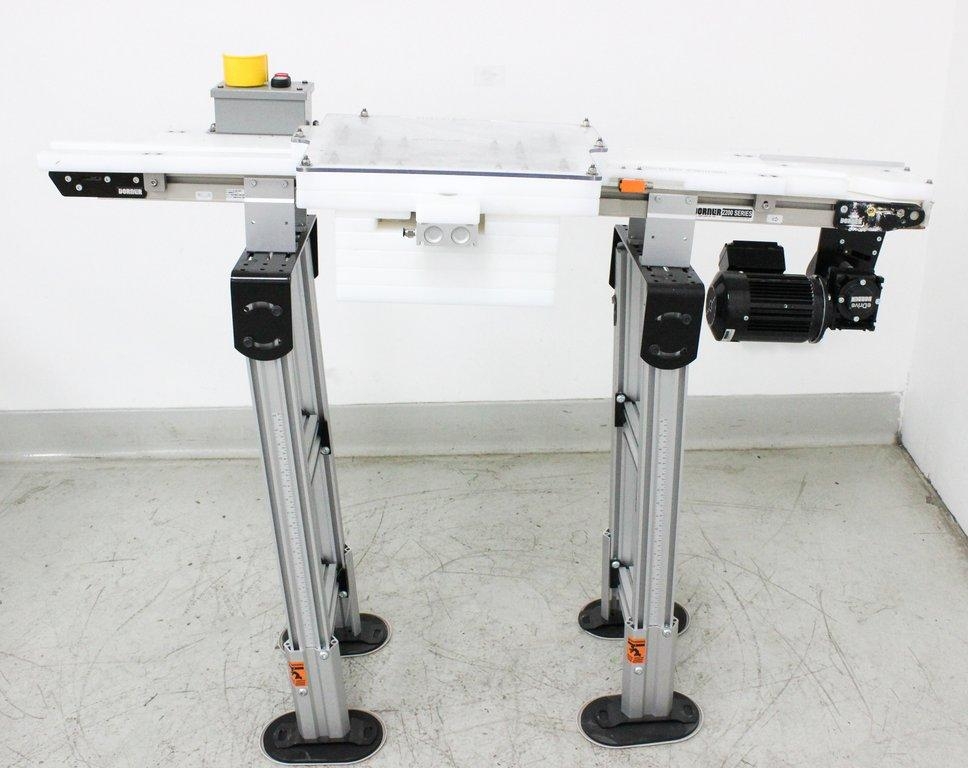

Dorner 22EDM05-045025D050509 Conveyor System Low Profile 2200 Series
Dorner
Details
-
CategoryMiscellaneous
-
Dimension20.0in x 55.0in x 48.0in
-

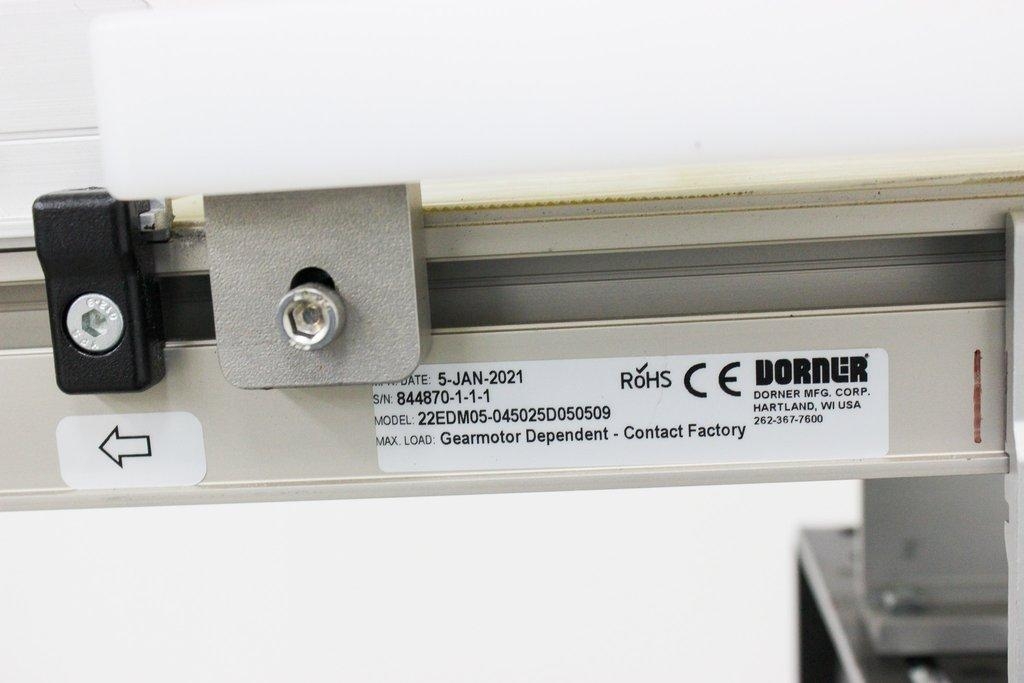

Serial844870-1-1-1
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

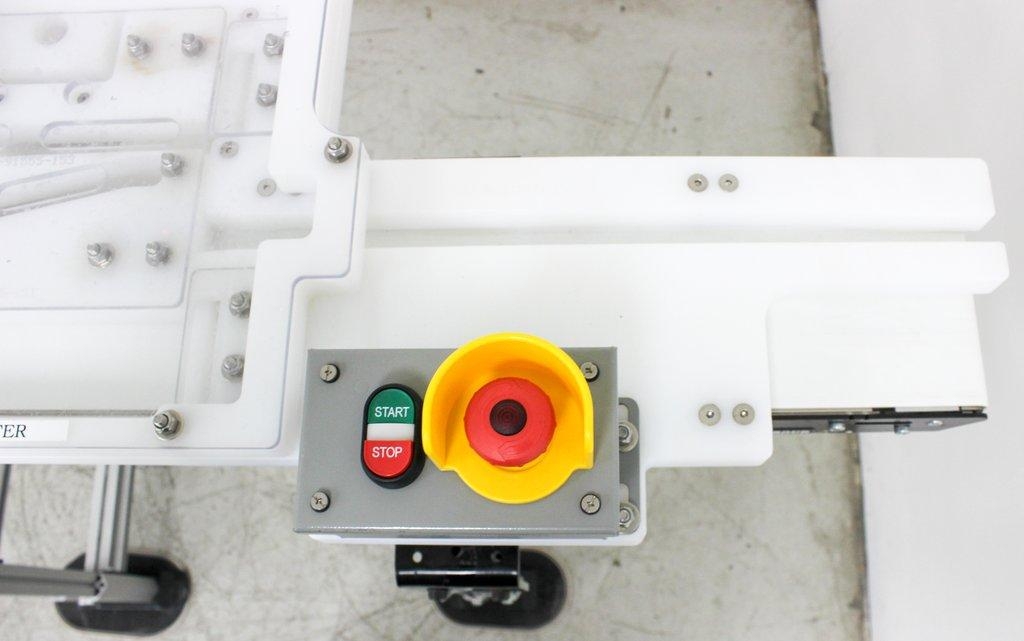

This Dorner 2200 Series Custom Conveyor, model 22EDM05-045025D050509, is ideally suited for small to medium part handling and precise parts movement. Designed as a low profile, high-performance conveyor system, it features a durable single-piece frame and offers various fabric and modular belt options coupled with a high-speed nose bar transfer. The system is crafted for efficient operation, promoting low maintenance and providing positive belt tracking through its industry-leading V-Guiding. Although not fully tested, the unit powers on and appears operational; cosmetic wear is noted but does not impact functionality. This conveyor system facilitates automated and manual assembly through its flexible design layout, which includes optional universal drive compatibility.
Key Features
- Model 22EDM05-045025D050509
- 2200 Series low profile
- High-speed nose bar transfer
- Durable single-piece frame design
- Universal T-slots
- V-Guiding for belt tracking
- Rack and Pinion belt tensioning
- Sealed for life bearings
Specifications
- 2200 Series Conveyor
- High-performance fabric and modular belt
- Dimensions: Length 50.8cm x Width 139.7cm x Height 121.92cm
- Weight: 54.4 kg (120 lb)
- Application: Small to medium part handling, accumulation, incline/decline routing
Weight
Imperial: 144.0 Pounds
Metric: 65.32 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 66.0 lb x 57.6 lb
Metric: 60.96 cm x 167.64 cm x 146.3 cm
Harmonized Code
84283300
Harmonized Code Details
HS Code 84283300: Conveyors for continuous handling of goods. Chosen for equipment designed to move materials efficiently in industrial settings.
