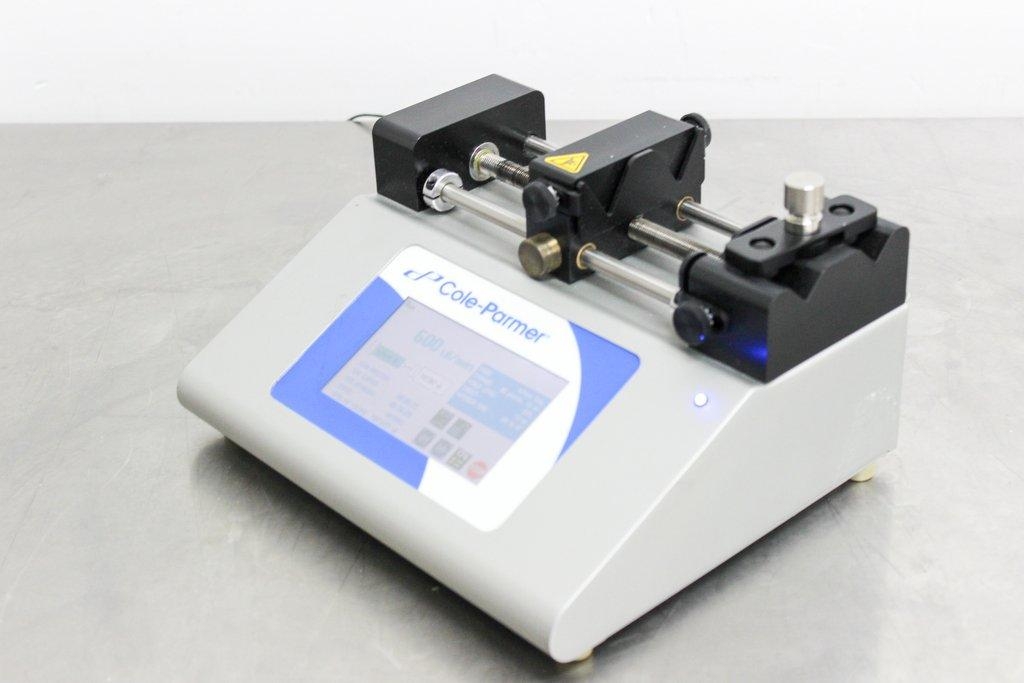

Cole Parmer 78-8111C Syringe Pump Infuse Withdraw 60ml Touchscreen
Cole Parmer
Details
-
CategoryPump
-
Dimension8.0in x 9.0in x 6.0in
-
SerialD101552
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

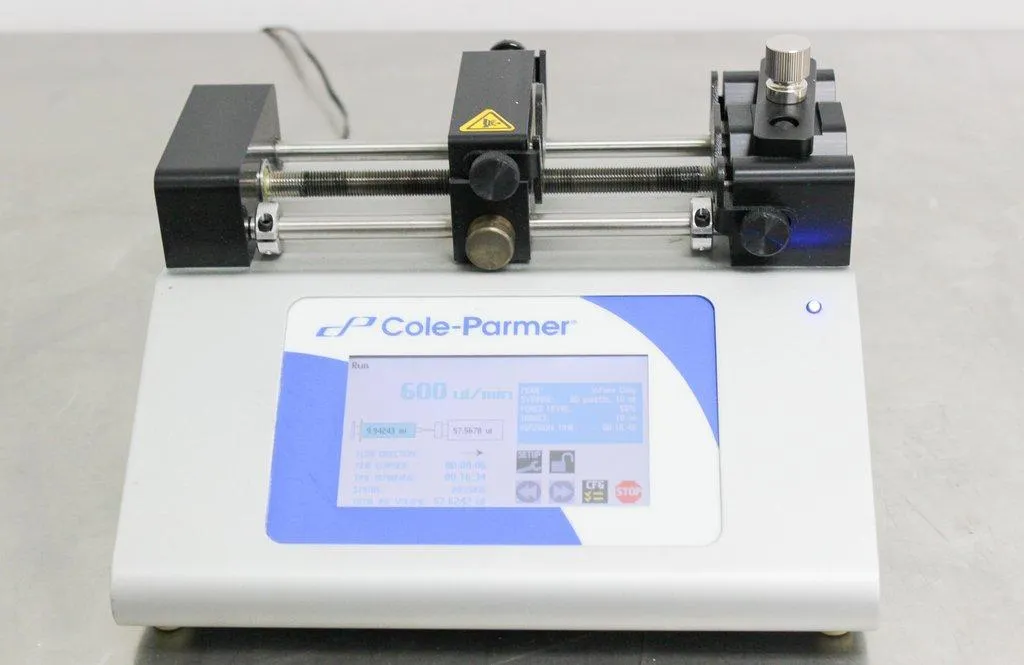

The preowned Cole Parmer Masterflex Syringe Pump Cat #78-8111C is a versatile single syringe pump that supports infusion and withdrawal tasks to enhance efficiency in laboratory workflows. With precision control, the device boasts up to 15360 micro-steps per screw revolution. The handy touchscreen facilitates easy setup and informs users of process parameters during operations. Supporting syringes from 0.5ul to 60ml, it's capable of flow rates from 1.26pl/min for micro-syringes to 88.28 ml/min for large ones, combined with a forceful 30lbs pusher. Ideal for complex dosing functions, the pump features multistep programming, accommodating infusion and withdrawal modes. Further benefits include a maintenance reminder and audible alarms for operation completion. Make: Cole Parmer, Model: 78-8111C.
Technician comment
Unit is preowned.
Key Features
- Handles both infusion and withdrawal functions
- Precision 1/16 micro-stepping control with up to 15360 micro-steps
- Touch screen interface for easy setup and operation
- Supports syringes from 0.5ul to 60ml
- Flow rates from 1.26pl/min to 88.28 ml/min
- 30lbs adjustable pusher force

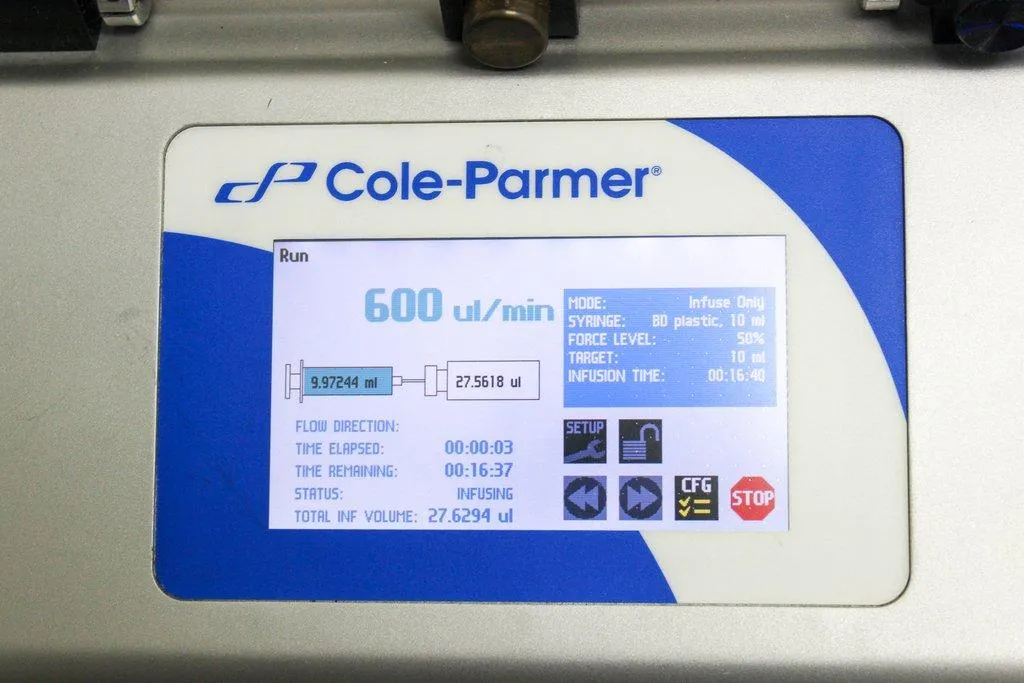

- Provides status updates: flow direction, time elapsed, etc.
- Multistep programming with 50 steps per program
Specifications
- Syringe size: 0.5ul-60ml
- Accuracy: +/-0.5%
- Force: 30lbs (13.6kg) Adjustable
- Micro-steps per screw revolution: 15360
- Step-Rate range: 27.5 sec/step to 26 µsec/µstep
- Pusher travel rate range: 0.15µm/min to 159 mm/min
- Modes: Infuse, Withdraw
- Drive motor: 0.9 in Stepper Motor

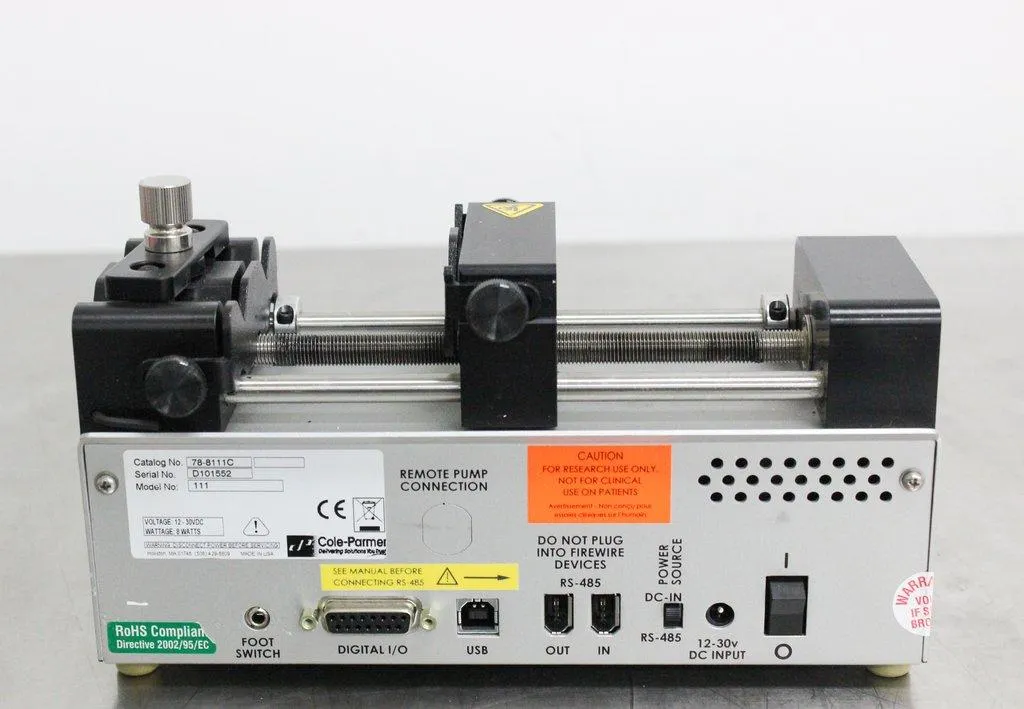

- Control: Touchscreen with USB
- Networking: RS-485
- Dimensions: 9x8x6 in
- Power: 12-30VDC, 8 watts
Weight
Imperial: 7.2 Pounds
Metric: 3.27 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 10.8 lb x 7.2 lb
Metric: 24.38 cm x 27.43 cm x 18.29 cm
Harmonized Code
841360
Harmonized Code Details
841360 - Other positive displacement pumps. This classification is appropriate because the Cole Parmer Syringe Pump fits the criteria of a positive displacement pump, which is used in laboratory settings for precise fluid handling.
