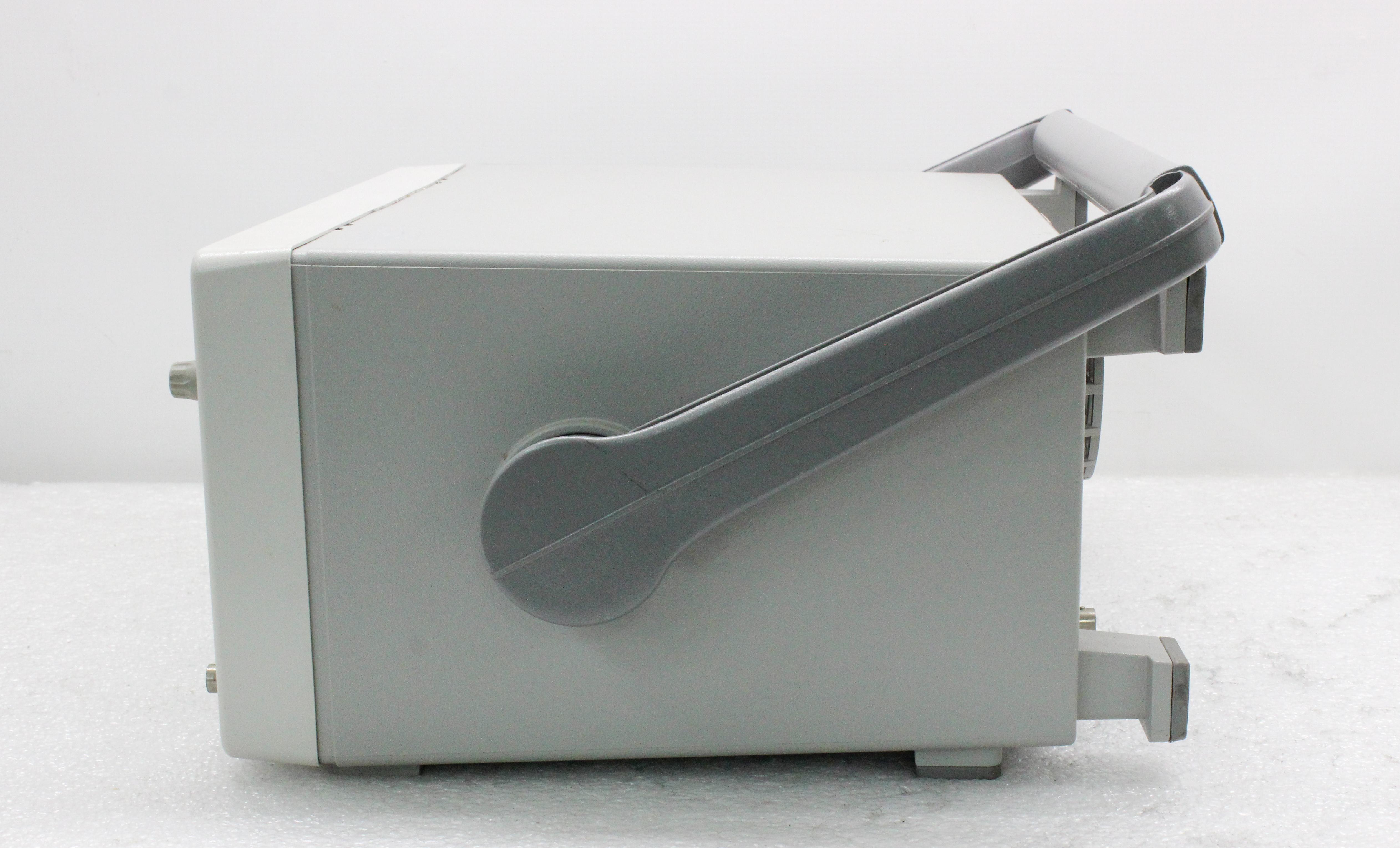

Agilent 54621A Oscilloscope Testing Equipment 2-Ch 60MHz 200MSa/s Real-time
Agilent
Details
-
CategoryTesting Equipment
-
Dimension13.0in x 14.0in x 8.0in
-
SerialMY40006776
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

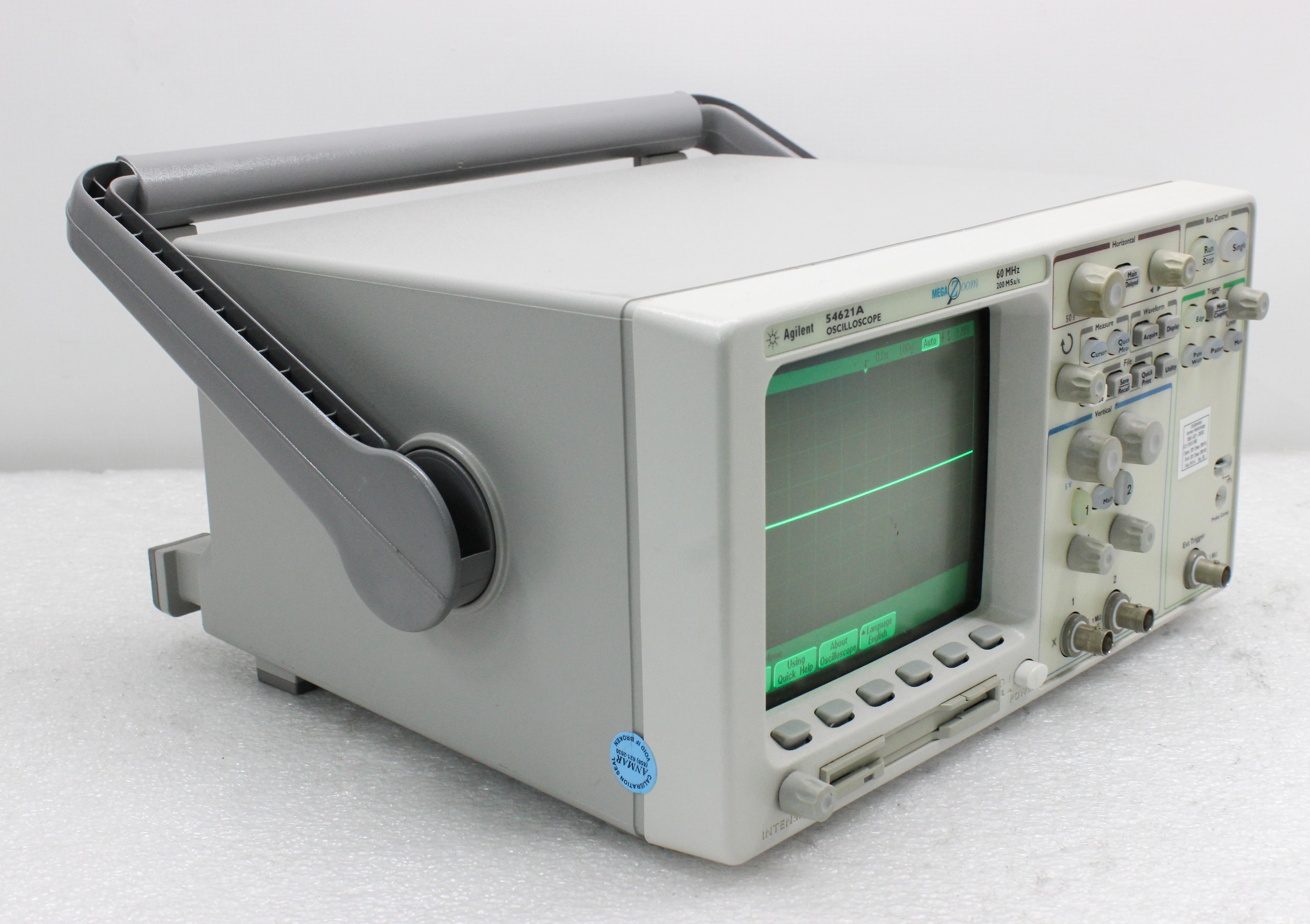

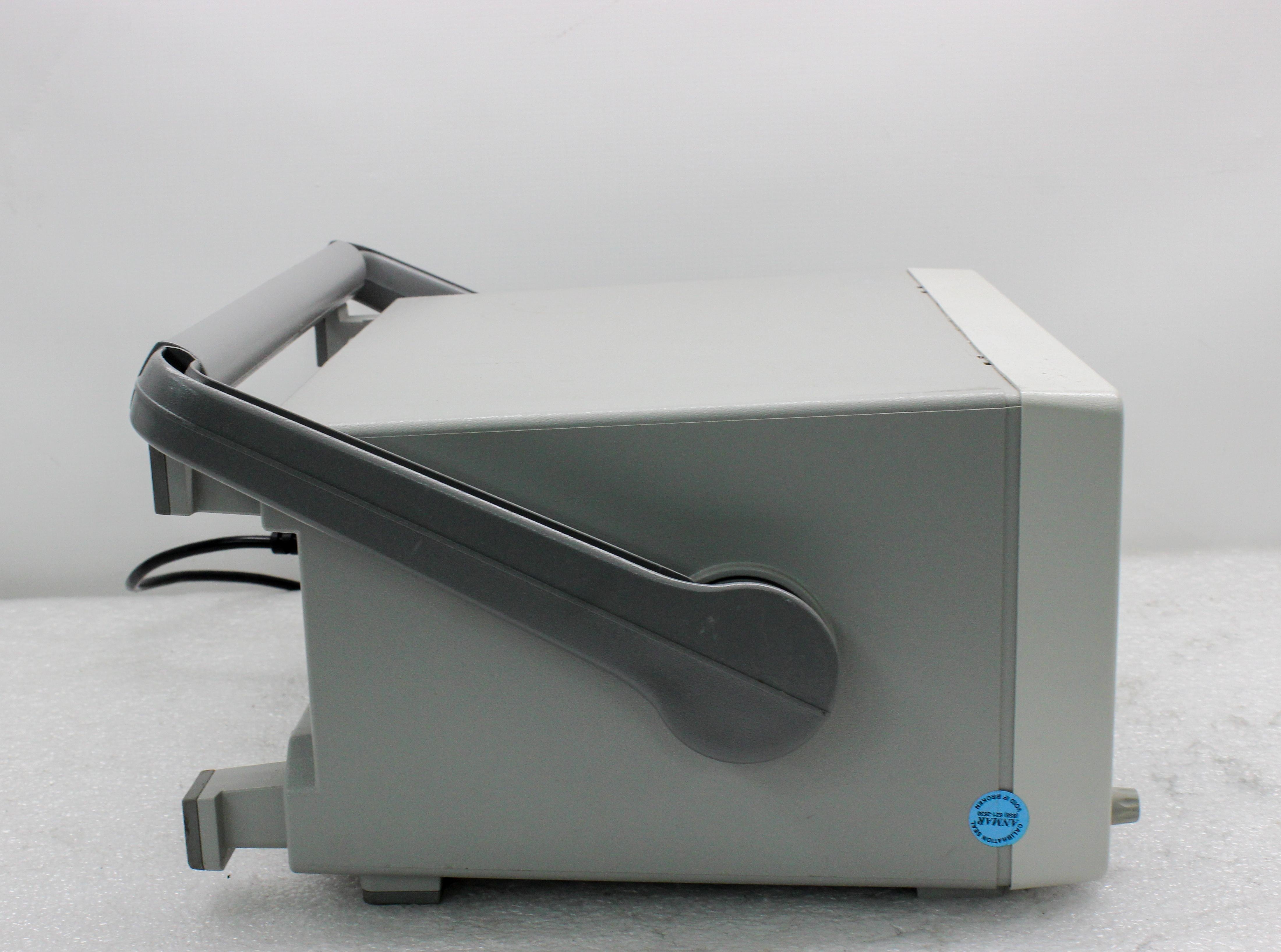

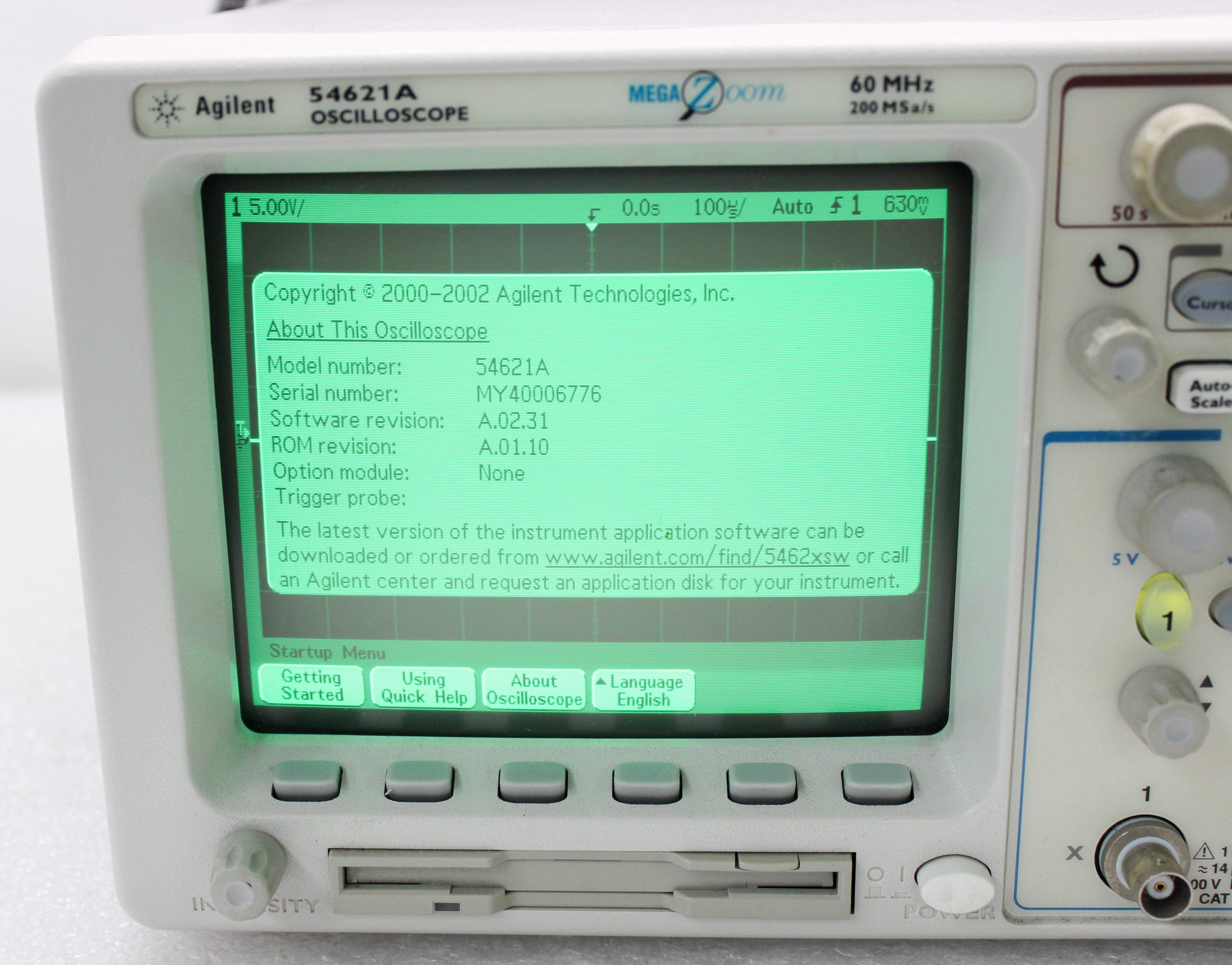

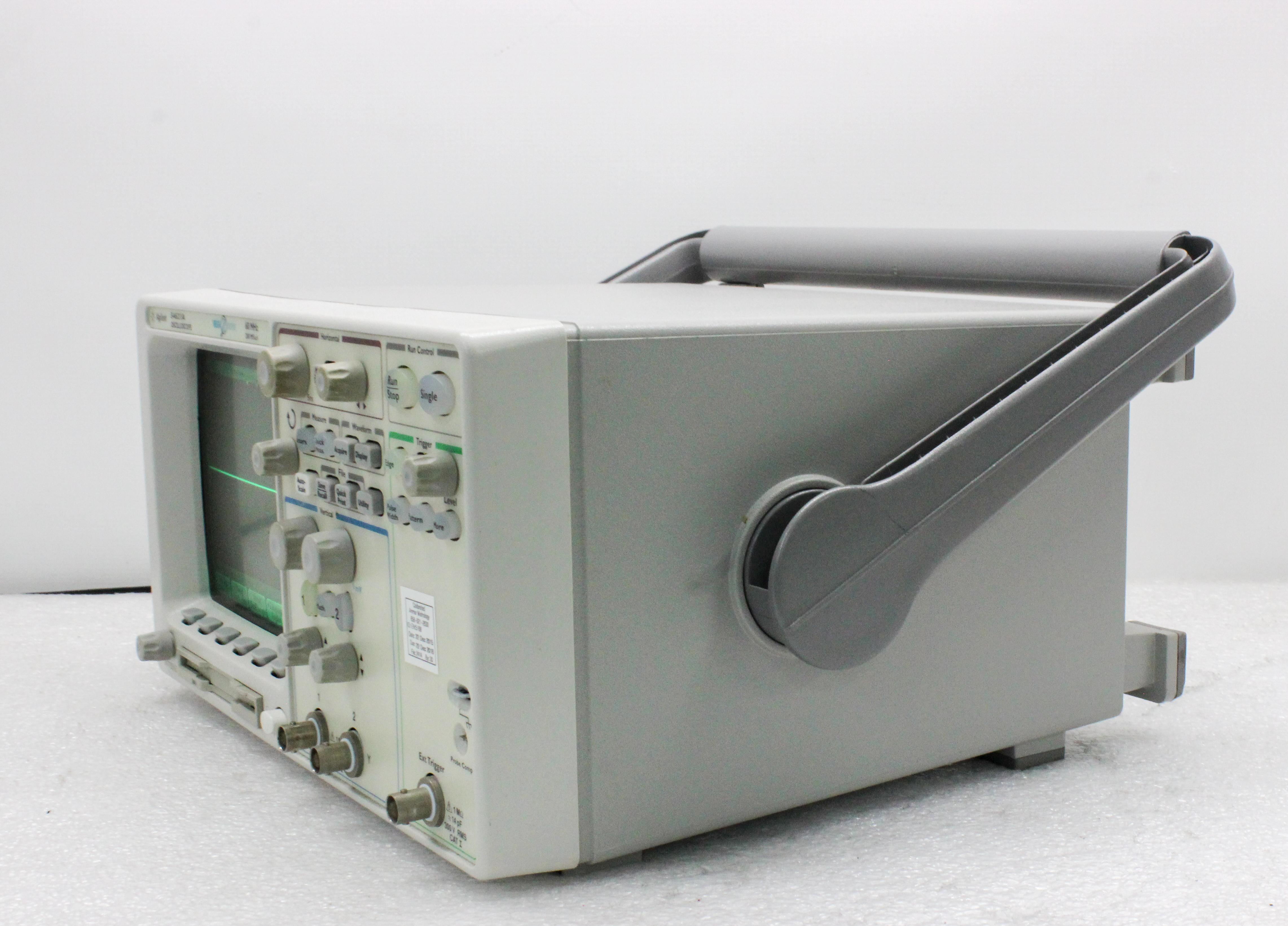

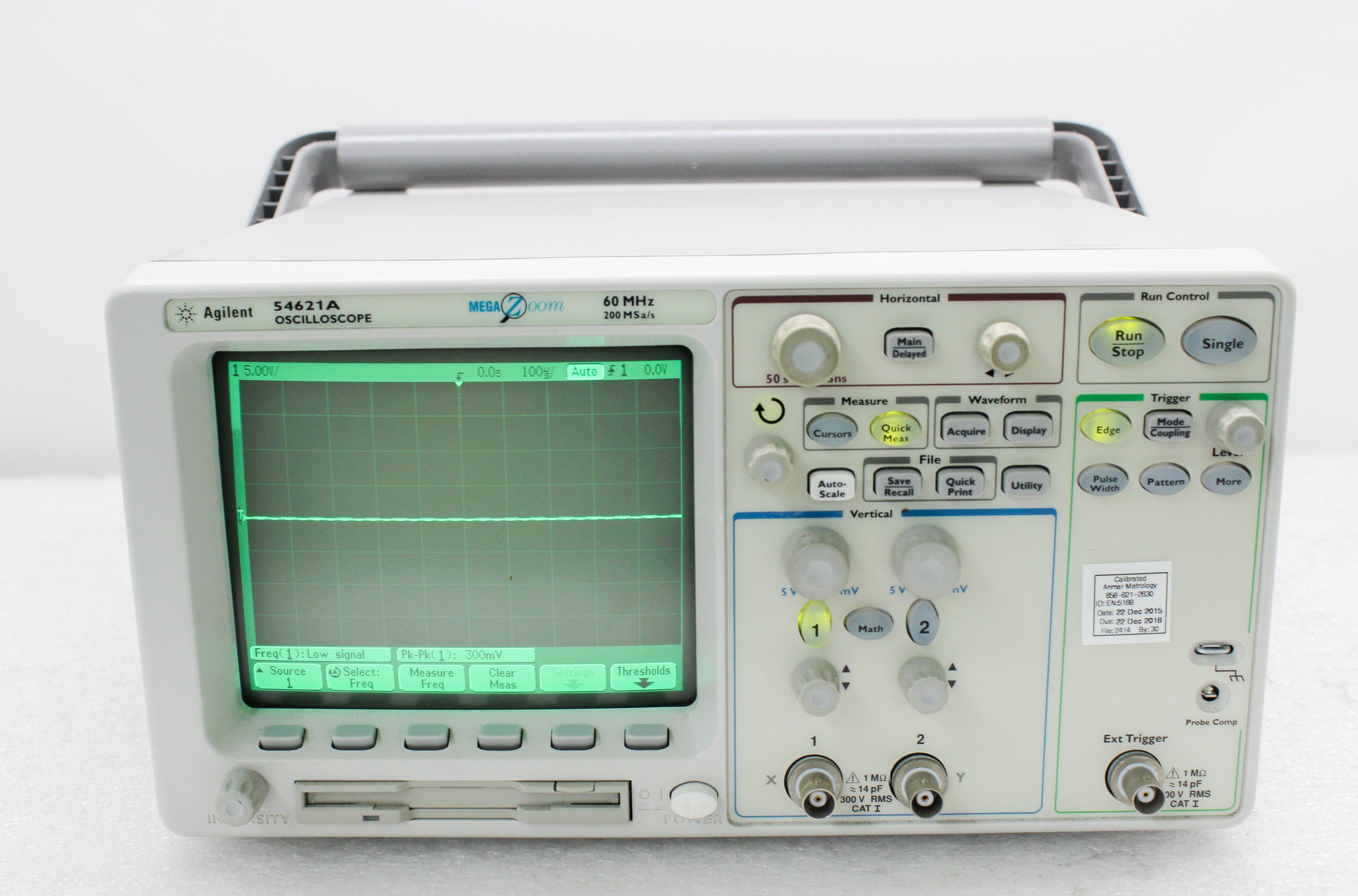

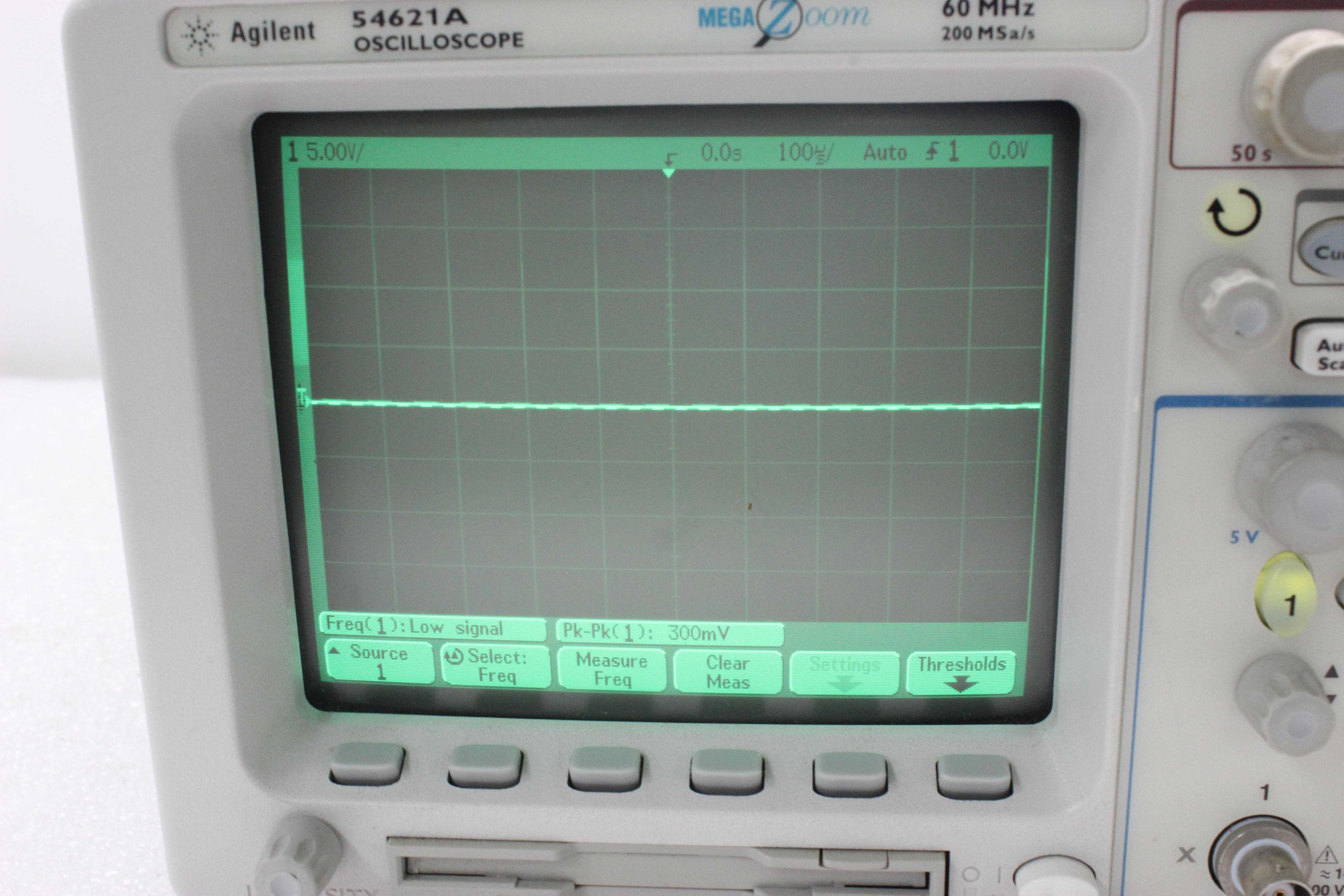

The Agilent 54621A Oscilloscope is a compact, bench-top digital storage oscilloscope tailored for general-purpose electronic testing and measurement. A part of Agilent’s renowned MegaZoom series (now Keysight Technologies), this oscilloscope features a 2-channel, 60 MHz bandwidth with 200 Mega samples per second real-time sampling. It possesses a monochrome CRT display paired with advanced deep memory technology for capturing long signals with precision. Users can manipulate the oscilloscope via dedicated front-panel controls and utilize advanced triggering for a variety of measurement capabilities. Common applications include education, bench repair, industrial electronics testing, and design verification. It powers on and passes basic tests but hasn't been fully tested due to its condition. Despite this, there are no known functionality issues. Note: Comes with a power cord included.
Key Features
- Compact digital storage oscilloscope
- 60 MHz bandwidth, 2 channels
- 200 MSa/s real-time sampling
- Monochrome CRT display
- Deep memory with MegaZoom technology
- Advanced triggering options
Specifications
- Bandwidth: 60 MHz
- Channels: 2 analog channels
- Sampling Rate: 200 MSa/s real-time
- Display: Monochrome CRT
- Memory Depth: MegaZoom technology for long signal capturing
- Vertical Sensitivity: 1 mV/div to 5 V/div
- Time Base Range: 2 ns/div to 5 s/div
- Input Impedance: 1 MΩ ±2%, 14 pF typical
- Advanced Triggering: Edge, Pulse Width, Pattern, and more
- Measurement Capabilities: Automatic voltage, time measurements, frequency, and more

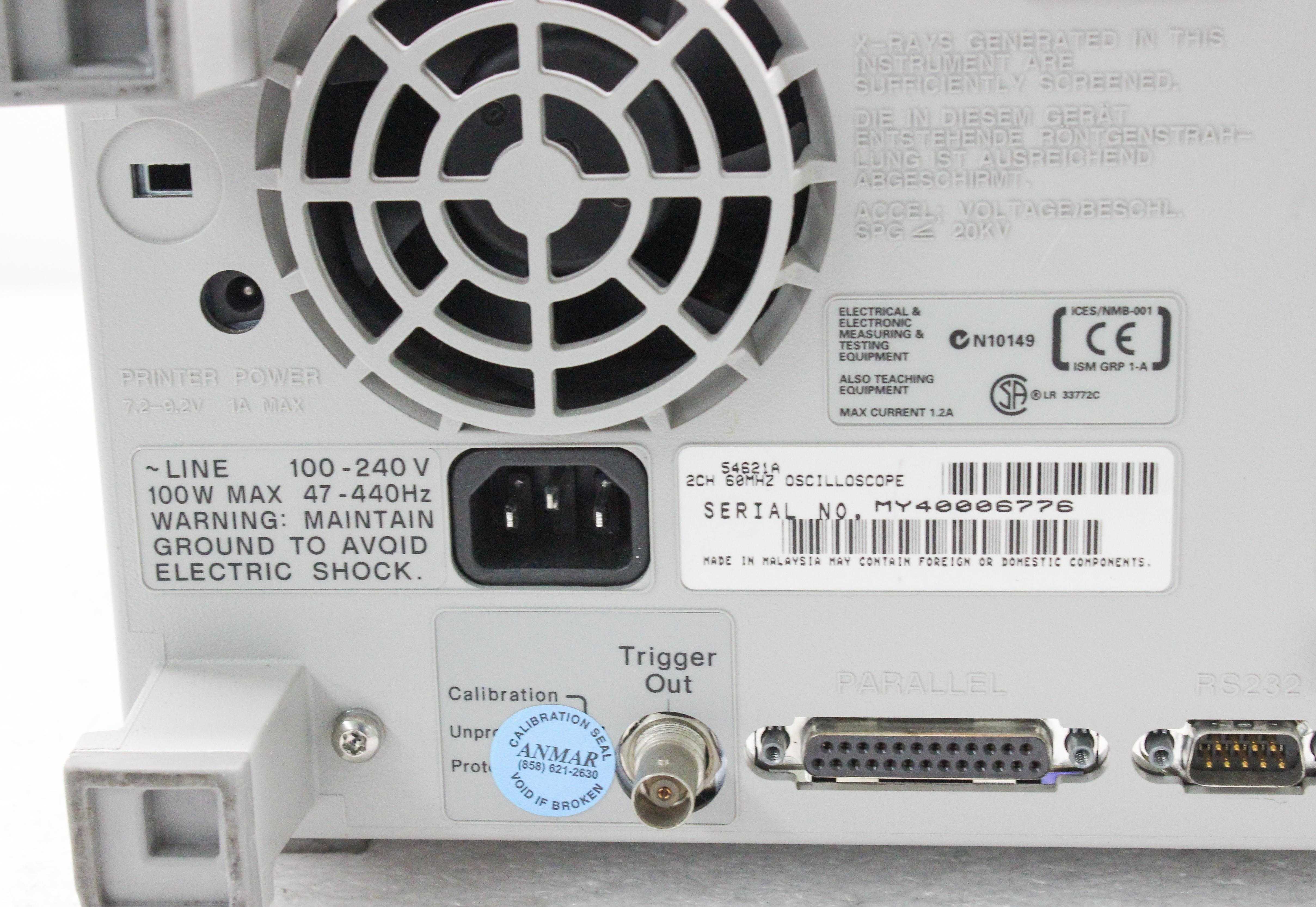

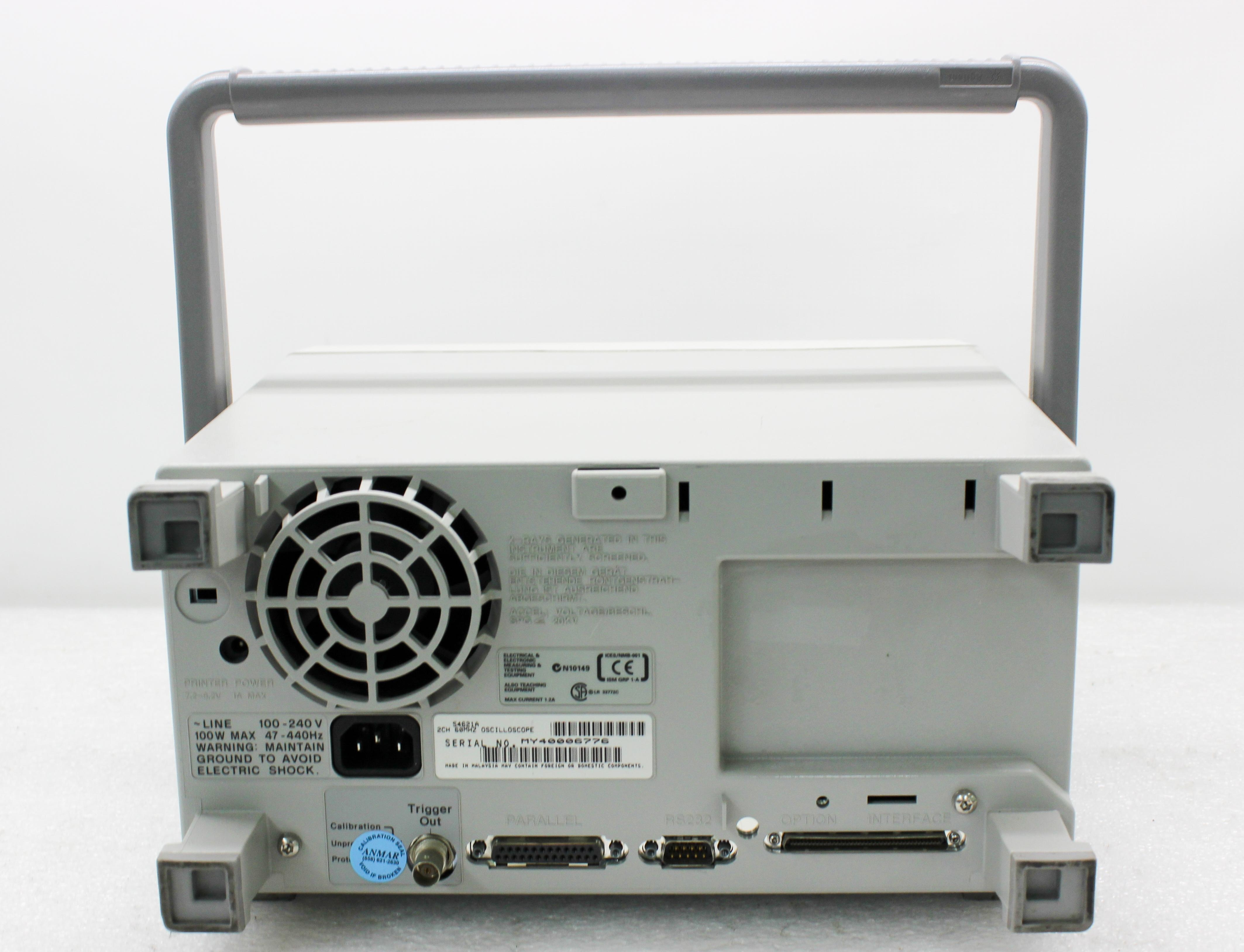

- Connectivity: Parallel port, RS-232, optional GPIB
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 16.8 lb x 9.6 lb
Metric: 39.62 cm x 42.67 cm x 24.38 cm
Harmonized Code
9030.20.00
Harmonized Code Details
Harmonized code 9030.20.00 is designated for oscilloscopes and oscillographs. This classification is justified due to the equipment's primary function of analyzing electrical signals and displaying waveform data, which aligns with the category's description.
