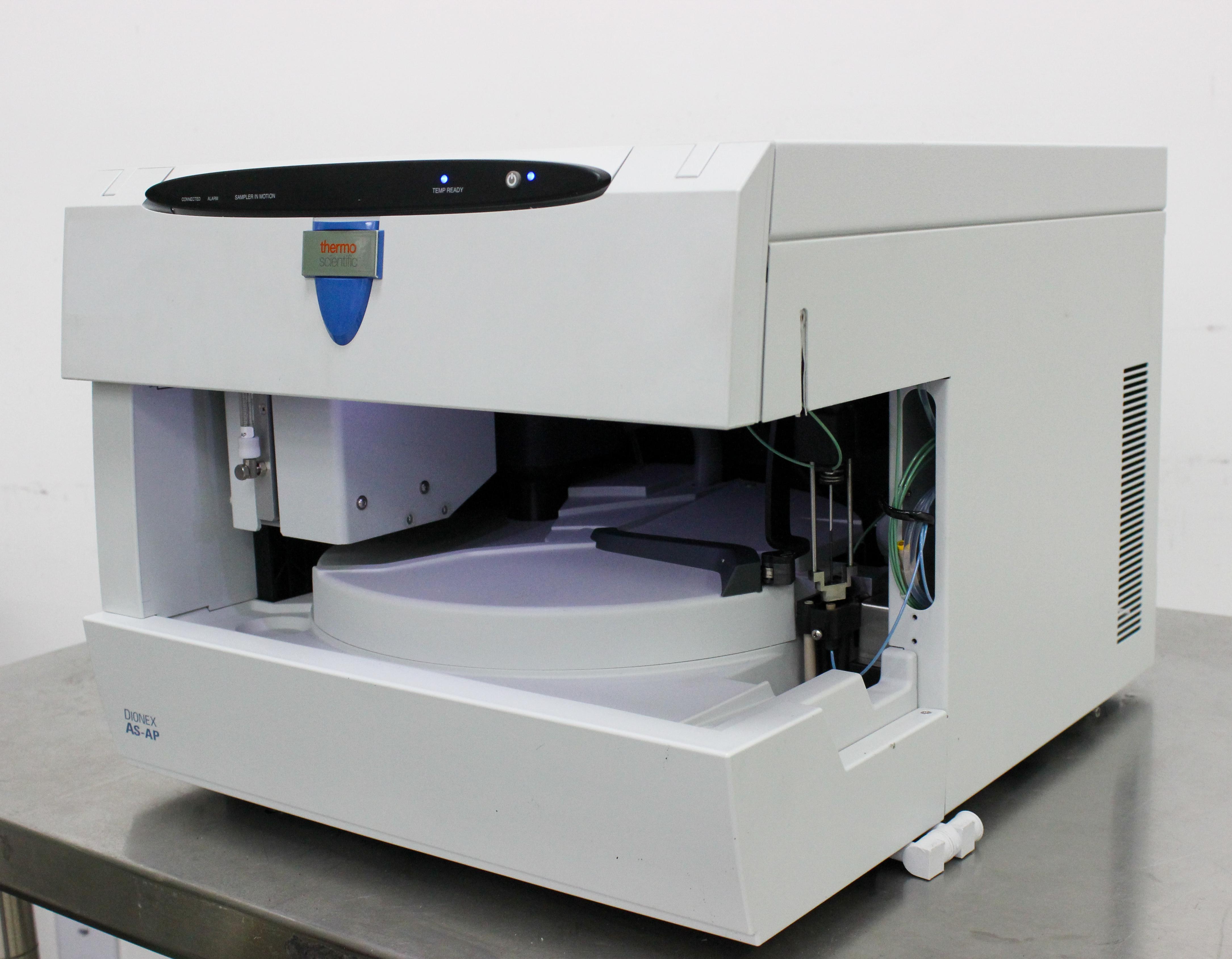

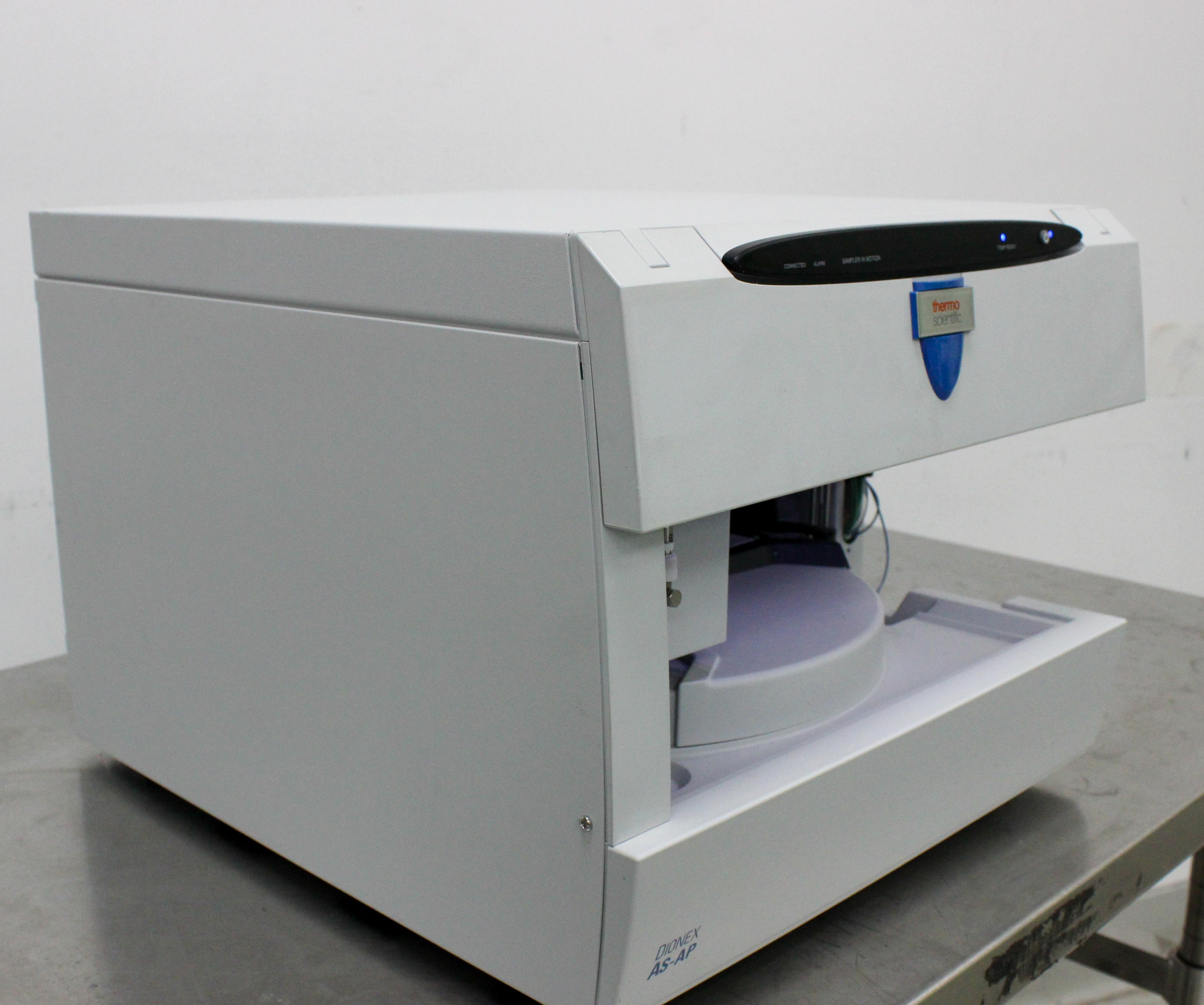

Thermo Scientific Dionex AS-AP Autosampler for Ion Chromatography, High Precision
Thermo Scientific
Details
-
CategoryAnalytical
-
Dimension24.0in x 32.0in x 21.0in
-

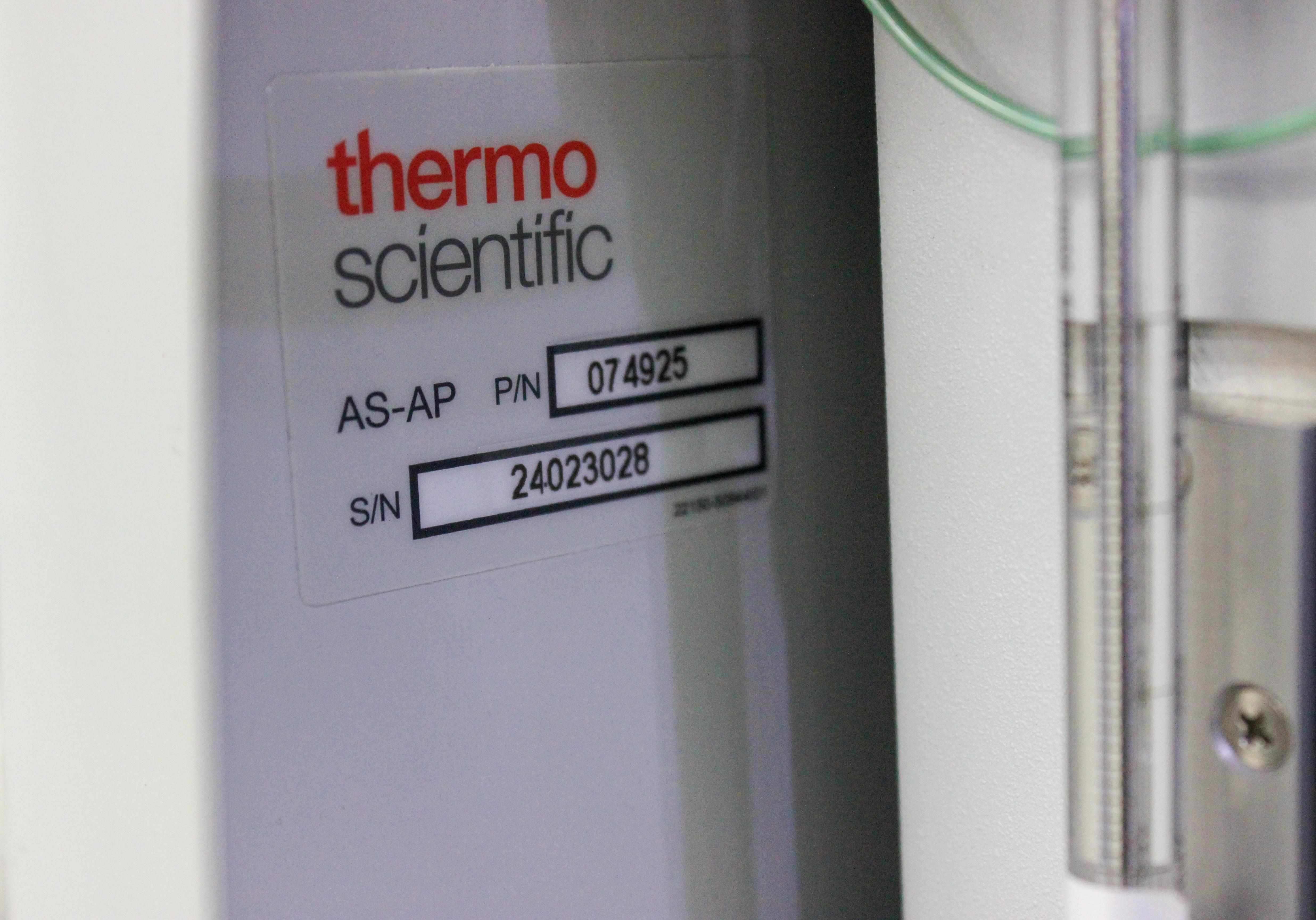

Serial24023028
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

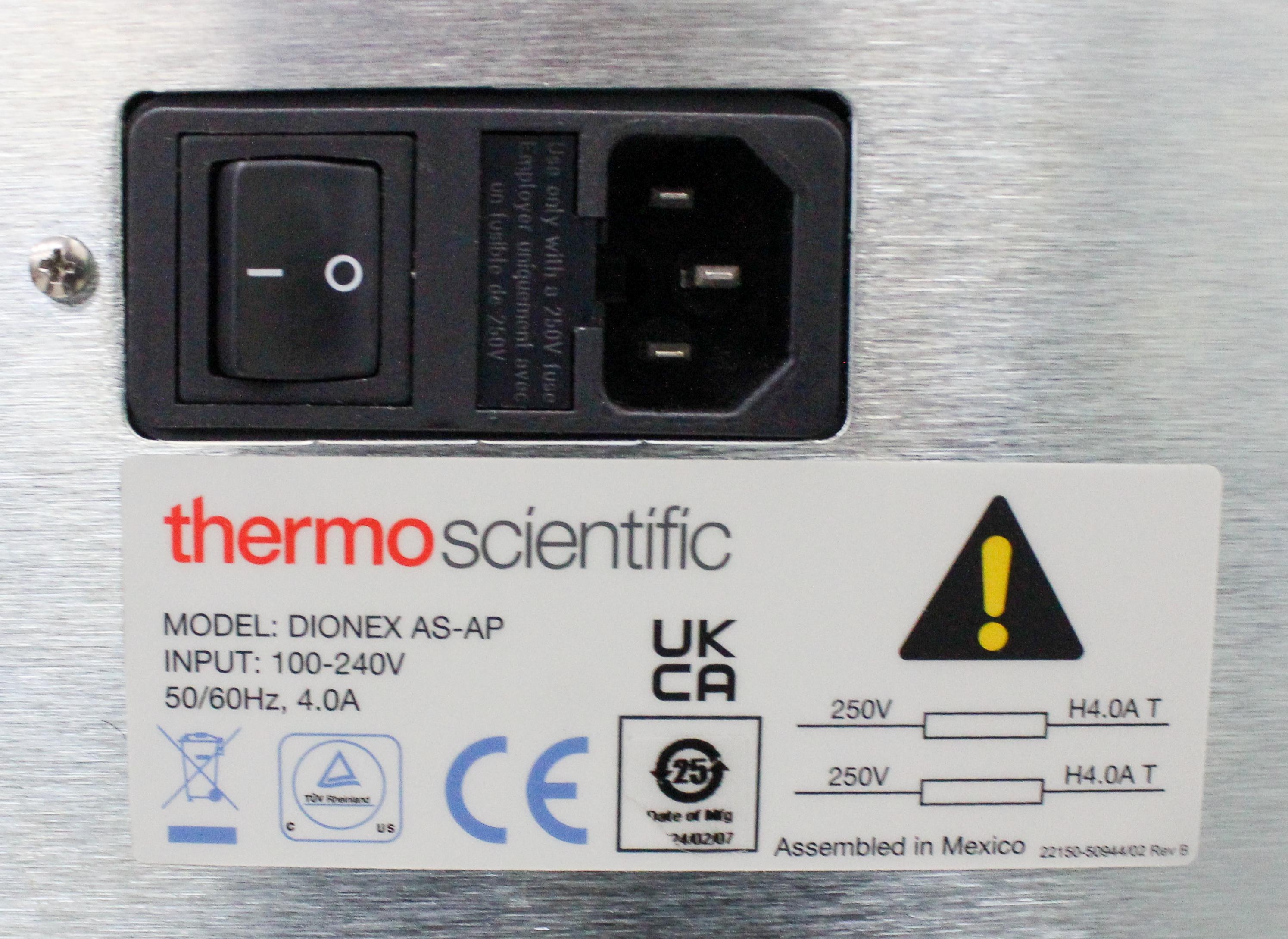

Voltage / Hertz100-240v / 50Hz/60Hz
Description
The Thermo Scientific Dionex AS-AP Autosampler Model 074925 is a high-quality instrument designed for precise, reliable, and automated sample processing in ion chromatography applications. This unit, sourced from a lab environment, has been tested to power on and perform initial self-checks without errors, although further calibration is recommended. It features a high sample capacity (up to 81 x 10 mL vials), simultaneous injection capabilities, and a moving-needle design to prevent cross-contamination. Additionally, it includes sample preparation functions and supports well plates and optional chemistry-switching for diverse analysis needs. Despite being preowned, the robust construction ensures consistent operations, making it well-suited for laboratories seeking cost-effective automation solutions.
Technician comment

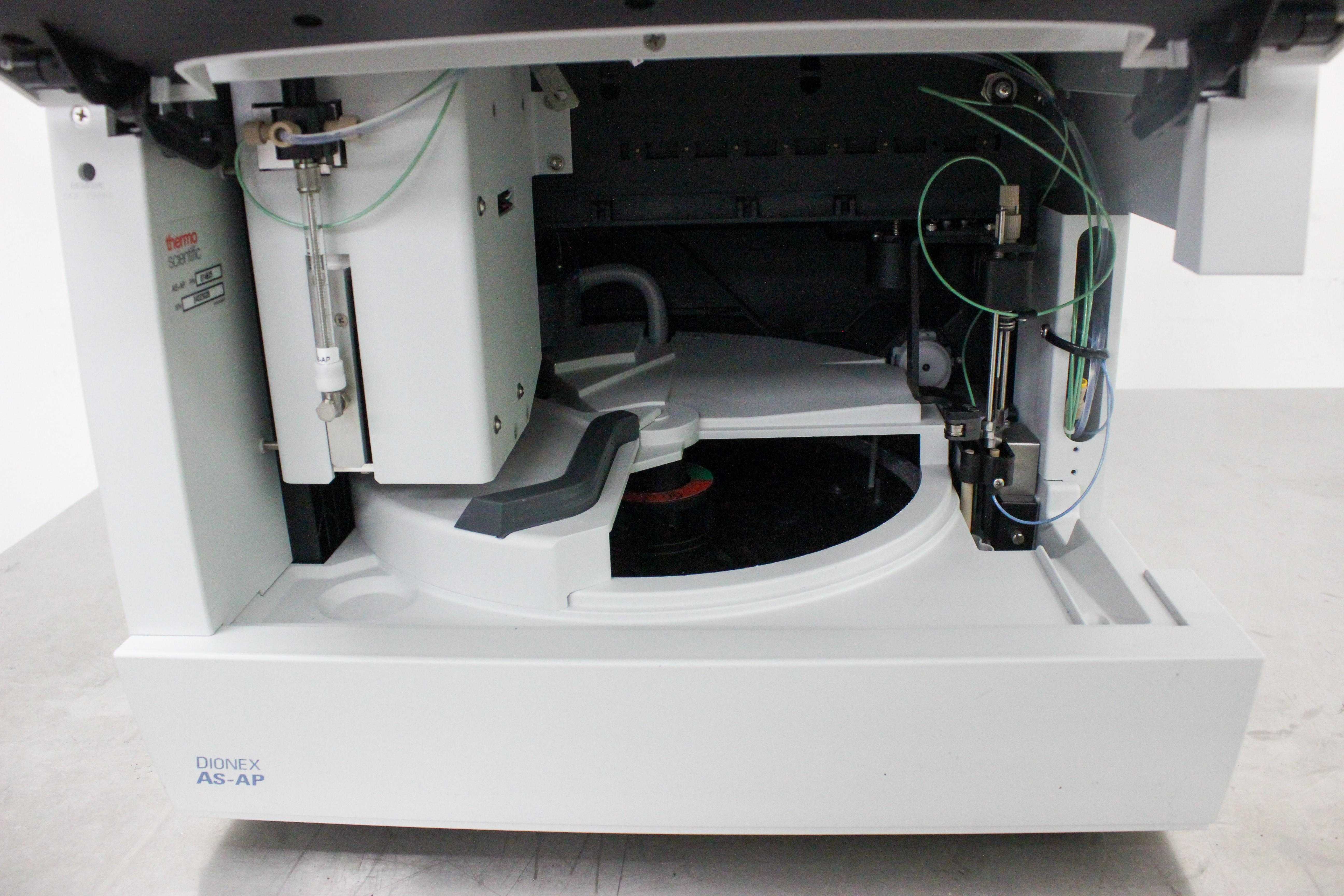

Unit powers on, initializes, and passes self-check with no error indicators observed during basic functional testing. Carousel rotation, initialization & arm motion operate smoothly through multiple test cycles. Unit is preowned and sourced from a lab environment. Calibration and full performance verification are recommended after installation. Software not included.
Key Features
- Designed for high precision and reliability
- Automated sampling for ion chromatography
- Simultaneous injection without cross-contamination
- High sample capacity: up to 81 x 10 mL vials
- Moving-needle design for versatile vial sampling
- Sample preparation function for efficiency
- Optional well plate capabilities
- Adjustable sample tray temperature for thermal stability
Specifications
- Sample Capacity: 81 x 10 mL, 120 x 1.5 mL, Well Plates (3 x 96) or (3 x 384)
- Injections per Vial: 199
- Minimum Sample Volume: 10 μL from a 300 μL microvial
- Variable Volume Range: 1–100 μL in 0.1 μL increments; 100–7500 μL in 1 μL increments
- Injection Precision: Fixed loop <0.3% RSD at 20 μL; Partial loop <0.5% RSD at 20 μL
- Dilution Precision: <1.0% RSD for a 1:10 dilution
- Dispensing Precision: <0.2% RSD (by weighing)
- Carryover: <0.01% with 500 μL flush volume
- Operating Temperature Range: 4–60°C (40–140°F)
- Power Requirements: 90–265 V AC, 47–63 Hz
Weight
Imperial: 67.2 Pounds
Metric: 30.48 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 38.4 lb x 25.2 lb
Metric: 73.15 cm x 97.54 cm x 64.01 cm
Harmonized Code
902750
Harmonized Code Details
902750 - Instruments and apparatus for physical or chemical analysis, suitable for applications like ion chromatography due to its analytical nature and sample handling functionality.
