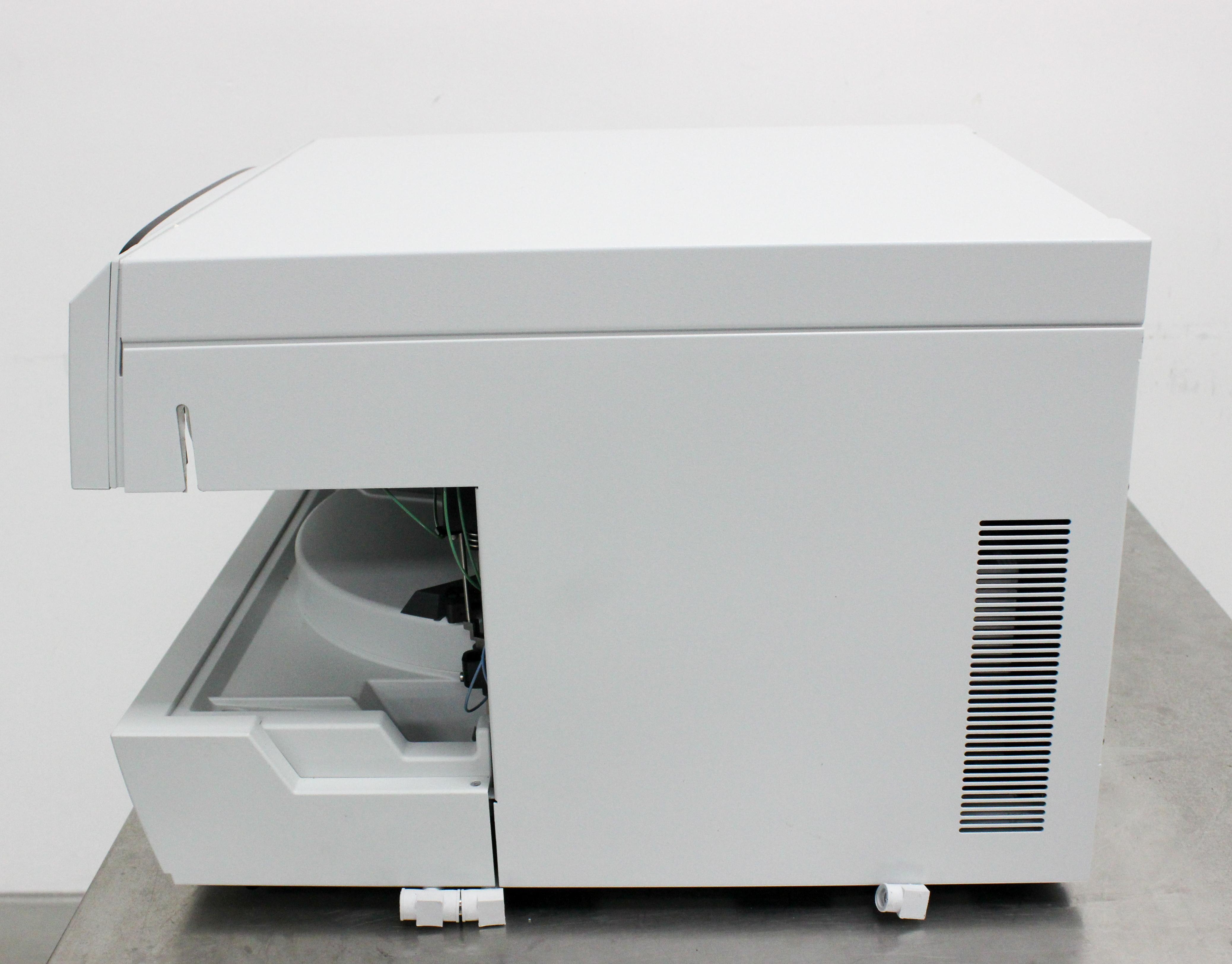

Thermo Scientific Dionex AS-AP Autosampler High Capacity Precision Sampling
Thermo Scientific
Details
-
CategoryAnalytical
-
Dimension26.0in x 29.0in x 29.0in
-

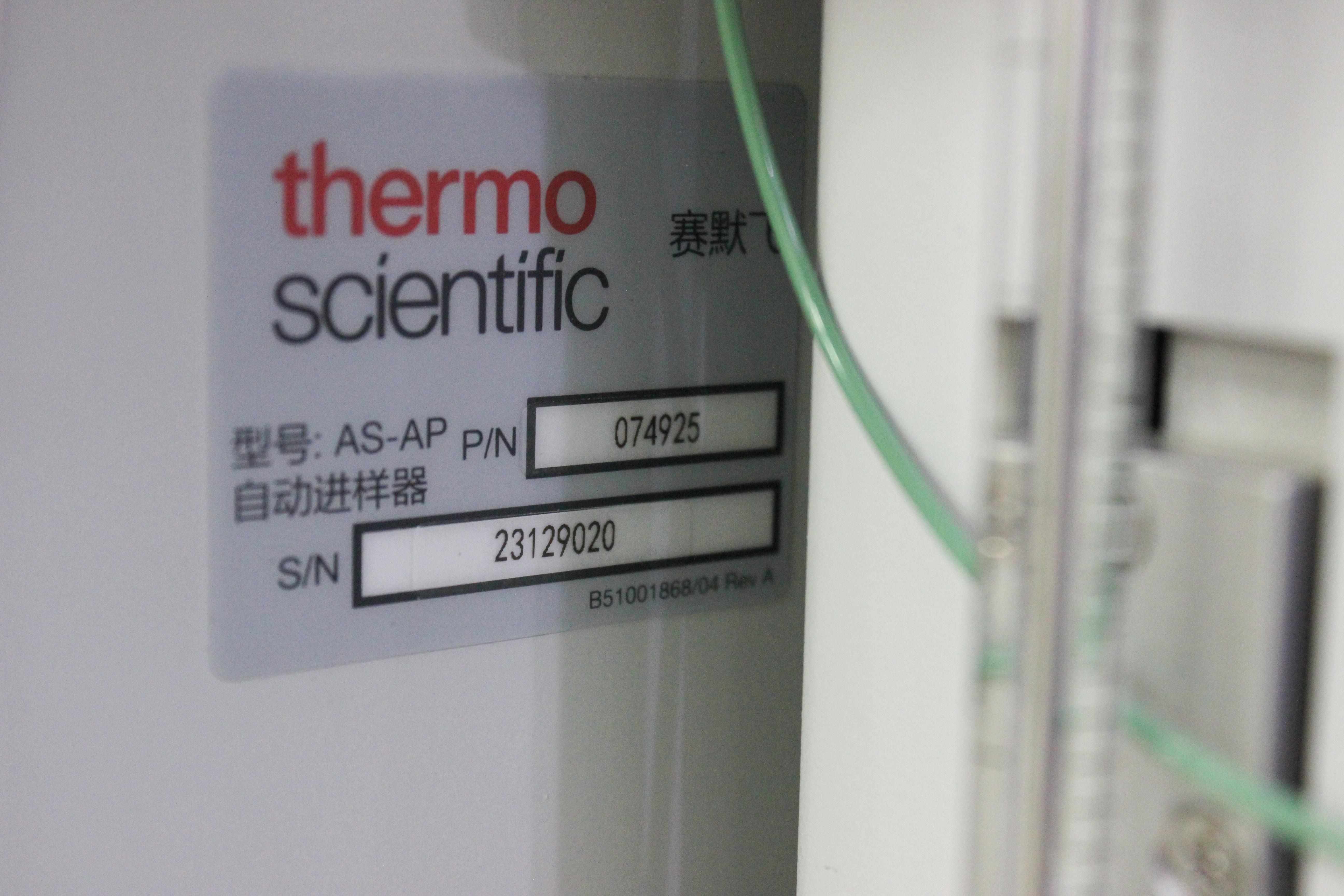

Serial23129020
-
Shipping TypeFedEx Ground
-
Manufacturing2023-12-18
-

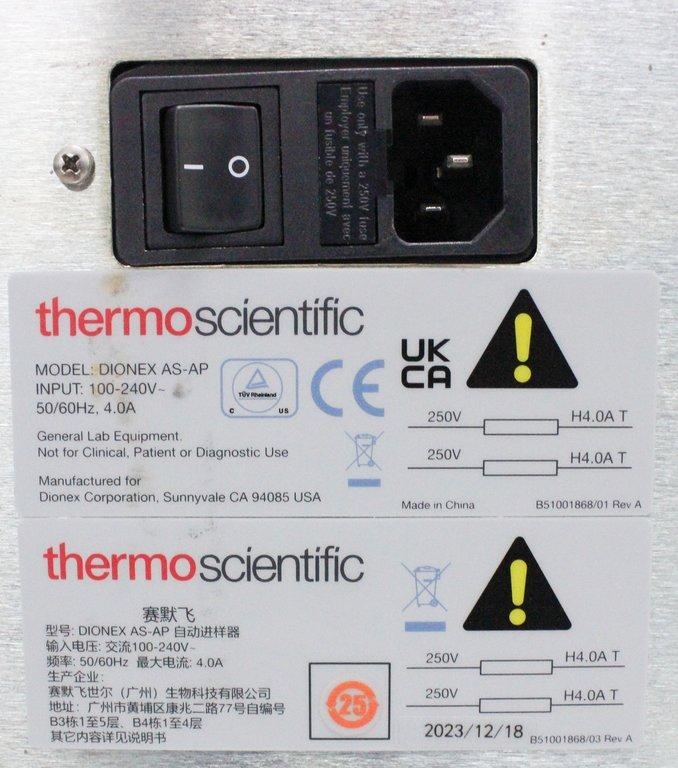

Voltage / Hertz100-240v / 50Hz/60Hz
Description

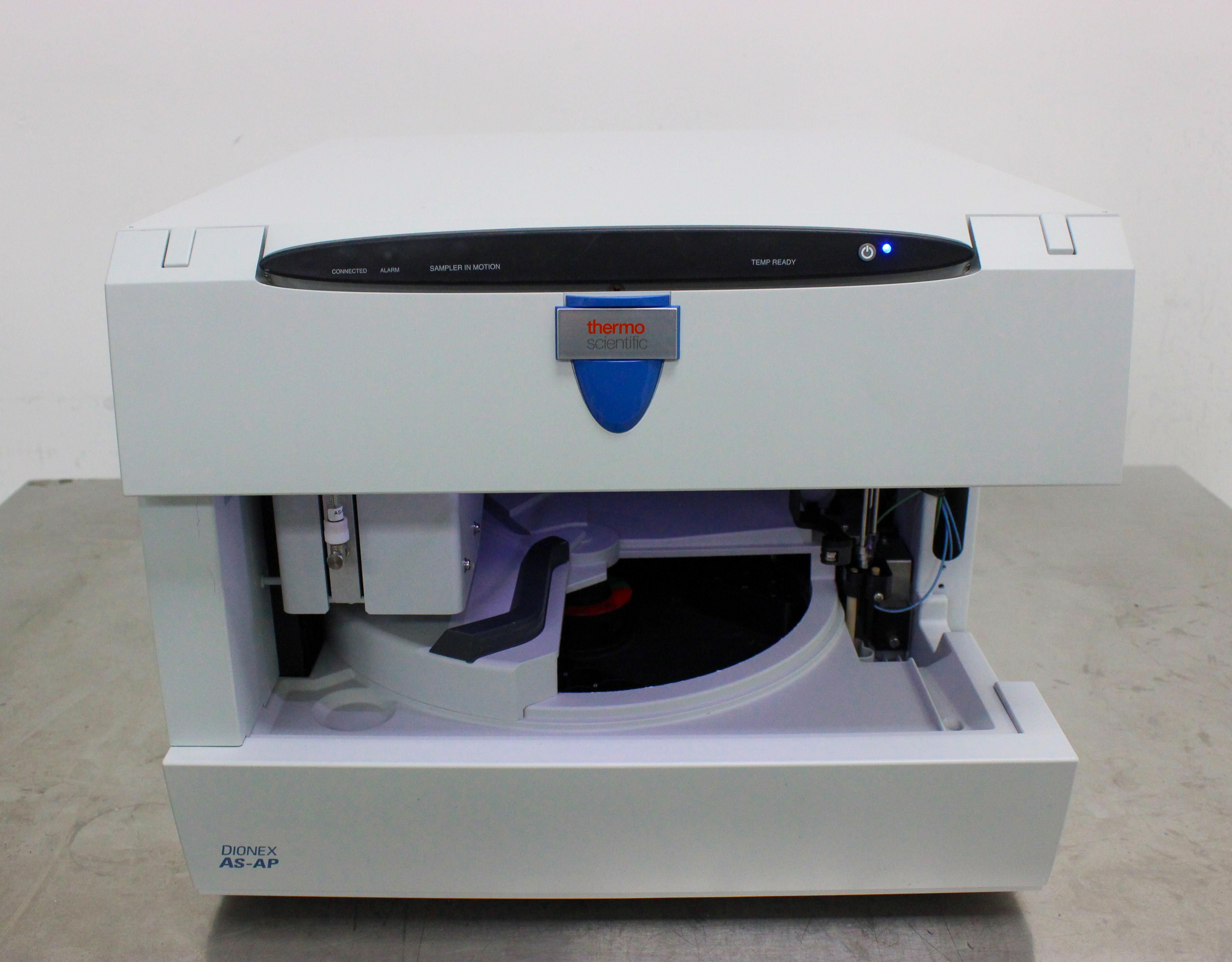

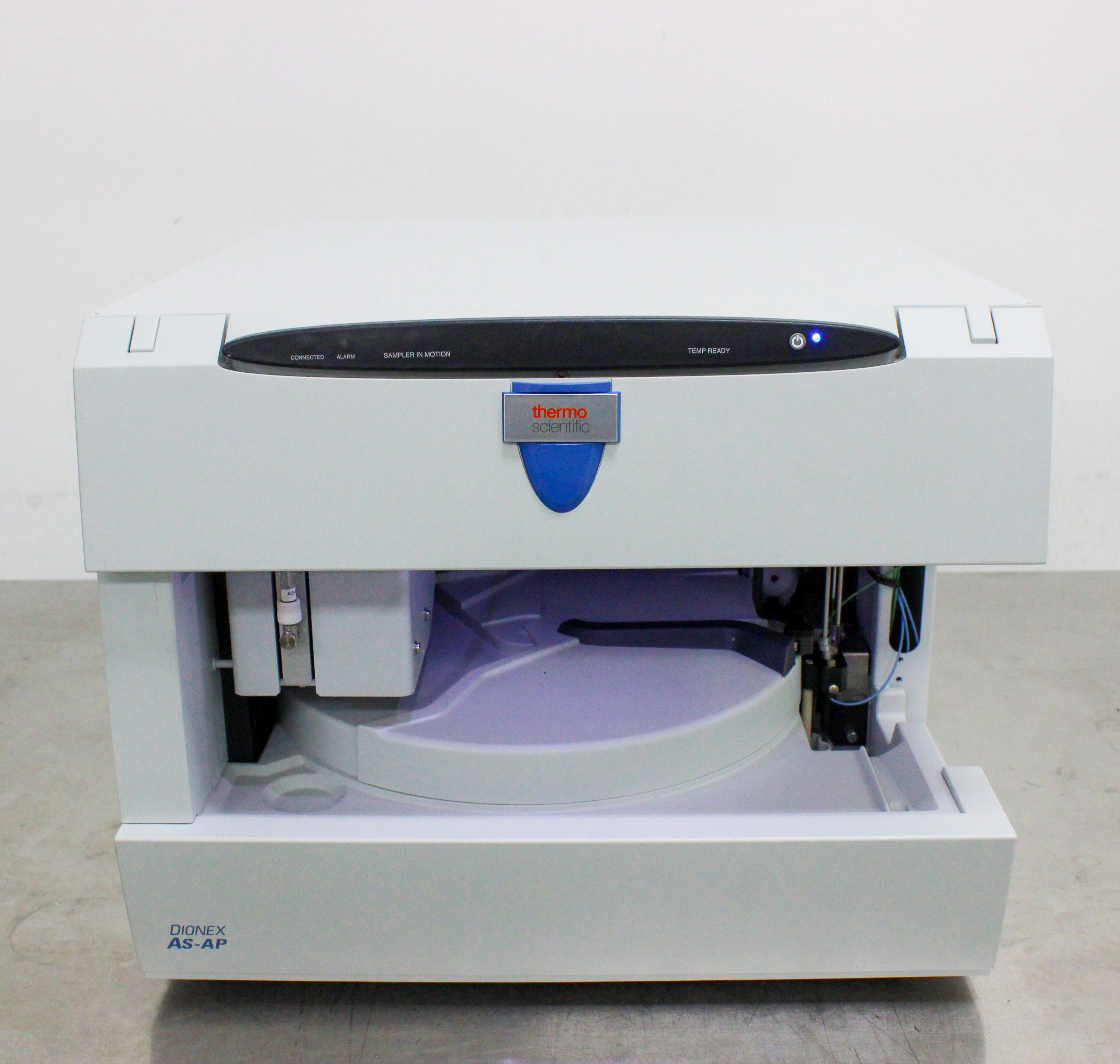

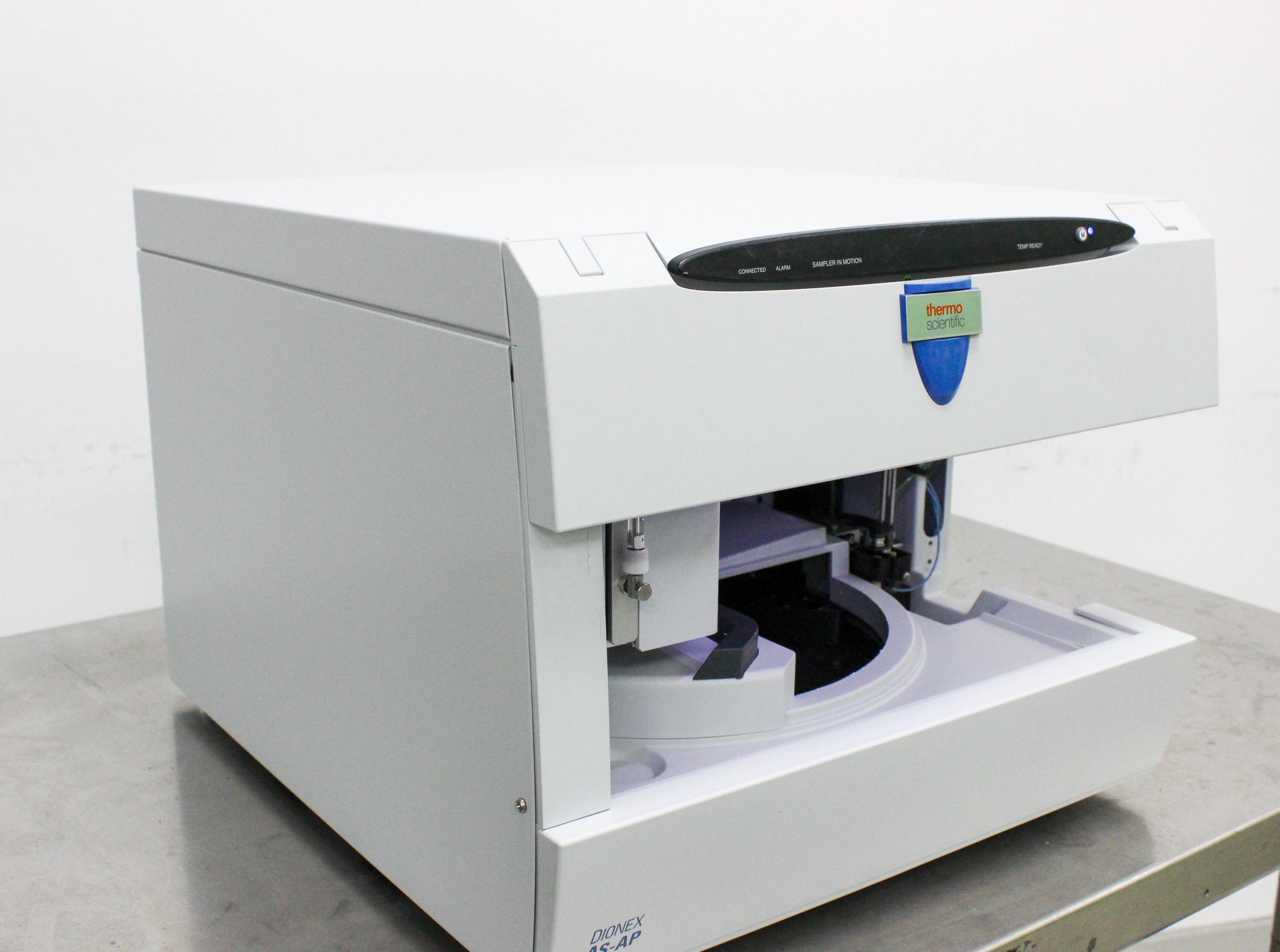

The Thermo Scientific Dionex AS-AP Autosampler, model 074925, manufactured in 2023, is designed for precision and reliability in ion chromatography applications. Despite being a preowned unit, it performs initial self-checks successfully and exhibits smooth carousel and arm motions, indicating potential operational functionality. Featuring a high sample capacity of up to 81 10 mL vials and a unique moving-needle design, it ensures contamination-free and reproducible sample processing. The all-PEEK flow paths enhance compatibility with various eluents, minimizing metal contamination. Equipped with automated sample preparation functions, the Dionex AS-AP minimizes labor while maximizing efficiency. Temperature control options further enhance its adaptability for thermally sensitive samples. While operational software is not bundled, calibration and performance verification are advised post-installation.
Technician comment

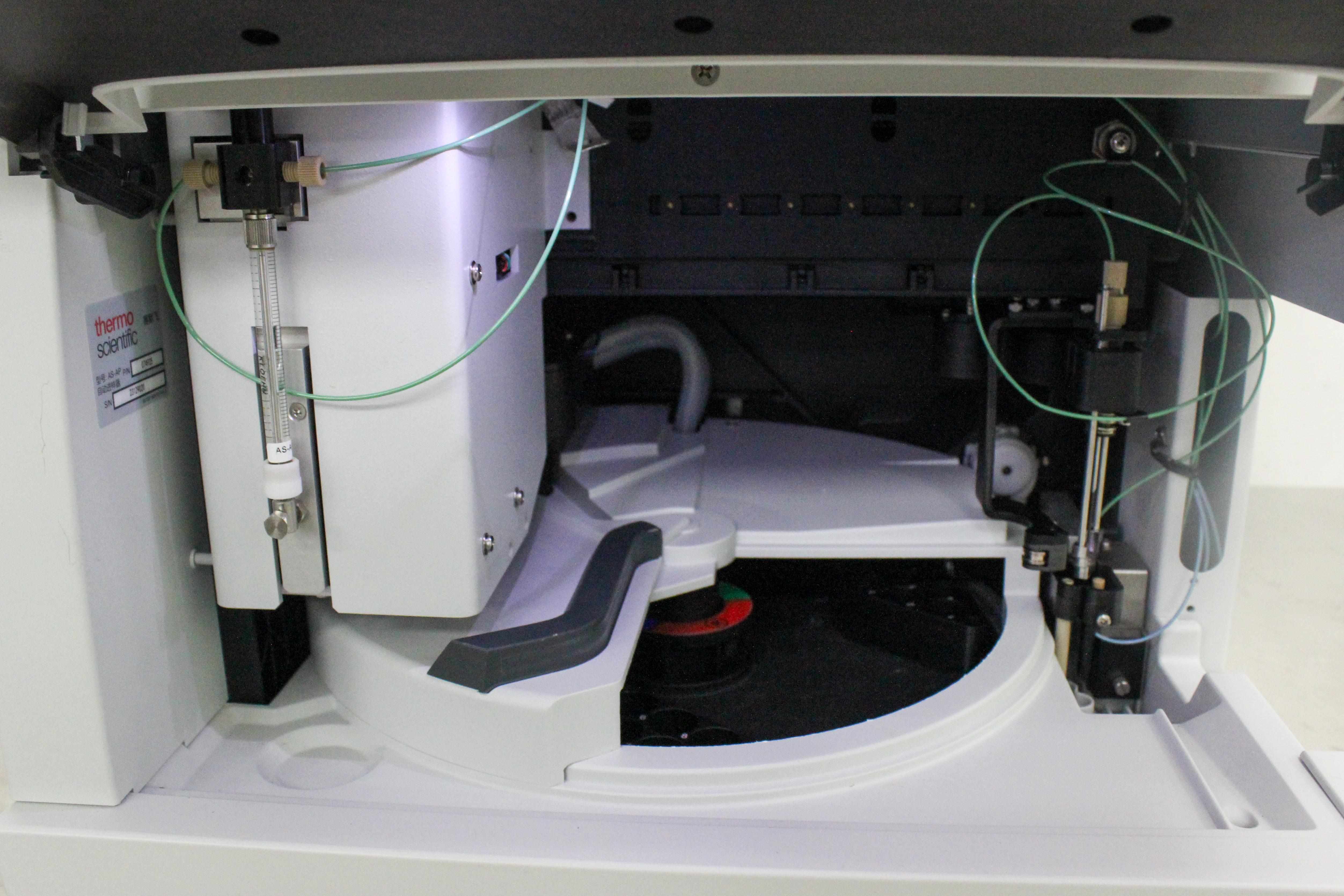

Unit powers on, initializes, and passes self-check with no error indicators observed during basic functional testing. Carousel rotation, initialization & arm motion operate smoothly through multiple test cycles. Unit is preowned and sourced from a lab environment. Calibration and full performance verification are recommended after installation. Software not included.
Key Features
- Simultaneous injection without cross contamination
- High sample capacity of 81 vials
- Reproducible precision with <0.3% RSD
- All-PEEK flow paths for contamination prevention
- Automated sample preparation function
- Temperature control for sensitive samples
Specifications
- Sample Capacity: 81 ea. 10 mL; 120 ea. 1.5 mL; Well Plates (3 x 96) or (3 x 384)
- Injections per Vial: 199
- Minimum Sample Volume: 10μL from a 300 μL microvial; 20μL from a 500 μL microvial
- Variable Volume Range: 1-100μL in 0.1 μL increments; 100-7500 μL in 1 μL increments
- Injection Precision: Fixed loop <0.3% RSD at 20 μL; Partial loop <0.5% RSD at 20 μL
- Dilution Precision: <1.0% RSD for a 1:10 dilution
- Dispensing Precision: <0.2% RSD (by weighing)
- Carryover: <0.01% with 500μL flush volume
- Operating Temperature Range: 4-60°C (40-140°F)
- Power Requirements: 90-265 V ac, 47-63 Hz
Weight
Imperial: 67.2 Pounds
Metric: 30.48 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 34.8 lb x 34.8 lb
Metric: 79.25 cm x 88.39 cm x 88.39 cm
Harmonized Code
902780
Harmonized Code Details
902780 - Instruments and apparatus for physical or chemical analysis; instruments and apparatus for measuring or checking viscosity, porosity, expansion, surface tension or the like, n.e.c. in chapter 90. This code is selected based on the Dionex AS-AP's functionality as a precision instrument for ion chromatography.
