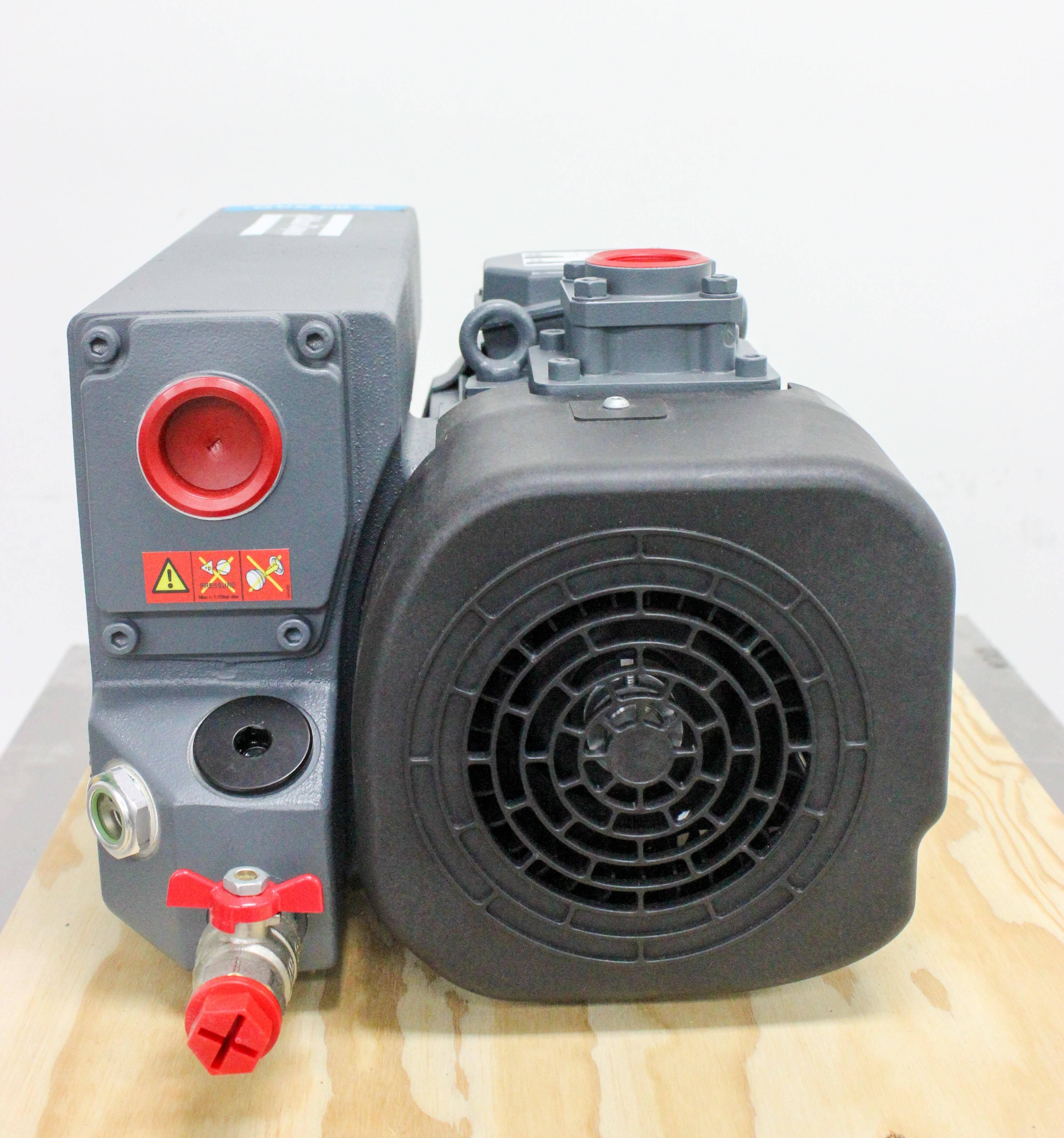

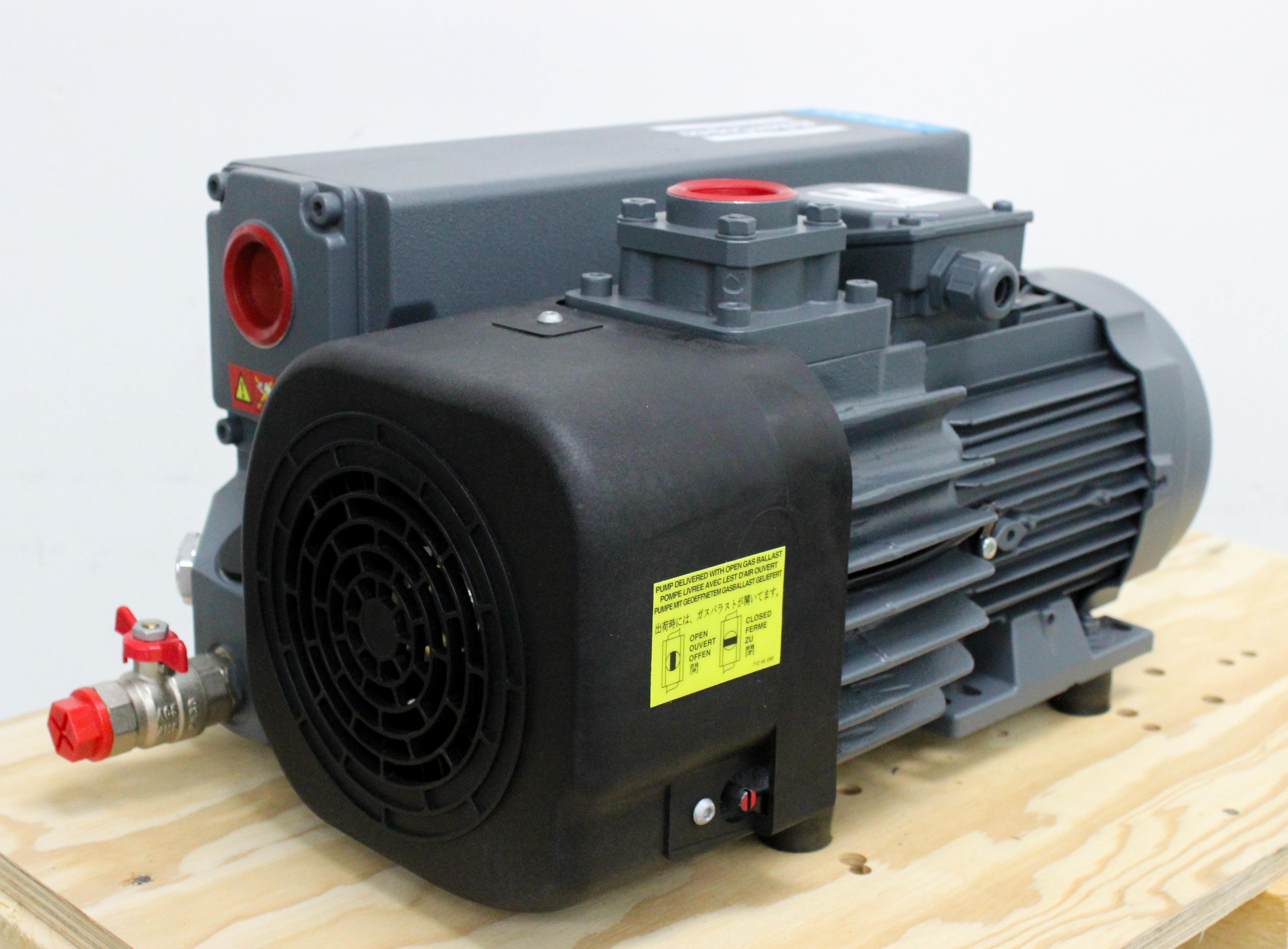

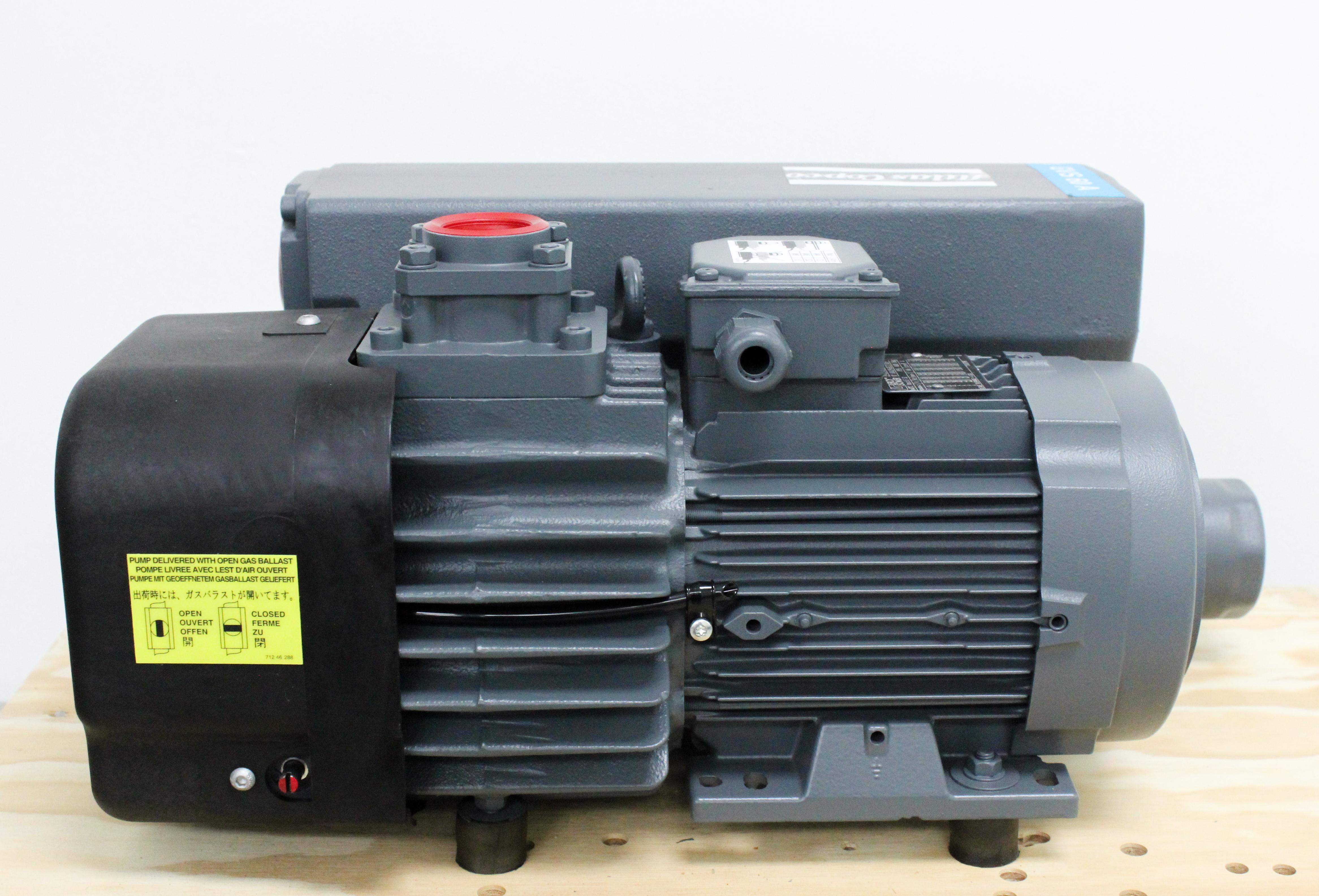

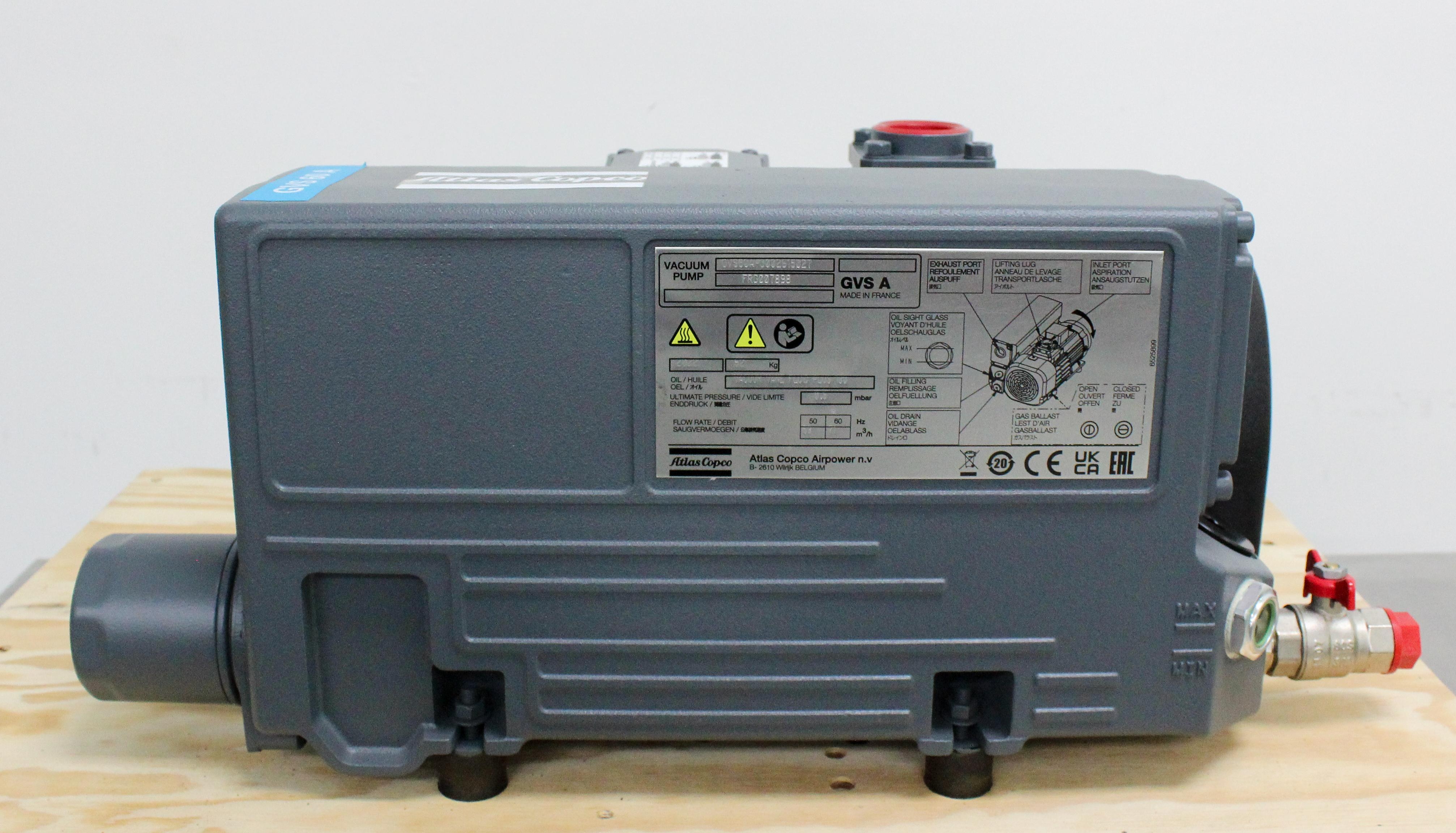

Atlas Copco GVS60A Vacuum Pump Rotary Vane Air Cooled 3HP Oil Sealed
Atlas Copco
Details
-
CategoryPump
-
Dimension24.0in x 12.0in x 11.0in
-
SerialFRG007898
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220-460V / 50Hz/60Hz
Description
The Atlas Copco GVS60A is a top-tier rotary vane vacuum pump favored for its reliability and performance in industrial settings. This oil-sealed, single-stage pump is part of the esteemed GVS A series known for its durability and excellent air-cooled operational capability. Designed for applications like packaging, plastics, and electronics, it boasts a gas ballast to efficiently manage water vapor, ensuring seamless performance across various pressure ranges. With a pumping speed of up to 59 m³/h and an ultimate pressure of 0.5 mbar, the GVS60A strikes a balance between functionality and compactness. Ideal for environments dealing with clean air, inert gases, and moderate water vapor, its robust 3-phase power motor supports continuous operation. Its design minimizes noise and vibration, making it a practical choice for diverse manufacturing and research settings.
Technician comment
The Atlas Copco GVS60A Rotary Vane Vacuum Pump is in like-new cosmetic condition with minimal wear from prior use. The unit requires hardwiring to a 230–460V three-phase power source for testing. Unit is pre-owned from a working laboratory environment.
Key Features
- Single-stage rotary vane technology
- Oil-sealed system
- Air-cooled for efficient operation
- Pumping speed up to 59 m³/h (approximately 34.7 CFM)
- Ultimate pressure of 0.5 mbar
- 3 HP motor with 3-phase, 230/460V power requirement
- Built-in gas ballast for water vapor handling
- Continuous operation across wide pressure range
- Compact design for easy installation
- Low noise and vibration levels
Specifications
- Pumping speed: ~59 m³/h (approx. 34.7 CFM)
- Ultimate pressure: ~0.5 mbar (≈ 0.4 Torr)
- Motor/Power: 3-phase, 230/460V
- Horsepower: ~3 HP (≈ 2.4 kW)
- Cooling: Air cooled
- Design applications: Packaging, plastics, electronics, woodworking, material handling
- Operational environment: Clean air, inert gases, moderate water vapor
- Features: Gas ballast, lubricant retention & return, integrated bypass valve
Weight
Imperial: 138.0 Pounds
Metric: 62.6 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 14.4 lb x 13.2 lb
Metric: 73.15 cm x 36.58 cm x 33.53 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Air or vacuum pumps, single-stage rotary positive-displacement. Selected for its relevance to vacuum pumps like the Atlas Copco GVS60A that utilize rotary vane technology.
