SMC MXS 16-20 Air Slide Table Base with Aluminum Alloy Structure
N/A
Details
-
CategoryMiscellaneous
-
Dimension16.0in x 13.0in x 9.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

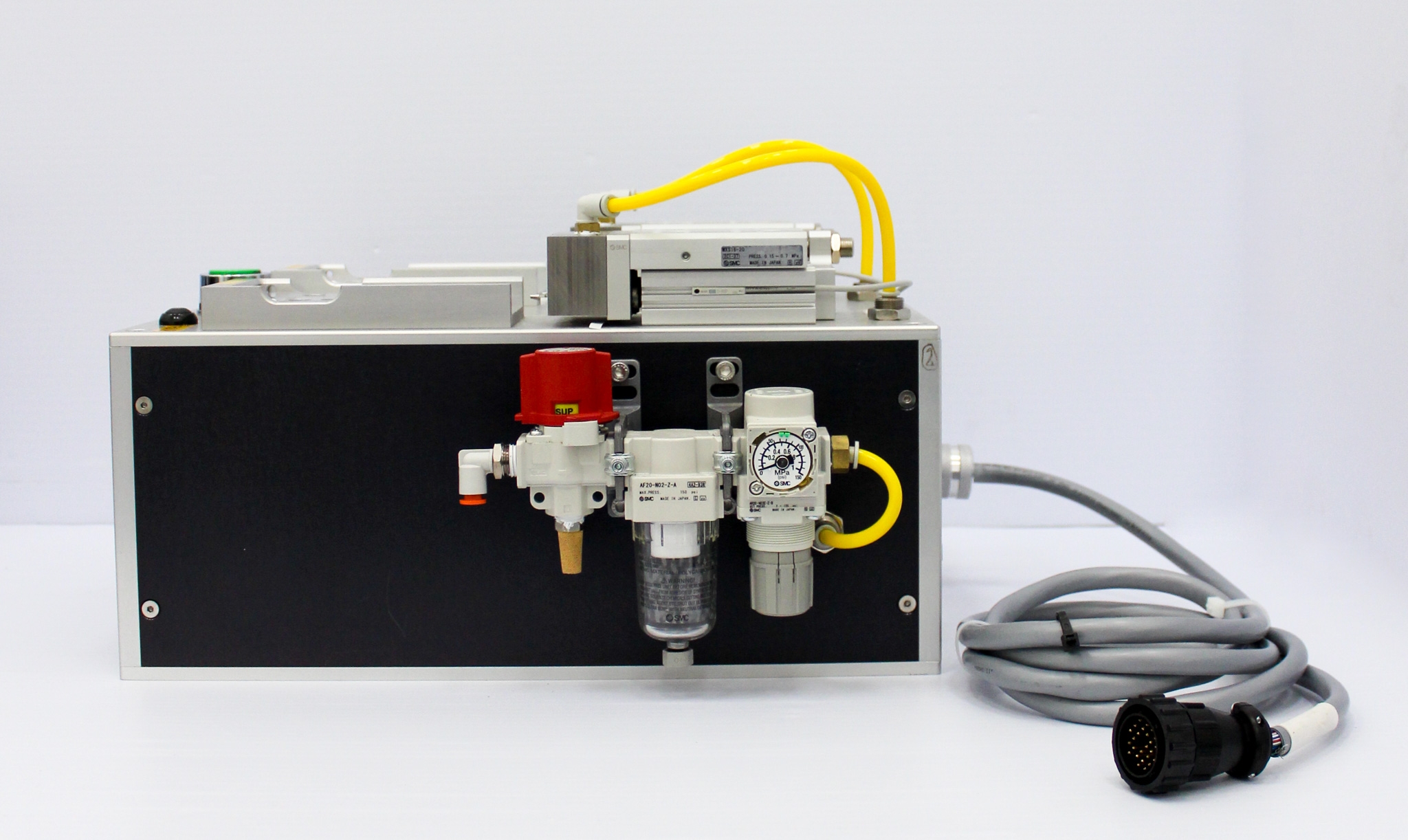

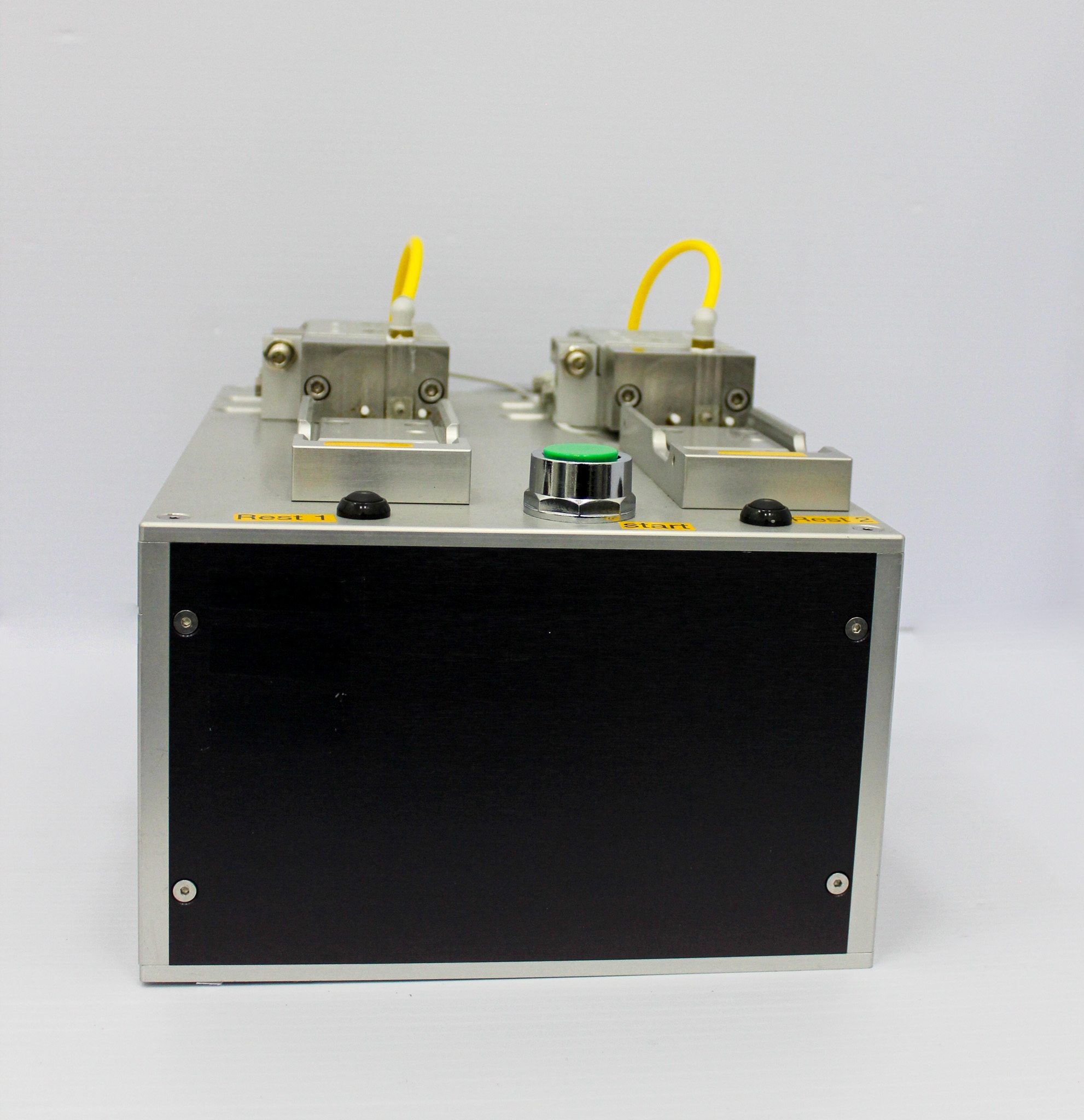

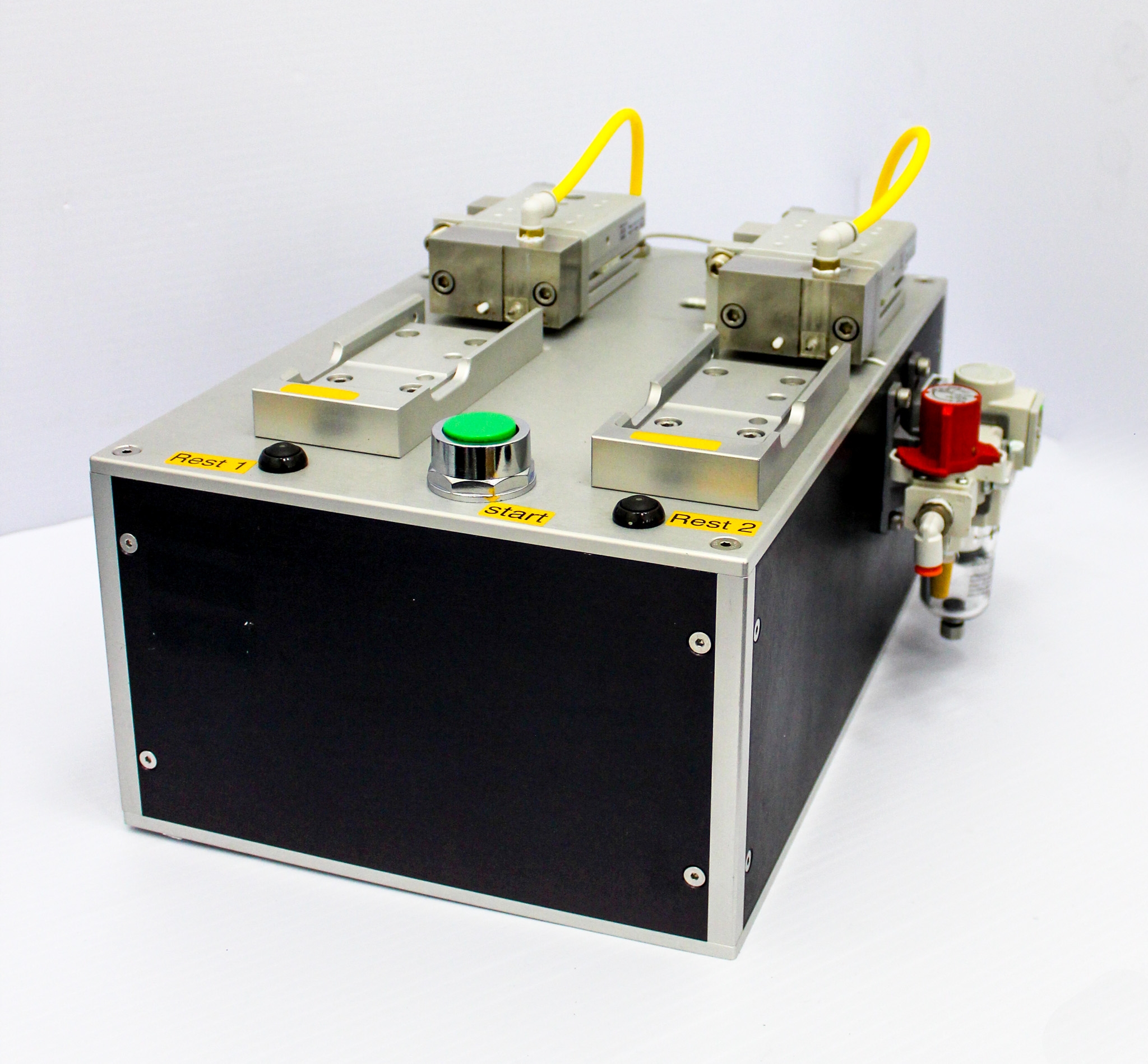

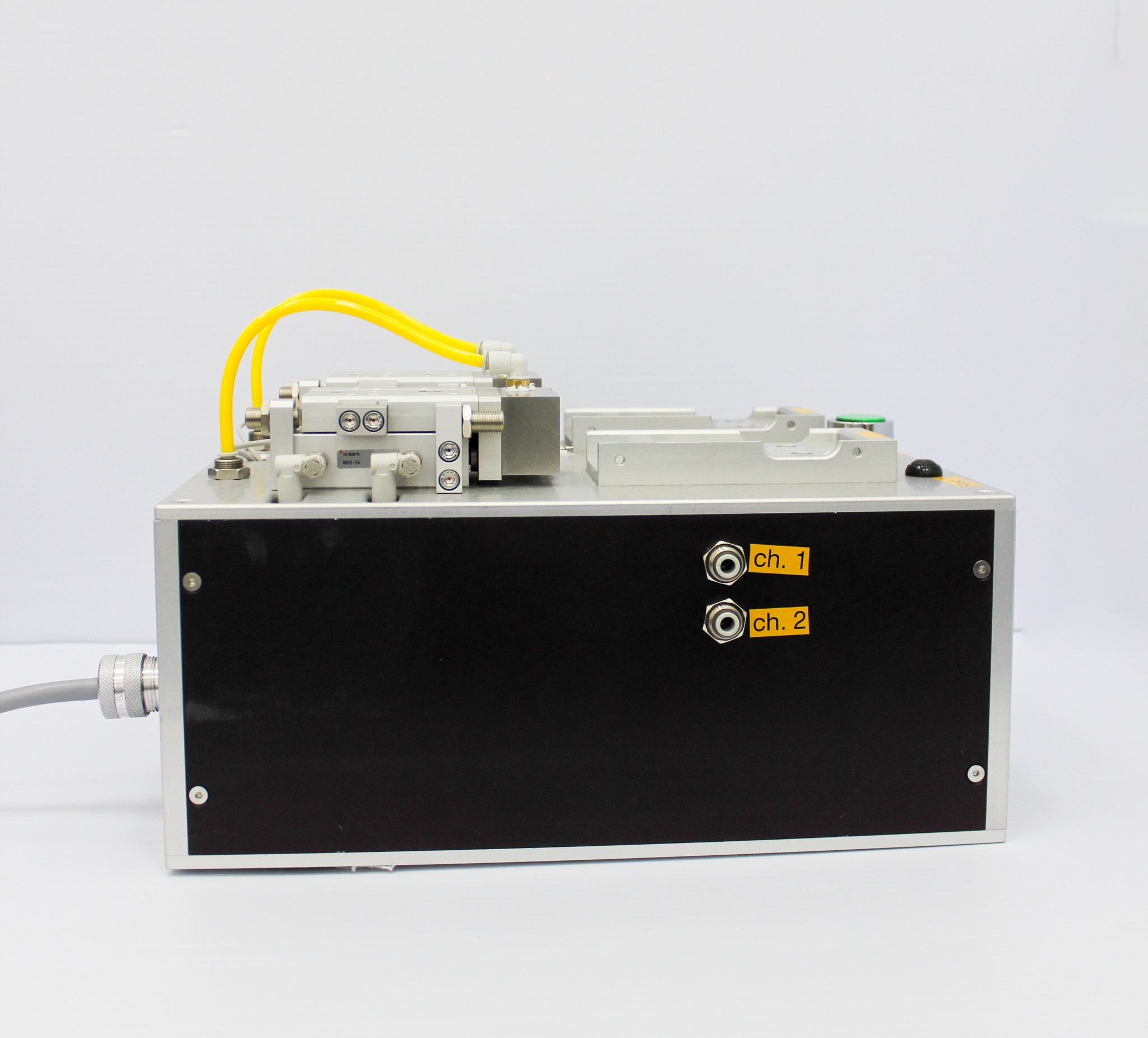

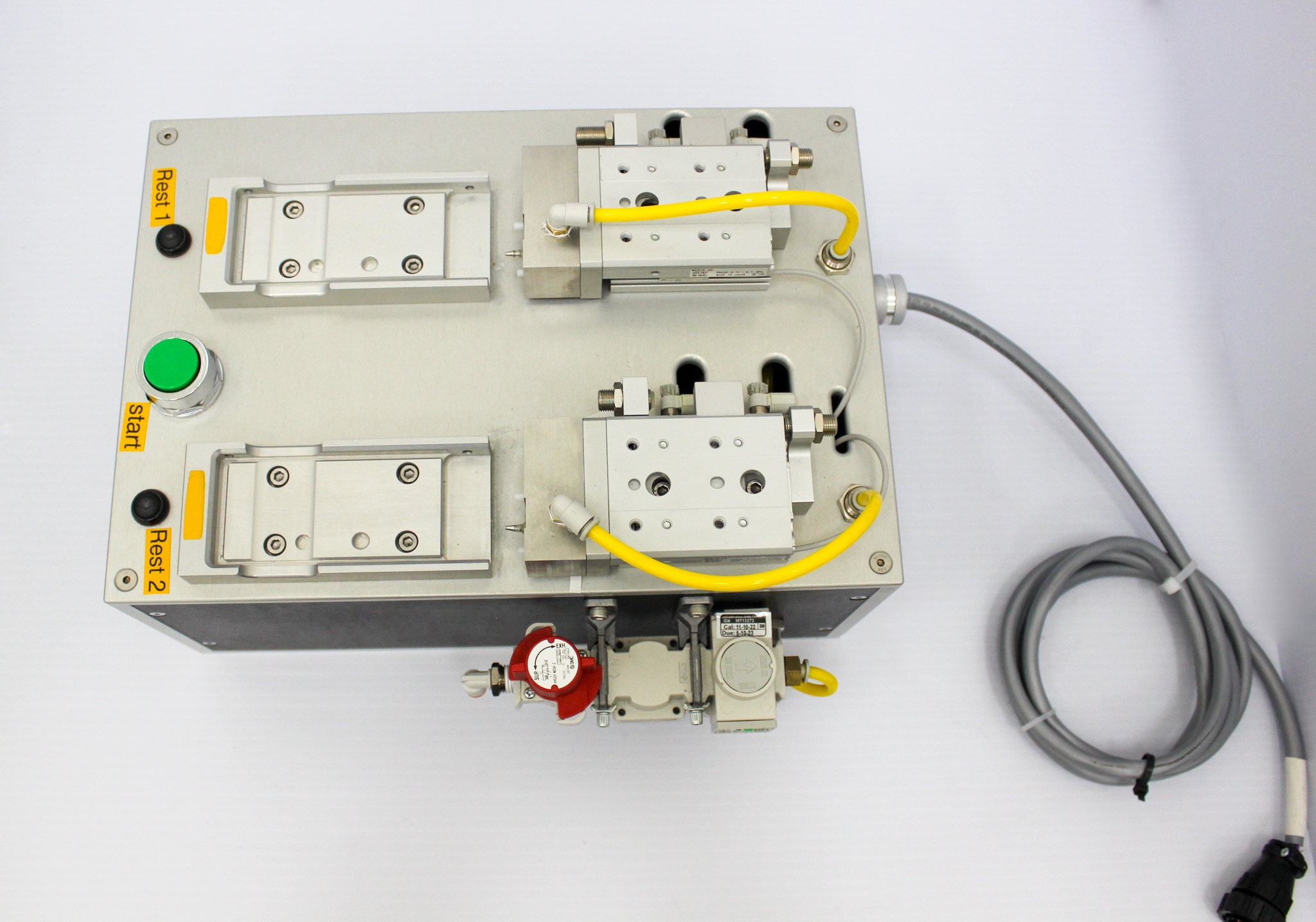

This used SMC MXS 16-20 Custom Air Slide Table Base is a versatile component designed for precision assembly applications. Manufactured by SMC, a renowned leader in pneumatic equipment, this air slide table features an integrated work table and air cylinder for improved mounting repeatability. The unit operates at a voltage of 120V, supports horizontal mounting with a maximum load of 4 kg, and offers a dual-rod structure for stability. Constructed from hard anodized aluminum alloy, it includes a cross roller guide for smooth operation. Although unable to undergo extensive testing, the equipment powers on and performs basic test passes, indicating functional capabilities. Cosmetic wear is present due to regular use, emphasizing its operational history but not affecting performance.
Key Features

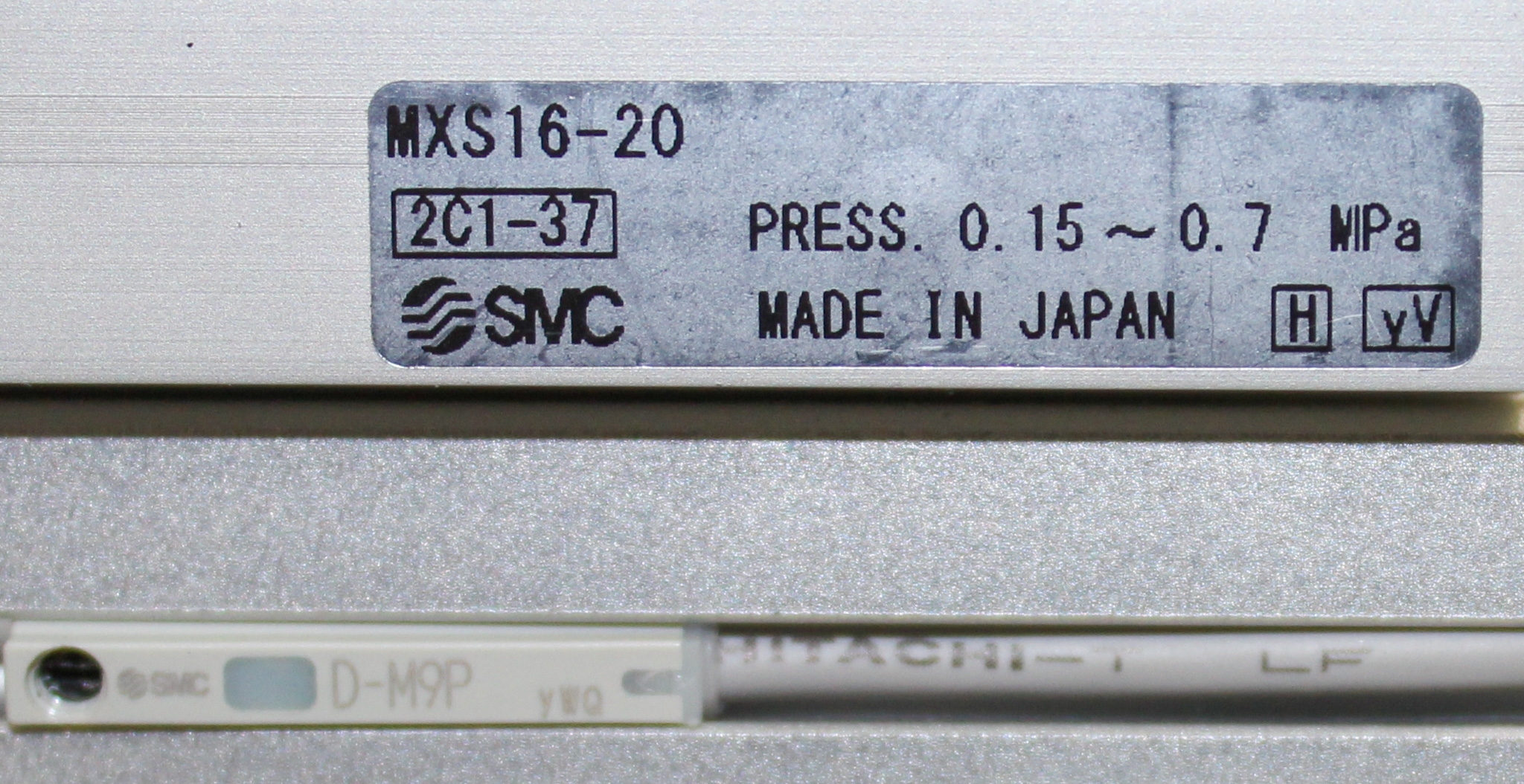

- SMC MXS 16-20 model
- Integrated air cylinder and work table
- Suitable for precision assembly
- Supports horizontal mounting
- Maximum load mass of 4 kg
- Hard anodized aluminum alloy construction
- Operates at 120V, 50/60Hz
- Cross roller guide structure
Specifications
- Type: L-Shaped Table
- Cylinder Inner Diameter: 16 mm
- Stroke: 20 mm
- Maximum Load Mass (Horizontal Mounting): 1~4.9 kg
- Table Size Length: 76 mm
- Table Height: 40 mm
- Material: Aluminum Alloy
- Guide: Cross Roller Guide
- Surface Treatment: Hard Anodize
- Environment: General Purpose
Weight
Imperial: 26.4 Pounds
Metric: 11.97 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 15.6 lb x 10.8 lb
Metric: 48.77 cm x 39.62 cm x 27.43 cm
Harmonized Code
84123100
Harmonized Code Details
84123100 - Pneumatic linear acting (cylinders). Chosen for categorizing SMC's air cylinders, fitting the specific functioning of the air slide table.
