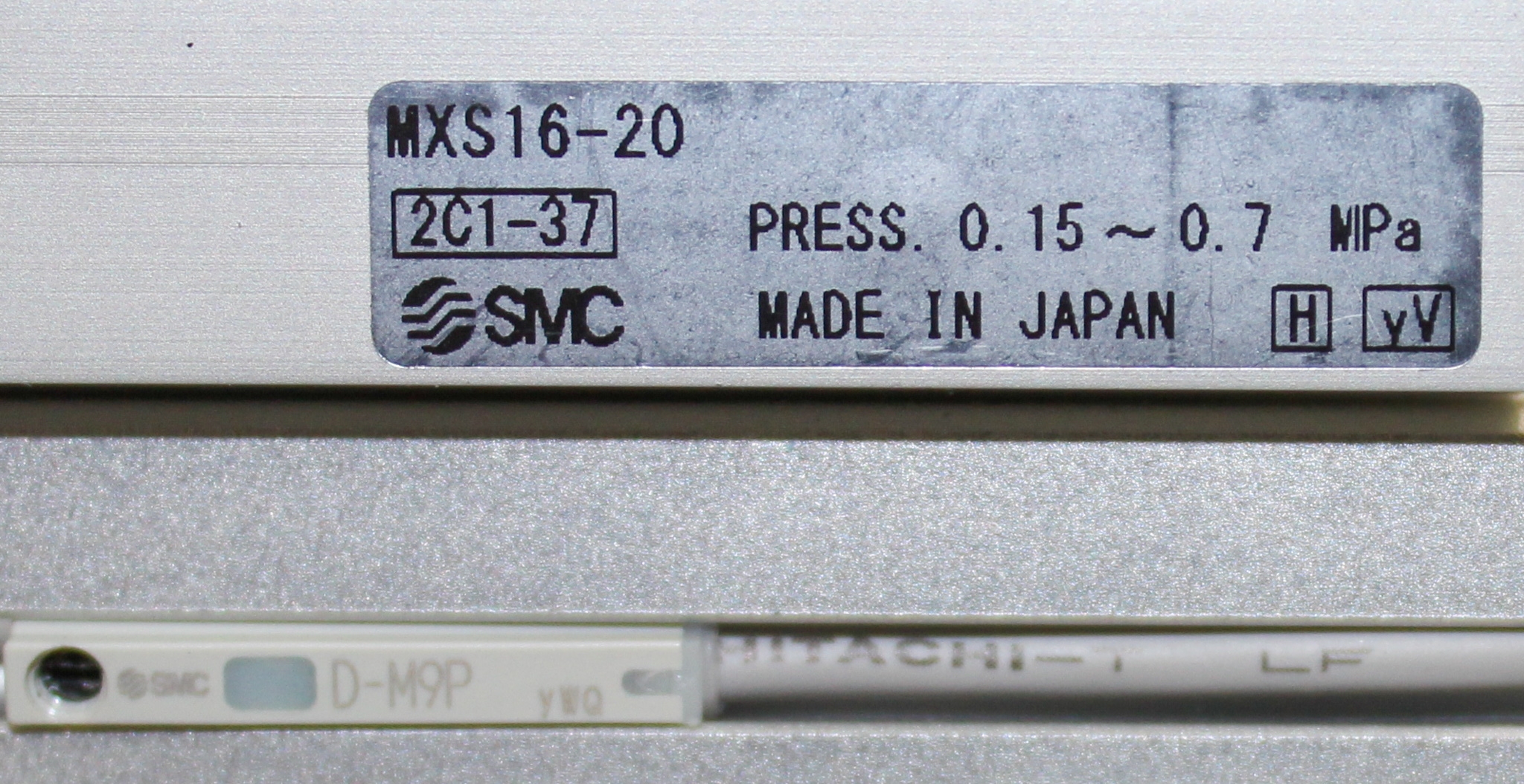

SMC MXS 16-20 Air Slide Table Base Precision Assembly Dual Rod System
N/A
Details
-
CategoryRobotic / Automation
-
Dimension16.0in x 13.0in x 9.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

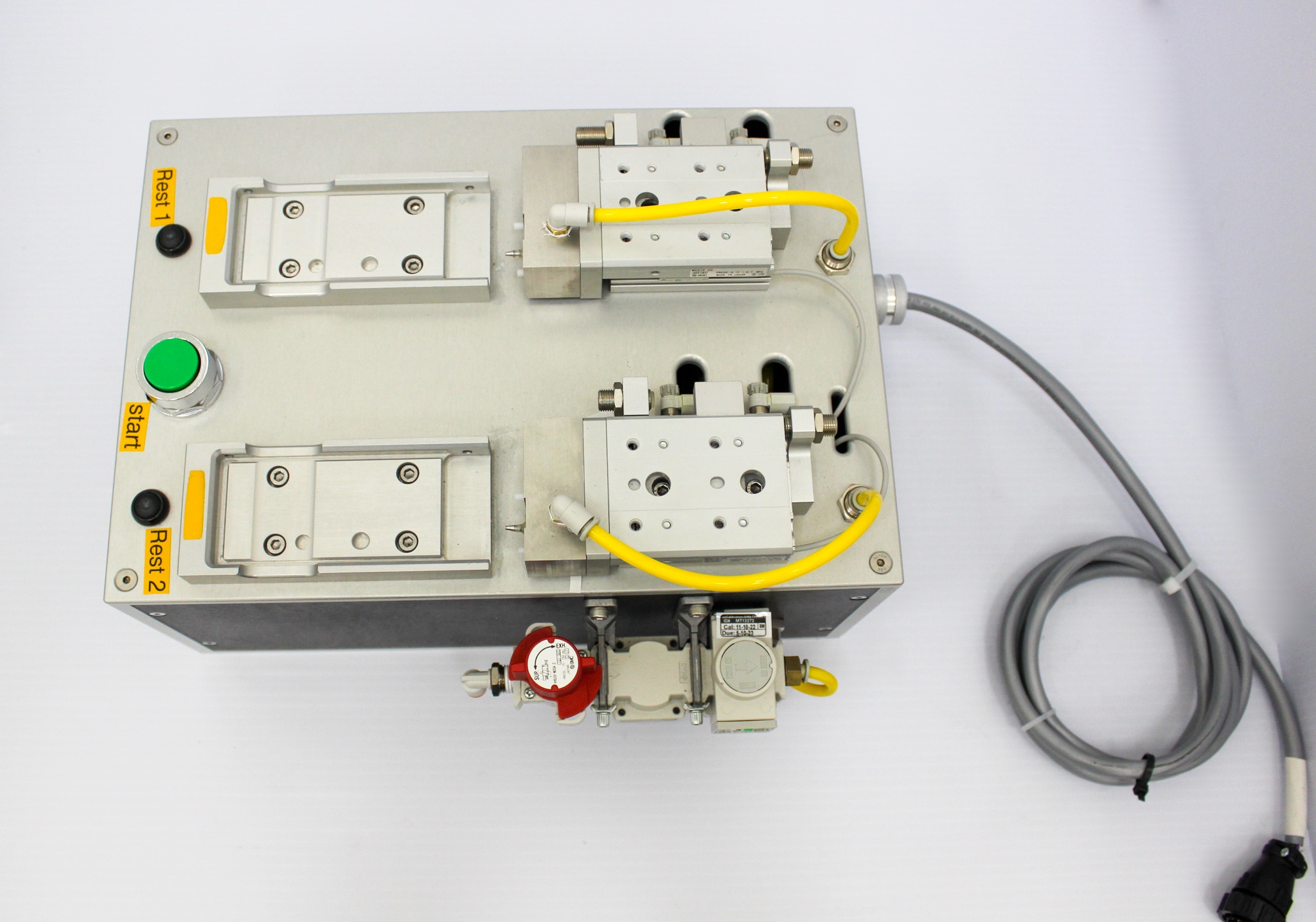

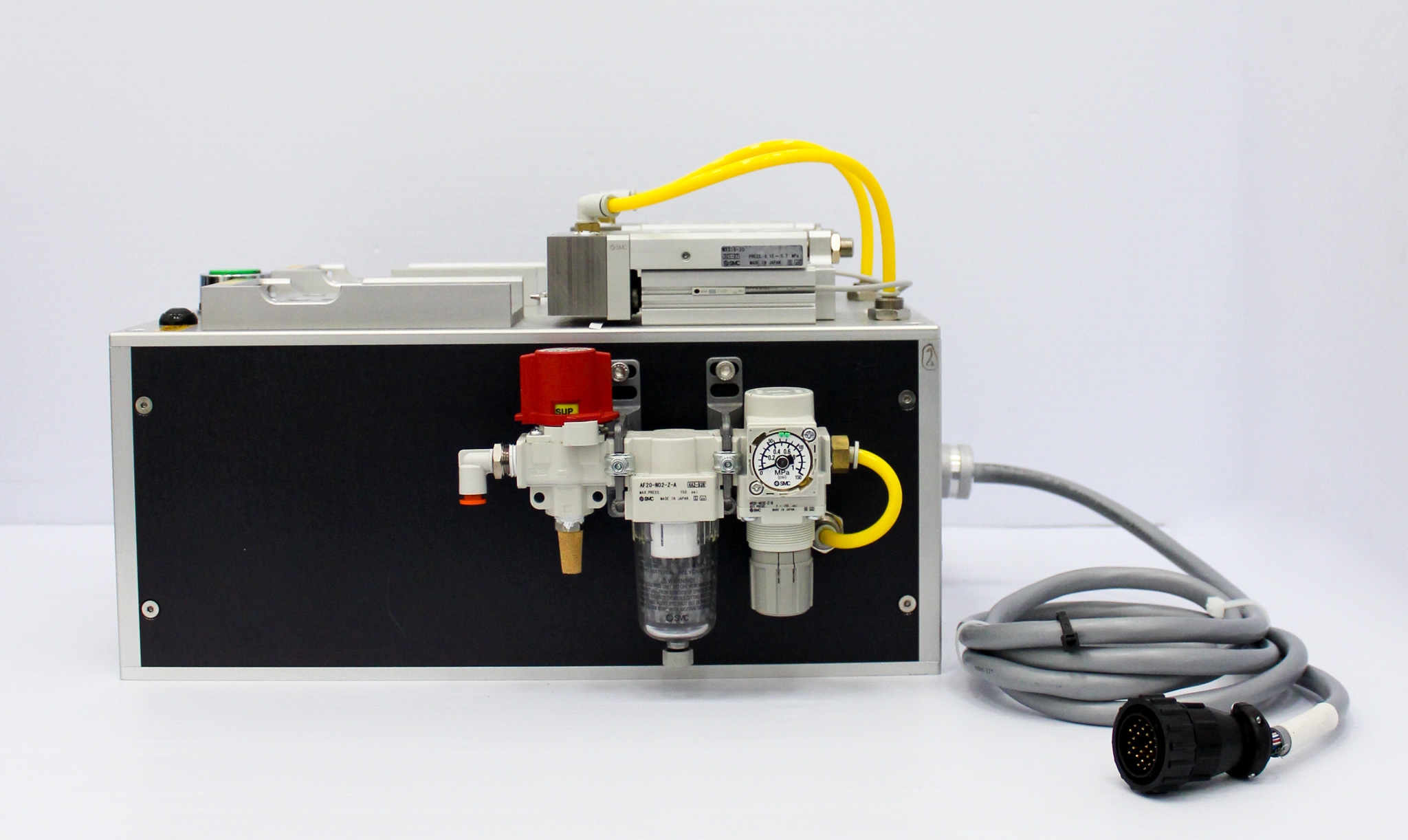

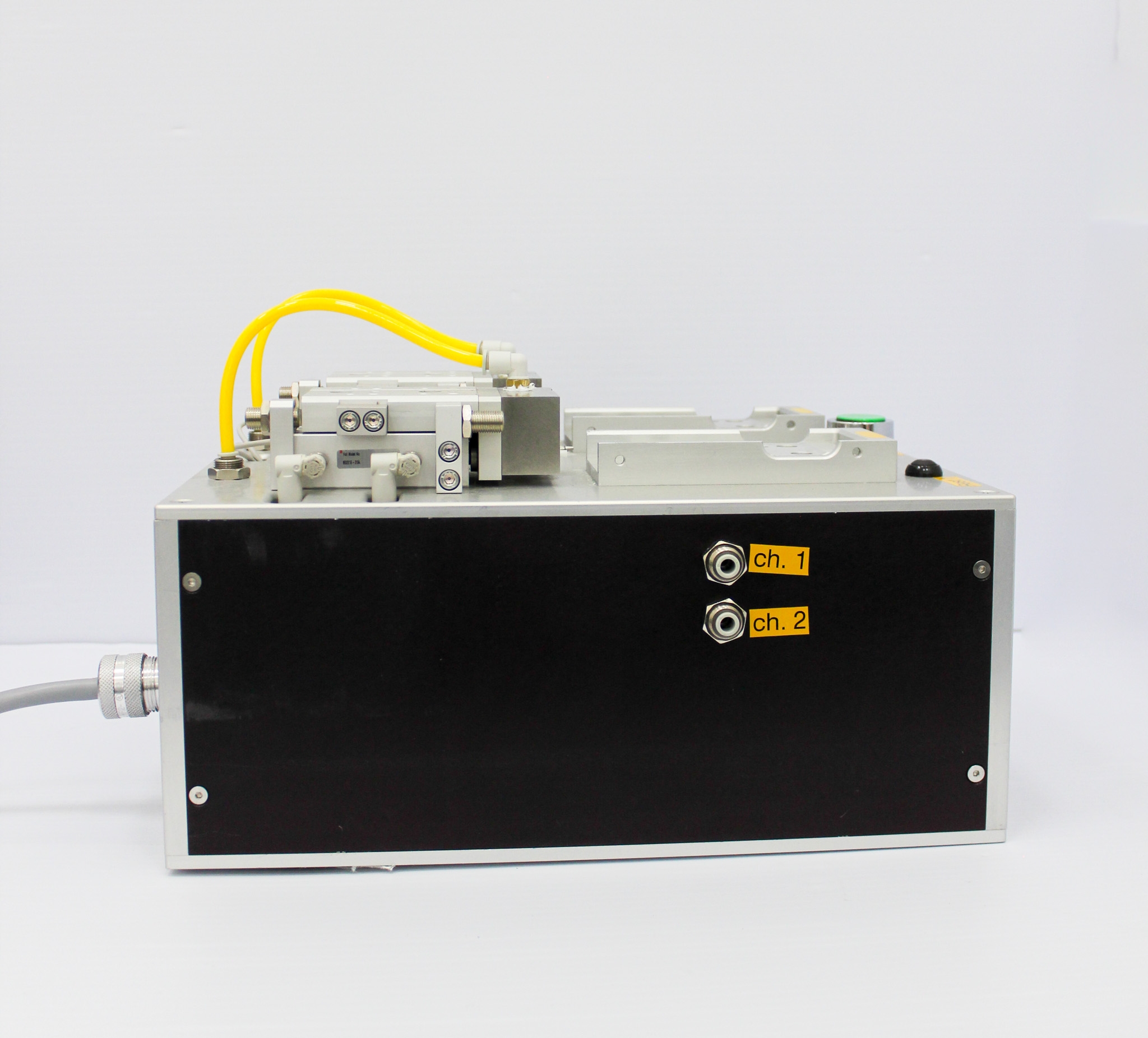

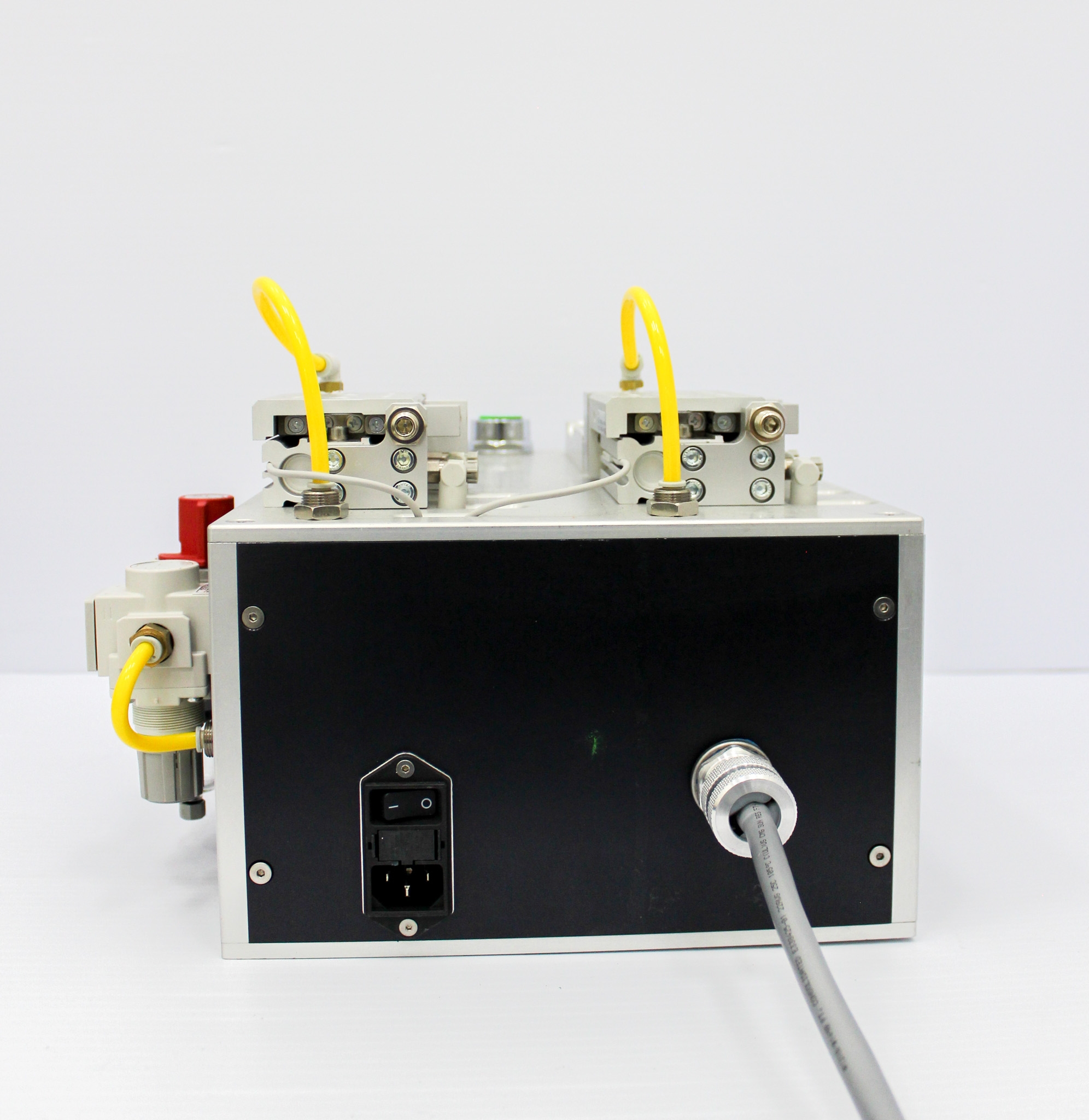

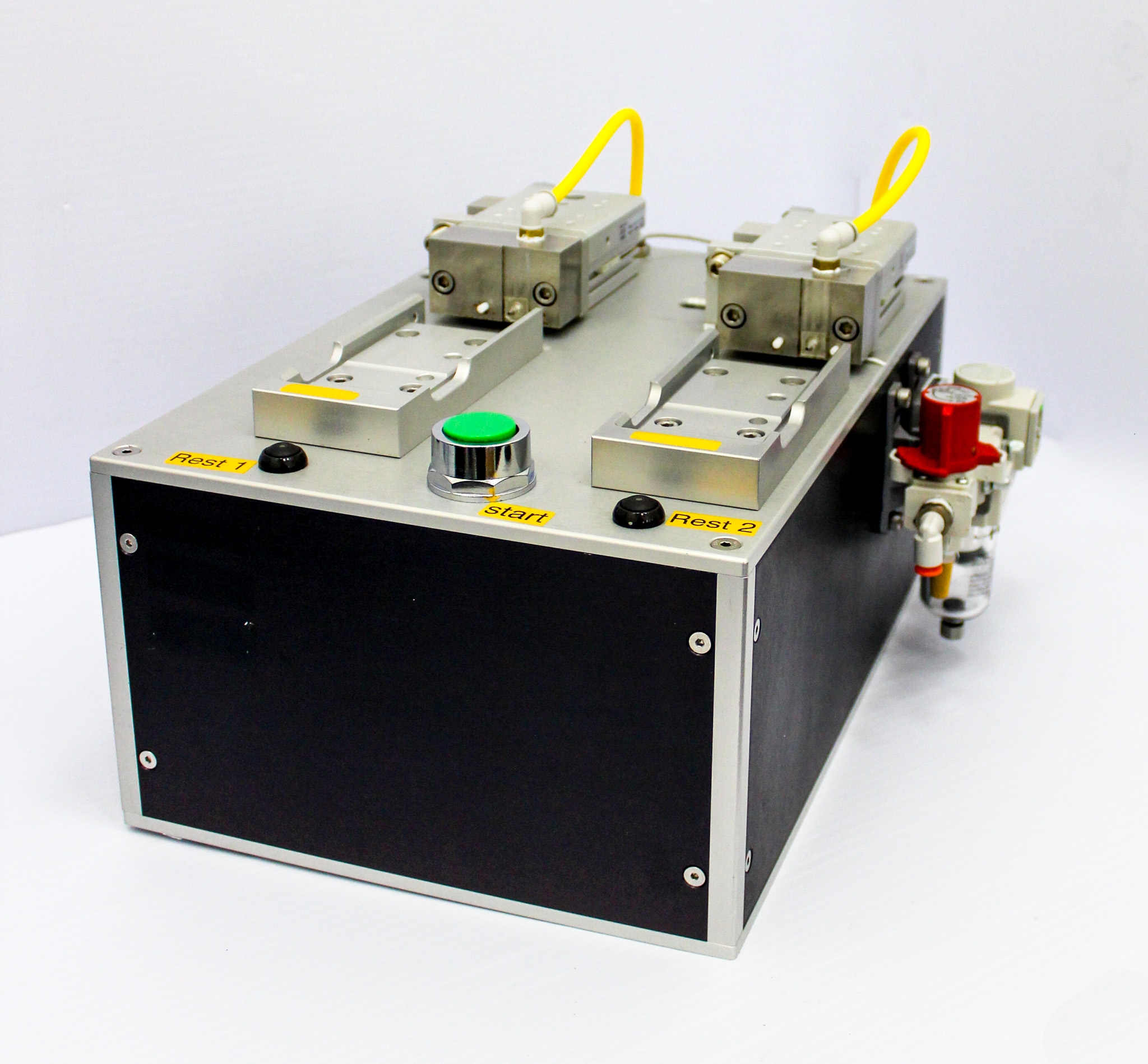

The SMC MXS 16-20 Custom Air Slide Table Base is a highly efficient piece of equipment suitable for precision assembly applications. Made by SMC, this air slide table is compactly integrated with a work table and air cylinder, designed for improved mounting repeatability of workpieces and safety considerations. The unit features an L-shaped table type with a cylinder inner diameter of 16 mm and a stroke length of 20 mm, supporting a maximum load of 4 kg. Built with an aluminum alloy table and a hard anodized surface treatment, it includes a cross roller guide shape and supports both horizontal and vertical axis mounting. It operates at 120V and 50/60Hz and is classified as gently used, with some cosmetic blemishes from normal use. Although untested in full, it passes basic functionality checks, powering on without known issues. This unit does not include a computer or software, but a power cord is provided. Originating from the United States, it caters to a broad range of industrial applications, aligning with precision requirements in manufacturing setups.
Key Features
- Improved mounting repeatability
- Integrated work table and air cylinder
- Dual-rod structure
- Support for vertical and horizontal axis mounting
- Aluminum alloy with hard anodize treatment
- Cross roller guide
Specifications
- Type: L-Shaped Table Type
- Cylinder Inner Diameter: 16 mm
- Stroke: 20 mm
- Max Load Mass (Horizontal Mounting): 1~4.9 kg
- Table Size Length: 76 mm
- Table Material: Aluminum Alloy
- Guide: Cross Roller Guide
- Voltage: 120V, 50/60Hz
- Table Size Height: 40 mm
- Environment: General Purpose
- Maximum Load: 4 kg
Weight
Imperial: 26.4 Pounds
Metric: 11.97 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 15.6 lb x 10.8 lb
Metric: 48.77 cm x 39.62 cm x 27.43 cm
Harmonized Code
903289
Harmonized Code Details
Harmonized Code 903289, 'Automatic Regulating/Controlling Instruments and Apparatus', is suitable for this unit as it pertains to devices used in automation processes, such as precision assembly actuators like the SMC MXS 16-20.
