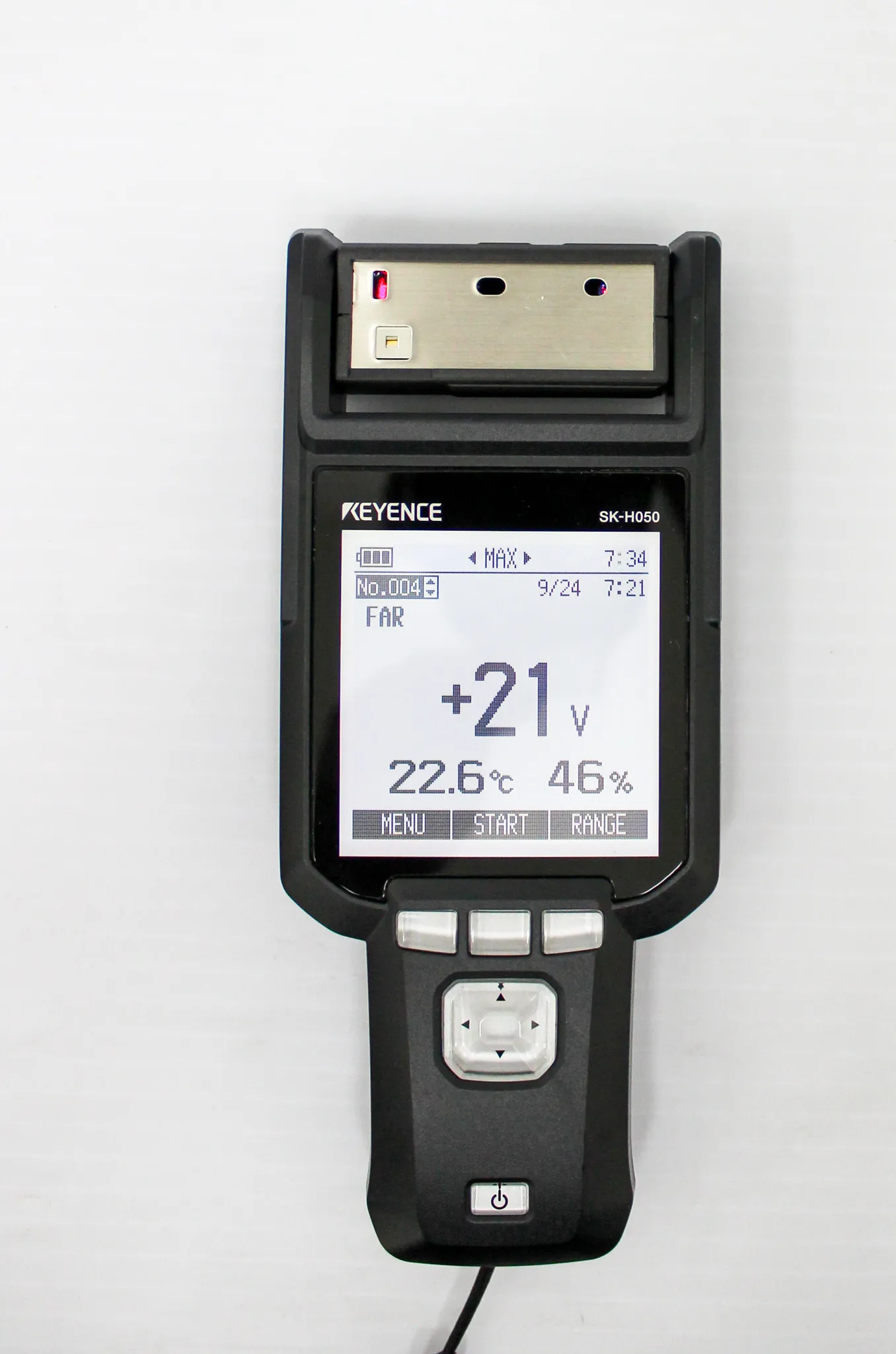

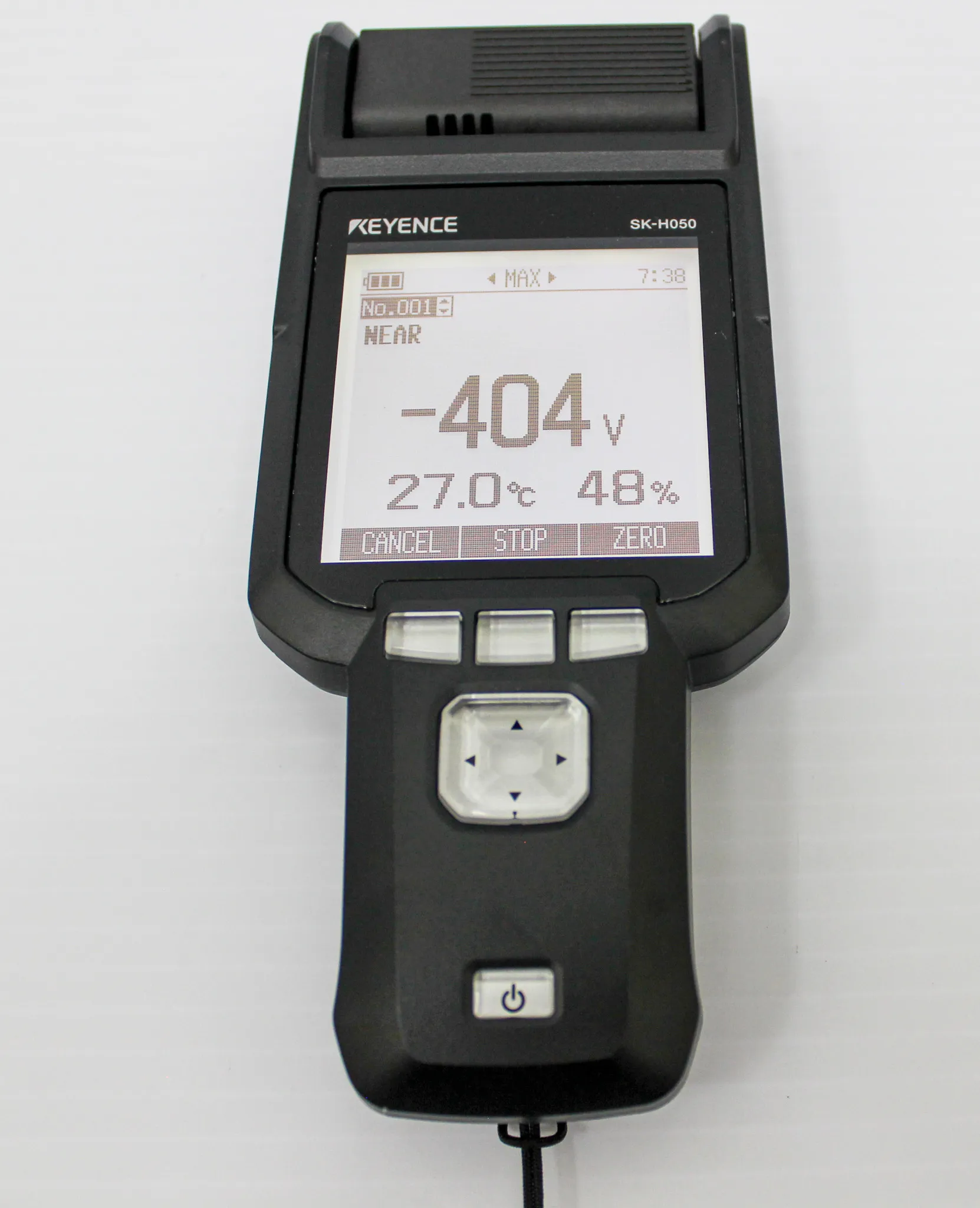

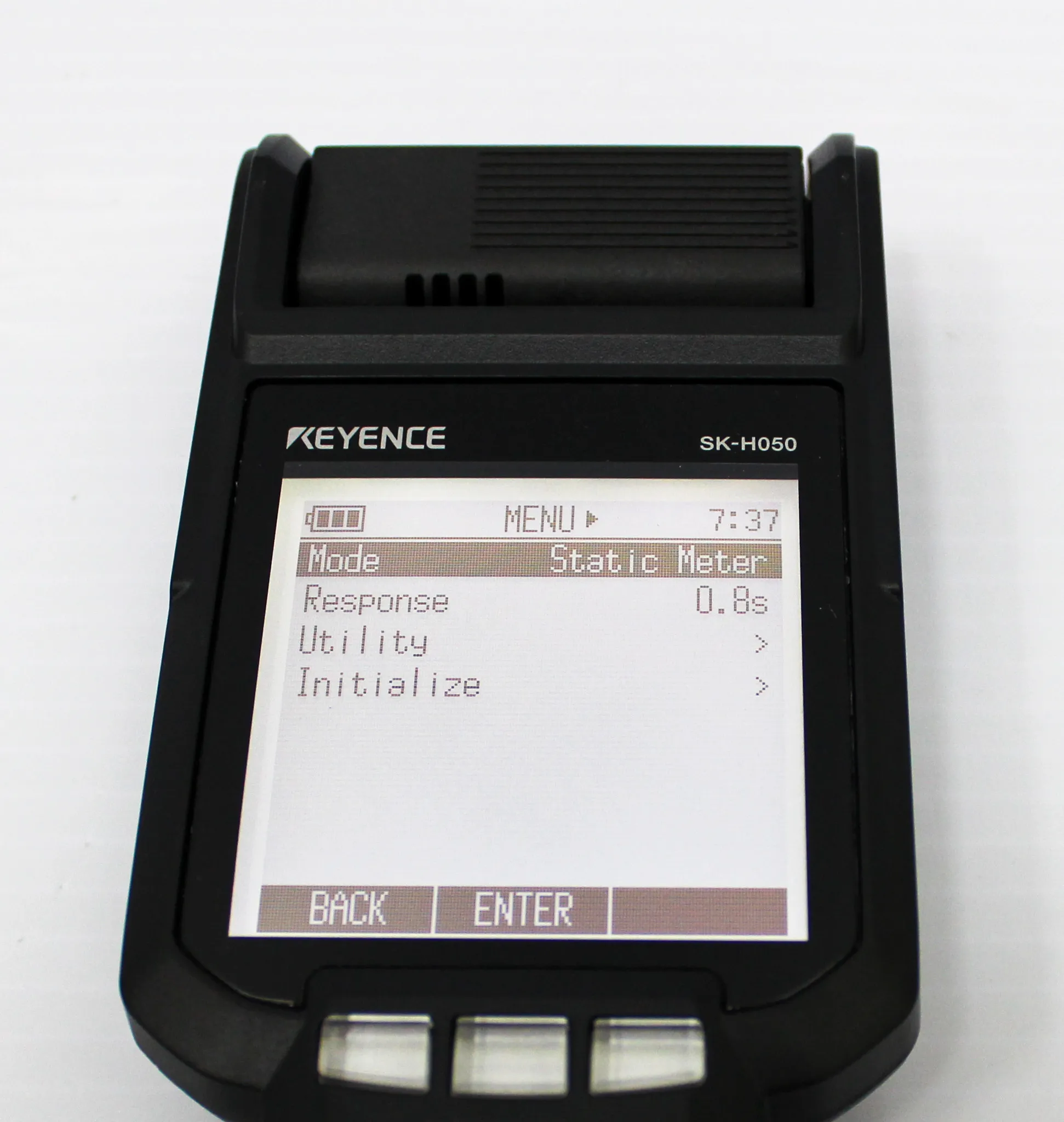

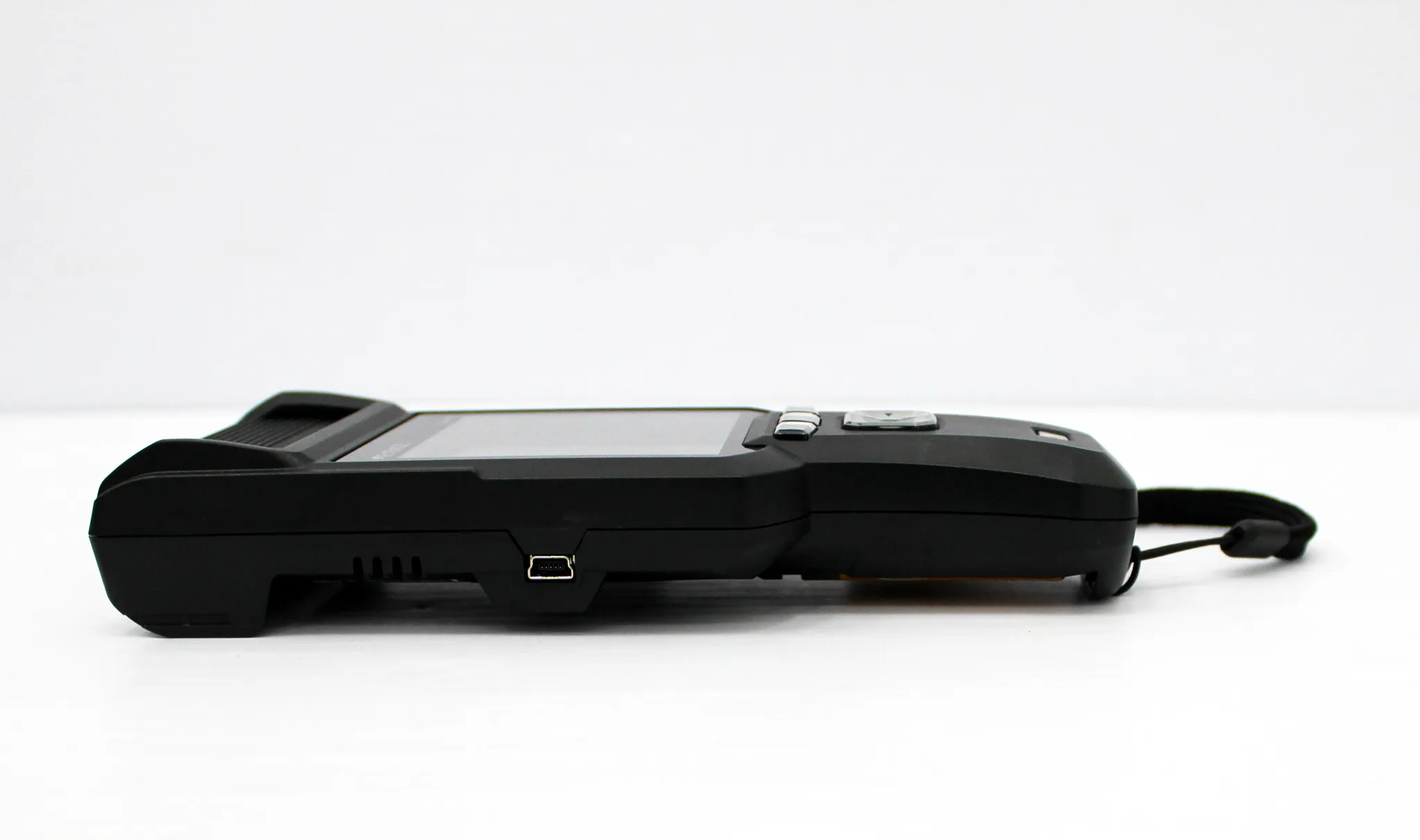

Keyence SK-H050 High-Precision Electrostatic Sensor
- Make Keyence
- Hertz Does Not Apply
- Model SK-H050

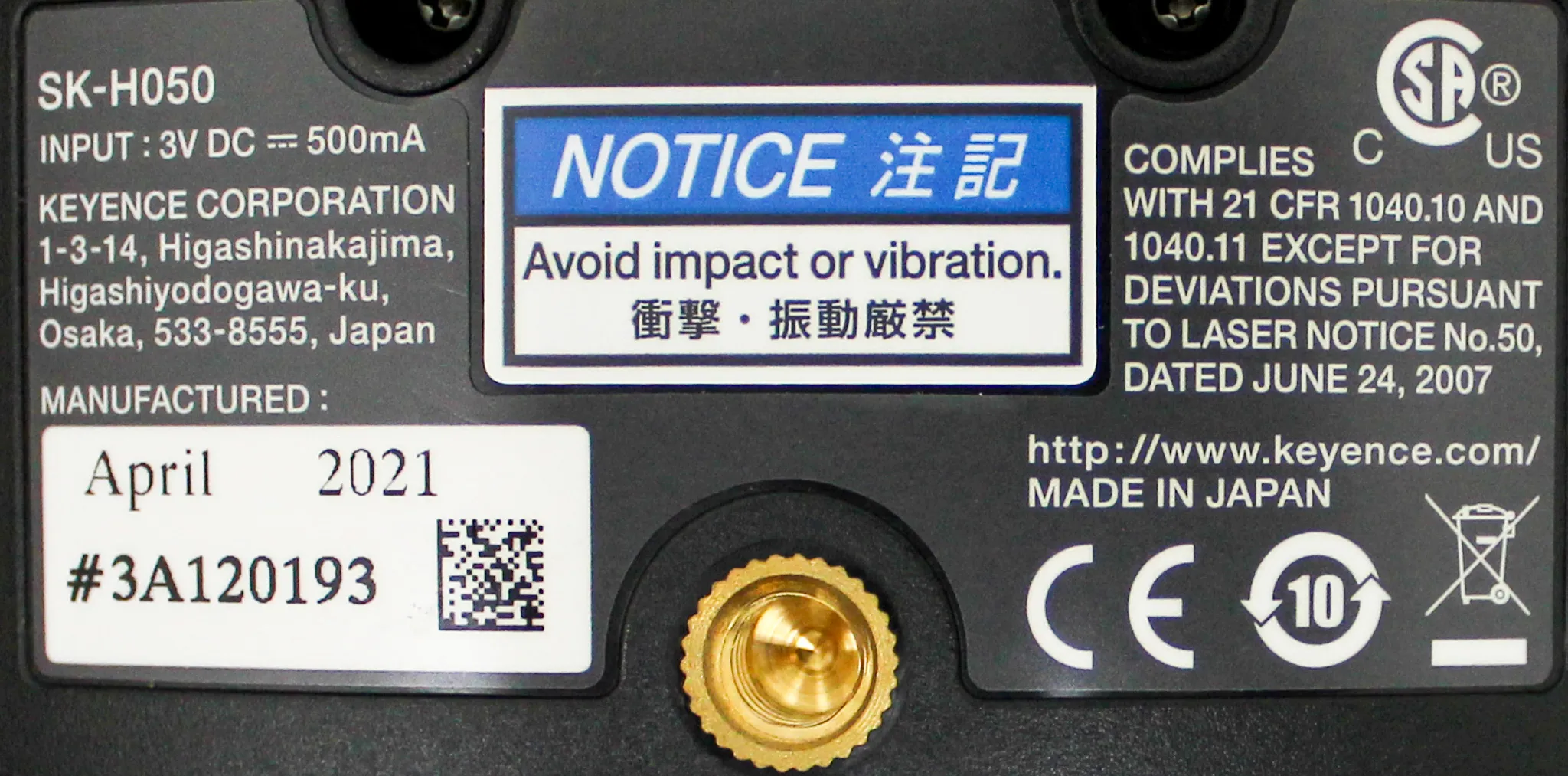

- Serial 3A120193
- Weight 6.0 Lb
- Voltage Does Not Apply
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 15.0in x 10.0in x 9.0in
- Shipping Type FedEx Ground
- Item Condition E (Excellent)
- Manufacturing Date Does Not Apply
Product Information
The Keyence SK-H050 High-Precision Electrostatic Sensor has been tested to specifications. Batteries are not included. The unit is missing the power cord and Electrostatic sensor. The SK Series electrostatic sensor measures static electricity and humidity simultaneously, providing accurate readings and correction of static electricity measurements based on the target distance. It also features a laser class 1 safety rating, PC interface, and USB 2.0 Full Speed connectivity. This sensor is widely used in industries prone to static electricity problems.
Key Features- High-precision mode and wide-range mode charge potential measurement
- Measurement accuracy of up to 100 V*1*2 in wide-range mode
- Temperature measurement range of 0 to +40°C
- Ion balance measuring mode and static elimination time measuring mode for charge monitor function
- USB 2.0 Full Speed PC interface for data transfer
- Model: SK-H050
- Charge potential measurement modes: High-precision mode, Wide-range mode
- Measuring distance: High-precision mode - 25 mm/0.98", Wide-range mode - 100 mm/3.94"
- Measuring range: High-precision mode - 2 kV, Wide-range mode - 50 kV
- Measuring accuracy: High-precision mode - 10 V*1, Wide-range mode - 100 V*1*2
- Display resolution: 0 to 999 V: 1 V, 1.00 to 9.99 kV: 0.01 kV
- Sampling cycle: Approximately 1.4 ms
- Temperature measurement range: 0 to +40°C/32 to 104°F
- Measuring accuracy: 1°C/30.2 to 33.8°F*3
- Humidity measurement range: 10 to 85% RH
- Measuring accuracy: 5% RH*3
- Ion balance measuring range: 1 kV*4
- Laser class: Class 1 Laser Product
- PC interface: USB 2.0 Full Speed
- Power supply: 2 AA alkaline dry-cell batteries
- Operating time: 8 hours (in charge potential measuring mode)
- Weight: Approximately 240 g
Metric: 0.24 kg
Imperial: 0.53 lb
Metric: 8 cm x 3 cm x 2 cm
Imperial: 3.15 in x 1.18 in x 0.79 in
903180
Harmonized Code Details903180 - Instruments and apparatus for measuring or checking voltage, current, resistance or power, with a recording device
