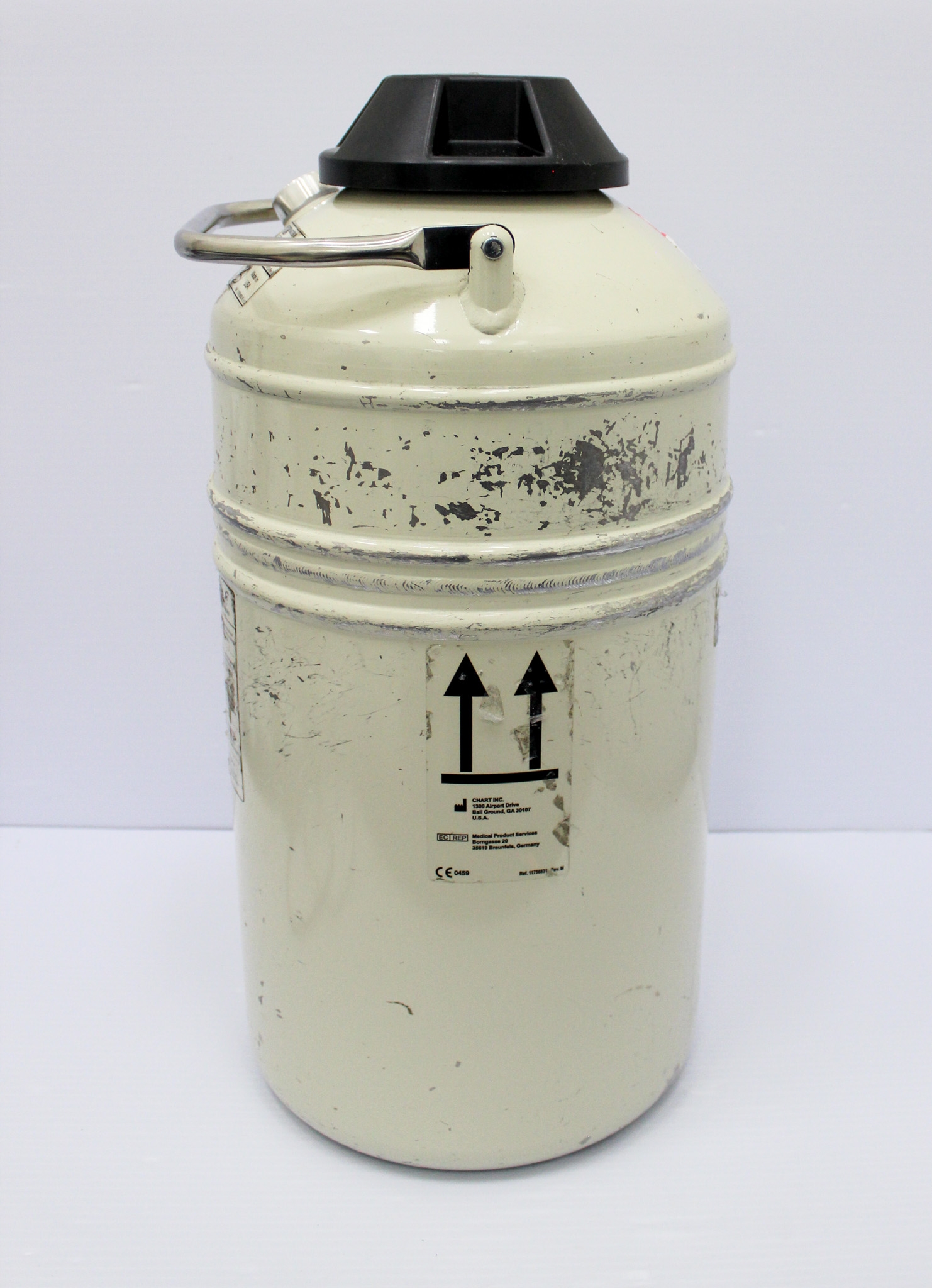

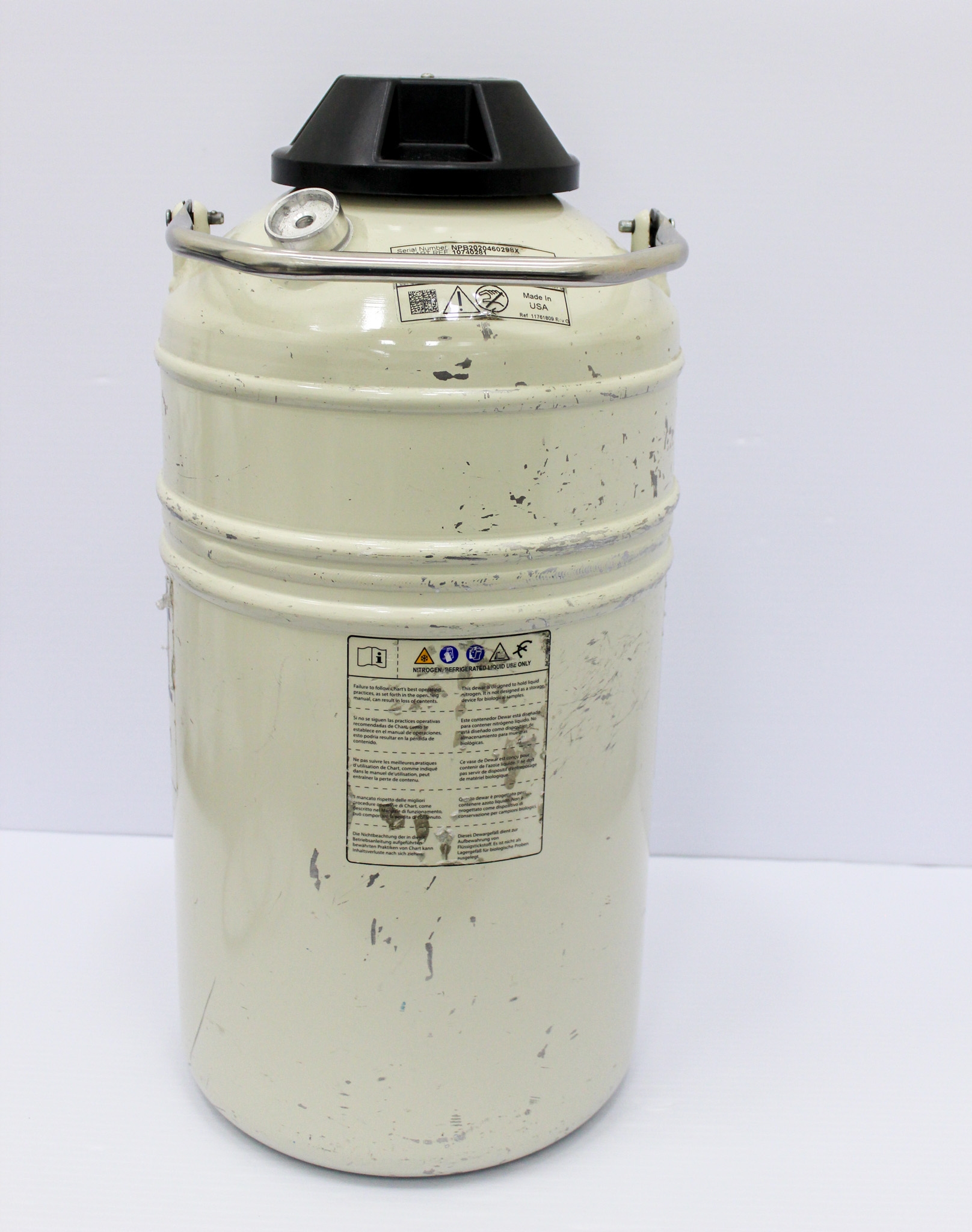

Chart MVE Lab10 Cryogenic Dewar 10L Liquid Nitrogen Storage Tank, Efficient LN2
Chart Industries
Details
-
CategoryCold Storage
-
Dimension11.0in x 11.0in x 22.0in
-

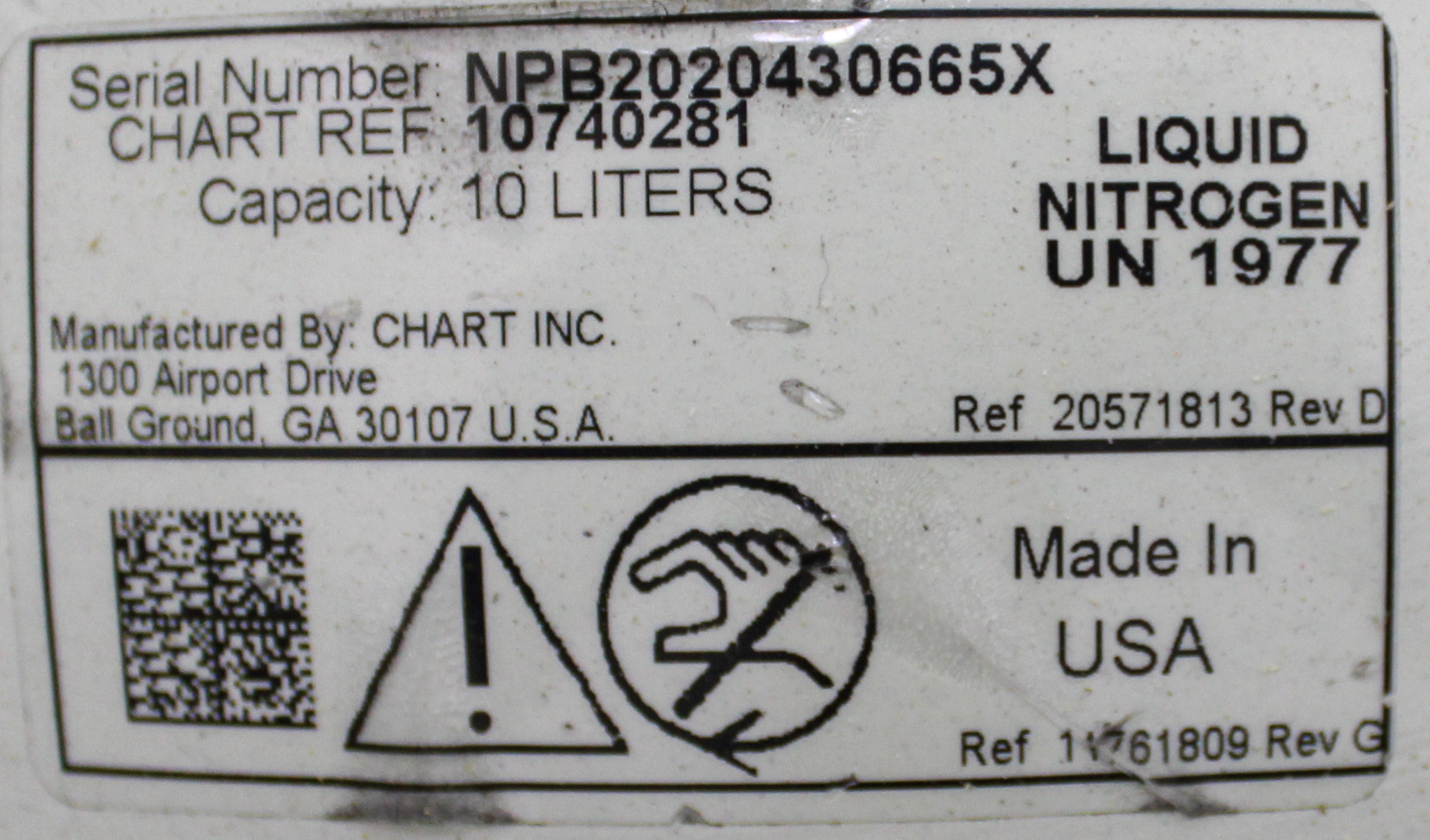

SerialNPB2020430665X
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Chart MVE Lab10 Cryogenic Dewar is a reliable choice for cryogenic liquid nitrogen storage, featuring a 10-liter capacity and robust construction. Manufactured by Chart Industries, this model is used yet functional, demonstrating minor cosmetic wear such as chipped paint that does not impact its operational capabilities. It is designed for extensive use in laboratory and medical settings worldwide, offering low liquid nitrogen consumption thanks to its super-insulated build and efficient design. With a high strength neck tube and advanced vacuum retention system, it minimizes LN2 loss, making it economical over long-term use. The unit is lightweight and inclusive of a durable composite lid. It is compliant with the MDD 93/42/EEC, aligning with EU Medical Device Directives. The MVE Lab Series Dewar, known for its convenient liquid nitrogen storage solutions, may be equipped with accessories such as pouring spouts for practical dispensing in various laboratory applications.
Key Features
- 10-liter liquid nitrogen capacity
- Low static evaporation rate of 0.18 L/day
- Efficient vacuum insulation for reduced nitrogen loss
- High strength neck tube
- Durable composite lid
- Lightweight and portable design
Specifications
- LN2 Capacity: 10 liters
- Static Evaporation Rate: 0.18 L/day

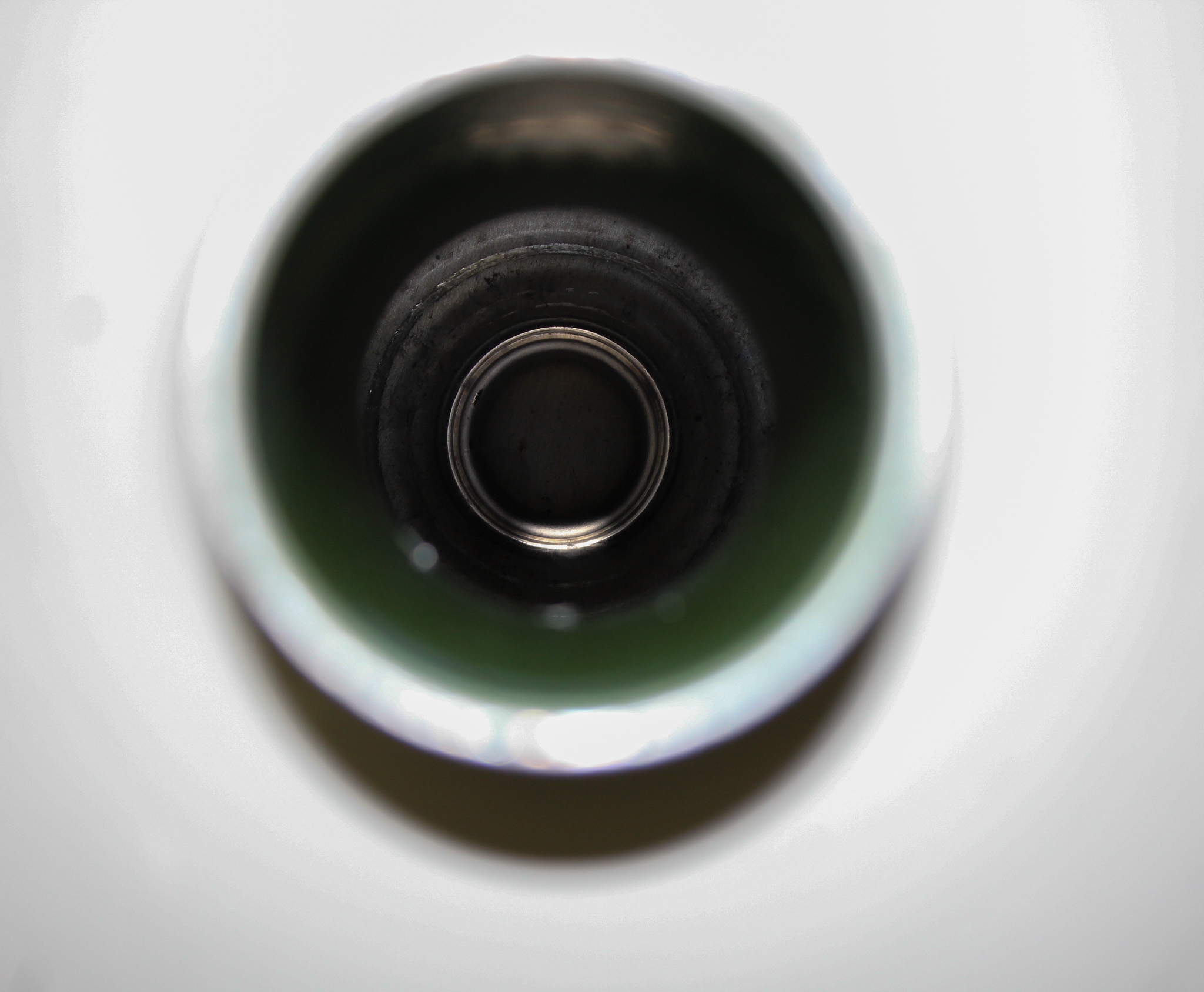

- Neck Opening: 2.18 inches (55.4 mm)
- Overall Height: 21.5 inches (546 mm)
- Useable Height: 13.5 inches (343 mm)
- Outer Diameter: 10.3 inches (260 mm)
- Internal Diameter: 8.3 inches (210 mm)
- Weight Empty: 12 lbs. (5.4 kg)
Weight
Imperial: 14.4 Pounds
Metric: 6.53 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 13.2 lb x 26.4 lb
Metric: 33.53 cm x 33.53 cm x 67.06 cm
Harmonized Code
7613009090
Harmonized Code Details
7613009090 - Aluminum containers for compressed or liquefied gas. This code is applicable due to the product's use in storing liquid nitrogen, a type of cryogenic and gaseous material, and its construction from materials typically categorized under this code.
