Chart MVE Lab 10 Cryogenic Dewar Liquid Nitrogen Storage Tank 10L

Product Information

The Chart MVE Lab 10 Cryogenic Dewar is a high-efficiency, super-insulated tank designed for storing and dispensing liquid nitrogen. It features a 10 liter capacity, low liquid nitrogen consumption, a durable composite lid design, and a high strength neck tube to reduce liquid nitrogen loss. These dewars are widely accepted in laboratories and medical facilities globally. They conform to MDD 93/42/EEC, the Medical Device Directive for the EU. The tank has a static evaporation rate of 0.18 L/day, ensuring efficient storage. It is suitable for a range of applications including stem cell processing, ultrasound testing, and platelet agitation.

• 10 liter Capacity
• Low liquid nitrogen consumption
• Advanced chemical vacuum retention system
• Conforms to MDD 93/42/EEC
• High strength neck tube to reduce liquid nitrogen loss

• LN2 Capacity: 10 liters
• Static Evaporation Rate: 0.18 L/day

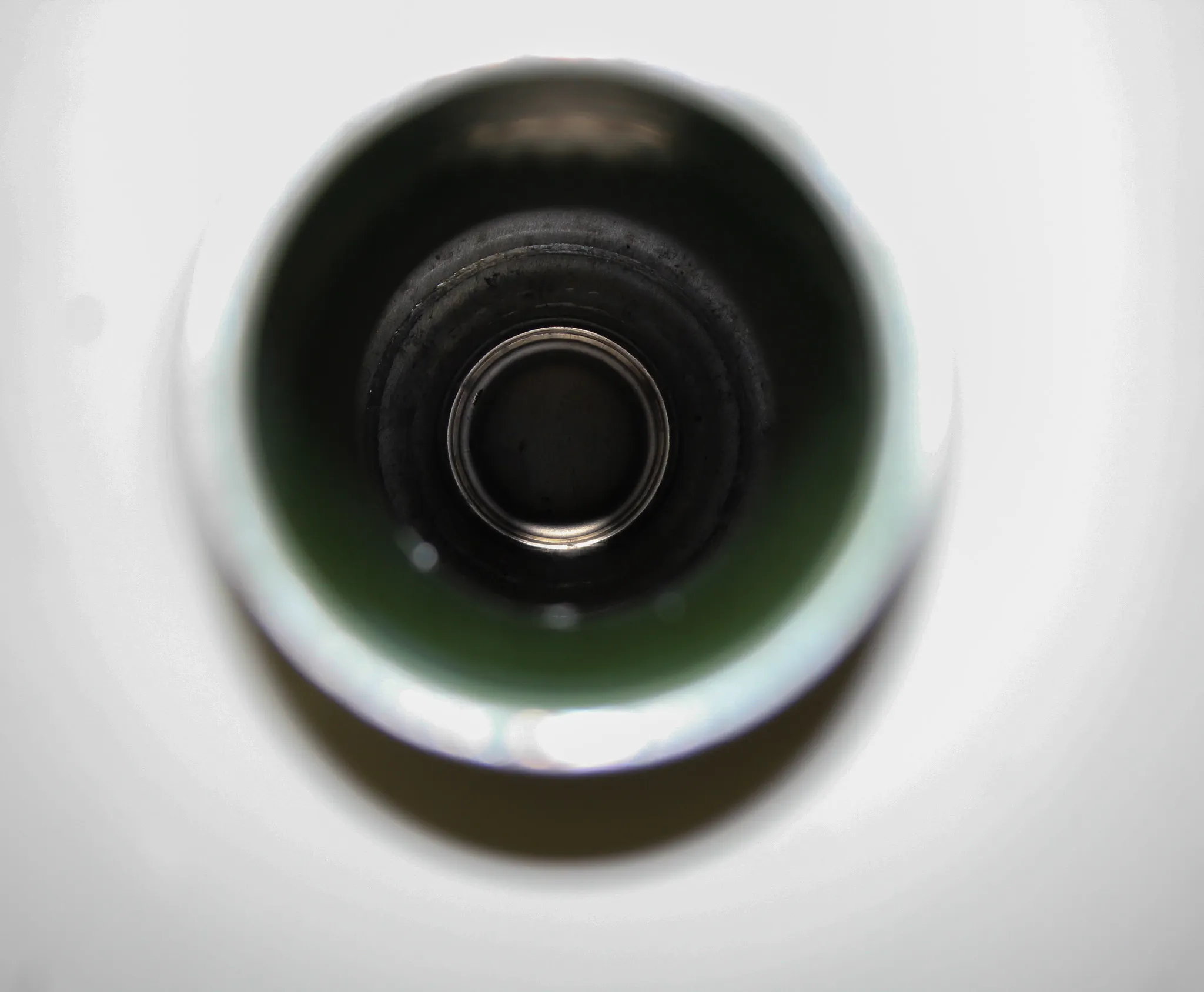

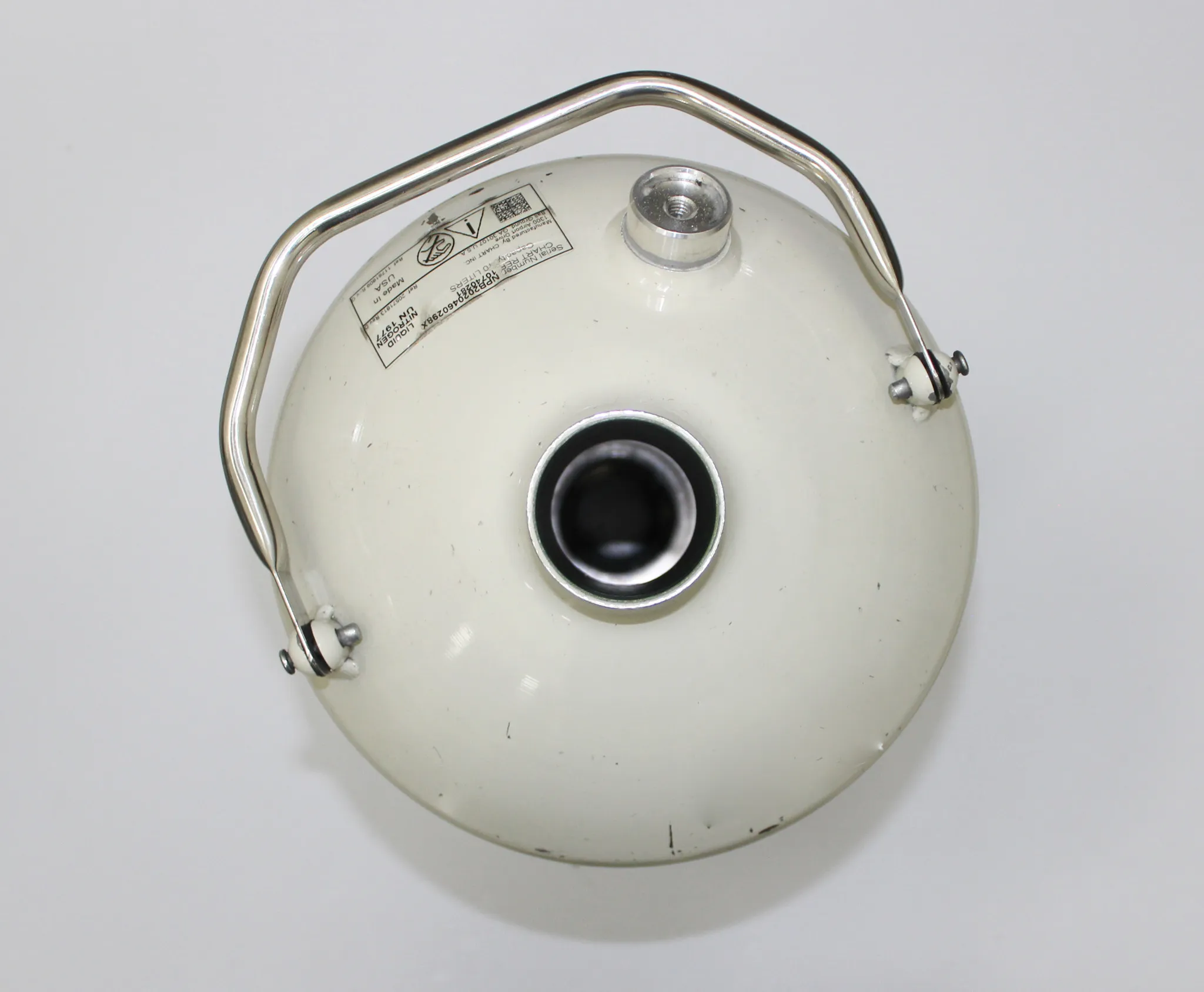

• Neck Opening: 55.4 mm
• Overall Height: 546 mm
• Useable Height: 343 mm
• Outer Diameter: 260 mm
• Internal Diameter: 210 mm
• Weight Empty: 5.4 kg
• Weight Full: 14 kg

Metric: 5.4 kg
Imperial: 12 lb

Metric: 27.94 cm x 27.94 cm x 73.66 cm
Imperial: 11 in x 11 in x 29 in

8418.99.60

8418.99.60 - Apparatus for the liquefaction of gases
