Teledyne CombiFlash RF Plus Chemistry Analyzer Purification System 200mL 150psi
Teledyne
Details
-
CategoryChemistry
-
Dimension18.0in x 15.0in x 24.0in
-

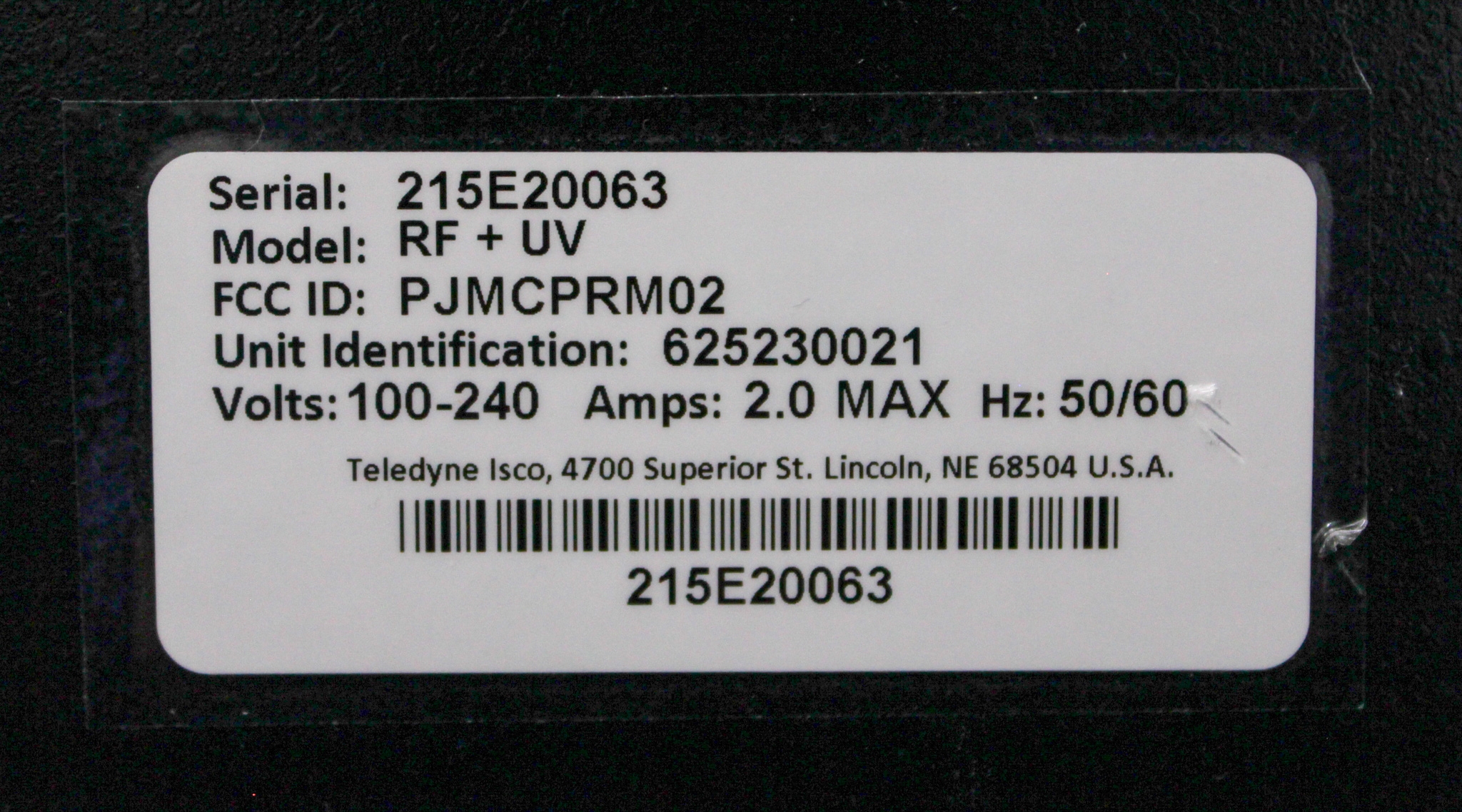

Serial215E20063
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

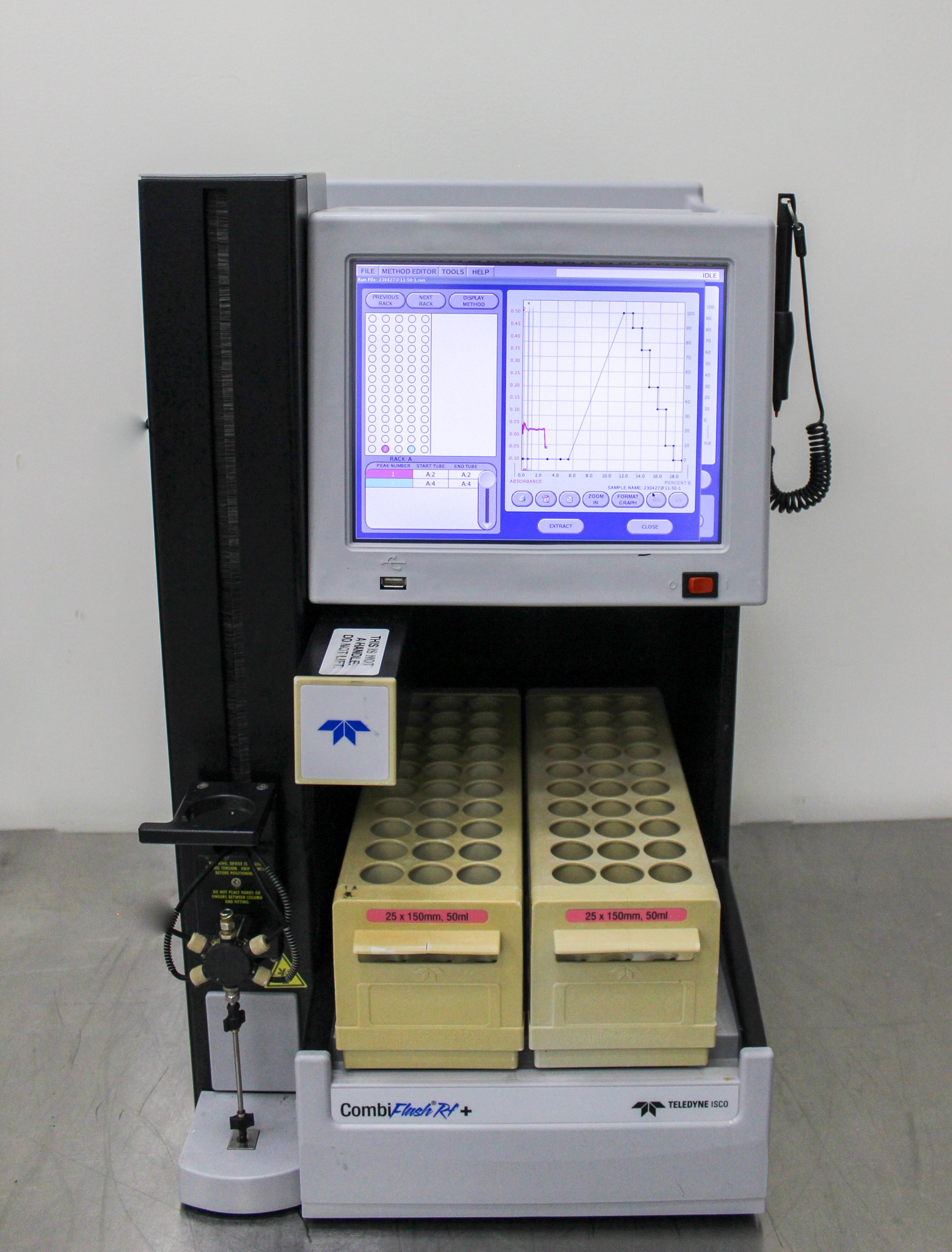

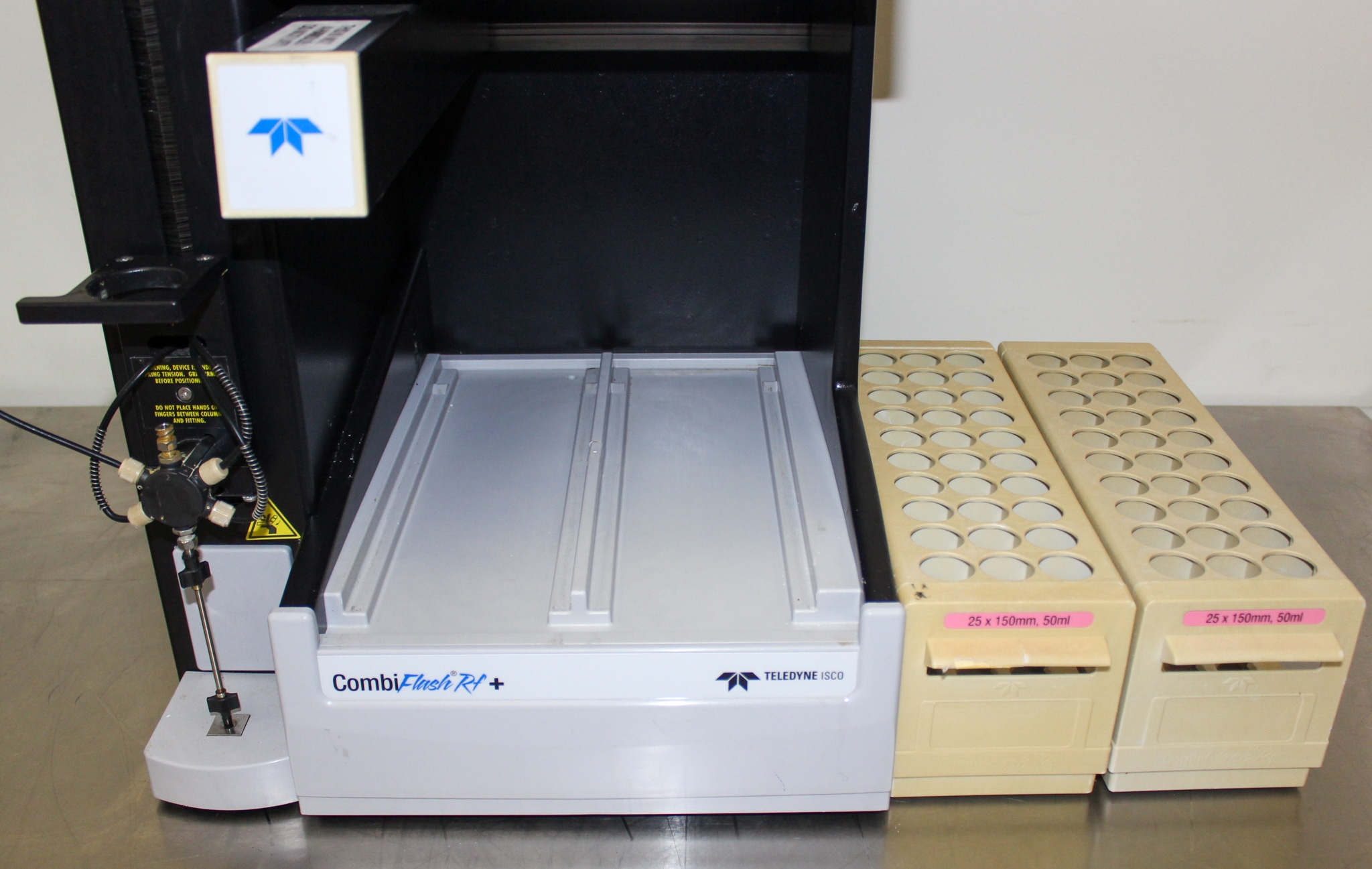

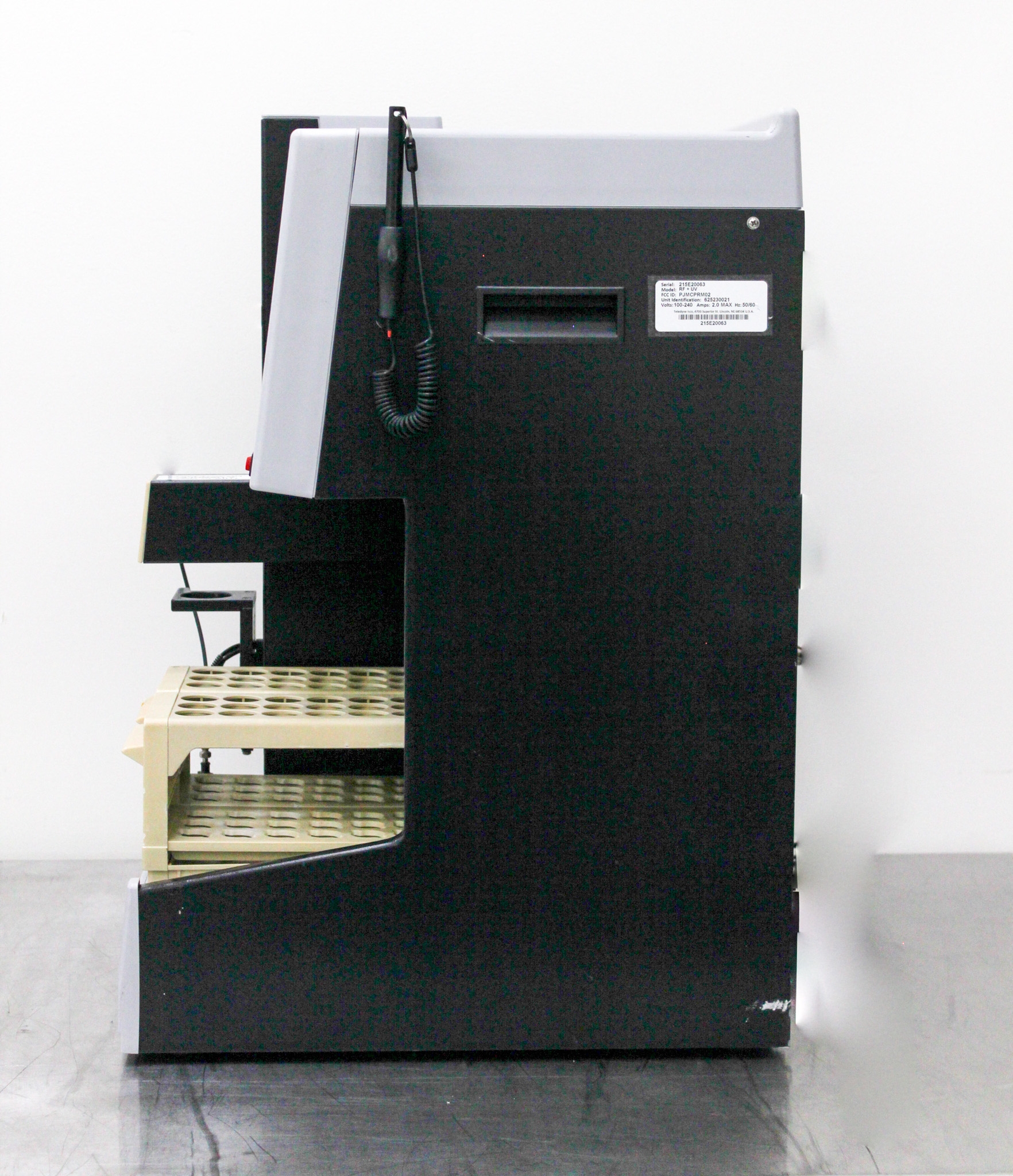

The Teledyne CombiFlash RF Plus UV Flash Chromatography System, model RF+UV, is expertly designed for efficient purification processes. Built robustly by Teledyne, this system has undergone power-on testing and basic functional checks with visible cosmetic wear from regular usage. It delivers purification capabilities for synthetic compounds, natural products, and polymers at pressures up to 150 psi. Integrated with real-time UV spectrum display, RFID automation, and waste management features, it ensures columns remain moist and prevents overfill. Its 10.4-inch touch screen offers user-friendly navigation. This unit, originating from the US, supports binary gradients up to 4 solvents with a flow rate of 1-200 mL/min and a maximum pressure of 200 psi. Other features include built-in method scaling capabilities, active solvent management, and network connectivity for remote monitoring.
Key Features
- Efficient reversed phase purification system
- Operates at pressures up to 150 psi
- Flow rate range: 1 - 200 mL/min

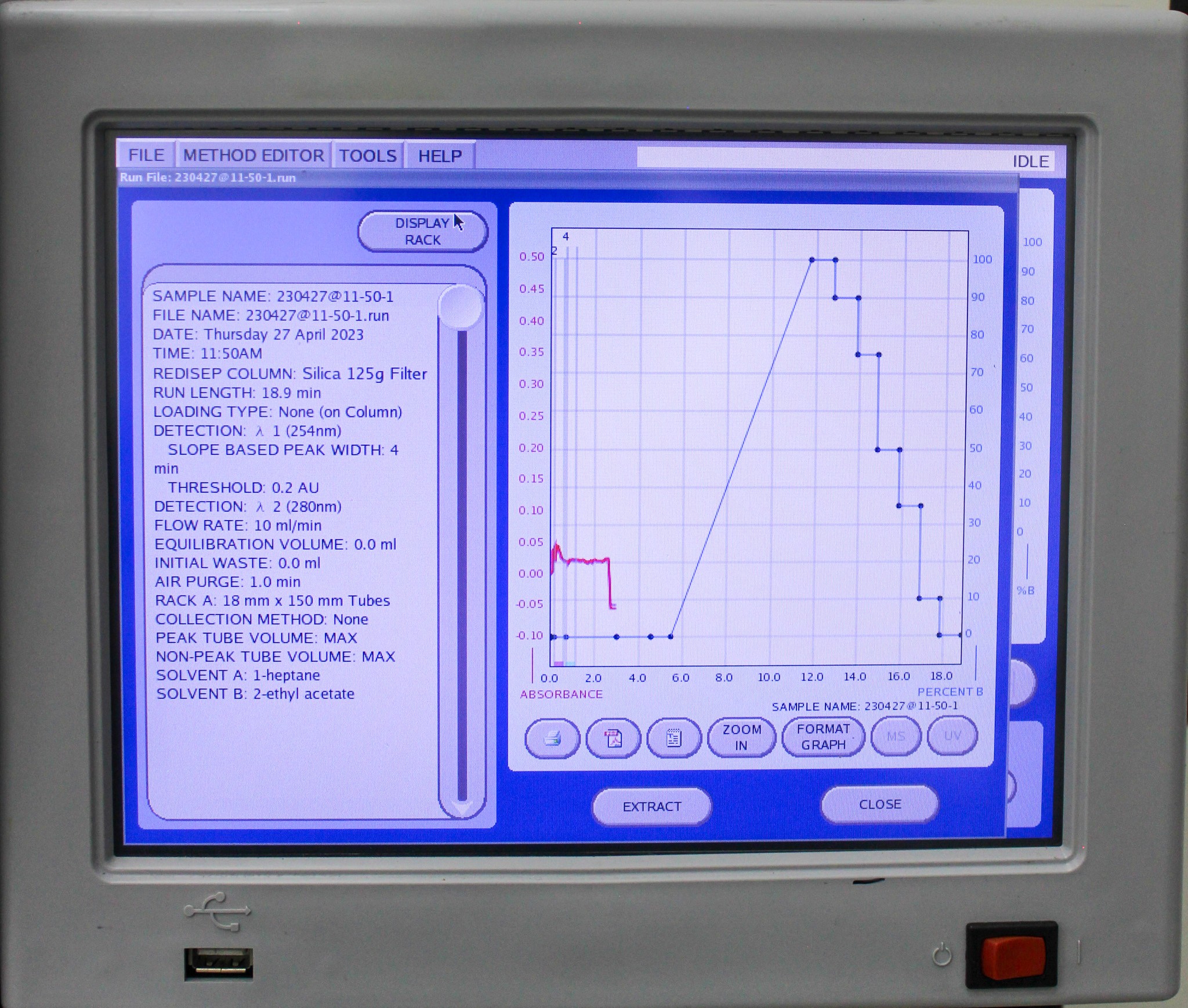

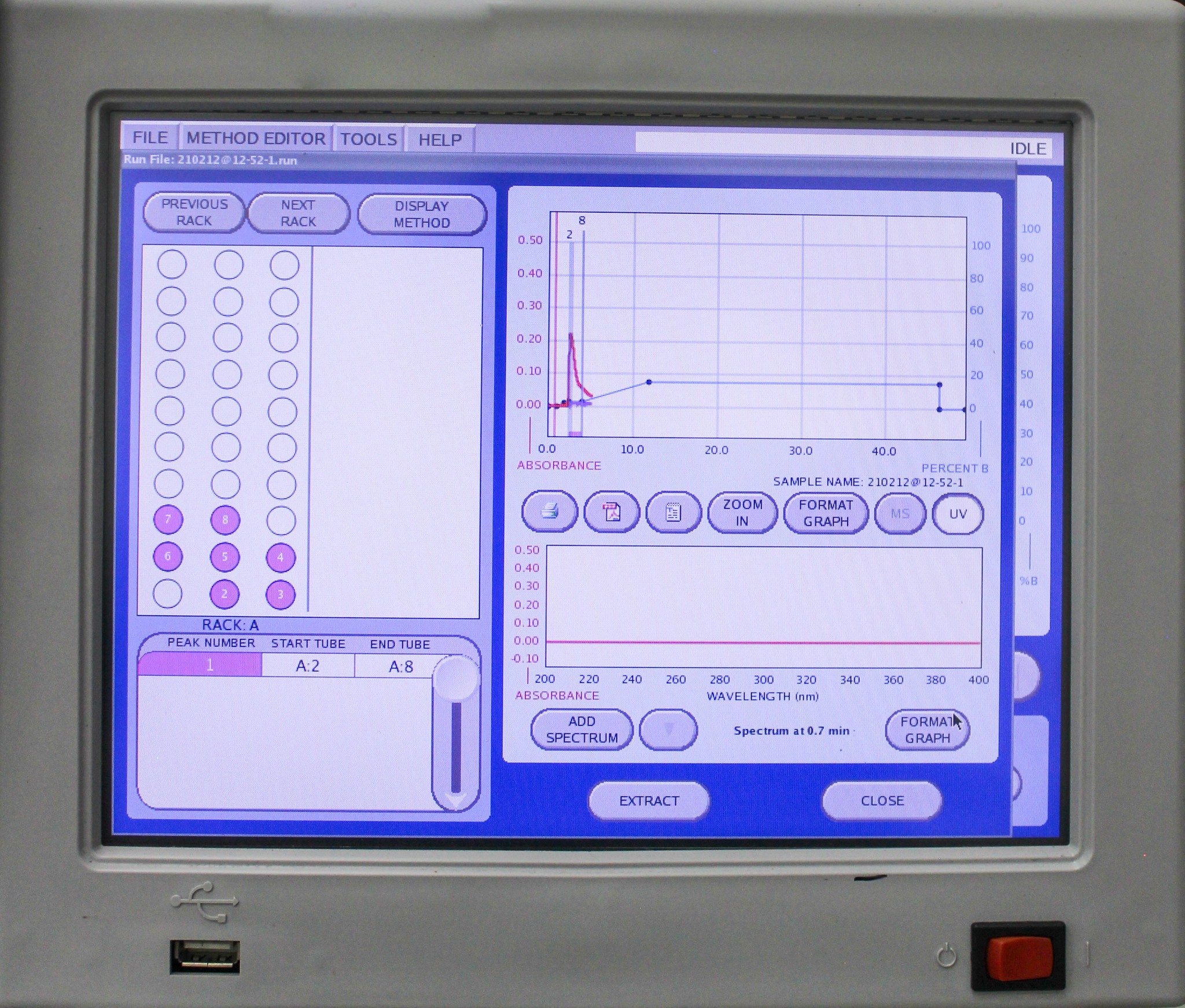

- Real-time and post-run UV spectrum display
- RFID technology for automation
- Built-in solvent and waste management
- Internal fraction collector

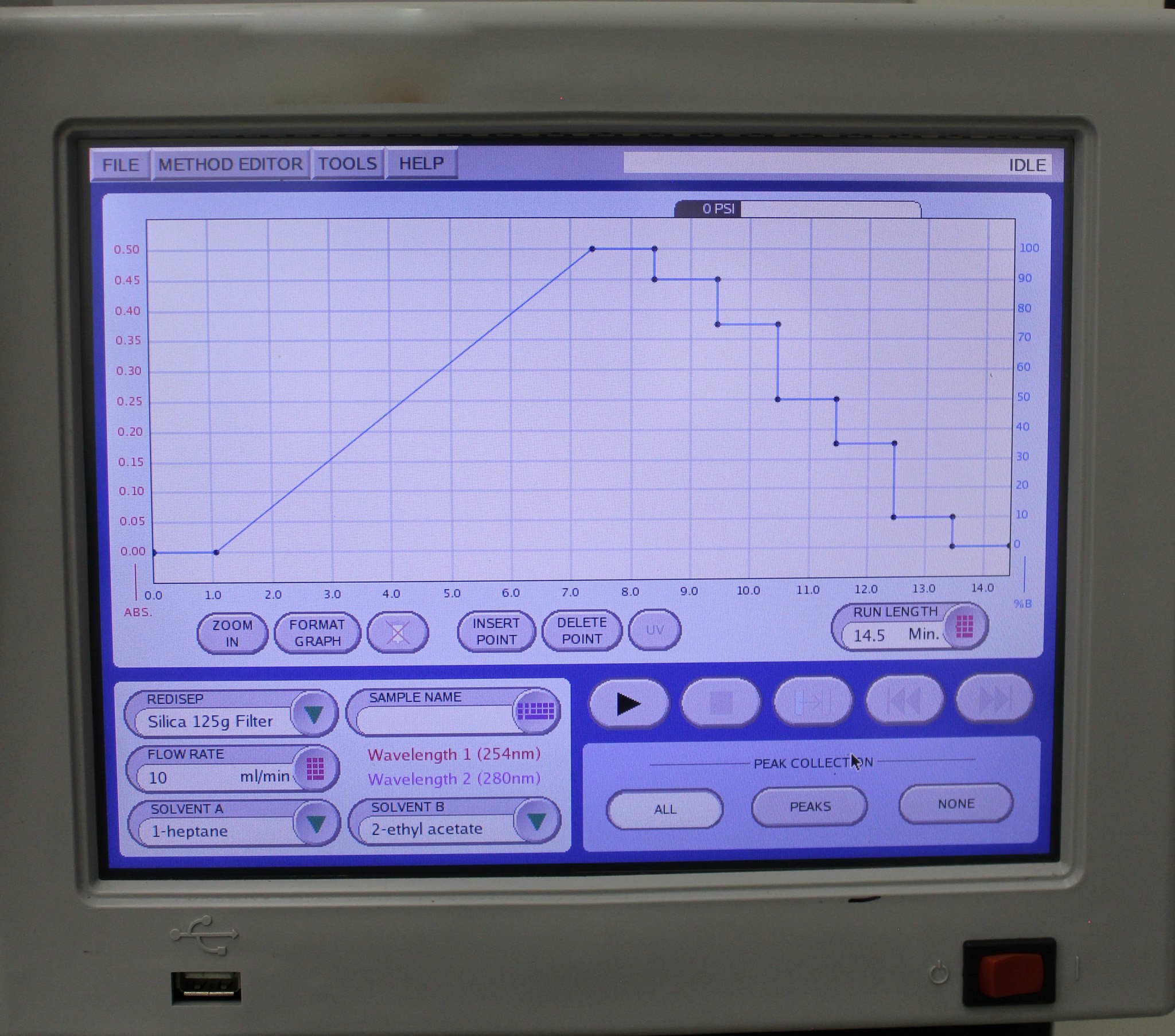

- 10.4-inch touch screen interface
- Network connectivity for remote monitoring
- Compatible with normal and reversed phase conditions
Specifications
- Flow Rate Range: 1 - 200 mL/min
- Maximum Pressure: 200 psi (14 bar)
- UV Detection: 200 - 400 nm, UV-Vis optional 200 - 800 nm
- Programmable Gradients: Linear, step, isocratic

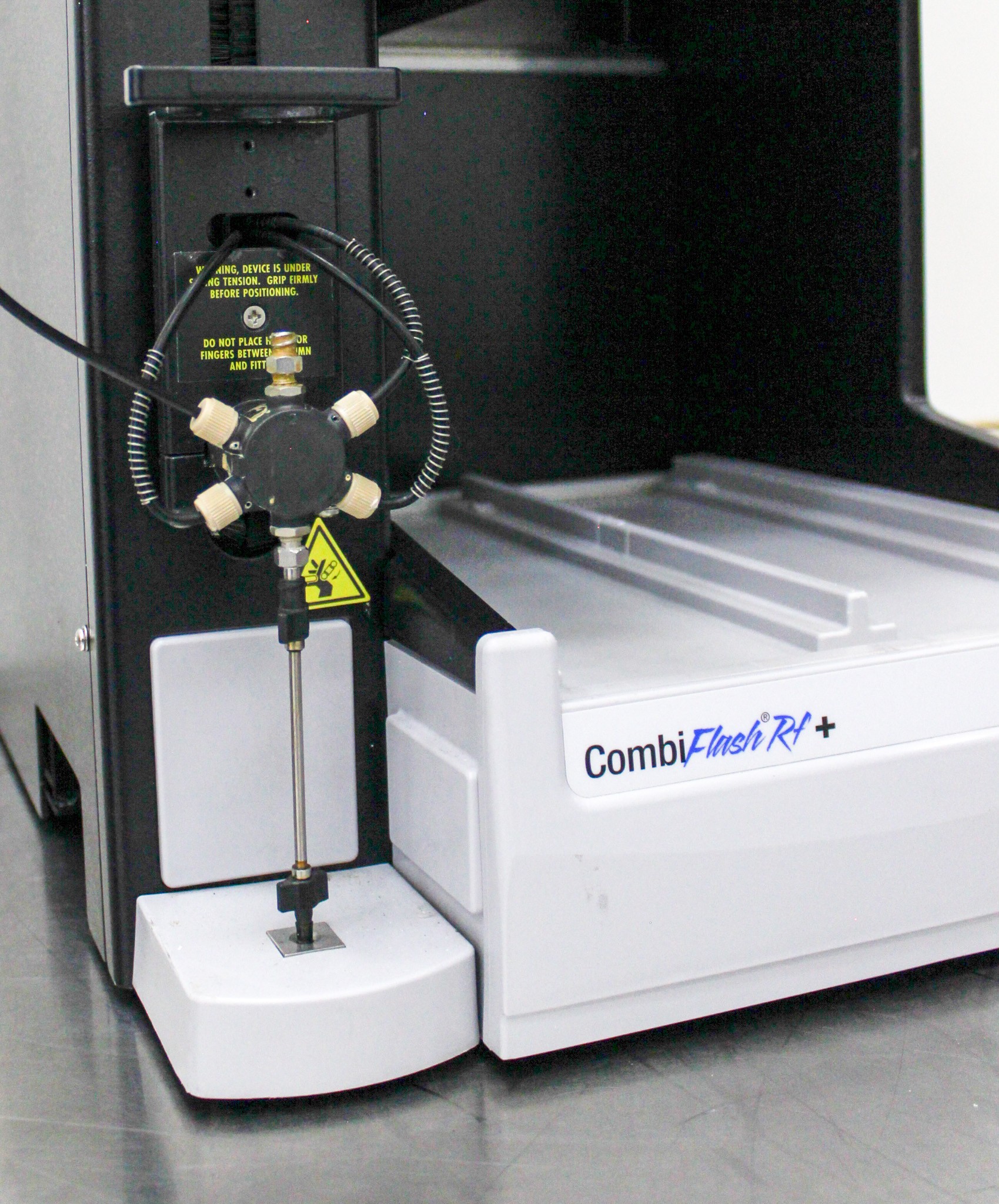

- Sample Injections: Auto-inject with 6-position motorized valve
- User Interface: 10.4" touch screen
- Built-in Networking: Remote monitoring and data analysis
- Dimensions: 24 x 14.1 x 17 in (61.0 x 35.8 x 43.2 cm)
- Gas Requirements: 65 psi (4.6 BAR) Nitrogen or inert gas
- Spray Chamber Temperature: Ambient to 120 C
- Drift Tube Temperature: 10 - 70 C
Weight
Imperial: 32.4 Pounds
Metric: 14.7 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 18.0 lb x 28.8 lb
Metric: 54.86 cm x 45.72 cm x 73.15 cm
Harmonized Code
9027.80.4560
Harmonized Code Details
This code relates to chromatography equipment used in laboratories. The Teledyne CombiFlash RF+ falls under this category due to its purification system capabilities customized for life sciences laboratory use.
