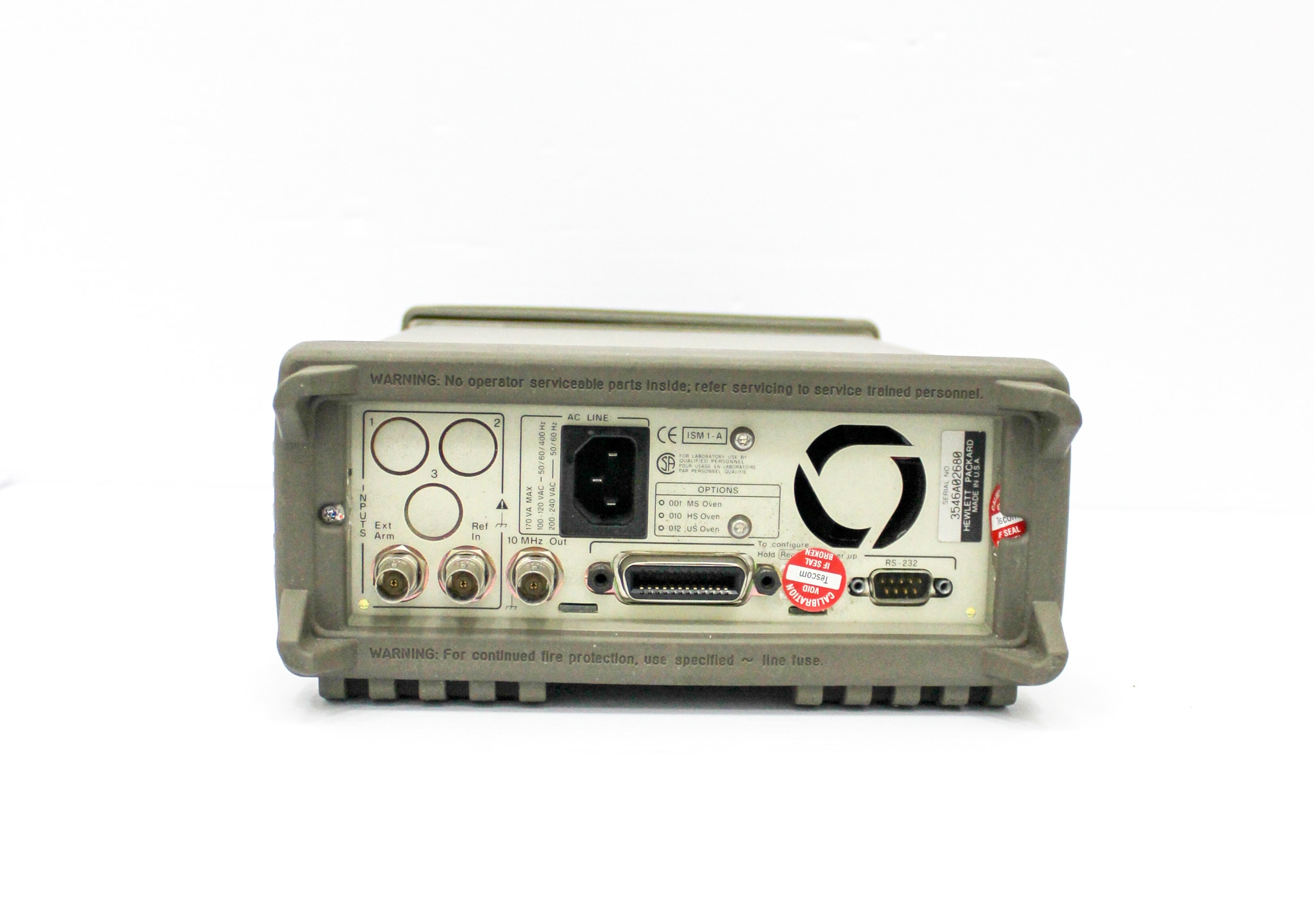

HP 53132A Universal Counter Testing Equipment 225MHz 12 Digits Functional
Hewlett Packard
Details
-
CategoryTesting Equipment
-
Dimension16.0in x 9.0in x 4.0in
-
Serial3546A02680
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Hewlett Packard (HP) 53132A Universal Counter, a reliable unit manufactured in the United States, offers a frequency range from DC to 225 MHz with a precision resolution of 12 digits per second. Despite being previously used, this device functions optimally and has been tested according to specifications. Although minor cosmetic damage exists from normal use, it passes function tests with confidence. It features a dynamic range of 20 mV to 5 Vac and input impedance of 50 ohms. With a 150 ps time interval resolution and the possibility to include an optional third channel measuring up to 12.4 GHz, this counter is suitable for comprehensive testing and analysis tasks. Equipped with two 225 MHz channels, this model offers interfaces like GPIB (IEEE-488) and RS-232, ensuring streamlined communication. Furthermore, it operates on 100-120 Vac and consumes 120V with 50Hz/60Hz frequency. The device is ideal for precise frequency measurement and analysis applications in laboratory settings.
Key Features
- Tested to specifications, with slight cosmetic wear
- Frequency range: DC to 225 MHz with optional channel up to 12.4 GHz
- Resolution: 12 digits per second, dynamic range: 20 mV to 5 Vac
- Input impedance of 50 ohms or 1 megohm, AC or DC
- 150 ps time interval resolution
- Standard time base precision: 10 MHz
- Two 225 MHz channels with GPIB and RS-232 interfaces
- Operates on 100-120 Vac; 120V; 50Hz/60Hz
Specifications
- Frequency Range: DC to 225 MHz with optional third channel up to 3 GHz, 5 GHz, or 12.4 GHz
- Resolution: 12 digits per second
- Dynamic Range: 20 mV to 5 Vac (DC to 100 MHz), 30 mV to 5 Vac (100 to 200 MHz), 40 mV to 5 Vac (200 to 225 MHz)
- Input Impedance: 50 ohms or 1 megohm, AC or DC
- Time Interval Resolution: 150 ps
- Standard Time Base Accuracy: 10 MHz, <3 x 10^-7/month
- Interfaces: GPIB (IEEE-488) and RS-232 (talk only)
- Power: 100-120 Vac ±10%; 50, 60, 400 Hz ±10%
- Operation: 220, 240 Vac ±10%; 50, 60 Hz ±10%
- Input Sensitivity: 20 mVrms - 5 Vrms
Weight
Imperial: 8.4 Pounds
Metric: 3.81 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 10.8 lb x 4.8 lb
Metric: 48.77 cm x 27.43 cm x 12.19 cm
Harmonized Code
903033
Harmonized Code Details
Harmonized code 903033 corresponds to 'Other Instruments and Apparatus for Measuring or Checking Voltage, Current, Resistance or Power'. This selection is apt for the HP 53132A Universal Counter as it specializes in frequency testing and voltage measurement.
