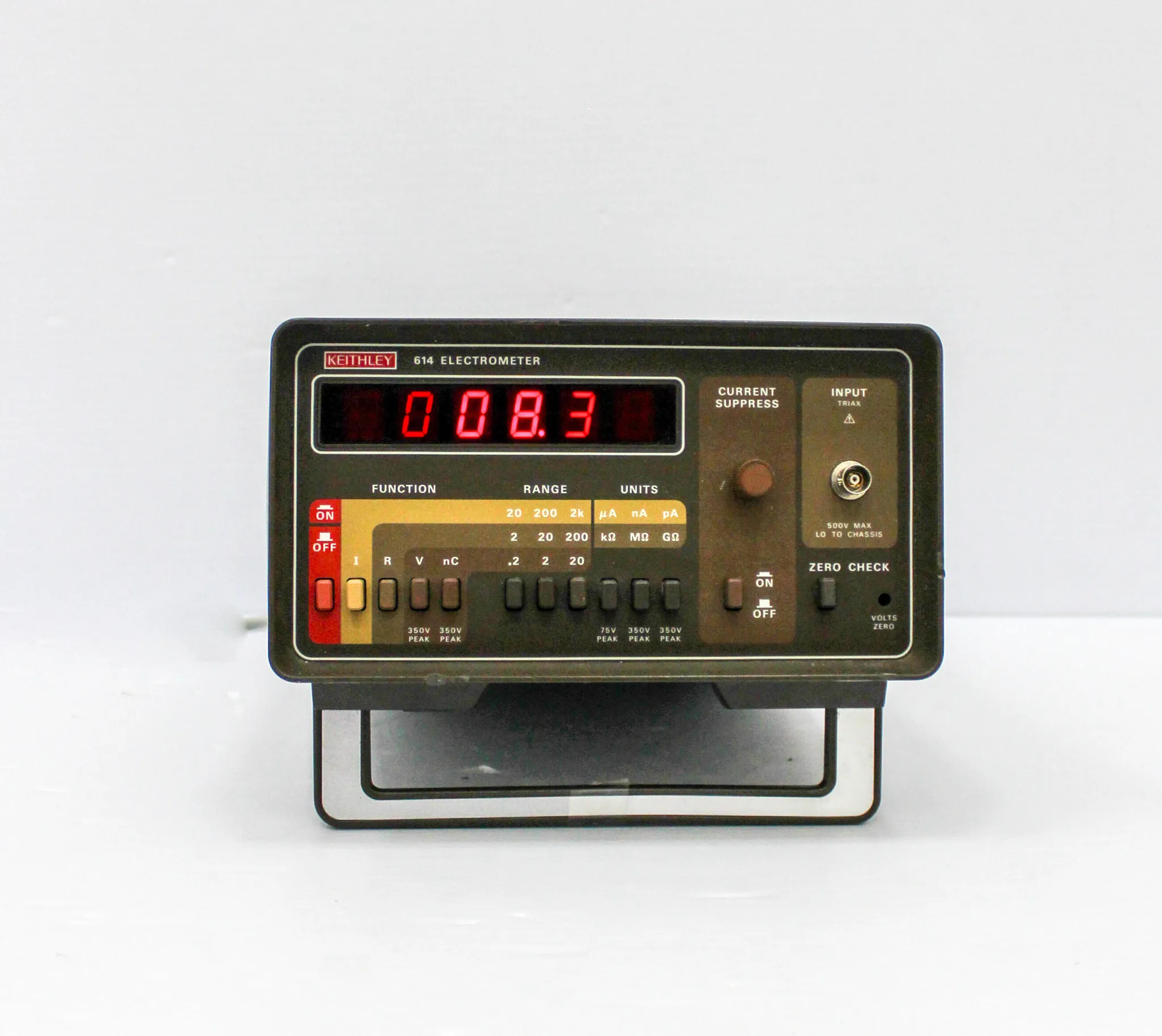

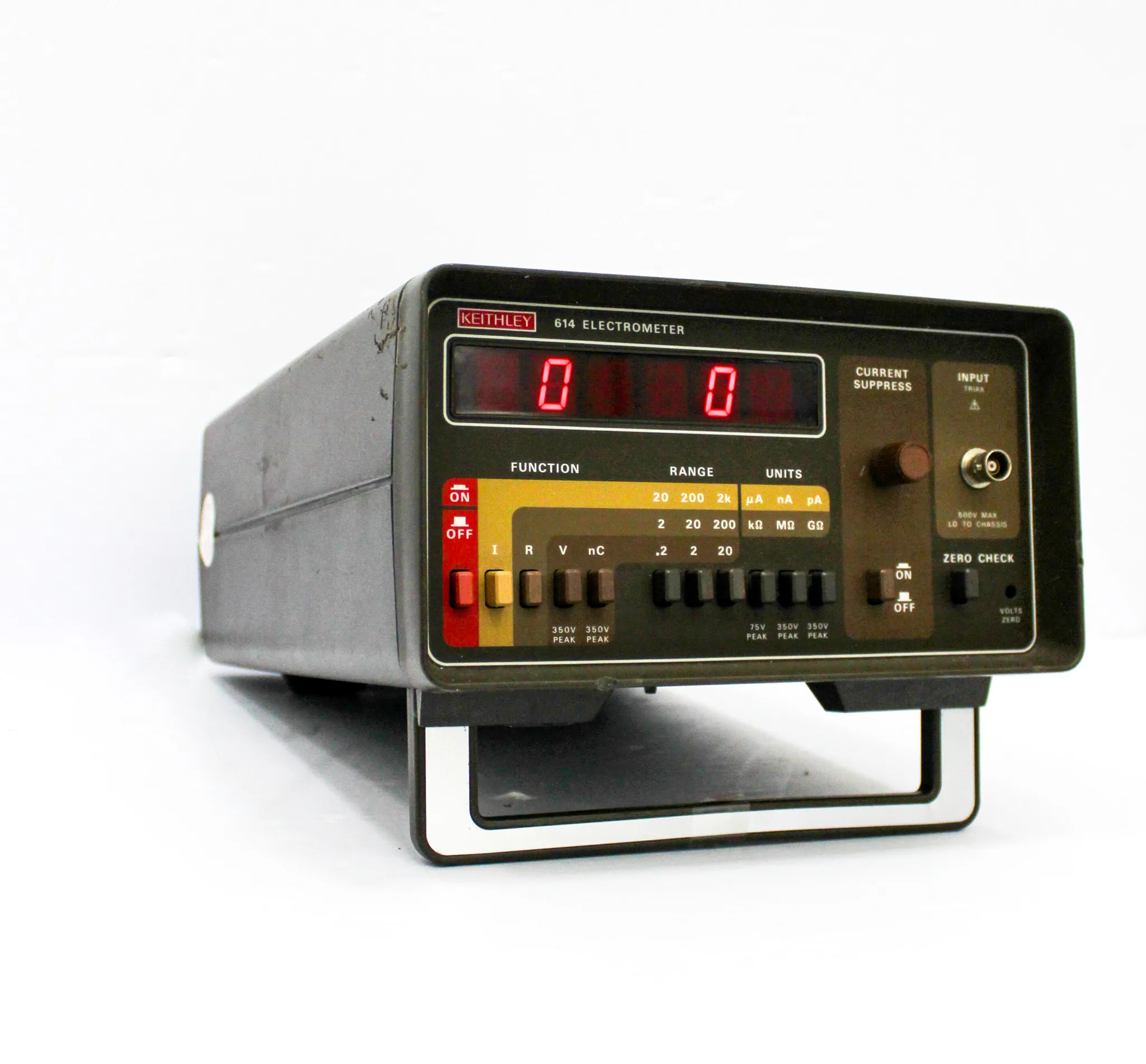

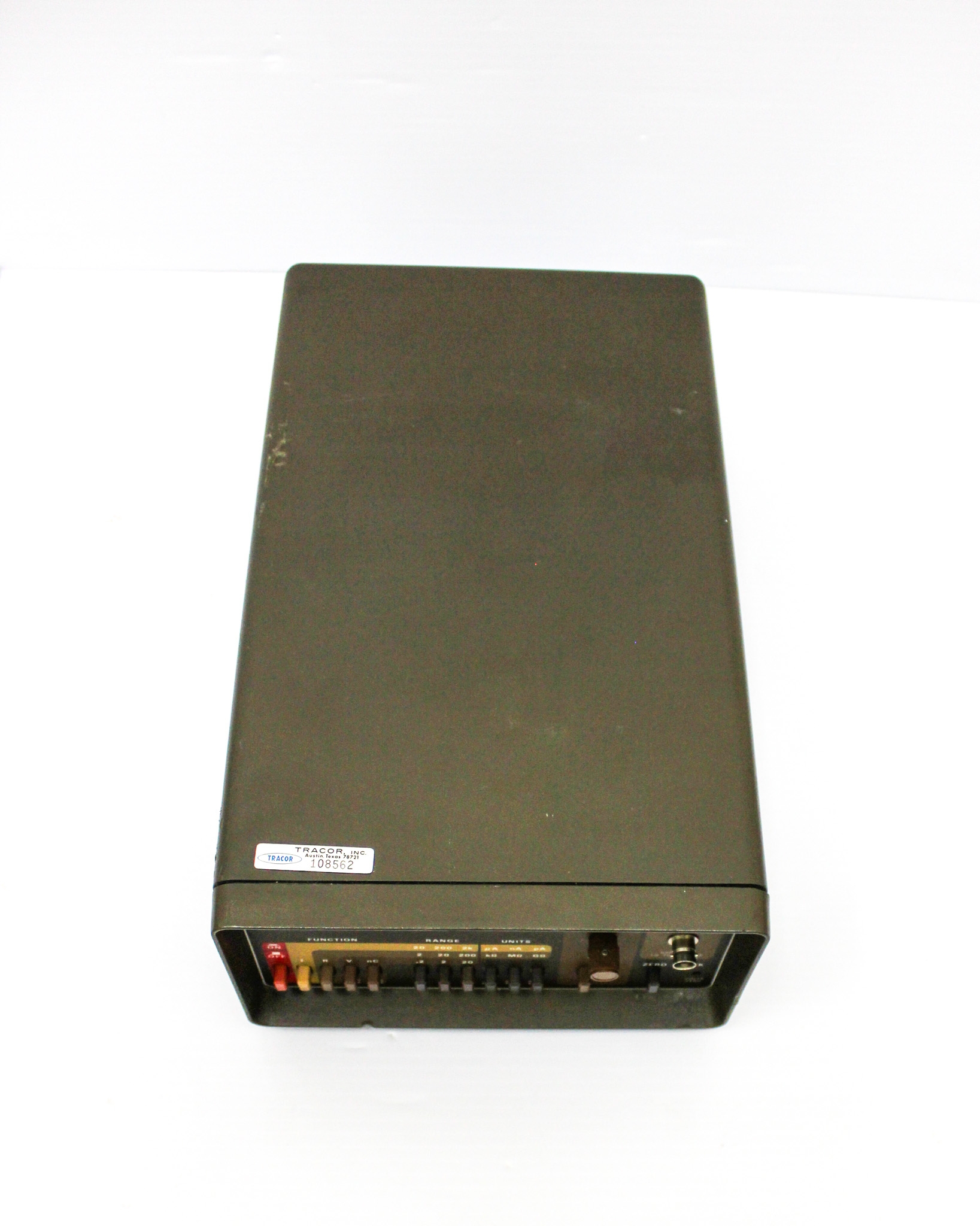

TRACOR Keithley 614 Electrometer

Product Information

The TRACOR Keithley 614 Electrometer is a 4 1/2 digit multimeter designed with speed and simplicity of use. It features four functions: current, resistance, voltage, and charge measurement. Capable of detecting currents as low as 10 -14 A and resistances up to 2 x 10E+11 ohms, this electrometer provides more than 5x10E+13 ohms input impedance on the voltage ranges and can detect charge over a range of 10E-14 to 2 x 10E-08C. The Model 614 is an electrometer with 10-14 A sensitivity and comes with various features such as 4 1/2-digit display, 2V Analog Output, Preamp Output, Current Suppress, Automatic polarity operation, and Battery Pack standard. It is used for applications such as semiconductor and material research, electrochemistry, and radiation measurements in labs.

• 4 1/2-digit display

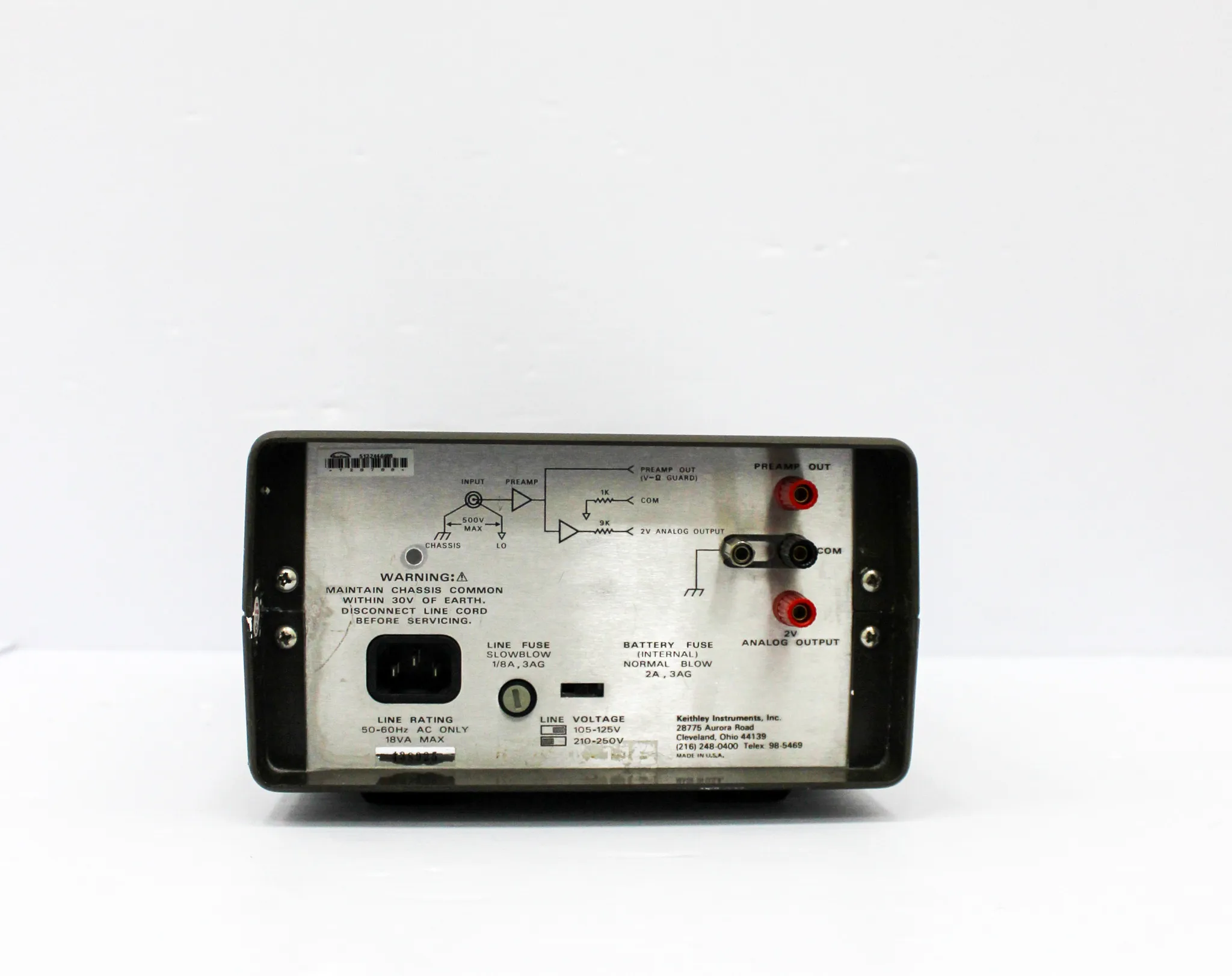

• 2V Analog Output
• Preamp Output with current suppress feature
• Automatic polarity operation
• Battery Pack standard

• Current Sensitivity: 10-14 A
• Resistance Sensitivity: 1 to 2x10/11 ohm
• Voltage Sensitivity: 10uV to 20V, input impedance of greater than 50T(5x10/13)
• Charge Sensitivity: 10fC (10-14 Coulombs) to 20nC(2x10-8 Coulombs)
• Voltage Ranges: 0.2 V to 20 V in 3 ranges with accuracies to 0.08%
• Current Ranges: 20 pA to 2000 A in 9 ranges with accuracies from 1.5 to 0.3%
• Resistance Ranges: 2 kohms to 200 Gohms in 9 ranges with accuracies from 0.5 to 2%

Metric: 6.80388793449 kg
Imperial: 15.0001419074 lb

Metric: 55.88 cm x 40.64 cm x 30.48 cm
Imperial: 22 in x 16 in x 12 in

903033 - Instruments and Apparatus for Measuring or Checking Voltage, Current, Resistance, or Power; Other Instruments and Apparatus; Other

This code is used for apparatus for measuring current, resistance, and voltage. It fits the description of the product, given its features and applications in laboratories and research settings.
