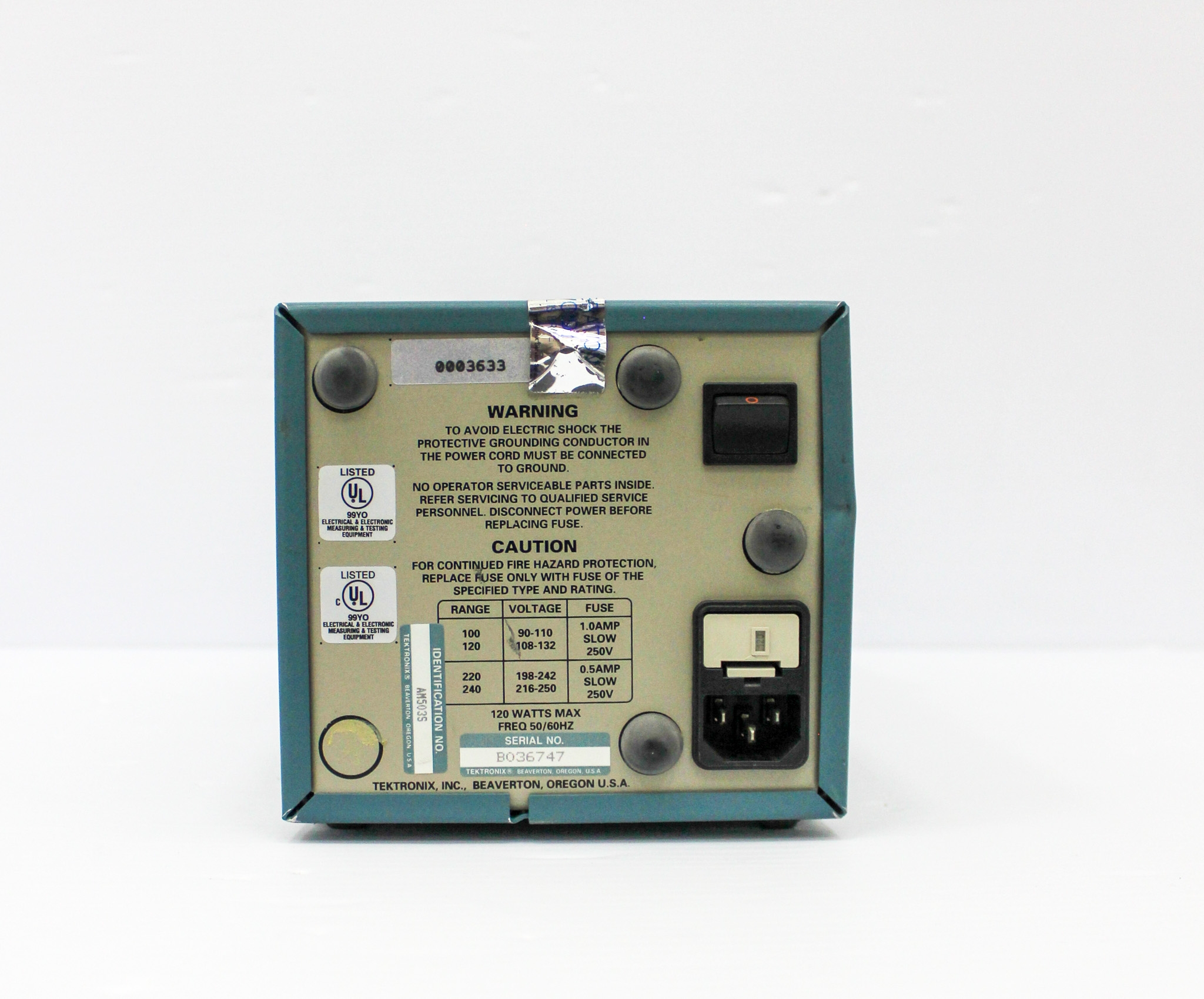

Tektronix TM502A Power Mainframe 2 Slot w/ AM503S Current Probe Amplifier
Tektronix
Details
-
CategoryComputer / IT
-
Dimension18.0in x 7.0in x 6.0in
-
SerialB036747
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Tektronix TM502A Mainframe Power Module is designed to accommodate up to two single-width TM 500 plug-ins and features the AM503S Current Probe Amplifier, a significant advancement in ease of use over the AM503A. This used model, reflecting a condition of good, offers microprocessor-controlled functions, a benchtop-friendly design with tilt bail handle, and clear LED indicators for easy operation. The TM502A supports multiple line voltages (100 V, 120 V, 220 V, 240 V), and its power module supplies a robust wattage profile suitable for complex electronic test and measurement applications. The TM502A is a compact and portable solution for laboratories requiring versatile mainframe power solutions, promising reliable performance despite some cosmetic wear typical of prior usage. Please note this product comes with a power cord, and additional accessories such as computer or software are not included.
Key Features
- Compatible with two TM 500 plug-ins
- Microprocessor-controlled operations
- AM503S Current Probe Amplifier included
- LEDs display current/division settings
- Line voltage inputs: 100 V, 120 V, 220 V, 240 V
- Portable with tilt bail handle design
Specifications
- Line Voltage: 100 V, 120 V, 220 V, 240 V ± 10%
- Line Frequency: 48 Hz to 440 Hz
- Operation Type: 2 compartments
- Maximum Power: 90 W
- Plug-in Supply: +33.5 V / -33.5 V, 350 mA max ea.
- +11.5 V, 1.3 A max, shared with 17.5 VAC winding
- 17.5 VAC with grounded center tap, 30 VA max
- 35 W DC or 75 VA Max plug-in power draw
- Combined power draw limitation: <75 VA + 2.1 W DC
Weight
Imperial: 14.4 Pounds
Metric: 6.53 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 8.4 lb x 7.2 lb
Metric: 54.86 cm x 21.34 cm x 18.29 cm
Harmonized Code
903089
Harmonized Code Details
903089: Instruments and apparatus for measuring or checking voltage, current, resistance or power, without a recording device. This code is applied due to the item's function as a power module and current probe amplifier.
