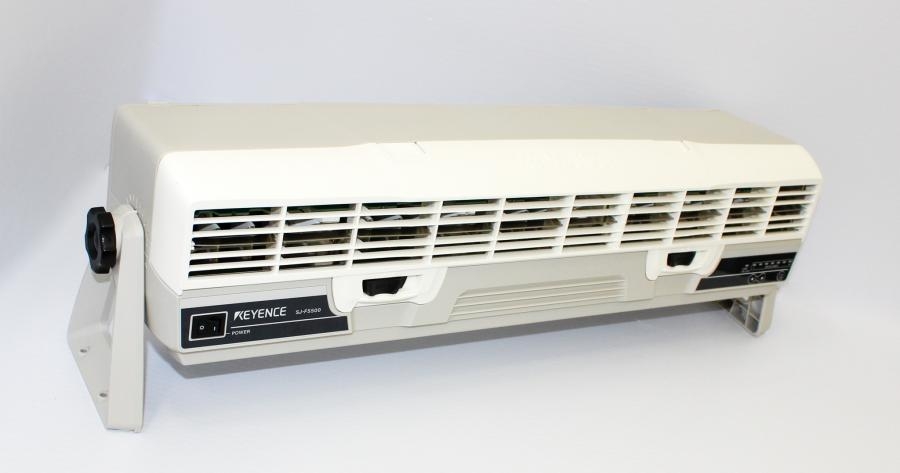

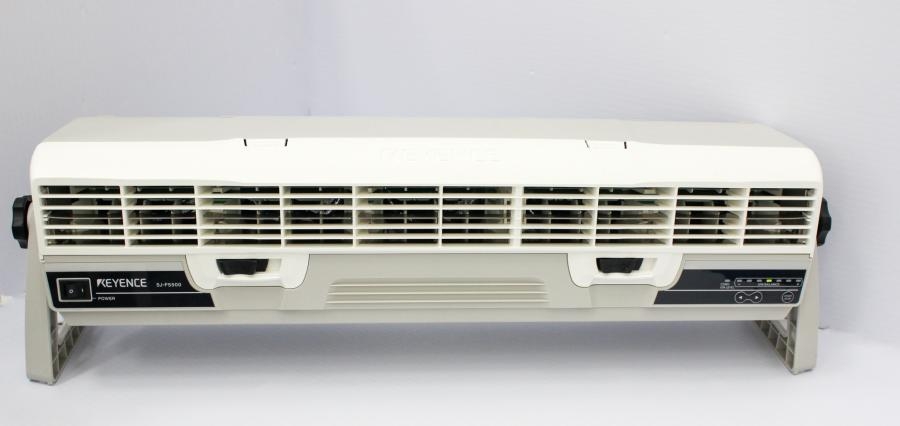

Keyence SJ-F5500 Static Eliminator Blower 7000V 18.7ft/s Used Effective
Keyence
Details
-
CategoryMiscellaneous
-
Dimension6.0in x 25.0in x 7.0in
-
Serial8A120491
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Keyence SJ-F5500 Static Eliminator Blower, engineered in the United States and marked by the globally recognized brand Keyence, is an advanced electrostatic solution designed to mitigate the effects of static electricity. This unit, manufactured to high-strength specifications, excels in preventing dust adhesion and electrostatic discharge that could lead to component destruction. Featuring a pulse AC voltage application method and a 7000V output, the SJ-F5500 achieves equalized ion balance with its I.C.C. technology in approximately 0.6 seconds. This effectively eliminates static over a minimal operating distance of 50mm. The blower can reach wind speeds of up to 5.7 m/s and maintain efficiency across a temperature range of 0 to +50°C. With slight cosmetic imperfections detected from previous use, this used device remains fully functional and continues to meet industry product standards. The equipment's ambient adaptability and humidity measurement capabilities allow for precise control over static electricity conditions. Power is supplied via an AC cord input, rated for 100 to 240 VAC, at a consumption of 90VA. Computer is not included.
Key Features
- High-speed static elimination
- Pulse AC voltage method
- 7000V output
- Ion balance control with I.C.C.
- Approx. 0.6 sec elimination time
- Max wind speed: 5.7 m/s
- Ambient temperature: 0 to +50°C

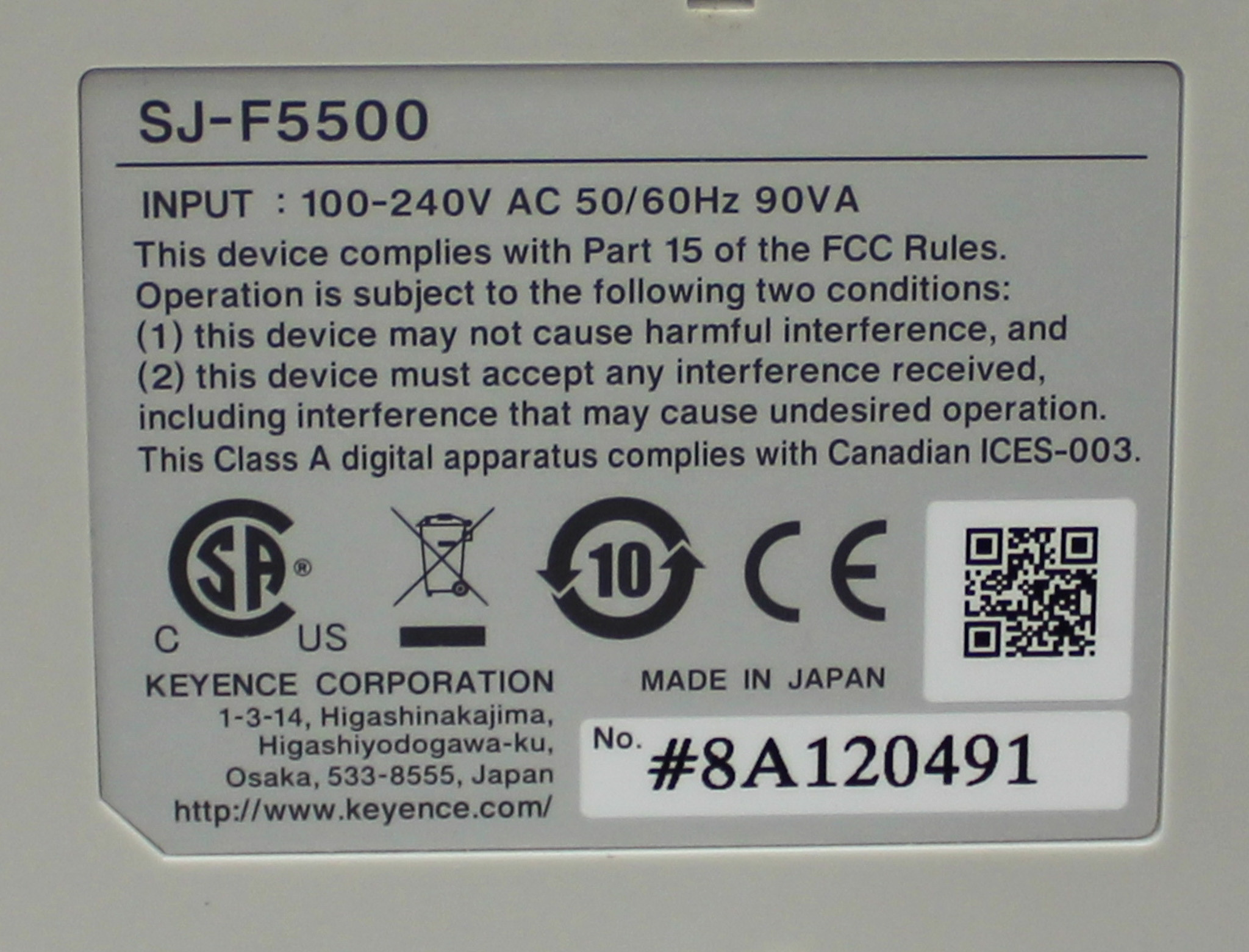

- Power input: 100-240 VAC, 90 VA
Specifications
- Model: SJ-F5500
- Type: 600 mm
- Voltage Application: Pulse AC method
- Applied Voltage: 7000V
- Ion Balance Control: I.C.C.
- Ion Balance: ±5V
- Static Elimination Time: Approx. 0.6 sec
- Operating Distance: 50 mm minimum
- Maximum Wind Speed: 5.7 m/s
- Ambient Temperature Range: 0 to +50°C
- Relative Humidity: 35 to 65 % RH
- Maximum Air Volume: 10.0 m³/min
- Ozone Density: Max 0.005 ppm
- Power Source Input: AC cord
- Rating: 100 to 240 VAC, 50/60 Hz
- Power Consumption: 90 VA
Weight
Imperial: 13.2 Pounds
Metric: 5.99 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 30.0 lb x 8.4 lb
Metric: 18.29 cm x 76.2 cm x 21.34 cm
Harmonized Code
841459
Harmonized Code Details
841459 - Other Fans; Parts, Electric; Others. Selected for Keyence SJ-F5500 as it is categorized as an electric air circulation device designed to control static, fitting the role of 'Other Fans'.
