BINDER Gravity Convention Drying and Heating Oven model: ED 56/ 9010-0334
- Make Binder
- Hertz 60Hz US
- Model Drying and Heating Oven/ ED56

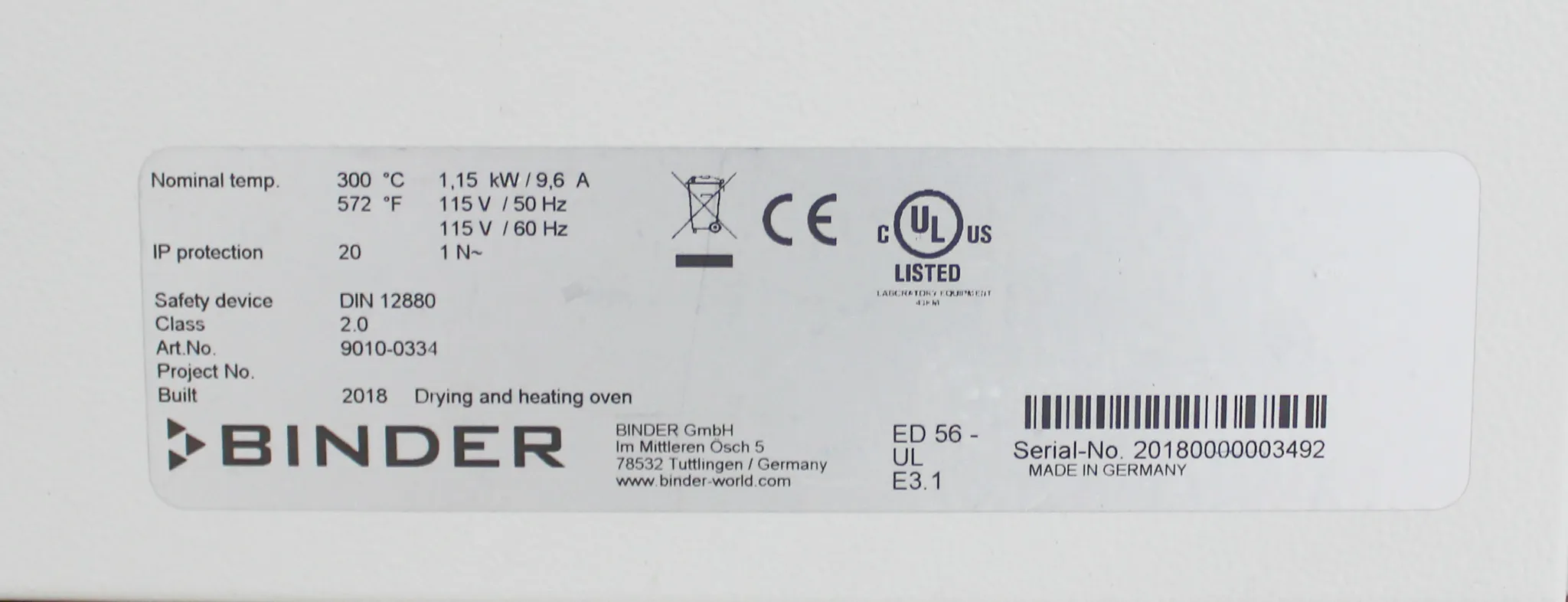

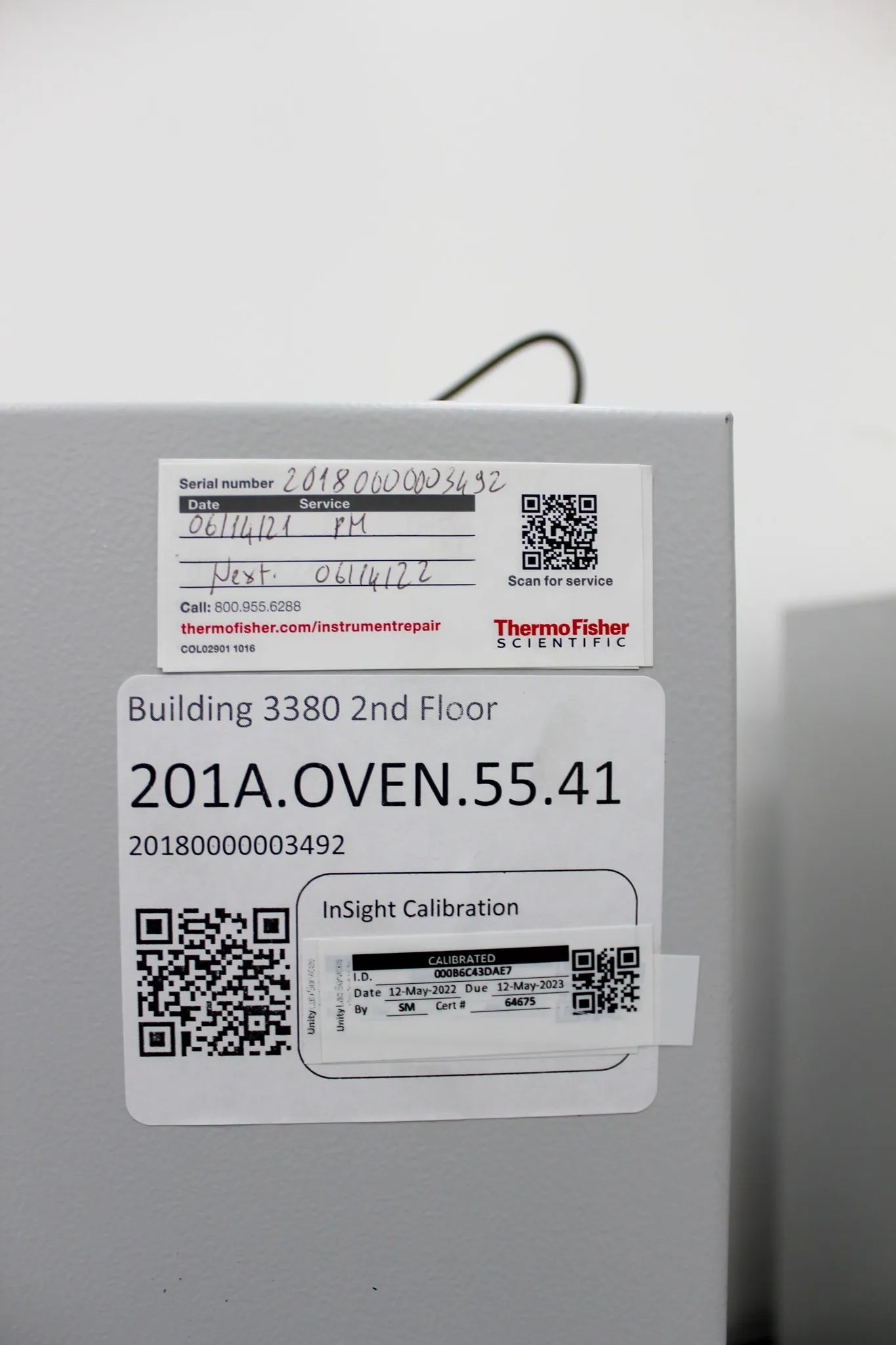

- Serial 20180000003492
- Weight 72.0 Lb
- Voltage 120V
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 26.0in x 32.0in x 31.0in
- Shipping Type FedEx Ground
- Item Condition VG (Very Good)
- Manufacturing Date 2018-01-01

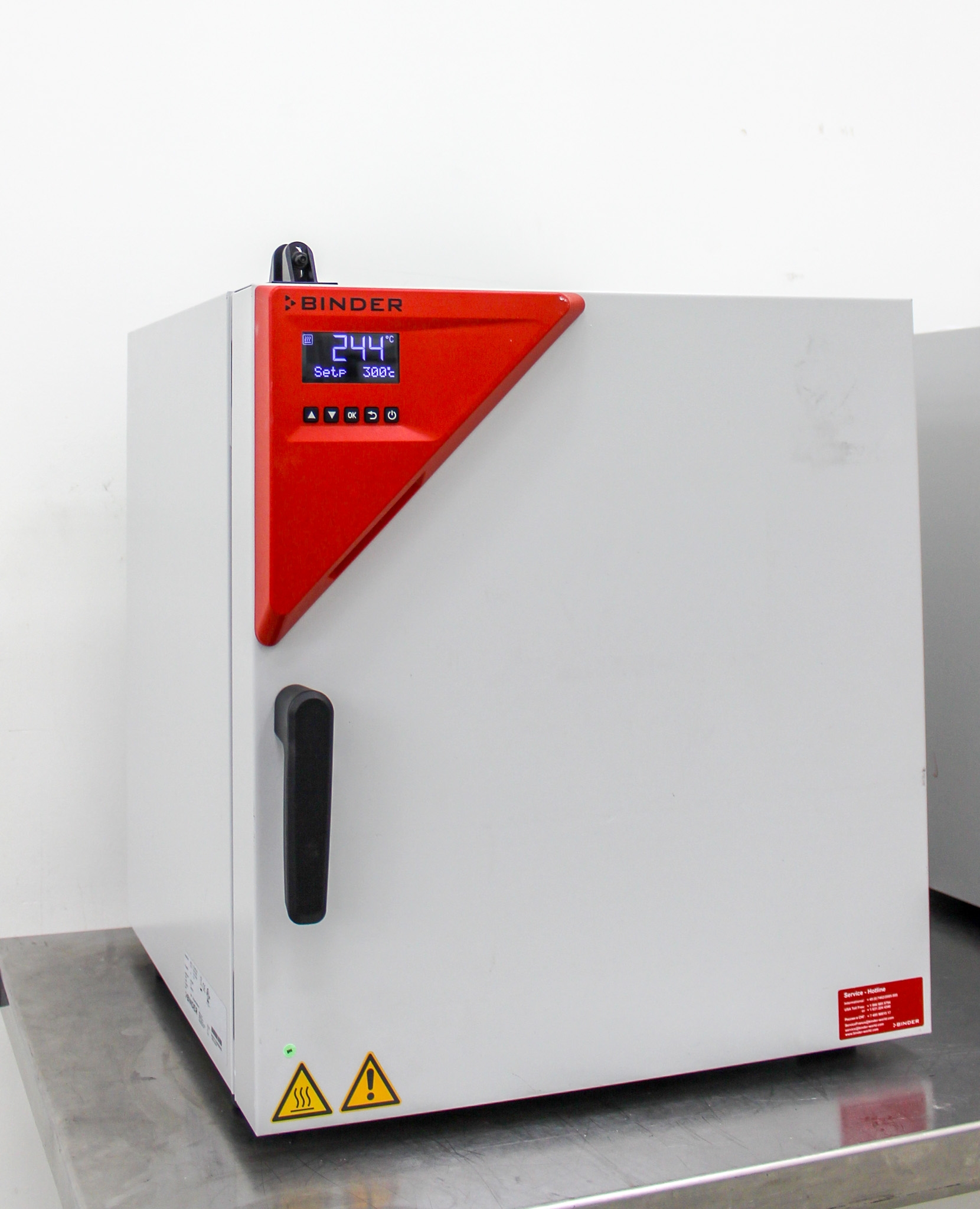

The BINDER ED 56 (version ED056UL-120V) from the Avantgarde. Line is a Gravity Convection drying and heating chamber with a capacity of 2 Cu Ft (57 L) and a temperature range from ambient +5 to 300C, requiring 120V power. This model, manufactured in 2018, has been tested to meet specifications and comes with a 30-Day Warranty, 100% Parts and Labor. The BINDER ED series Avantgarde. Line drying chamber excels in routine drying and sterilization tasks up to 300C, ensuring fast, uniform drying. The oven provides high temperature accuracy thanks to APT.lin technology, gravity convection, a controller with an LCD display, and electromechanical control of the exhaust air flap. Unique features include 2 chrome-plated racks, stackability for units up to 115 L, and a USB port for recording data. Typical applications include sample preparation, drying glassware and instruments, and heat treatment of samples in research and industrial laboratories. The oven is widely used in pharmaceutical, biotechnology, and academic research laboratories.
Technician comment

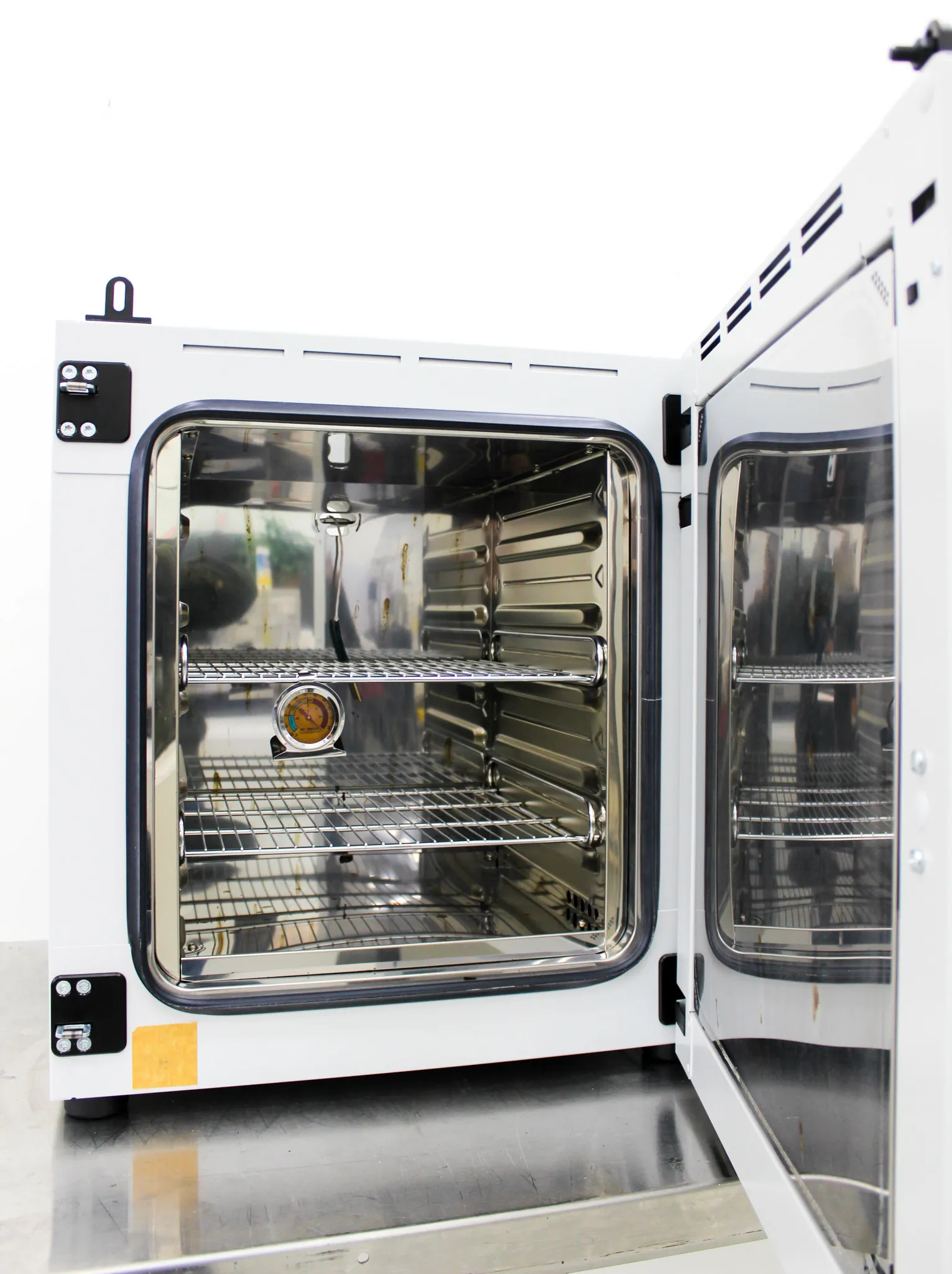

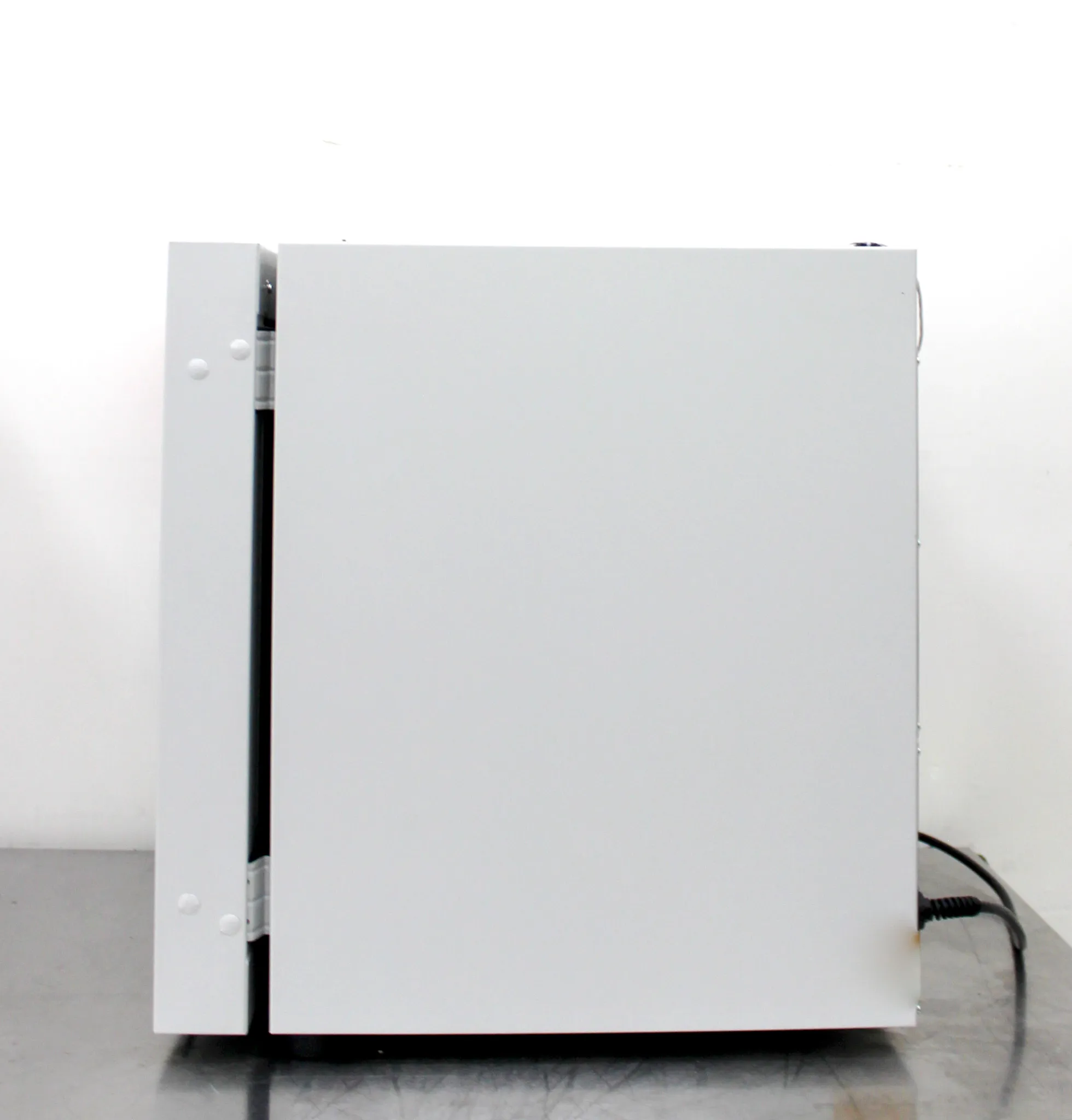

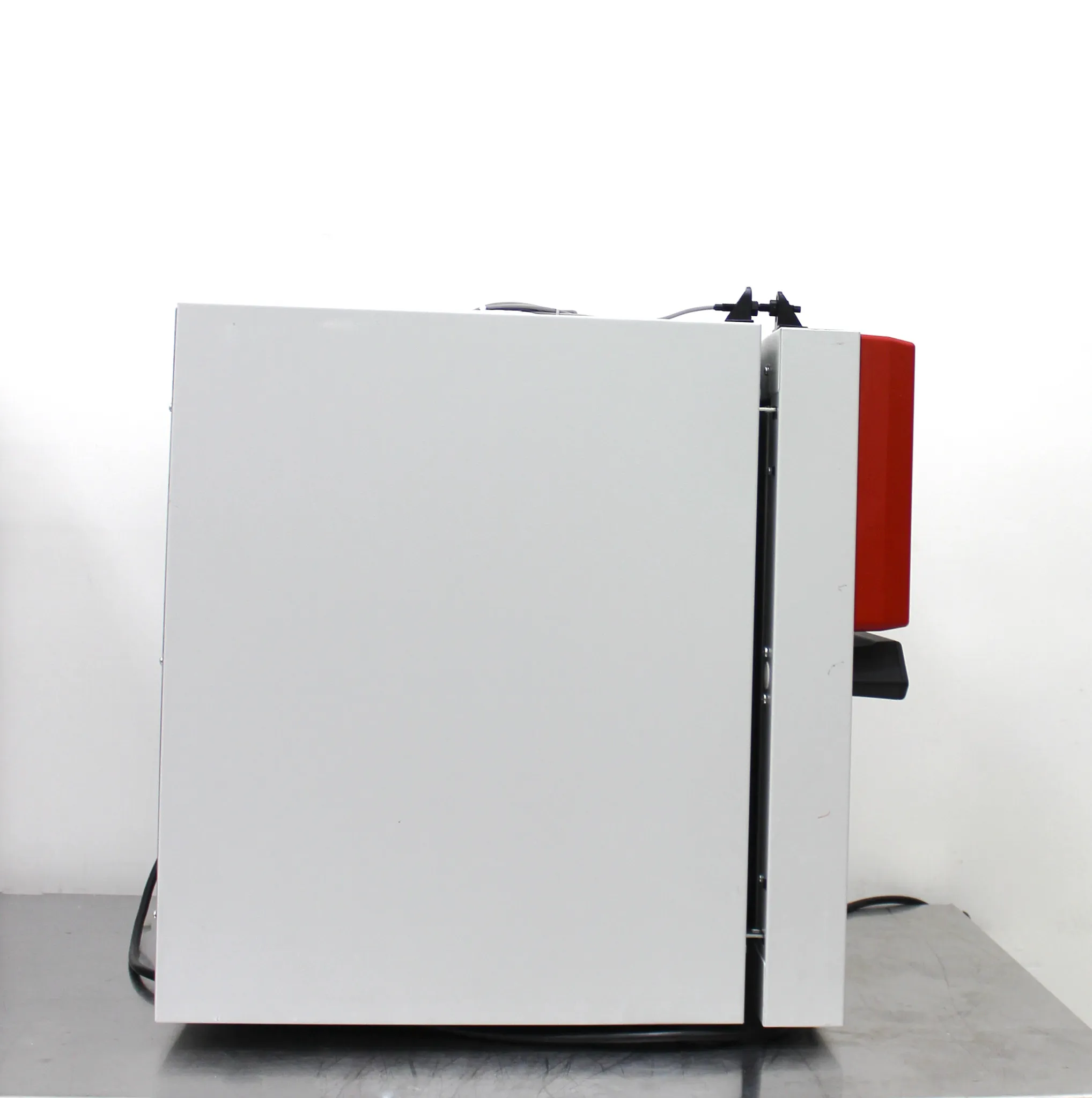

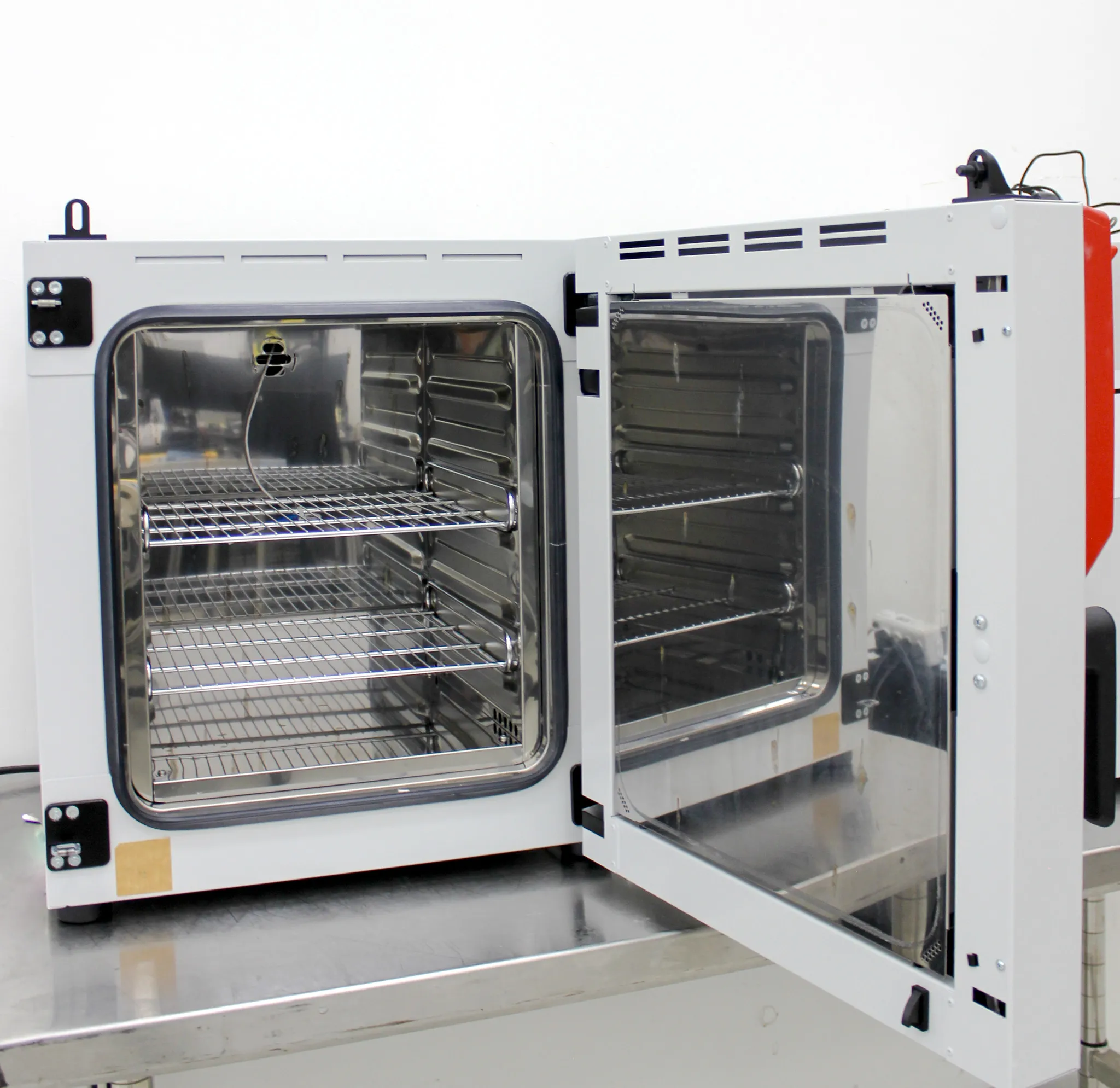

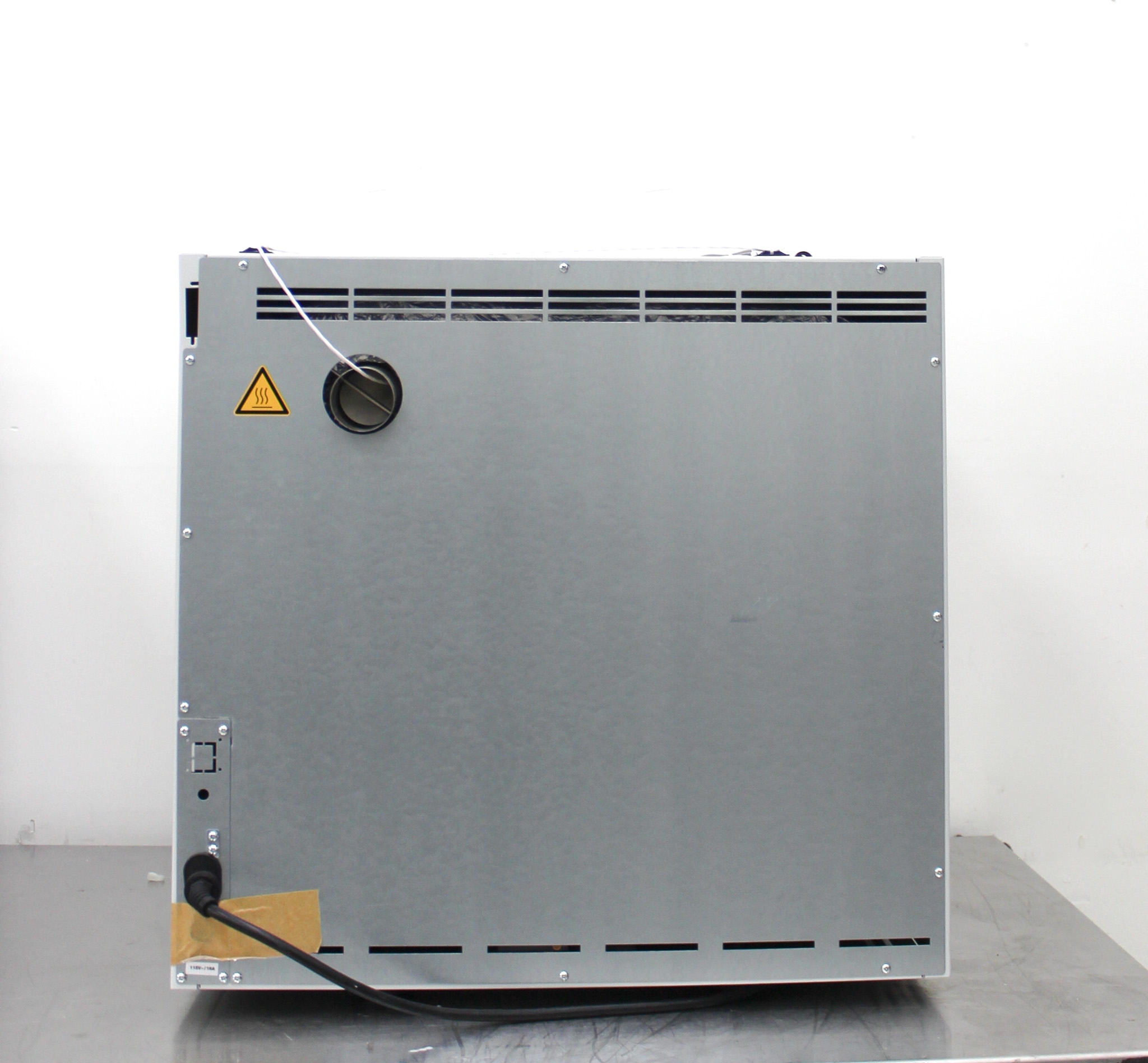

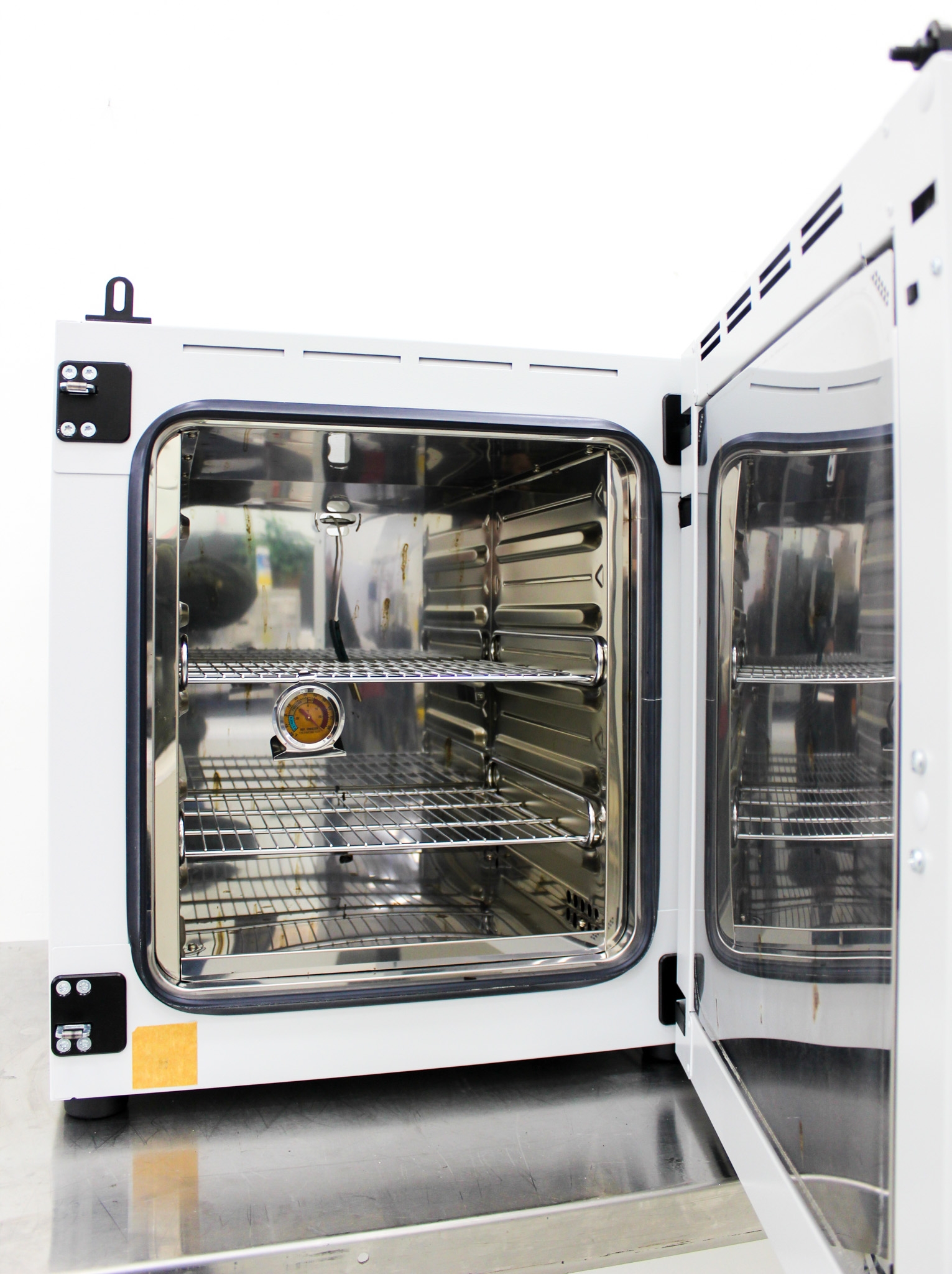

**This Oven was tested to specifications, minor stains in oven chamber. Buyer can expect same item displayed. See photos for further details.
Key Features
- Capacity of 2 Cu Ft (57 L)
- Temperature range from ambient +5 to 300C
- 120V power requirement
- High temperature accuracy with APT.lin technology
- Gravity convection for uniform drying

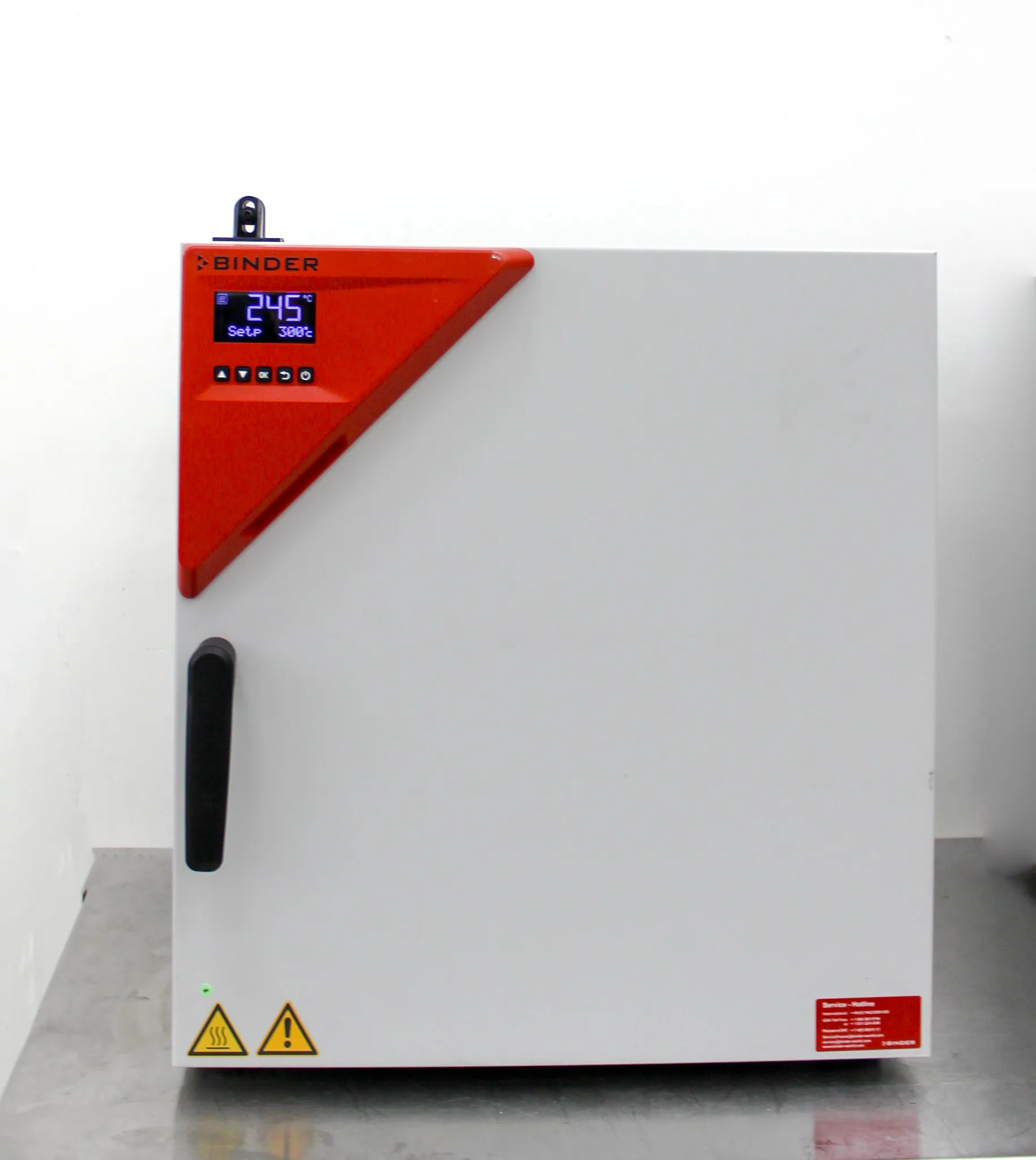

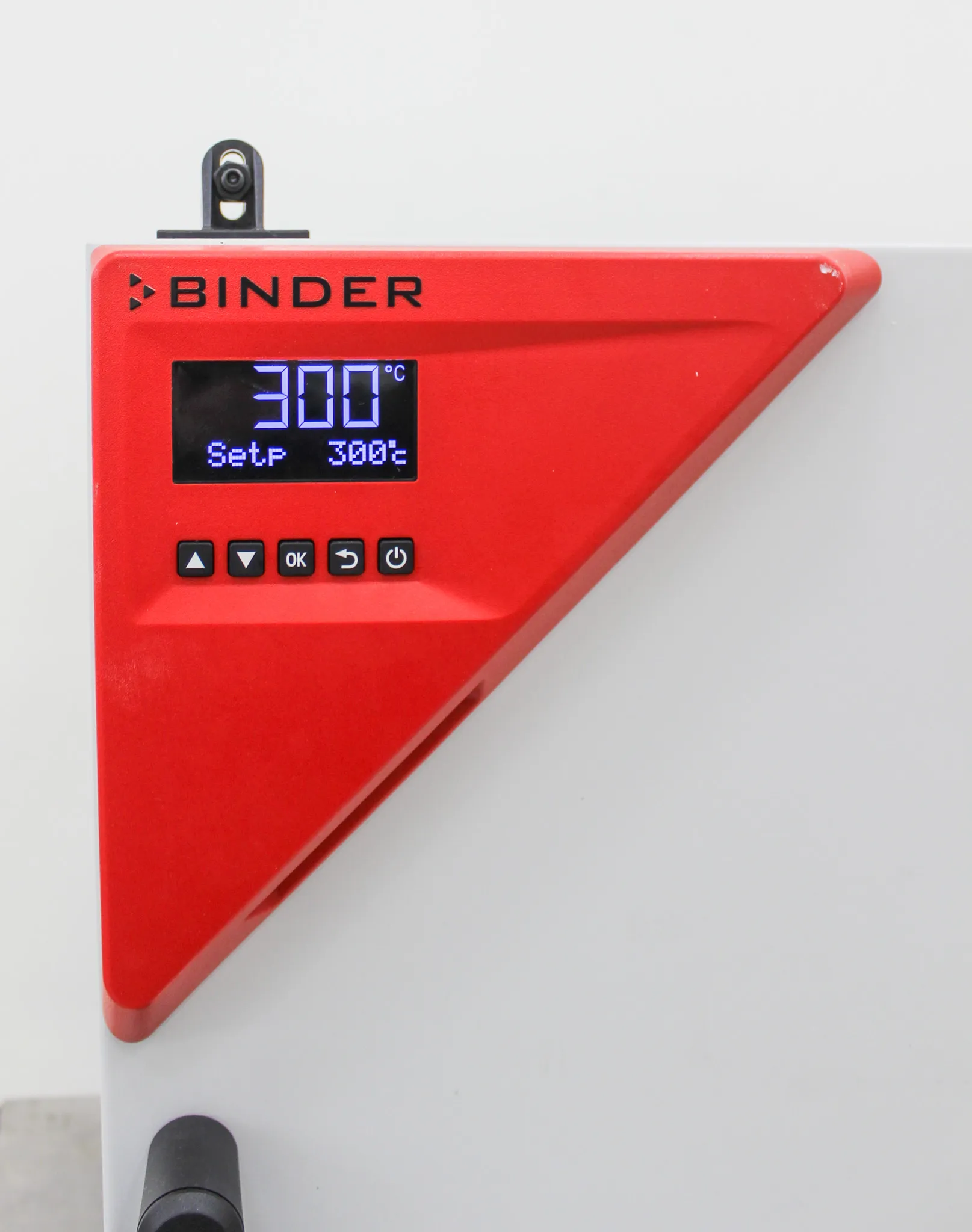

- Controller with LCD display
- Usable in pharmaceutical and biotechnology laboratories

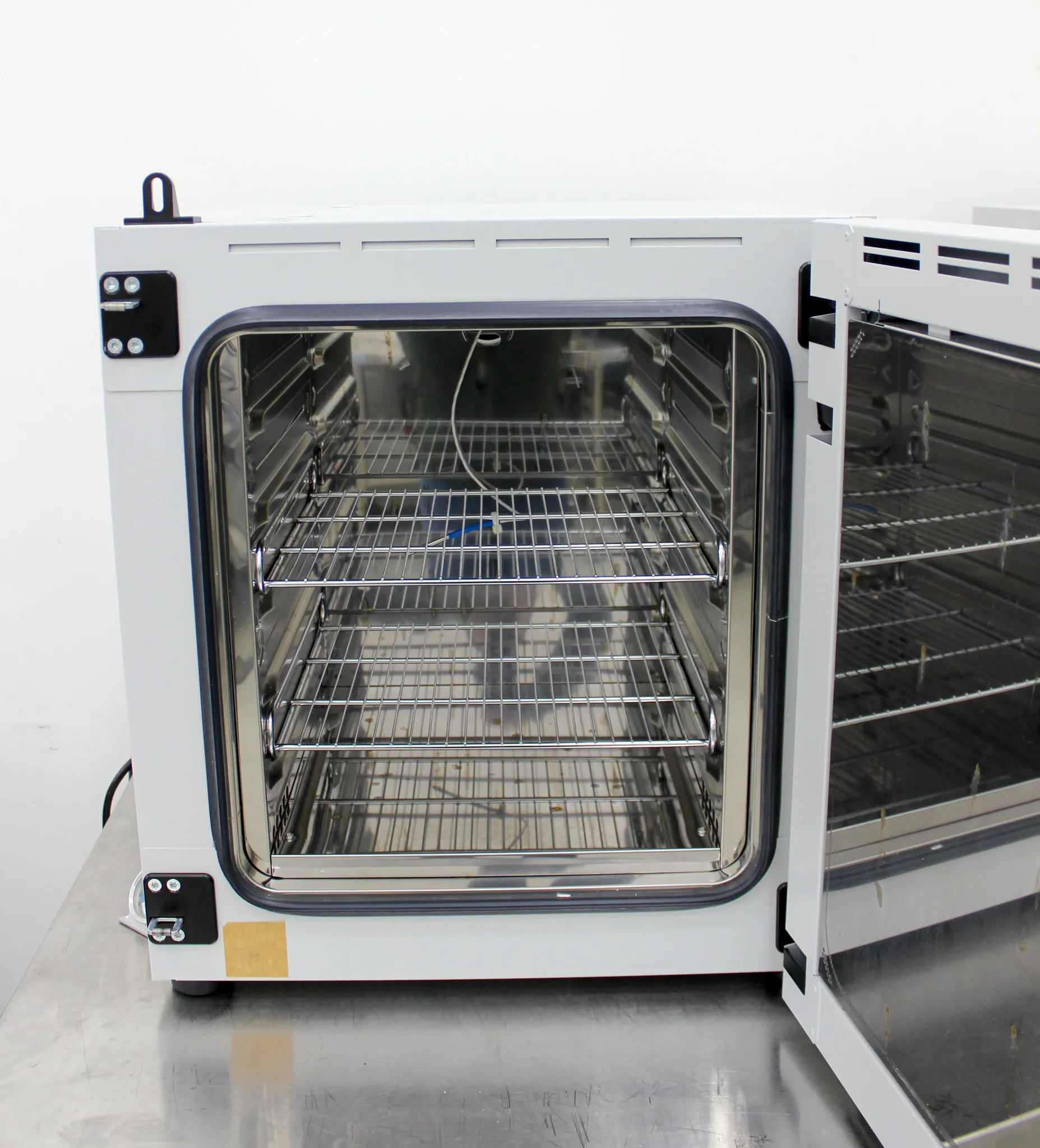

- 2 chrome-plated racks with stackability for units up to 115 L
- USB port for recording data
Specifications
- Temperature range: 5 C above ambient temperature to 300C
- Temperature variation at 150 C: 2.3K
- Temperature fluctuation at 150 C: 0.4K
- Heating-up time to 150 C: 50min
- Recovery time after 30 seconds door open at 150 C: 19min
- Rated Voltage: 120V
- Power frequency: 60Hz
- Nominal power: 1.15kW
- Unit fuse: 12.5A
- Chamber dimensions: 14.18in (Width) x 16.55in (Height) x 14.97in (Depth)
- Interior volume: 2 cu.ft.
- Permitted load: 154lbs
- Load per rack: 66lbs
- Energy consumption at 150 C: 180Wh/h
- Number of shelves (std./max.): 2/4
Weight
Metric: 32.66 kg
Imperial: 72 lb
Dimensions
Metric: 55.88 cm x 66.55 cm x 38.0 cm
Imperial: 22.0 in x 26.2 in x 14.96 in
Harmonized Code
841720
Harmonized Code Details
841720 - Industrial or laboratory furnaces and ovens, including incinerators, nonelectric
Testimonials
“REUZEit has been a great partner for our used equipment needs and always provide timely updates of new arrivals of consigned equipment.”
“Great company to work with. Tammy completed our first international equipment shipment with ease.”
“Fast response, open to adjusting schedule as needed, and great customer interaction.”
BINDER Gravity Convention Drying and Heating Oven Model: ED 53
BINDER Gravity Convention Drying and Heating Oven Model: ED53-UL
BINDER Gravity Convention Drying and Heating Oven model: ED 56/ 9010-0334
Need Answers? We’re Here to Help
Past Questions, Helpful Answers.
What types of applications is this oven suitable for?
The BINDER Gravity Convention Drying and Heating Oven is suitable for applications such as drying, heating, and sterilization in laboratory settings. It is ideal for use in biology, chemistry, and research fields where consistent and reliable temperature control is required.
How does this oven ensure uniform heating?
The oven features natural convection and APT Line technology, which ensures uniform heat distribution throughout the chamber. This guarantees that samples receive consistent heating for reliable results.
What are the main benefits of the Advanced Preheating Technology?
The Advanced Preheating Technology provides precise temperature control and a wide temperature range, allowing for more efficient and accurate drying and heating processes. It also contributes to faster heating and consistent temperature maintenance.
Is it easy to clean this oven?
Yes, the inner chamber is constructed from stainless steel with rounded edges and internally welded seams. This design makes cleaning simple and prevents condensation buildup, maintaining a hygienic environment.
How accurate is the temperature control?
The oven offers a high level of temperature accuracy, with an accuracy rate of 0.3°C. This precision ensures reliable operation and consistency for temperature-sensitive applications.
What technology is used to control the temperature?
The oven is equipped with an electronic PID controller that provides precise and stable temperature control. The LED display allows for easy monitoring and adjustments as needed.
What safety features are included in the design?
The oven incorporates thermal insulation to prevent heat loss, improving safety and operational cost-efficiency. The user-friendly design, including rapid heat-up and short recovery times, adds to safe handling and use.
What makes this oven energy-efficient?
The oven’s outstanding thermal insulation minimizes heat loss, which reduces energy consumption and operational costs. This ensures that the equipment runs efficiently, making it a cost-effective solution for laboratories.
Can this oven maintain consistent temperatures during use?
Yes, the oven is designed to maintain consistent temperatures with a temperature fluctuation of only 0.5K at 150°C. This helps ensure that experiments and processes are not affected by temperature variability.
What is the recovery time after opening the door?
The oven has a recovery time of 5 minutes after the door is opened for 30 seconds at 150°C, ensuring that temperature conditions stabilize quickly and processes resume efficiently.
