Parameter | Automated Plate Seal Remover |
Seal removal capacity | up to 400 per Removal Tape roll |
Seal verification sensor | reflective with sensitivity adjustment |
Communication | serial RS232 |
Motion parameters | Removal Tape adhere time, de-seal speed, plate output orientation, begin peel location |
General parameters | auto Removal Tape advance, plate verification, menu language |
Throughput | up to 200 plate seal removals per hour |
Brooks Life Sciences XPeel Automated Plate Seal Remover XP-A_115V
Same item available with different options / conditions
- Make Brooks
- Hertz 50Hz/60Hz
- Model X Peel

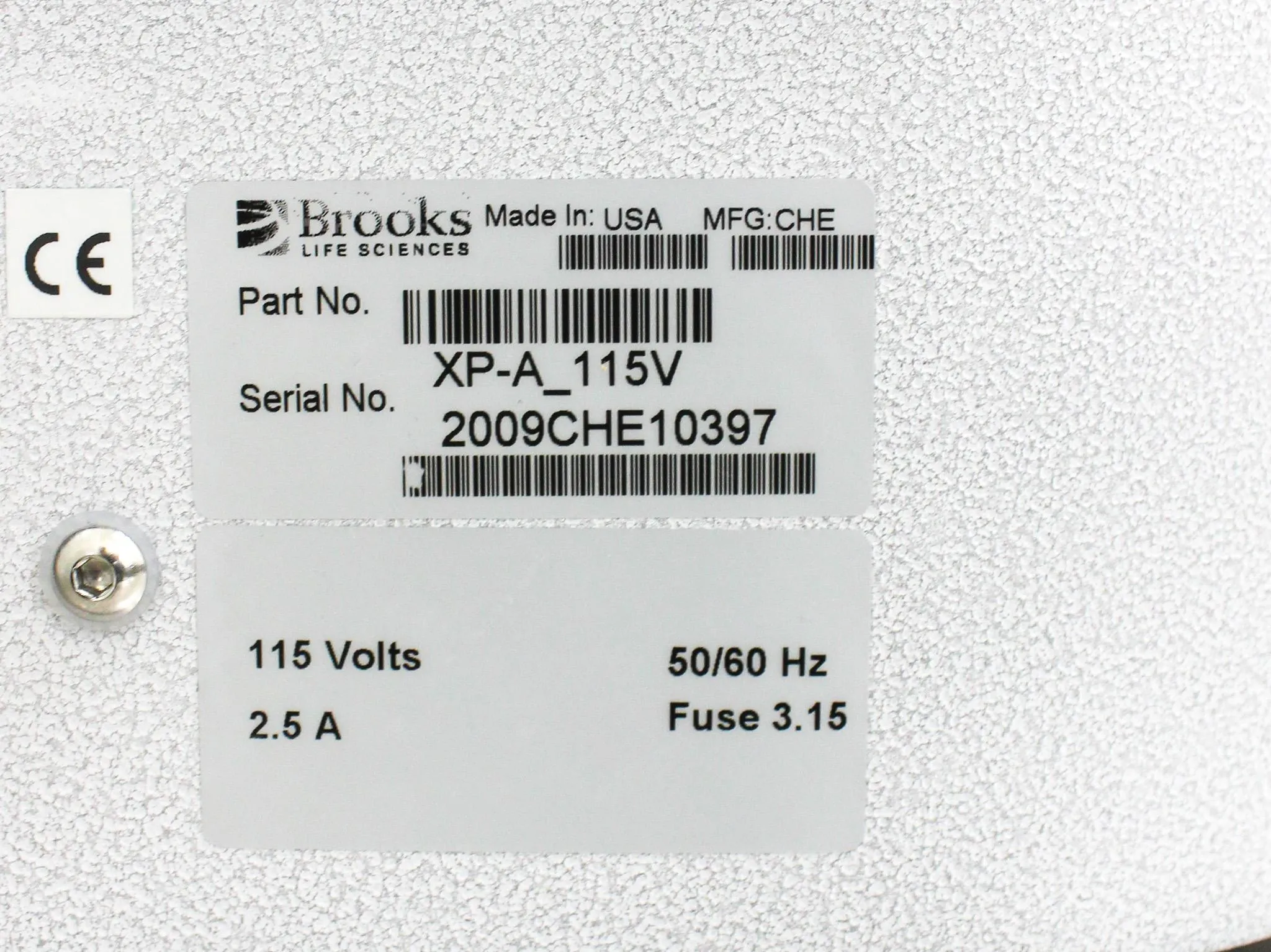

- Serial 2009CHE10397
- Weight 81
- Voltage 120V
- Working Working
- Includes Power Cord
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 32×22×22 in
- Shipping Type Freight
- Item Condition Pre-owned
Brooks Life Sciences XPeel Automated Plate Seal Remover XP-A_115V

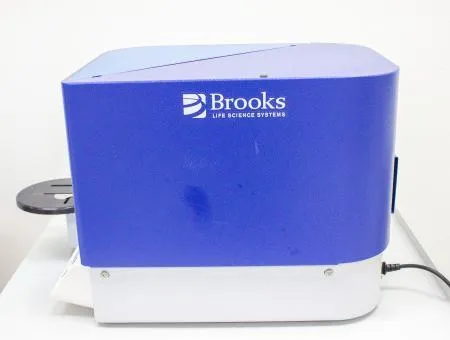

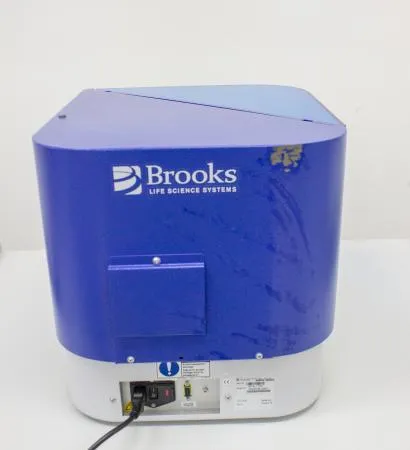

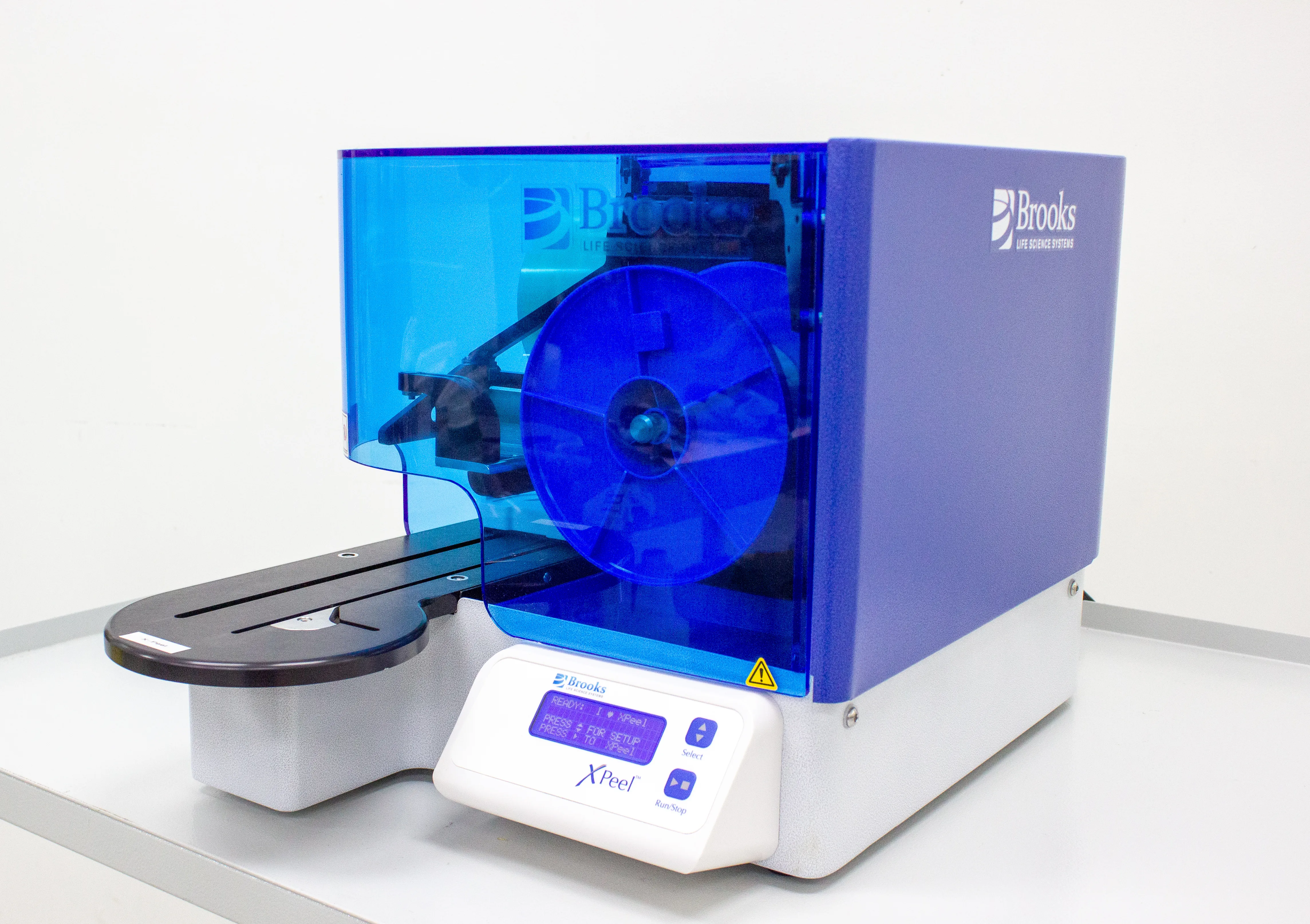

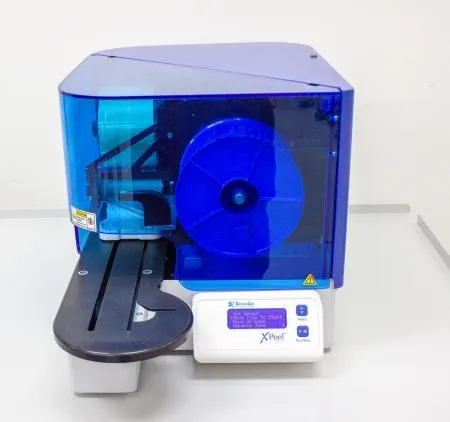

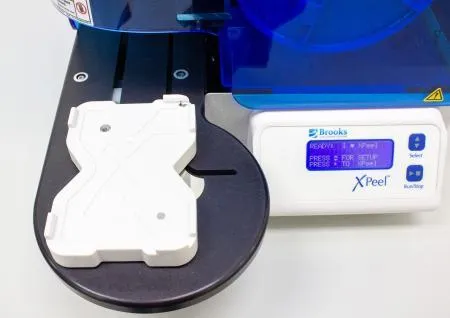

**XPeel plate seal remover was tested to specifications. Unit has slight cosmetic blemishes from normal use. Buyer can expect a working machine with 30-day warranty. See photos for details.
XPeel Automated Plate Seal Remover Brooks Life Sciences Automated Plate Seal Remover automatically removes seals from a wide range of microplate types with the single touch of a button, eliminating the need for repetitive, manual removal of plate seals and enables the adoption of the gold-standard operating model (sealed plates, no lids)
- Universal fit to all microplate and seal types
- Preserves sample integrity
- Easy to use, easy to integrate
Overview
The Automated Plate Seal Remover automatically removes seals from a wide range of microplate types with the single touch of a button. A robust and elegantly-simple automated system, it eliminates the need for repetitive, manual removal of plate seals and enables the adoption of the gold-standard operating model (sealed plates, no lids).
The patented Tape removal medium eliminates the need for mechanical removal mechanisms which are often prone to failure. The Automated Plate Seal Remover is highly reliable and can be used manually or integrated into automated systems with external robotics.
Key Features
- Compatible with Virtually all Microplate & Seal Types
- Can be used with a wide variety of microplates, including full-skirted PCR plates, low-base microplates and deep-well (up to 2ml) plates
- Compatible with a variety of full-plate seals, including heat and pressure applied seals
- Uses proprietary Removal Tape to de-seal microplates, up to 400 seal removals per tape roll
Preserves Sample Integrity
Eliminates cross contamination common with manual seal removal techniques
Supports quality control measures requiring samples to be sealed until their moment of use
Holds the plate down whilst the seal is peeled away from the plate, eliminating another contamination issue
Operating mode minimizes plate or seal damage
Integrated seal removal verification feature reduces plate handling errors
Easy to Use, Easy to Integrate
Can be used as a standalone system, or integrated into automated and robotic workflows via Serial RS232 remote interface
One-touch, push-button operation to de-seal plates makes the Automated Plate Seal Remover an ideal standalone device for busy laboratories
Capacity to remove up to 200 plate seals per hour
Robust, time-proven device with hundreds of units placed globally in a range of manual and automated environments
Specifications
Same item available with different options / conditions.
