BIO-RAD CFX Opus 96 Real-Time PCR System

Product Information

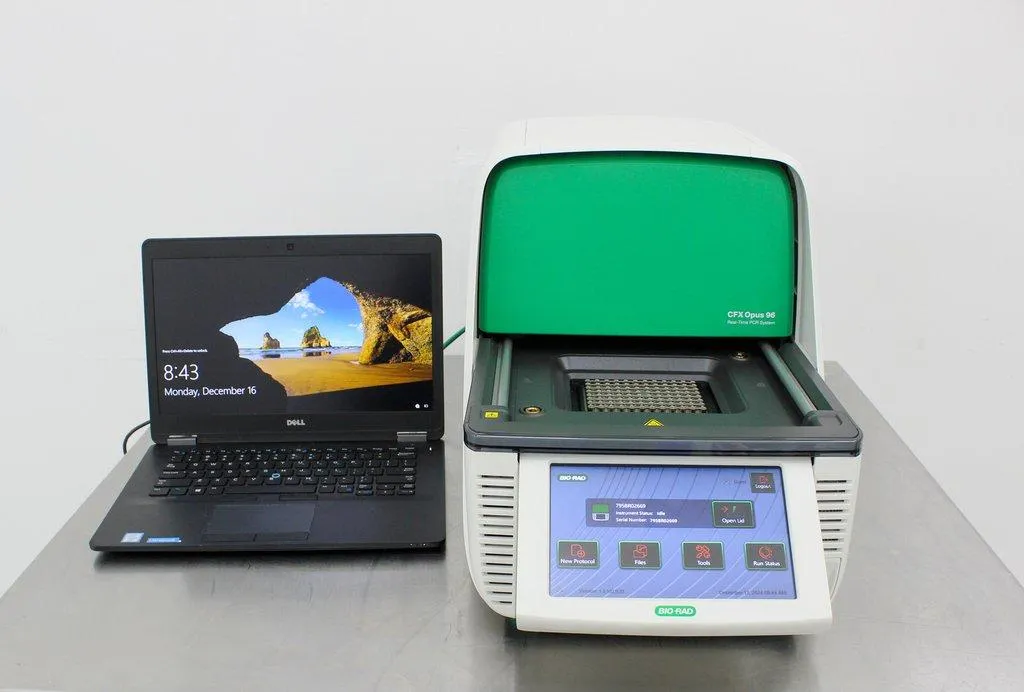

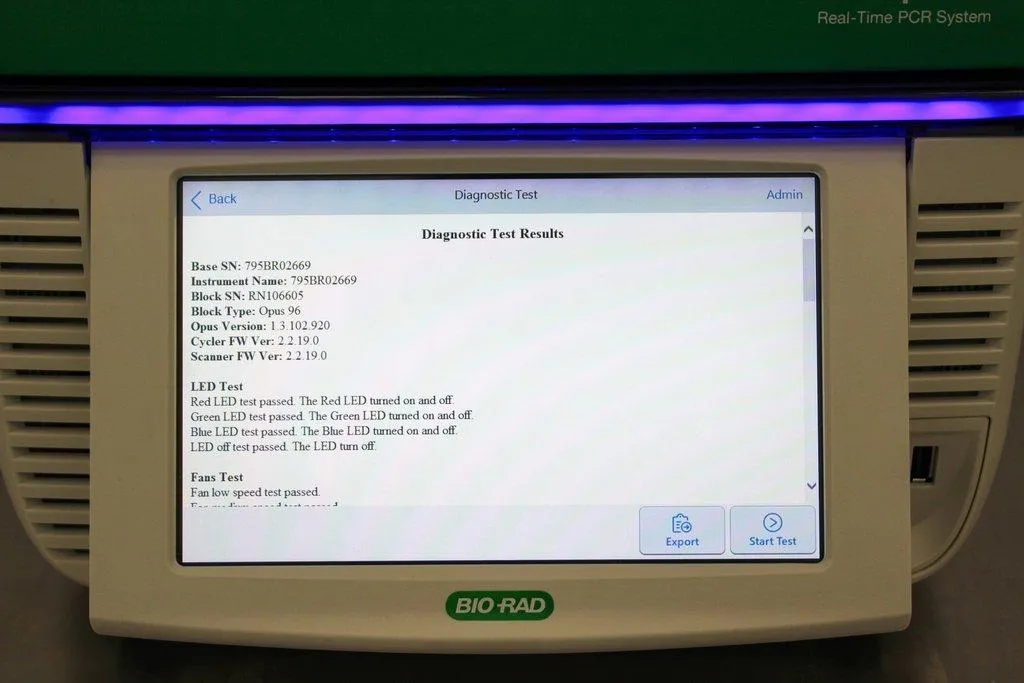

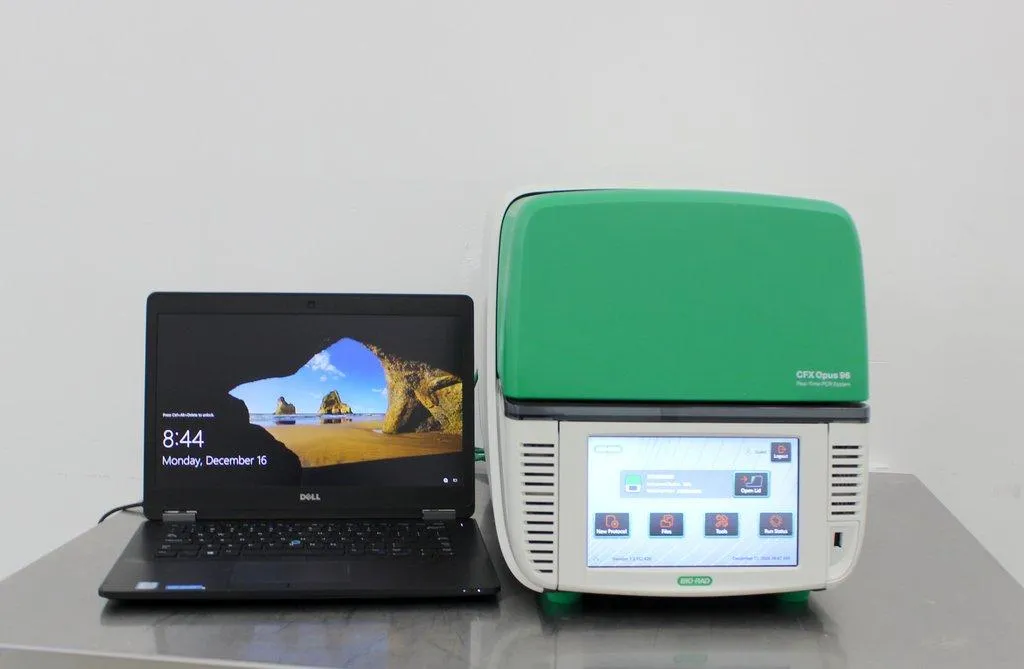

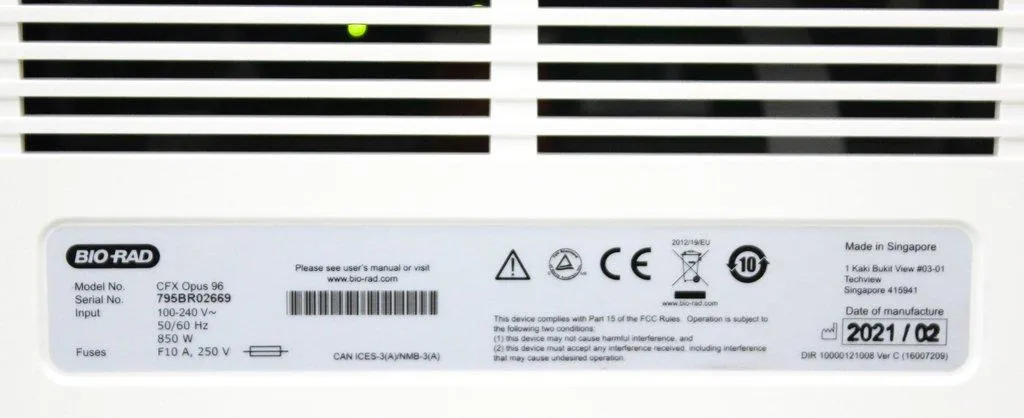

The BIO-RAD CFX Opus 96 Real-Time PCR System manufactured in 2021 with model number 795BRO2669 represents an advanced thermal cycler and optical detection system. This Real-Time PCR System is capable of 96-well, 5-color plus FRET analysis, offering expanded connectivity, cloud compatibility, and network storage drive access. The system is equipped with a shuttle optical system for consistent optical measurements, demonstrating exceptional thermal performance with precise temperature control and uniformity. The CFX Opus 96 Real-Time PCR System operates with Windows 10 and can conduct multiplex analysis with a sample capacity of 96 wells. While the system is fully functional, it requires a computer for complete testing. Typical applications include gene expression analysis, genotyping, and pathogen quantification, making it an invaluable tool for molecular biology laboratories. The make and model represent a significant advancement in real-time PCR technology, enhancing research and diagnostics in the life sciences sector.

• 5-color plus FRET analysis capability
• Expanded connectivity with Wi-Fi, Ethernet, and USB
• Cloud compatibility for operation and data management
• Shuttle optical system for consistent optical measurements

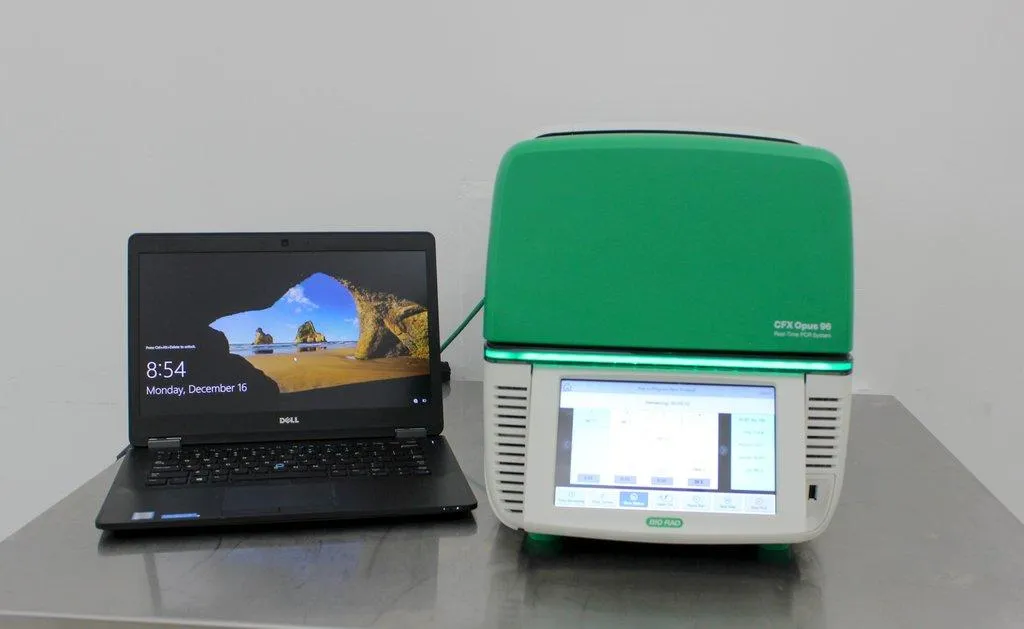

• Windows 10 operating system with multiplex analysis
• Sample capacity of 96 wells

• Thermal Cycler
• Maximum ramp rate, °C/sec: 5
• Average ramp rate, °C/sec: 3.3
• Heating and cooling method: Peltier
• Lid temperature, °C: 30–110
• Temperature range, °C: 4–100
• Accuracy, °C: ±0.2 of programmed target at 90°C
• Uniformity, °C: ±0.3 well-to-well after 10 sec of arrival at target
• Gradient operational range, °C: 30–100
• Programmable span, °C: 1–24
• Optical Detection
• Excitation: 6 filtered LEDs
• Detection: 6 filtered photodiodes
• Excitation wavelengths range, nm: 450–684
• Emission wavelengths range, nm: 510–730
• Sensitivity: Detects 1 copy of target sequence in human genomic DNA
• Dynamic range: 10 orders of magnitude
• Scan Time: All channels, sec: 12, FAM/SYBR® Green only, sec: 3
• Software
• Operating system: Windows 10
• Multiplex analysis: Up to 5 targets per well
• System

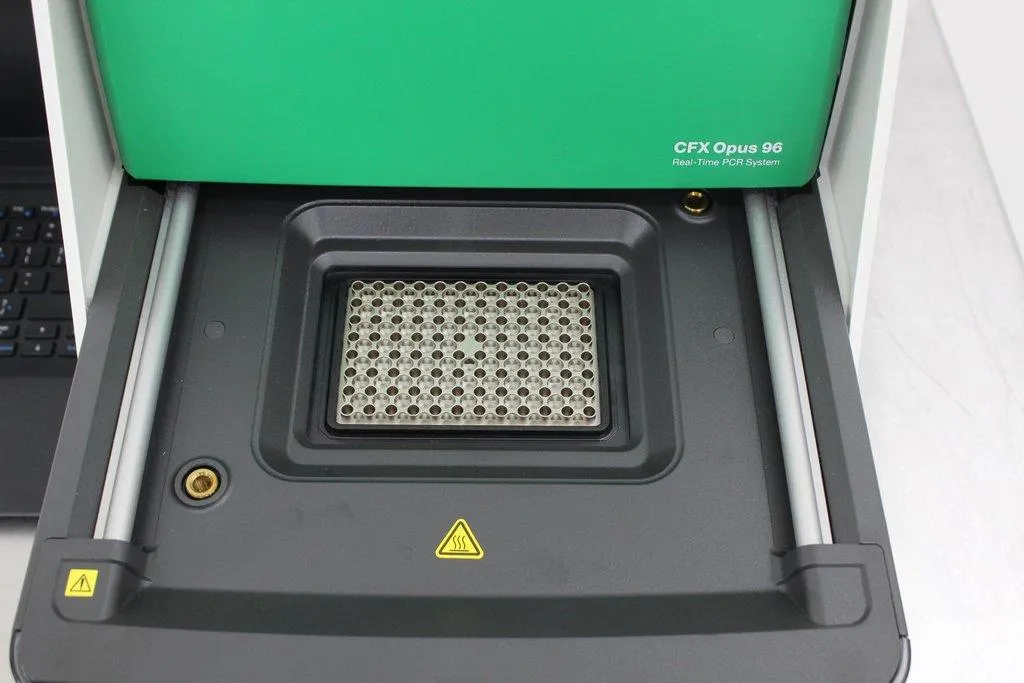

• Sample capacity, wells: 96
• Sample size, µl: 1–50 (10–50 recommended)
• Communication interface: USB 2.0
• Electrical approvals: IEC, CE
• Dimensions (W x D x H), cm/in: 33x56x36 / 13x22x14

Metric: 32.66 kg

Imperial: 72 lb

Metric: 56 cm x 36 cm x 33 cm
Imperial: 22.05 in x 14.17 in x 12.99 in
