Kruss DSA30 Contact Angle Analyzer for Surface Characterization
Kruss
Details
-
CategoryTesting Equipment
-
Dimension36.0in x 25.0in x 94.0in
-
Serial30013719
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

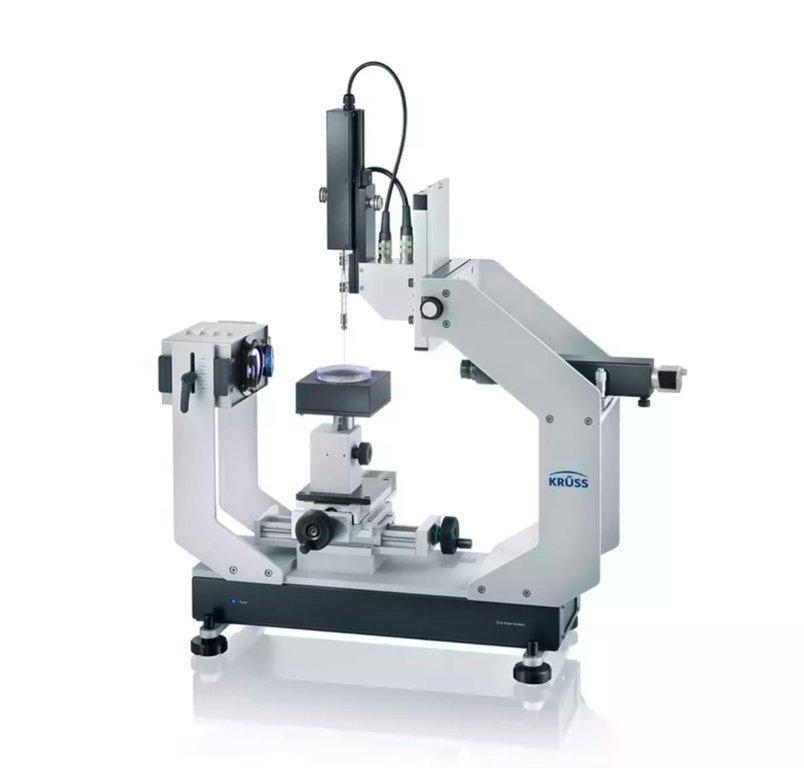

The Kruss DSA30 Contact Angle Analyzer is a precision instrument designed for surface characterization, ideal for scientific research and quality control. Manufactured in the United States, this new model offers state-of-the-art integrated features including a stable frame supporting a sample area of 320 x 200 x 275 mm, a high-power LED illumination with adjustable intensity levels, and a versatile manual sample stage with clamps. The analyzer accommodates a range of positioning movements for manual and software-controlled adjustments. The electronic base module supports various temperature conditions (-10°C to +70°C storage, +10°C to +40°C operational). It’s an essential tool for precise measurements in surface energy evaluation and wettability analysis.
Technician comment

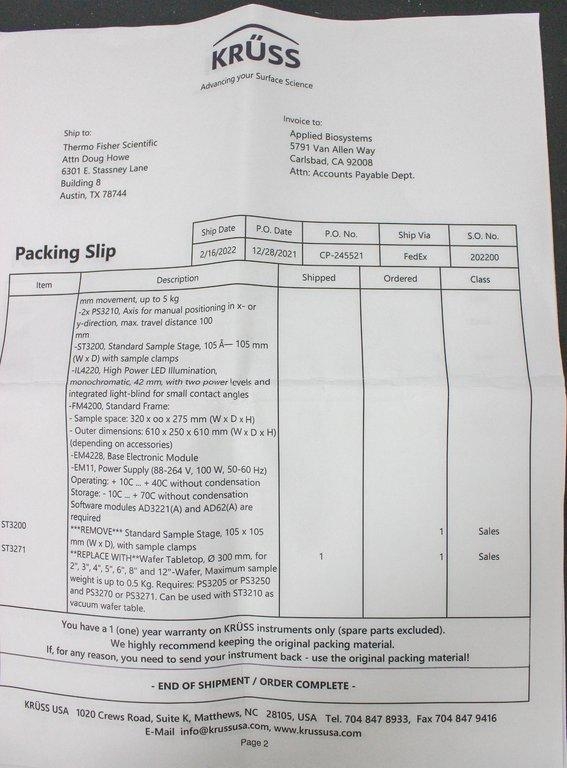

rm movement, up to 5 kg 2× PS3210, Axis for manual positioning in x- or y-direction, max. travel distance 100 mm ST3200, Standard Sample Stage, 105 × 105 mm (W × D) with sample clamps IL4200, High Power LED illumination, – Manually adjustable intensity, four levels and integrated light-blind for small contact angles Frame: Stable frame – Sample area 320 × 200 × 275 mm (W × D × H) – Outer dimensions 610 × 250 × 610 mm (W × D × H) depending on accessories EM4228, Base Electronic Module – Power supply (88 – 264 V, 100 – 50/60 Hz) – Temperature +10 °C … +40 °C without condensation – Storage –10 °C … +70 °C without condensation – Includes AD232A(1) and AD261A(2) adapters ST3200 – Standard Sample Stage, 105 × 105 mm (W × D) with clamps (1 ×) ST3271 – Replace with “Water Tabletop”, Ø 300 mm, for DSA30, 12″ × 12″ Wafer, Manual Sample Stage – Requires PS3205 or PS3250 positioning axes, can be used as ST3210 as well. PS3202 REMOVE “z-Axis Standard, precision z-drive with 40 mm movement, up to 5 kg.” PS3205 REPLACE WITH: “z-Axis Heavy Duty, precision z-drive with 38 mm movement, especially designed for heavy samples up to 10 kg.” PS3210 “Remove both x/y-Axis for manual positioning in x- or y-direction, max. travel distance 100 mm.” PS3261 REPLACE LIST XY WITH: “Axes for software-controlled positioning in x- or y-direction, max. travel distance 170 mm.” PS3206 “Spacer 36 mm, to adjust various axes height.” PS3270 REPLACE ND XY WITH: “Rotation Axis, software-controlled positioning device with 360° movement. Weight of this device is 1 kg with a precision of ± 1. Maximum sample weight is up to 0.05 kg. Requires PS3205 or PS3250. To be used with: ST3210, ST3271, ST3281.”
Key Features
- Stable frame for precise measurement
- Integrated LED illumination with adjustable levels
- Compatible with various sample stages and positioning axes
- Supports wide temperature range for diverse environments
- Designed for accurate surface characterization
Specifications
- - Frame Dimensions: 610 x 250 x 610 mm (W x D x H)
- - Sample Area: 320 x 200 x 275 mm (W x D x H)
- - Illumination: High Power LED, manually adjustable intensity
- - Positioning: Software-controlled in x- or y-direction, max travel distance 170 mm
- - Temperature Range: +10°C to +40°C operational, -10°C to +70°C storage
Weight
Imperial: 360.0 Pounds
Metric: 163.29 Kilograms
Shipping Dimensions
Imperial: 43.2 lb x 30.0 lb x 112.8 lb
Metric: 109.73 cm x 76.2 cm x 286.51 cm
Harmonized Code
90275010
Harmonized Code Details
90275010 Instruments and apparatus for physical or chemical analysis, using optical radiations (UV, visible, IR); justifies by being a contact angle analyzer used for surface measurements.
