Hamilton Microlab Star Liquid Handler Automation iSWAP 16 Channel 1000uL
Hamilton
Details
-
CategoryLiquid Handling
-
Dimension92.0in x 48.0in x 103.0in
-
SerialH478
-
Shipping TypeFreight
-
Manufacturing2022-01-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

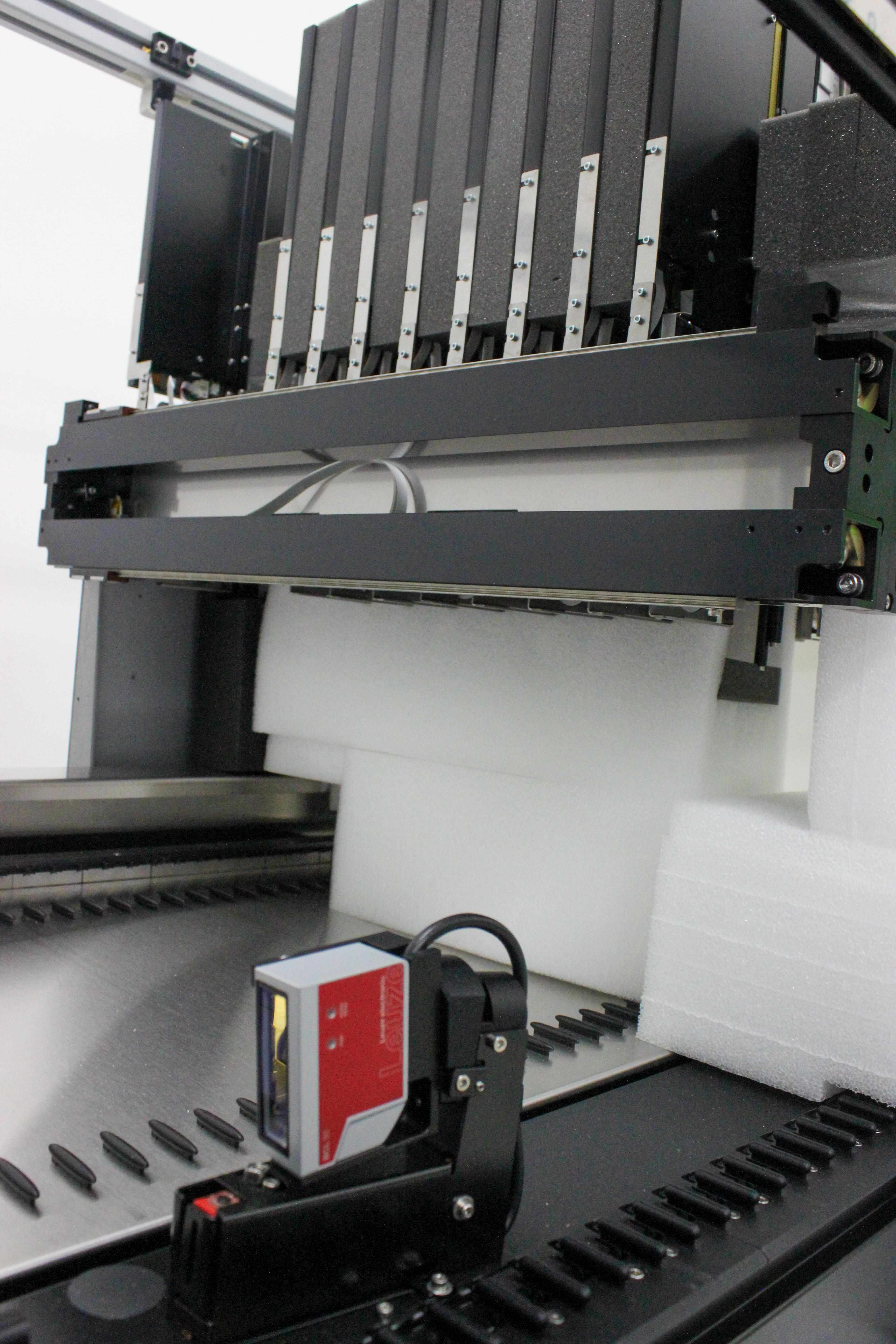

The 2022 Hamilton Microlab STAR AL 16 channel with iSWAP gripper and custom bench offers a versatile solution for liquid handling. Engineered in the USA, this new unit features high-precision pipetting, automating liquid transfers up to 1000 µL per channel with advanced air displacement. Ideal for genomics, proteomics, and cell biology, the system enhances sample throughput with a modular design that integrates seamlessly with shakers, heaters, and scanners. The iSWAP gripper streamlines the accurate transport of labware, reducing manual intervention. Equipped with VENUS software for programming, this unit supports parallel processing, promoting efficiency and reliability in laboratory workflows. Computer is not included. Accessories included: STAR AL 16 channel, iSWAP gripper, custom bench, and various precision components.
Technician comment

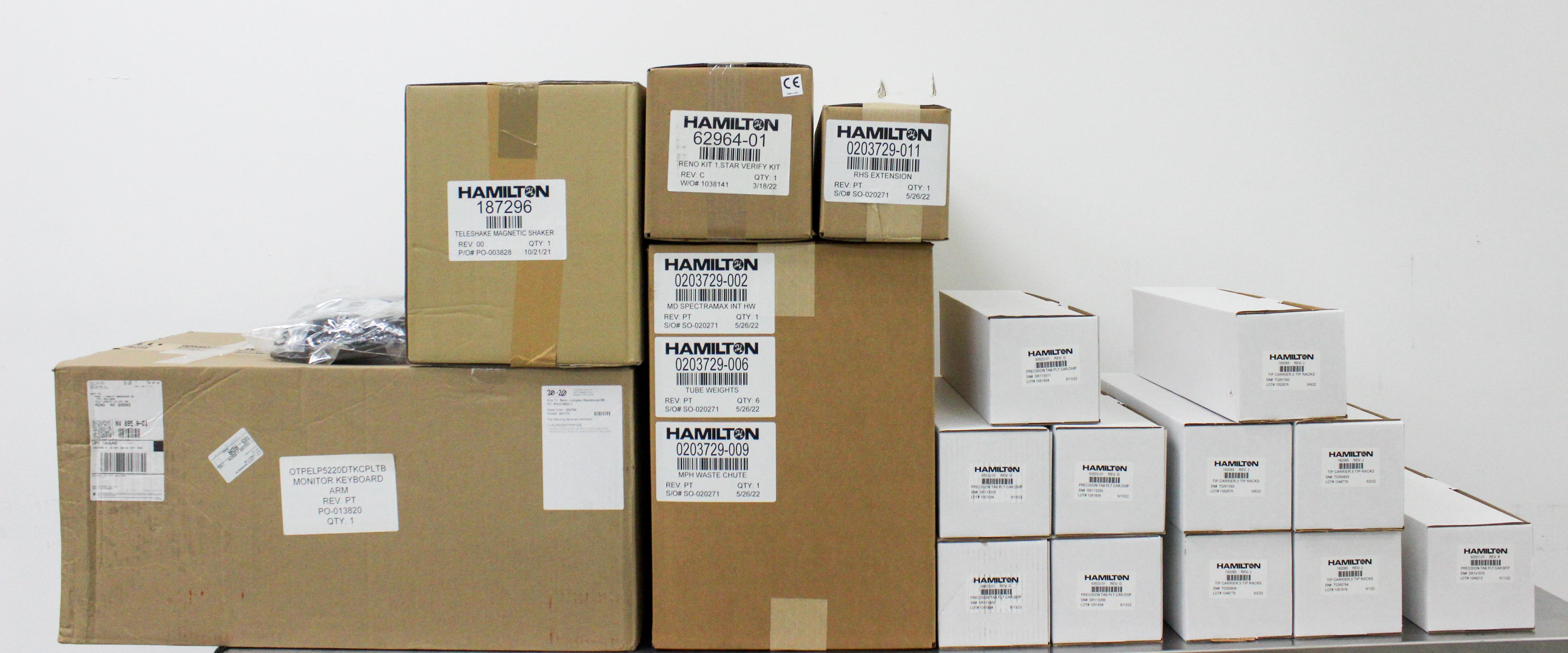

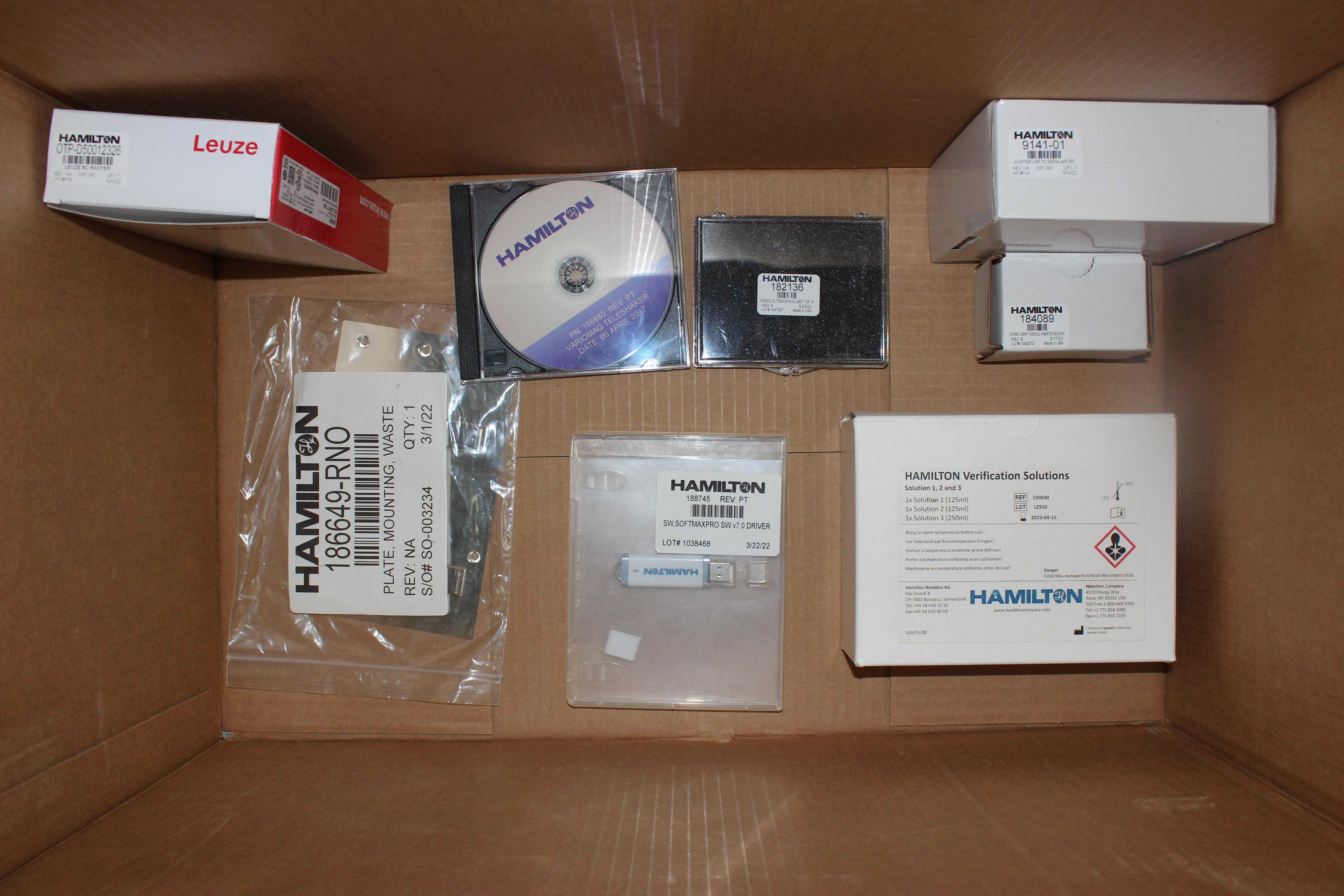

Includes: Microlab STAR AL 16 channel, iSWAP gripper with Custom bench & accessories. Included components: 173002-049 STAR 16 AL iSWAP gripper 173027 ASSY, DECK, STAR, WELDED CHASSIS – 1 EA - 173032 HOUSING ASSY, STAR – 1 EA - 190220 1 SWAP LANDSCAPE – 1 EA - 170320-C01 CHANNEL PAIR, 1000 UL PIPETTING – 8 EA - 173041 ADD-ON ARM, WELD CHASSIS – 1 EA - 911642V4 MODULAR ARM B, 4-12, 16, 96 PR, SW – 1 EA - 911642V4 SW TOOLS BASE PACKAGE V4.5 – 1 EA - Configuration 000178 – Sub-components - OTP-D50012236 LEUZE BC RASTER – 1 EA - 184089 CORE GRIP 1000 UL WASTE BLOCK – 1 EA - 185926 MPH WASTE CHUTE – 1 EA - 186469-R00 PLATE, MOUNTING, WASTE – 1 EA - 186895-R00 TIP CARRIERS, TIP RACKS – 5 EA - 187250-R00 PRECISION TAB PLT CAR, DWP – 5 EA - 187270-R00 PRECISION TAB PLT CAR, MTP – 1 EA - 187405 PLATEBASE, 74 T AP CPAC – 1 EA - 187462 TELESHAKE MAGNETIC SHAKER – 1 EA - 187463 VARIOMAG TELESHAKE – 1 EA - 187800-R00 TUBE WEIGHTS – 6 EA - 187800-R00 NEEDLE, TEACHING, SET OF 8 – 1 EA - 2032739 CUSTOM BENCH – 1 EA - 0201379-00 ADAPTER, USB TO SERIAL 4-PORT – 1 EA -
Key Features
- 16 independent pipetting channels with up to 1000 µL per channel
- Advanced air displacement technology for precise liquid handling
- iSWAP gripper for automated labware transport
- VENUS software for custom script programming
- Modular deck for carrier and accessory integration
Specifications
- Pipetting Capacity: Up to 1000 µL per channel
- Power Supply: 120V/220V, 50Hz/60Hz
- Pipetting Channels: 16 independent channels
- Liquid Level Detection: Capacitive and pressure-based modes
- Inclusions: Power/Data Cables, Power Cord, Service Records, Software CDs/Files, User Manuals
Weight
Imperial: 1560.0 Pounds
Metric: 707.6 Kilograms
Shipping Dimensions
Imperial: 110.4 lb x 57.6 lb x 123.6 lb
Metric: 280.42 cm x 146.3 cm x 313.94 cm
Harmonized Code
84798997
Harmonized Code Details
Harmonized code 84798997 relates to other machines and mechanical appliances having individual functions. The Hamilton Microlab STAR fulfills this category due to its specialized role in laboratory automation.
